CN210534210U - An outdoor pole-type combined low-voltage meter box - Google Patents
An outdoor pole-type combined low-voltage meter box Download PDFInfo
- Publication number
- CN210534210U CN210534210U CN201921298211.2U CN201921298211U CN210534210U CN 210534210 U CN210534210 U CN 210534210U CN 201921298211 U CN201921298211 U CN 201921298211U CN 210534210 U CN210534210 U CN 210534210U
- Authority
- CN
- China
- Prior art keywords
- meter box
- inlet
- outlet
- meter
- fixing
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Suspension Of Electric Lines Or Cables (AREA)
Abstract
一种新型户外立杆式组合低压电表箱，包括固定基础底座、表箱竖向钢架杆、横向表箱固定横担、进出线管槽、辅助壳体及防雨棚架。本实用新型结构简单，材料易取，安装方便；可对进出线缆、低压电表箱进行集中安装，并集中布线，做到了占地面积小、运维便捷、集中管理、并降低窃电风险，在老旧小区改造、沿街低压表计集中管理方面具有推广价值。
A new type of outdoor vertical pole type combined low-voltage meter box includes a fixed base base, a vertical steel frame rod of the meter box, a fixed cross arm of the horizontal meter box, an inlet and outlet duct groove, an auxiliary shell and a rainproof shelf. The utility model has the advantages of simple structure, easy access to materials and convenient installation; centralized installation and centralized wiring of incoming and outgoing cables and low-voltage electricity meter boxes can be performed, so as to achieve small footprint, convenient operation and maintenance, centralized management, and reduce the risk of electricity theft. It has promotion value in the renovation of old communities and the centralized management of low-voltage meters along the street.
Description
Technical Field
The utility model belongs to power supply marketing, the distribution field.
Background
In the traditional mode, the low-voltage electric meter is installed in an embedded or outer wall hanging mode, and the problems that public channel space in a building is insufficient, the wall of a resident is damaged and disputes, a client side steals electricity and the like exist.
Disclosure of Invention
The utility model aims at solving above problem, provide an outdoor upright post formula combination low pressure ammeter case, the installation can be concentrated to business turn over cable, low pressure ammeter case to make full use of cable public environmental resource before registering one's residence, has accomplished that area is little, fortune dimension is convenient, reduce the risk of stealing electricity, reforms transform at old district, has spreading value along the aspect of street low pressure meter centralized management.
The technical scheme of the utility model is that can realize like this: the utility model provides an outdoor pole setting formula combination low-voltage electricity meter box which its characteristics are: the meter box comprises fixed base bases 1 at the bottoms of the left side and the right side, meter box vertical steel frame rods 2 at the left side and the right side, a transverse meter box fixing cross arm 3 in the middle, a main meter box body 4 at the upper part, a transverse inlet and outlet pipeline groove 5 positioned at the bottom of the main meter box body 4 and an auxiliary shell 6 for sealing; the fixed base 1 adopts a support type grouting material, and longitudinal metal pipeline hole sites are reserved for the entrance and exit of cables; the vertical steel frame rod 2 of the meter box adopts 10# galvanized C-shaped channel steel to form a vertical fixing support which is divided into an upper part and an underground part, and a punching through penetrating M10 screw is reserved for fixing transverse and longitudinal channel steel; the transverse meter box fixing cross arm 3 adopts three rows of No. 6 galvanized C-shaped channel steel, the length can be expanded according to the number of meter hanging bits, a punched hole is reserved to cross and connect M10 screws to fix the metal meter box, the third row is a base of a wire inlet and outlet channel, after threading, the outline of the transverse meter box fixing cross arm is closed by adopting 304 stainless steel materials, and the protection grade is not lower than IP 33; the main meter box body 4 can be selectively matched with a universal low-voltage meter box, a cable inlet and outlet wire hole is reserved at the bottom of the box, corresponds to a lower inlet and outlet wire pipe groove and is closely adjacent to a base, and an inlet and outlet wire winding electricity stealing operation space is eliminated; the wire inlet and outlet pipe grooves 5 are positioned on the outer surface of the second row of channel steel cross arm, provide installation channels for the inlet and outlet of cables, contain cable fixing clamps, heat insulation plates and the like for fixing the cables, and reserve cavities for the inlet and outlet of the electric meter box from top to bottom; and after the auxiliary shell 6 is made of a 304 stainless steel plate, a cable channel is sealed along a metal steel frame and a wire inlet and outlet pipe groove, the shell is in a protection grade of IP33, and heat dissipation holes are reserved on side panels.
Further, be equipped with rain-proof rack 7 at table case frame top, with the top of the vertical steel hack lever 2 of table case with bolted fixation, be not less than 0.1 meter with table case upper end interval, guarantee to show the case heat dissipation.
The utility model relates to a based on C type channel steel frame construction, be pole setting formula table case with the combination of general table case, through fixed table case position, standard cable access way, realize that low-voltage ammeter case concentrates the installation, effectively solve and rely on the building to hang the table in the past, the interior public access space that meets is not enough, and the damaged dispute of resident wall, customer end steal the electric scheduling problem. The device is arranged at the position of a public channel after the low-voltage branch box is led out and before the low-voltage branch box enters the house, such as a green belt and beside a building, the size of an underground base, the metal steel frame structure of a meter box and the length of a fixed cross arm of the meter box can be adjusted to form single-meter or multi-meter floor type installation, the structure is simple, the occupied area is small, the cost is low, the use is convenient, the operation and maintenance are convenient and fast, and the electricity stealing risk is.
Drawings

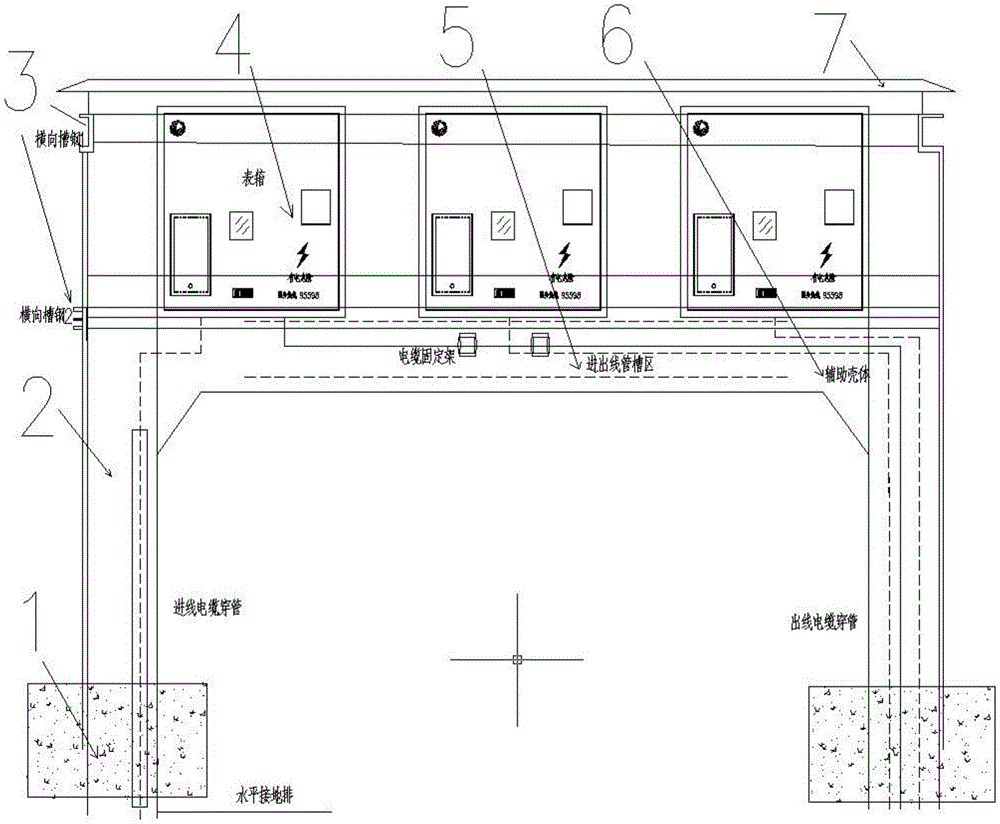

Fig. 1 is a front view of the present invention.
Fig. 2 is a schematic side view of the present invention.
Detailed Description
As can be seen from fig. 1 and 2: fixing the base 1: a support type grouting material (the solidification time is less than 2 hours) is adopted, no less than 30X 30 cubic centimeters (the size can be increased according to stress analysis when multiple epitopes are adopted), and the vertical steel frame rod of the meter box and the metal pipe groove of the inlet and outlet line are pre-embedded before grouting.
Vertical steel hack lever 2 of table case: a10 # galvanized C-shaped channel steel is adopted, the height is generally not higher than 1.8 m (on the ground) according to the operation and maintenance height of a universal meter box, the buried depth is not lower than 0.8 m, the channel steel is connected with a wire inlet and outlet metal pipe by an annealed copper wire, and a horizontal grounding level is additionally arranged.
Horizontal table case fixed cross arm 3: adopt triplex row 6# galvanized C type channel-section steel, size overall arrangement matches with general stainless steel table case, and first row, the second row channel-section steel with table case, vertical channel-section steel junction, punch a hole cross-under M10 screw and be used for fixing, and the third row channel-section steel punches a hole, articulates cable fixation clamp, cable channel shell.
The main meter box body 4 can be selectively matched with a universal low-voltage meter box, and contains a switch, a hanging meter position, a coded lock and the like. The bottom of the box is provided with a cable inlet and outlet hole which corresponds to the inlet and outlet pipe groove at the lower end and is closely adjacent to the base, so that the operation space for electricity stealing of the inlet and outlet winding is eliminated.
Inlet and outlet pipe groove 5: and the cable fixing clamp, the heat insulation plate and the like are arranged on the outer surface of the second row of channel steel cross arm to provide an installation channel for the cable to pass in and out, and the cable fixing clamp, the heat insulation plate and the like are used for fixing the cable, and a cavity for passing in and out the electric meter box is reserved.
The auxiliary housing 6: after the 304 stainless steel plate is adopted for plasticity, the cable channel is sealed along the metal steel frame and the inlet and outlet pipe grooves, the shell protection grade is IP33, and heat dissipation holes are reserved on the side panels.
Rain-proof canopy frame 7: be located table case frame upper end, adopt table case metal steel frame construction top bolt fastening, be not less than 0.1 meter with table case upper end interval, guarantee the table case heat dissipation.
The utility model discloses a fixed basic base 1, the vertical steel hack lever 2 of table case, horizontal table case fixed cross arm 3, main table box 4, business turn over wire chase 5, auxiliary housing 6 and rain-proof rack 7.
The fixed base adopts support type grouting material, and longitudinal metal pipeline hole sites are reserved for the cables to pass in and out. The vertical steel frame rod of the meter box adopts 10# galvanized C-shaped channel steel to form a vertical fixing support which is divided into an upper part and a lower part, and M10 screws for fixing transverse and longitudinal channel steel are reserved in a punching penetrating mode. The transverse meter box fixing cross arm adopts three rows of No. 6 galvanized C-shaped channel steel, the length can be expanded according to the number of meter hanging bits, and a punching hole is reserved for penetrating M10 screws to fix the metal meter box; and the third row is a base of a wire inlet and outlet channel, and after threading, the outline of the base is closed by adopting 304 stainless steel, and the protection grade is not lower than IP 33. The main meter box body can be selectively matched with a universal low-voltage meter box, and a cable inlet and outlet wire hole is reserved at the bottom of the box body, corresponds to a lower end inlet and outlet wire pipe groove and is closely adjacent to the base, so that the operation space for wire inlet and outlet wire winding electricity stealing is eliminated. The wire inlet and outlet pipe grooves are positioned on the outer surface of the second row of channel steel cross arm, provide installation channels for the inlet and outlet of cables, contain cable fixing clamps, heat insulation plates and the like for fixing the cables, and reserve cavities for the inlet and outlet of the electric meter box from top to bottom; after the auxiliary shell is made of a 304 stainless steel plate in a plastic mode, the cable channel is sealed along the metal steel frame and the wire inlet and outlet pipe grooves, the shell is in a protection grade IP33, and heat dissipation holes are reserved in the side panels. Be equipped with rain-proof rack 7 at table case frame top, with the top of the vertical steel hack lever 2 of table case with bolted fixation, be not less than 0.1 meter with the interval on the table case, guarantee the table case heat dissipation.
Claims (2)
1. The utility model provides an outdoor pole setting formula combination low-voltage electricity meter box which characterized in that: the meter box comprises fixed base bases (1) at the bottoms of the left side and the right side, meter box vertical steel frame rods (2) at the left side and the right side, a transverse meter box fixing cross arm (3) in the middle, a main meter box body (4) at the upper part, a transverse inlet and outlet pipeline groove (5) positioned at the bottom of the main meter box body and an auxiliary shell (6) for sealing; the fixed base (1) adopts a support type grouting material, and longitudinal metal pipeline hole sites are reserved for the entrance and exit of cables; the vertical steel frame rod (2) of the meter box adopts 10# galvanized C-shaped channel steel to form a vertical fixing support which is divided into an upper part and an underground part, and a punching hole is reserved for penetrating M10 screws for fixing transverse and longitudinal channel steel; the transverse meter box fixing cross arm (3) adopts three rows of 6# galvanized C-shaped channel steel, the length can be expanded according to the number of meter hanging bits, a punching hole is reserved to cross and connect M10 screws to fix the metal meter box, the third row is a base of a wire inlet and outlet channel, after threading, the outline of the transverse meter box fixing cross arm is closed by adopting 304 stainless steel materials, and the protection grade is not lower than IP 33; the main meter box body (4) can be optionally matched with a universal low-voltage meter box, a cable inlet and outlet wire hole is reserved at the bottom of the box, corresponds to a lower inlet and outlet wire pipe groove and is closely adjacent to a base, and the operation space for wire inlet and outlet wire winding electricity stealing is eliminated; the wire inlet and outlet pipe grooves (5) are positioned on the outer surface of the second row of channel steel cross arms, provide installation channels for the inlet and outlet of cables, contain cable fixing clamps, heat insulation plates and the like for fixing the cables, and reserve cavities for the inlet and outlet of the electric meter boxes from top to bottom; and after the auxiliary shell (6) is made of a 304 stainless steel plate, a cable channel is sealed along a metal steel frame and a wire inlet and outlet pipe groove, the shell is in a protection grade of IP33, and heat dissipation holes are reserved on side panels.
2. The outdoor vertical combined low-voltage electric meter box as claimed in claim 1, wherein: be equipped with rain-proof rack (7) at table case frame top, with the top of the vertical steel hack lever of table case (2) with the bolt fastening, be not less than 0.1 meter with the interval on the table case, guarantee to show the case heat dissipation.
