The utility model discloses a computer multi-fan intelligent temperature control and alarm device, comprising a case body, a temperature sensor is arranged at the bottom of the inner cavity of the case body on the right side, and a PLC control system is sequentially arranged on the top of the case body from right to left The PLC controller is electrically connected to the buzzer alarm, the PLC controller is electrically connected to the temperature sensor, and the bottom of the left side of the chassis body is provided with an air inlet . The utility model solves the problem that the temperature control of the computer case is realized by installing a cooling fan, the cooling fan is always working, the excessive work of the cooling fan of the computer case will consume a lot of electric energy, which is inconvenient to use. The fan intelligent temperature control alarm device can intelligently control the temperature of the inner cavity of the chassis body, save a certain amount of electric energy, and provide convenience for users.

Description

Multi-fan intelligent temperature control alarm device for computer

Technical Field

The utility model relates to a computer technology field specifically is a many fans of computer intelligence control by temperature change alarm device.

Background

The computer is commonly called computer, it is an electronic computer for high-speed calculation, it can make numerical calculation and logic calculation, and also has the function of memory, and it is a modern intelligent electronic equipment capable of running according to program and automatically processing mass data at high speed, and is formed from hardware system and software system, and the computer without any software is called bare computer.

The computer case is an important component of the computer, the temperature control of the computer case is realized by installing a cooling fan, the cooling fan works all the time, and the excessive work of the cooling fan of the computer case consumes more electric energy, so that the computer case is inconvenient to use.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a many fans of computer intelligence control by temperature change alarm device has the advantage of intelligence control by temperature change, and the control by temperature change of having solved computer machine case is realized according to installation radiator fan, and radiator fan is worked always, and the too much work of computer machine case radiator fan can consume more electric energy, the problem of being not convenient for to use.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a many fans of computer intelligence control by temperature change alarm device, includes machine case body, the bottom on machine case body inner chamber right side is provided with temperature sensor, machine case body's top has set gradually PLC controller, buzzer siren and air inlet adjustment mechanism from a right side to a left side, PLC controller and buzzer siren electric connection, PLC controller and temperature sensor electric connection, the air intake has been seted up to the left bottom of machine case body, the inner chamber fixedly connected with dust screen of air intake is one, machine case body's right side is provided with the exhaust fan.

Preferably, the air inlet adjusting mechanism comprises a first fixing plate penetrating through the top of the case body, air inlet holes communicated with the case body are formed in two sides of the top of the first fixing plate, a hole plugging mechanism is arranged in an inner cavity of each air inlet hole, and the inner cavity of each air inlet hole is fixedly connected with the inner cavity of the corresponding air inlet hole.

Preferably, the hole plugging mechanism comprises baffle grooves formed in two ends of the front side of the first fixing plate, baffles are movably connected to inner cavities of the baffle grooves, and the front sides of the baffles extend to the front side of the first fixing plate and are fixedly connected with auxiliary pull blocks.

Preferably, the exhaust fan is including running through the fixed plate two that sets up on chassis body right side, the hole of airing exhaust that communicates with chassis body is all seted up to top and bottom on fixed plate two right sides, the inner chamber in hole of airing exhaust is provided with the fan.

Preferably, the fan is including being fixed in the support of the hole inner chamber of airing exhaust, the left side fixedly connected with motor of support, the output shaft of motor runs through to the right side and the fixedly connected with flabellum of support, motor and PLC controller electric connection.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a temperature sensor monitors the temperature of machine case body inner chamber, when the temperature is too high, temperature sensor transmission signal gives the PLC controller, the PLC controller then can transmit signal and report to the police for the buzzer siren, remind the user to open air inlet adjustment mechanism, the exhaust fan can be opened to the PLC controller after that, make the air of machine case body inner chamber flow fast, can realize the purpose of intelligent control by temperature change, the control by temperature change of having solved computer machine case is realized according to installing radiator fan, radiator fan is worked always, the too much work of computer machine case radiator fan can consume more electric energy, the problem of being not convenient for to use, this many fans of computer intelligence control by temperature change alarm device, can intelligent control the temperature of machine case body inner chamber, certain electric energy has been practiced thrift, provide convenience for the user.

2. The utility model discloses an air inlet adjustment mechanism's setting, after buzzer siren reported to the police, the user draws the convenient inner chamber that pulls out the baffle groove with the baffle through supplementary, can open the fresh air inlet, realizes increasing the purpose of admission speed, can block the inner chamber that the dust got into quick-witted case body.

3. The utility model discloses a motor is opened in the setting of exhaust fan, can drive the flabellum and rotate, discharges the air efficient that machine case body inner chamber temperature is too high, admits air simultaneously through fresh air inlet and air intake, realizes the radiating purpose of high efficiency.

Drawings

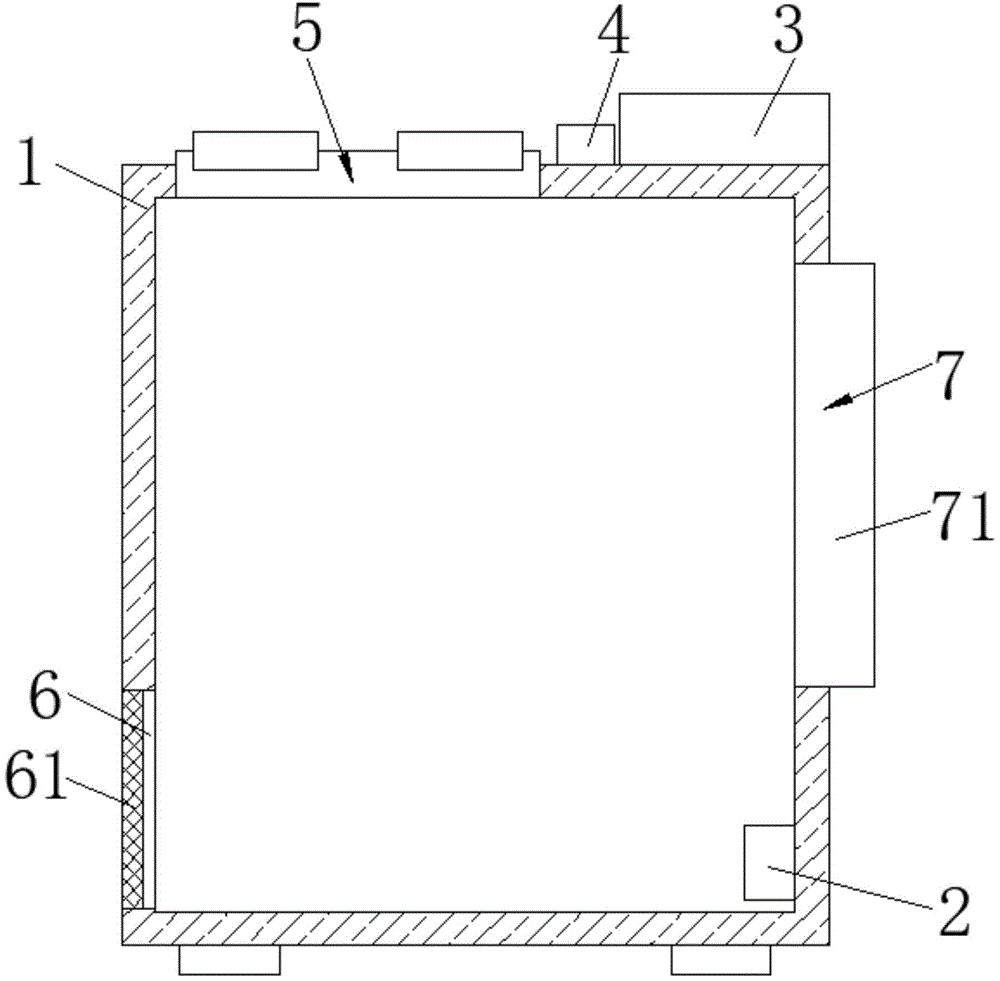

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic perspective view of the air intake adjusting mechanism of the present invention;

FIG. 3 is a schematic view of the air intake adjusting mechanism of the present invention;

FIG. 4 is a perspective view of the exhaust fan of the present invention;

fig. 5 is a system block diagram of the present invention.

In the figure: 1. a chassis body; 2. a temperature sensor; 3. a PLC controller; 4. a buzzer alarm; 5. an air inlet adjusting mechanism; 51. a first fixing plate; 52. an air inlet hole; 53. a hole plugging mechanism; 531. a baffle slot; 532. a baffle plate; 533. auxiliary pulling blocks; 6. an air inlet; 61. a first dust screen; 7. an exhaust fan; 71. a second fixing plate; 72. an air exhaust hole; 73. a fan; 731. a support; 732. a motor; 733. a fan blade.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution: an intelligent temperature control alarm device with multiple fans for a computer comprises a case body 1, wherein a temperature sensor 2 is arranged at the bottom of the right side of an inner cavity of the case body 1, a PLC (programmable logic controller) 3, a buzzer alarm 4 and an air inlet adjusting mechanism 5 are sequentially arranged at the top of the case body 1 from right to left, the air inlet adjusting mechanism 5 comprises a first fixing plate 51 penetrating through the top of the case body 1, air inlet holes 52 communicated with the case body 1 are formed in two sides of the top of the first fixing plate 51, a hole blocking mechanism 53 is arranged in the inner cavity of the air inlet holes 52, the inner cavity of the air inlet holes 52 is fixedly connected with 54, the hole blocking mechanism 53 comprises baffle grooves 531 arranged at two ends of the front side of the first fixing plate 51, baffles 532 are movably connected in the inner cavity of the baffle grooves 531, the front sides of the baffles 532 extend to the front side of the first fixing plate 51 and are fixedly connected with auxiliary, a user can conveniently pull the baffle 532 out of the inner cavity of the baffle groove 531 through the auxiliary pull block 533 to open the air inlet 52, so as to achieve the purpose of increasing the air inlet speed, 54 can prevent dust from entering the inner cavity of the case body 1, the PLC 3 is electrically connected with the buzzer alarm 4, the PLC 3 is electrically connected with the temperature sensor 2, the bottom of the left side of the case body 1 is provided with an air inlet 6, the inner cavity of the air inlet 6 is fixedly connected with a first dust screen 61, the right side of the case body 1 is provided with an exhaust fan 7, the exhaust fan 7 comprises a second fixing plate 71 penetrating through the right side of the case body 1, the top and the bottom of the right side of the second fixing plate 71 are both provided with exhaust holes 72 communicated with the case body 1, the inner cavity of the exhaust holes 72 is provided with a fan 73, the fan 73 comprises a bracket 731 fixed in the inner cavity of the exhaust holes 72, the left side of the bracket 731 is, the motor 732 is electrically connected to the PLC controller 3, and by setting the exhaust fan 7, the motor 732 is turned on to drive the fan 733 to rotate, so as to efficiently discharge air with an excessively high temperature in the inner cavity of the chassis body 1, and simultaneously supply air through the air inlet 52 and the air inlet 6, thereby achieving the purpose of efficient heat dissipation.

The working principle is as follows: when the utility model is used, the model of the temperature sensor 2 is MF53-103, the model of the PLC 3 is FX2N-32MS, the model of the buzzer alarm 4 is TMB12A05, and in the using process, the temperature sensor 2 changes the temperature of the inner cavity of the case body 1, when the temperature in the inner cavity of the case body 1 is overhigh, the information can be fed back to the PLC controller 3, the PLC controller 3 can turn on the buzzer alarm 4 to give an alarm to remind a user to turn on the hole blocking mechanism 53 blocked on the air inlet hole 52, then the PLC controller 3 turns on the motor 732, increasing the air flow rate in the inner cavity of the cabinet body 1, the inner cavity of the case body 1 is cooled, after the temperature is reduced, the temperature sensor 2 feeds back information to the PLC controller 3, the PLC controller 3 cancels the alarm of the buzzer alarm 4, the PLC controller 3 can also close the motor 732, and the purpose of intelligent temperature control can be realized.

In summary, the following steps: this many fans of computer intelligence control by temperature change alarm device, monitor the temperature of 1 inner chamber of machine case body through temperature sensor 2, when the temperature is too high, 2 transmission signal of temperature sensor give PLC controller 3, PLC controller 3 then can transmit signal and report to the police for buzzer siren 4, remind the user to open air inlet adjustment mechanism 5, PLC controller 3 can open exhaust fan 7 after that, make the air of 1 inner chamber of machine case body flow fast, can realize the purpose of intelligent control by temperature change, the control by temperature change of having solved computer machine case is realized according to installation radiator fan, radiator fan is worked always, more electric energy can be consumed in the too much work of computer machine case radiator fan, the problem of being not convenient for to use.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A computer multi-fan intelligent temperature control alarm device, comprising a case body (1), characterized in that: a temperature sensor (2) is provided at the bottom of the inner cavity of the case body (1) at the bottom, and the case body ( 1) A PLC controller (3), a buzzer alarm (4) and an air intake adjustment mechanism (5) are arranged in sequence from right to left on the top of the PLC controller (3) and the buzzer alarm (4). Electrical connection, the PLC controller (3) is electrically connected with the temperature sensor (2), an air inlet (6) is opened at the bottom of the left side of the chassis body (1), and the inside of the air inlet (6) is A dust filter (61) is fixedly connected to the cavity, and an exhaust fan (7) is arranged on the right side of the case body (1).

2. A computer multi-fan intelligent temperature control alarm device according to claim 1, characterized in that: the air inlet adjustment mechanism (5) comprises a fixed plate one (51) arranged through the top of the chassis body (1) , both sides of the top of the first fixing plate (51) are provided with air inlet holes (52) communicating with the chassis body (1), and the inner cavity of the air inlet hole (52) is provided with a hole blocking mechanism (53) , the inner cavity of the air inlet hole (52) is fixedly connected with (54).

3. A computer multi-fan intelligent temperature control alarm device according to claim 2, characterized in that: the hole blocking mechanism (53) comprises baffle grooves (531) opened at both ends of the front side of the fixed plate one (51) ), a baffle plate (532) is movably connected to the inner cavity of the baffle plate groove (531), the front side of the baffle plate (532) extends to the front side of the fixed plate one (51) and is fixedly connected with an auxiliary pull block (533).

4. A computer multi-fan intelligent temperature control and alarm device according to claim 1, characterized in that: the exhaust fan (7) comprises a second fixed plate (71) disposed through the right side of the chassis body (1), so The top and bottom of the right side of the second fixing plate (71) are provided with an exhaust hole (72) communicating with the chassis body (1), and a fan (73) is arranged in the inner cavity of the exhaust hole (72).

5. A computer multi-fan intelligent temperature control alarm device according to claim 4, characterized in that: the fan (73) comprises a bracket (731) fixed to the inner cavity of the exhaust hole (72), the bracket The left side of (731) is fixedly connected with a motor (732), the output shaft of the motor (732) penetrates to the right side of the bracket (731) and is fixedly connected with a fan blade (733), the motor (732) is connected to the PLC The controller (3) is electrically connected.
