CN210492500U - Food processing is with device of squeezing juice - Google Patents
Food processing is with device of squeezing juice Download PDFInfo
- Publication number
- CN210492500U CN210492500U CN201920971192.9U CN201920971192U CN210492500U CN 210492500 U CN210492500 U CN 210492500U CN 201920971192 U CN201920971192 U CN 201920971192U CN 210492500 U CN210492500 U CN 210492500U
- Authority
- CN
- China
- Prior art keywords
- rack
- processing
- box body
- groove
- motor
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Apparatuses For Bulk Treatment Of Fruits And Vegetables And Apparatuses For Preparing Feeds (AREA)
Abstract
本实用新型公开了一种食品加工用榨汁装置，其结构包括入料口、箱体、控制器、电机放置槽、电机、拉手、支撑脚、加工槽、齿轮、第一齿条、第一滑块、第一滑槽、连接杆、转轴、碾压滚筒、固定加工座、过滤网、第二滑槽、第二滑块、第二齿条、支撑架，齿轮与第一齿条相啮合，齿轮与第二齿条相啮合，连接杆固定安装于第一齿条左侧下方，第一齿条上方安装于两个第一滑块，第一滑块滑动于第一滑槽内，第一滑槽上表面固定安装于箱体顶板下表面，碾压滚筒通过转轴安装于连接杆末端，碾压滚筒安装于固定加工座内上方，固定加工座右侧与第二齿条左侧相连接，固定加工座下表面设置有复数个小孔，该装置提高了加工效率，结构简单，成本低，便于推广。
The utility model discloses a juice extracting device for food processing. The structure comprises a feeding port, a box body, a controller, a motor placement slot, a motor, a handle, a supporting foot, a processing slot, a gear, a first rack, a first Slider, first chute, connecting rod, rotating shaft, rolling drum, fixed processing seat, filter screen, second chute, second slider, second rack, support frame, gear meshing with first rack , the gear meshes with the second rack, the connecting rod is fixedly installed under the left side of the first rack, the two first sliders are installed above the first rack, the first slider slides in the first chute, the second The upper surface of a chute is fixedly installed on the lower surface of the top plate of the box body, the rolling roller is installed on the end of the connecting rod through the rotating shaft, the rolling roller is installed above the fixed processing seat, and the right side of the fixed processing seat is connected with the left side of the second rack , the lower surface of the fixed processing seat is provided with a plurality of small holes, the device improves the processing efficiency, the structure is simple, the cost is low, and the promotion is convenient.
Description
Technical Field
The utility model relates to a food processing is with device of squeezing juice belongs to the food processing field.
Background
Food processing, which refers to grain grinding, feed processing, vegetable oil and sugar processing, slaughtering, meat processing, aquatic product processing and food processing activities of vegetables, fruits, nuts and the like which are directly carried out by taking agricultural, forestry, animal husbandry and fishery products as raw materials, is a type of processing industry of broad agricultural products,
the prior art discloses the application numbers as follows: CN 201720780563.6's a juice extractor for food processing, its structure includes juice extractor, left case lid, right case lid, collection juice case, rotatory breaker, the reciprocating extrusion device in a left side, the reciprocating extrusion device in the right side, the drive arrangement that squeezes juice, left transmission, right transmission, go up transmission, supporting seat device, its characterized in that: the upper end of the left side face of the juicing box is connected with the left box cover through the hinge, the left box cover is turned rightwards and buckled at the left end of the top end of the juicing box, the rotary crushing juicing and squeezing juicing of the prior art are combined, the juicing efficiency is improved, the structure is complex, and the processing cost is high.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a food processing is with device of squeezing juice to solve current rotatory broken juice and squeeze juice and combine together, though improved the efficiency of squeezing juice, the structure is complicated, problem that the processing cost is high.
In order to achieve the above purpose, the present invention is realized by the following technical solution: a juicing device for food processing structurally comprises a feeding port, a box body, a controller, a motor placing groove, a motor, a handle, supporting legs and a processing groove, wherein the feeding port is arranged on the left side in the box body, the box body is fixedly arranged above the supporting legs, the controller is embedded in the outer surface of the box body, the motor placing groove is arranged on the left side of the controller, the motor is arranged in the motor placing groove, the handle is arranged on the outer surface of the processing groove, the box body comprises a gear, a first rack, a first sliding block, a first sliding groove, a connecting rod, a rotating shaft, a rolling roller, a fixed processing seat, a filter screen, a second sliding groove, a second sliding block, a second rack and a supporting frame, the gear is meshed with the first rack, the gear is meshed with the second rack, the connecting rod is fixedly arranged below the left side of the first rack, the upper side of the first rack is, the first sliding block slides in the first sliding groove, the upper surface of the first sliding groove is fixedly installed on the lower surface of a top plate of the box body, the rolling roller is installed at the tail end of the connecting rod through a rotating shaft, the rolling roller is installed above the fixed machining seat, the right side of the fixed machining seat is connected with the left side of the second rack, the lower surface of the fixed machining seat is provided with a plurality of small holes, the filter screen is installed in the machining groove, the lower surface of the second sliding groove is fixedly installed on the upper surface of a bottom plate of the box body, the second sliding block slides in the second sliding groove, two supporting frames are fixedly installed below the second rack, and the lower side of each supporting frame is.
Further, the controller is a PLC controller.
Further, the motor placing groove and the box body are of an integrated structure.
Further, the motor rotating shaft is connected with the axis of the gear, and the lower surface of the machining groove can slide on the upper surface of the second sliding groove.
Further, the motor is electrically connected with the controller.
Further, the processing tank is mounted below the fixed processing seat.
Furthermore, the supporting legs are made of iron materials and are firm and not easy to deform.
Furthermore, the rolling roller is made of stainless steel materials and is firm and air corrosion resistant.
The utility model has the advantages that: the material to be processed is put into the fixed processing seat from the material inlet, the processing groove is positioned below the material inlet before processing, the rolling roller is positioned on the right side of the fixed processing seat, after the processed material is placed, the rotating speed and the rotation of the motor are controlled by the controller, the motor is controlled to rotate clockwise and anticlockwise alternately, when the motor rotates anticlockwise, the first rack is driven to move leftwards, the first sliding block on the first rack slides in the first sliding groove, the rolling roller in the connecting rod is driven to roll the processed object in the fixed processing seat, the motor can drive the fixed processing seat to move rightwards through the second rack while rotating, the two are simultaneously moved, the processing efficiency is improved, the rolled juice flows into the processing groove from small holes in the fixed processing seat, and the juice is filtered under the action of the filter screen, clockwise rotation then opposite direction, first rack removes right, rolls the cylinder and rolls the processing thing in to fixed processing seat, and the second rack drives fixed processing seat and removes left simultaneously, and processing finishes the back and removes to pan feeding mouth below department through observing the processing groove, to motor stall, can take out the processing groove, and the device has improved machining efficiency, simple structure, and is with low costs, facilitate promotion.
Drawings
Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

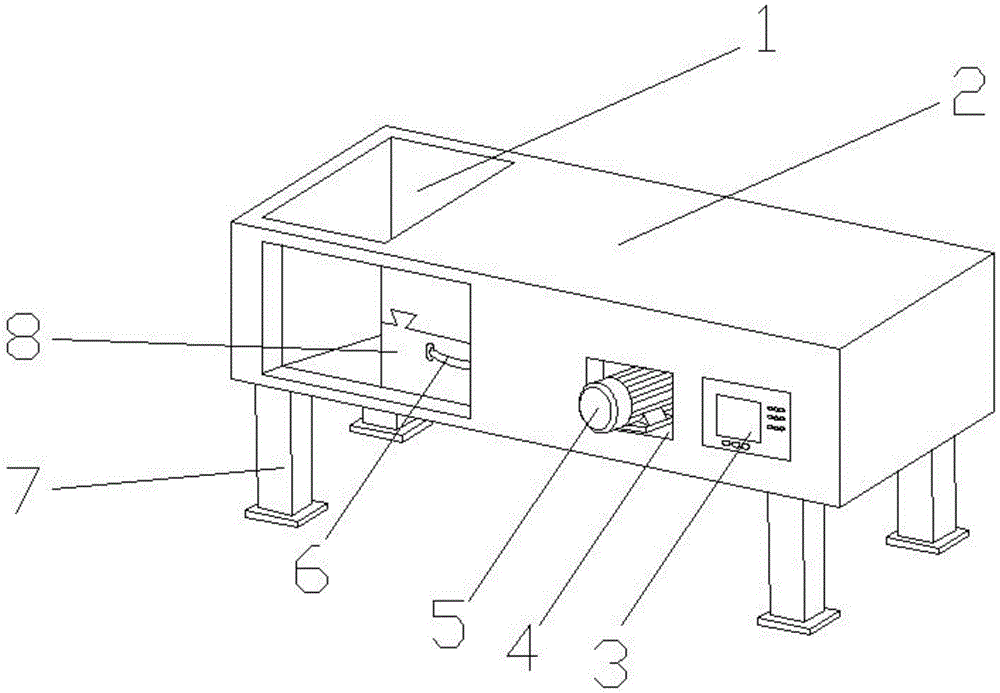

FIG. 1 is a schematic structural view of a juicer for food processing according to the present invention;
FIG. 2 is a schematic structural view of a box body of the juice extracting device for food processing of the present invention;
FIG. 3 is a schematic view of a first chute structure of the juicing device for food processing according to the present invention;
fig. 4 is a schematic diagram of a second chute structure of the juicing device for food processing of the present invention.
In the figure: the device comprises a feeding port-1, a box body-2, a controller-3, a motor placing groove-4, a motor-5, a handle-6, a supporting leg-7, a processing groove-8, a gear-201, a first rack-202, a first sliding block-203, a first sliding groove-204, a connecting rod-205, a rotating shaft-206, a rolling roller-207, a fixed processing seat-208, a filter screen-209, a second sliding groove-210, a second sliding block-211, a second rack-212 and a supporting frame-213.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
Referring to fig. 1-4, the present invention provides a technical solution of a juicer for food processing: the structure of the device comprises a feeding port 1, a box body 2, a controller 3, a motor placing groove 4, a motor 5, a handle 6, a supporting leg 7 and a processing groove 8, wherein the feeding port 1 is arranged on the left side in the box body 2, the box body 2 is fixedly arranged above the supporting leg 7, the controller 3 is embedded and arranged on the outer surface of the box body 2, the motor placing groove 4 is arranged on the left side of the controller 3, the motor 5 is arranged in the motor placing groove 4, the handle 6 is arranged on the outer surface of the processing groove 8, the box body 2 comprises a gear 201, a first rack 202, a first sliding block 203, a first sliding groove 204, a connecting rod 205, a rotating shaft 206, a rolling roller 207, a fixed processing seat 208, a filter screen 209, a second sliding groove 210, a second sliding block 211, a second rack 212 and a supporting frame 213, the gear 201 is meshed with the first rack 202, the gear 201 is meshed with the second rack 212, the connecting rod 205 is, the upper part of the first rack 202 is arranged on two first sliding blocks 203, the first sliding blocks 203 slide in first sliding grooves 204, the upper surface of the first sliding grooves 204 is fixedly arranged on the lower surface of the top plate of the box body 2, the rolling roller 207 is arranged at the tail end of a connecting rod 205 through a rotating shaft 206, the rolling roller 207 is arranged on the upper part of a fixed processing seat 208, the right side of the fixed processing seat 208 is connected with the left side of a second rack 212, the lower surface of the fixed processing seat 208 is provided with a plurality of small holes, the filter screen 209 is arranged in the processing groove 8, the lower surface of the second sliding groove 210 is fixedly arranged on the upper surface of the bottom plate of the box body 2, the second sliding blocks 211 slide in a second sliding groove 210, two supporting frames 213 are fixedly arranged below the second rack 212, the lower parts of the supporting frames 213 are connected with the second sliding blocks 211, the controller 3 is a PLC controller, the pivot of motor 5 is connected with gear 201 axle center, but process 8 lower surfaces of groove slidable in second spout 210 upper surface, motor 5 and controller 3 are electric connection, process 8 installation in fixed processing seat 208 below, supporting legs 7 adopts the iron material, and firm non-deformable, roll cylinder 207 and adopt stainless steel, and firm resistant air corrodes.
The motor 5 is characterized in that the model is TCH18-100-50S, and the device has the advantages of long service life and good heat dissipation.
For example, when the device is used by a worker, the material to be processed is put into the fixed processing seat 208 from the material inlet 1, the processing groove 8 before processing is positioned below the material inlet 1, the rolling roller 207 is positioned on the right side of the fixed processing seat 208, after the material to be processed is placed, the rotation speed and rotation of the motor 5 are controlled by the controller 3, the motor 5 is controlled to alternately rotate clockwise and counterclockwise, when the motor 5 rotates counterclockwise, the first rack 202 is driven to move leftwards, the first sliding block 203 on the first rack 202 slides in the first sliding groove 204, the rolling roller 207 in the connecting rod 205 is driven to roll the processed object in the fixed processing seat 208, the fixed processing seat 208 is driven to move rightwards by the second rack 212 while the motor 5 rotates, the two move simultaneously, the processing efficiency is improved, the rolled juice flows into the processing groove 8 from a small hole in the fixed processing seat 208, the juice is filtered under the action of the filter screen 209, the clockwise rotation is opposite, the first rack 202 moves rightwards, the rolling roller 207 rolls the processed object in the fixed processing seat 208, meanwhile, the second rack 212 drives the fixed processing seat 208 to move leftwards, the processing groove 8 is observed to move to the position below the feeding port 1 after the processing is finished, and the motor 5 stops rotating, so that the processing groove 8 can be taken out.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (6)
1. A juicing device for food processing is characterized in that: the automatic feeding device structurally comprises a feeding port (1), a box body (2), a controller (3), a motor placing groove (4), a motor (5), a handle (6), supporting legs (7) and a processing groove (8), wherein the feeding port (1) is installed on the left side in the box body (2), the box body (2) is fixedly installed above the supporting legs (7), the controller (3) is installed on the outer surface of the box body (2) in an embedded mode, the motor placing groove (4) is installed on the left side of the controller (3), the motor (5) is installed in the motor placing groove (4), the handle (6) is installed on the outer surface of the processing groove (8), the box body (2) comprises a gear (201), a first rack (202), a first sliding block (203), a first sliding groove (204), a connecting rod (205), a rotating shaft (206), a rolling roller (207), a fixed processing seat (208), a filter screen (209), The grinding machine comprises a second sliding groove (210), a second sliding block (211), a second rack (212) and a supporting frame (213), wherein a gear (201) is meshed with a first rack (202), the gear (201) is meshed with the second rack (212), a connecting rod (205) is fixedly arranged below the left side of the first rack (202), two first sliding blocks (203) are arranged above the first rack (202), the first sliding blocks (203) slide in the first sliding grooves (204), the upper surface of each first sliding groove (204) is fixedly arranged on the lower surface of the top plate of a box body (2), a grinding roller (207) is arranged at the tail end of the connecting rod (205) through a rotating shaft (206), the grinding roller (207) is arranged above the inner part of a fixed machining seat (208), the right side of the fixed machining seat (208) is connected with the left side of the second rack (212), and a plurality of small holes are formed in the lower surface of the fixed machining seat (208), the filter screen (209) is installed in the processing groove (8), the lower surface of the second sliding groove (210) is fixedly installed on the upper surface of the bottom plate of the box body (2), the second sliding block (211) slides in the second sliding groove (210), two supporting frames (213) are fixedly installed below the second rack (212), and the lower sides of the supporting frames (213) are connected with the second sliding block (211).
2. The juicing device for food processing as claimed in claim 1, wherein: the controller (3) is a PLC controller.
3. The juicing device for food processing as claimed in claim 1, wherein: the motor placing groove (4) and the box body (2) are of an integrated structure.
4. The juicing device for food processing as claimed in claim 1, wherein: the rotating shaft of the motor (5) is connected with the shaft center of the gear (201), and the lower surface of the processing groove (8) can slide on the upper surface of the second sliding groove (210).
5. The juicing device for food processing as claimed in claim 1, wherein: the motor (5) is electrically connected with the controller (3).
6. The juicing device for food processing as claimed in claim 1, wherein: the processing tank (8) is arranged below the fixed processing seat (208).
