Abstract

The utility model discloses a paper diaper with humidity display, comprising a second plastic support belt, plastic thin bags are sewn on the outer walls of both ends of the bottom of the second plastic support belt, and the middle outer wall of one end of the plastic thin bag is A first absorbent cloth is sewn, and the outer wall of one end of the first absorbent cloth is provided with evenly arranged first breathing holes, and edge sealing thin bags are sewn on both outer walls of one of the thin plastic bags, and two The outer wall of the other end of the adjacent side of the thin edge-sealing bag is sewn with the outer walls of the two sides of the other thin plastic bag respectively, and the outer walls of one side of the two thin edge-sealing bags are both provided with uniformly arranged second breathing holes. The diaper with humidity display proposed by the utility model is provided with the same elastic band, and the user can adjust the stability of fixing the diaper with the elastic band according to the size of the waist, so as to prevent the diaper from sliding off the waist of the user, and improve the performance of the diaper. stability of use.

Description

Paper diaper with humidity display function

Technical Field

The utility model relates to a panty-shape diapers technical field especially relates to a panty-shape diapers that have humidity to show.

Background

The user group of the paper diaper mainly comprises two categories of infants and adults, at present, most patients in hospitals can not move after operations, the toilet is inconvenient to go to, and meanwhile, some patients have the problem of stool and urine incontinence, so the hospitals can use the paper diaper for the patients who are inconvenient to move and have the stool and urine incontinence.

At present, the panty-shape diapers that hospital patient used can not be convenient effectual adjust panty-shape diapers according to patient's waist size's size, make fixing at patient's waist that panty-shape diapers can be stable, simultaneously, current panty-shape diapers do not have humidity and show the warning function, and incontinence of urine and feces, unconscious patient can not be timely remind the staff to change, consequently need design a neotype panty-shape diapers that have humidity to show and solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a paper diaper with humidity display.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a paper diaper with humidity display comprises a second plastic supporting belt, wherein plastic thin bags are sewn on the outer walls of two ends of the bottom of the second plastic supporting belt, a first water absorption cloth is sewn on the outer wall of the middle of one end of one plastic thin bag, first breathing holes are uniformly formed in the outer wall of one end of the first water absorption cloth, edge sealing thin bags are sewn on the outer walls of two sides of one plastic thin bag, the outer walls of the other ends of two adjacent edge sealing thin bags are respectively sewn with the outer walls of two sides of the other plastic thin bag, second breathing holes are uniformly formed in the outer wall of one side of each of the two edge sealing thin bags, a first opening is formed in the outer wall of the other end of the other plastic thin bag, a second water absorption cloth is sewn on the inner wall of the first opening, the same storage bag is sewn on the outer wall around the other end of the other plastic thin bag, and a wireless humidity sensor is arranged in the storage bag, the top outer wall of the other end of the storage bag is sewed with a sealing bag, the top outer wall of the other end of the sealing bag is connected with a second magic tape male tape through a bolt, the other end of the plastic thin bag is connected with a second magic tape female tape through a bolt, and the plastic thin bag is filled with absorbent cotton.

Preferably, the second male magic tape and the second female magic tape are adhered to each other.

Preferably, the outer wall of one side middle part of second plastics support area has seted up first through-hole, and the equal sliding connection of both sides inner wall of first through-hole has the second strap.

Preferably, the outer wall of one side of each of the two second cloth belts adjacent to each other is sewn with the same elastic belt.

Preferably, two the adjacent one side bottom outer wall of second strap all has first magic subsides public subsides through bolted connection.

Preferably, the outer walls of the bottoms of the two plastic thin bags are respectively sewn with a first plastic supporting belt, and the outer walls of the middle parts of the two sides of the first plastic supporting belt are respectively sewn with a first cloth belt.

Preferably, two the one side top outer wall of keeping away from each other of first strap all has sewed up first magic and has pasted female the subsides, and two first magic subsides female subsides bond each other with two first magic subsides public subsides respectively.

The utility model has the advantages that:

1. the utility model provides a panty-shape diapers that have humidity to show supports area and second plastics through being provided with first plastics and supports the area, and support the both sides that area and second plastics supported area at first plastics and be provided with first strap and second strap respectively, and all install the first magic subsides female subsides and the public subsides of first magic subsides that correspond the setting on two sets of first strap and second strap, the user can twine first strap and second strap on the waist when using panty-shape diapers, paste female subsides of first magic and paste public subsides of first magic and bond each other, the realization is to the effectual fixed of panty-shape diapers, and then realized the very convenient effect of wearing the device.

2. The utility model provides a panty-shape diapers that have humidity to show all is provided with same elastic cord through adjacent one side at two second strap, and the user can be according to the size of its waistline, adjusts the fixed stability of panty-shape diapers with the elastic cord, avoids panty-shape diapers to follow user's waist landing, has improved the stability that panty-shape diapers used.

3. The utility model provides a panty-shape diapers that have humidity to show through being provided with first breather hole on first water absorption cloth, is provided with the second breather hole on two banding thin bags, can realize panty-shape diapers's respiration by first breather hole and second breather hole, and then improve user's comfort level.

4. The utility model provides a panty-shape diapers that have humidity to show, be provided with the storing bag through the bottom at panty-shape diapers, and be provided with wireless humidity transducer in the storing bag, the user can set up a signal receiver and a display corresponding with wireless humidity transducer at the sick bed head, when panty-shape diapers become wet, can show humidity by the display, and then remind the staff to change, change the in-process, can directly take out wireless humidity transducer from the storing bag, it uses in the storing bag of new panty-shape diapers to clear up the back, the very convenient effectual effect that shows humidity and remind the user has been realized.

Drawings

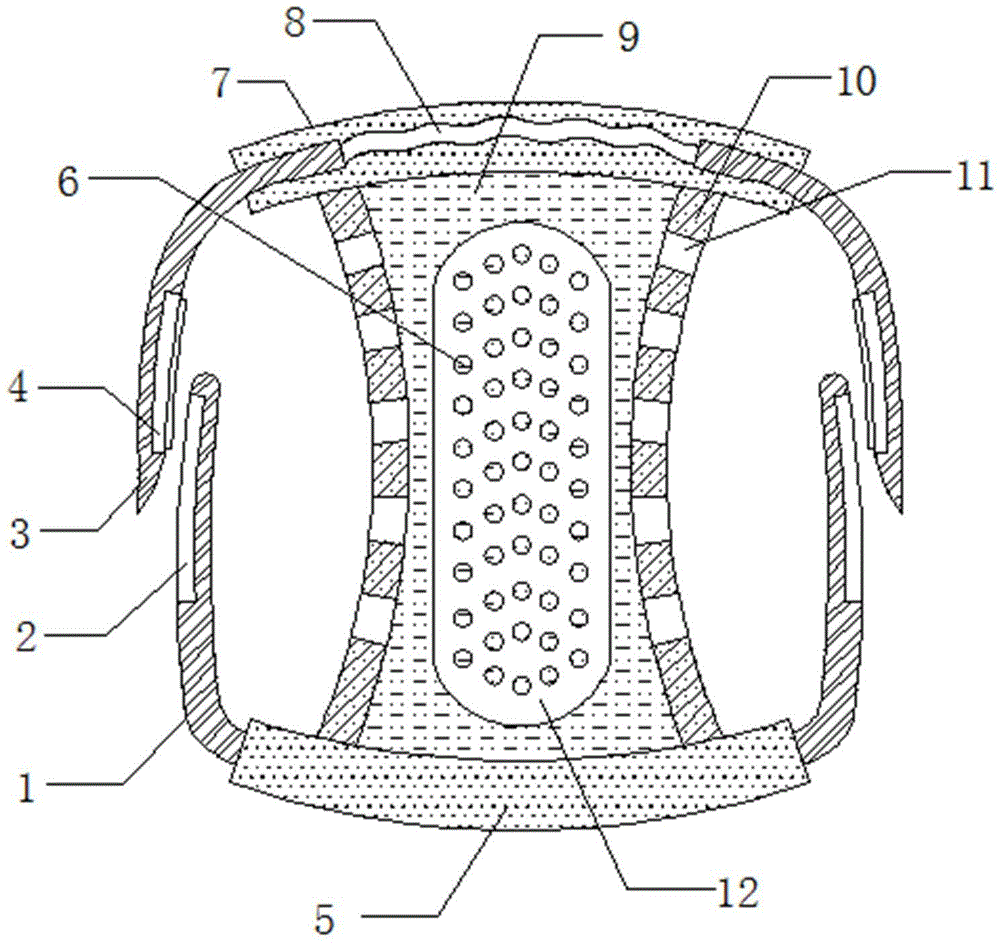

Fig. 1 is a schematic view of a cross-sectional structure of a diaper with humidity display according to the present invention;

FIG. 2 is a partial side cross-sectional view of a diaper with humidity indication as provided by the present invention;

fig. 3 is a schematic view of a partial side structure of a diaper with humidity display according to the present invention.

In the figure: 1 first strap, 2 first magic subsides female subsides, 3 second strap, 4 first magic subsides public subsides, 5 first plastics support area, 6 first breathing hole, 7 second plastics support area, 8 elastic cord, 9 thin bags of plastics, 10 banding thin bags, 11 second breathing hole, 12 first cloth of absorbing water, 13 second absorb water cloth, 14 second magic subsides female subsides, 15 second magic subsides public subsides, 16 seal bag, 17 storing bags, 18 wireless humidity transducer, 19 cotton that absorbs water.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, a paper diaper with humidity display comprises a second plastic supporting strap 7, wherein plastic thin bags 9 are sewn on the outer walls of two ends of the bottom of the second plastic supporting strap 7, a first water absorbing cloth 12 is sewn on the outer wall of the middle of one end of one plastic thin bag 9, first breathing holes 6 are uniformly formed in the outer wall of one end of the first water absorbing cloth 12, sealed edge thin bags 10 are sewn on the outer walls of two sides of one plastic thin bag 9, the outer walls of the other ends of two adjacent sealed edge thin bags 10 are respectively sewn with the outer walls of two sides of the other plastic thin bag 9, second breathing holes 11 are uniformly formed in the outer wall of one side of each sealed edge thin bag 10, the breathing effect of the paper diaper can be realized through the first breathing holes 6 and the second breathing holes 11, the comfort of a user is further improved, a first opening is formed in the outer wall of the other end of the other plastic thin bag 9, and the inner wall of the first opening is sewed with a second water-absorbing cloth 13, the peripheral outer wall of the other end of the other plastic thin bag 9 is sewed with the same storage bag 17, a wireless humidity sensor 18 is arranged in the storage bag 17, the top outer wall of the other end of the storage bag 17 is sewed with a sealing bag 16, the top outer wall of the other end of the sealing bag 16 is connected with a second magic tape male tape 15 through a bolt, the top outer wall of the other end of the other plastic thin bag 9 is connected with a second magic tape female tape 14 through a bolt, and water-absorbing cotton 19 is filled between the two plastic thin bags 9.

The utility model discloses in, the public subsides of second magic 15 and the female 14 mutual bonding of subsides of second magic, first through-hole has been seted up to one side middle part outer wall that the second plastics supported area 7, and the equal sliding connection of both sides inner wall of first through-hole has second strap 3, same elastic cord 8 has all been sewed up to two adjacent one side outer walls of second strap 3, two adjacent one side bottom outer walls of second strap 3 all have first magic subsides public subsides 4 through bolted connection, same first plastics support area 5 has all been sewed up to the bottom outer wall of two plastics pocket 9, and first plastics support area 5's both sides middle part outer wall has all sewed up first strap 1, one side top outer wall of keeping away from each other of two first strap 1 has all sewed up first magic subsides female 2, and two first magic subsides female 2 bond with two first magic subsides public subsides 4 respectively each other.

The working principle is as follows: during the use, the user is direct to put panty-shape diapers under the crotch, then twine first strap 1 and second strap 3 on the waist, and make two sets of first magic subsides female subsides 2 and first magic subsides public subsides 4 and bond each other, at the in-process that bonds, adjust the extension length of second strap 3 through elastic cord 8, in order to ensure panty-shape diapers fixed stable between the waist, the user can set up a signal receiver and the display corresponding with wireless humidity transducer 18 at the sick bed head, when panty-shape diapers become wet, can show humidity by the display, and then remind the user to change, change the in-process, can directly take out wireless humidity transducer 18 from storing bag 17, put after clearing up it and use in storing bag 17 of new panty-shape diapers, the very convenient effectual effect that shows that humidity reminds the user has been realized.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (7)

1. A diaper with humidity display, comprising a second plastic support belt (7), characterized in that plastic thin bags (9) are sewn on the outer walls of both ends of the bottom of the second plastic support belt (7), And one end of the plastic thin bag (9) is sewn with a first absorbent cloth (12), and the outer wall of one end of the first absorbent cloth (12) is provided with uniformly arranged first breathing holes (6), wherein Edge-sealing thin bags (10) are sewn on both outer walls of one of the plastic thin bags (9), and the other end outer walls of the two adjacent edge-sealing thin bags (10) are respectively connected with another plastic thin bag. The outer walls of the two sides of (9) are sewn together, and the outer walls of one side of the two edge-sealing thin bags (10) are provided with evenly arranged second breathing holes (11), and the other thin plastic bag (9) The outer wall of the other end is provided with a first opening, and the inner wall of the first opening is sewn with a second absorbent cloth (13), and the surrounding outer walls of the other end of the plastic thin bag (9) are sewn with the same storage bag (17), and the interior of the storage bag (17) is provided with a wireless humidity sensor (18), the top outer wall of the other end of the storage bag (17) is sewn with a sealing pocket (16), and the sealing pocket (16) ) The top outer wall of the other end is connected with a second Velcro male sticker (15) by bolts, and the top outer wall of the other end of the plastic thin bag (9) is bolted with a second Velcro female sticker (14), two Water-absorbing cotton (19) is filled between the thin plastic bags (9). 2 . The diaper with humidity display according to claim 1 , wherein the second male Velcro sticker ( 15 ) and the second female Velcro sticker ( 14 ) are bonded to each other. 3 . 3 . The diaper with humidity display according to claim 2 , wherein a first through hole is opened on the outer wall of the middle part of one side of the second plastic support belt ( 7 ), and two parts of the first through hole are opened. 4 . The side inner walls are all slidably connected with a second cloth tape (3). 4. The diaper with humidity display according to claim 3, characterized in that, the adjacent outer walls of the two second cloth tapes (3) are sewn with the same elastic tape (8) . 5. A diaper with humidity display according to claim 4, characterized in that, the outer walls of the bottoms of the two adjacent sides of the second cloth tapes (3) are connected with first Velcro stickers by bolts (4). 6. The diaper with humidity display according to claim 5, characterized in that the bottom outer walls of the two thin plastic bags (9) are sewn with the same first plastic support belt (5), and A first cloth tape (1) is sewn on both sides of the middle outer walls of the first plastic support tape (5). 7. A diaper with humidity display according to claim 6, characterized in that, the top outer walls of the two first cloth tapes (1) on one side away from each other are sewn with first Velcro mother stickers (1). 2), and the two first Velcro female stickers (2) and the two first Velcro male stickers (4) are respectively bonded to each other.
