CN210462256U

CN210462256U - A computer monitor stand with mobile adjustment function

Info

Publication number: CN210462256U
Application number: CN201921485602.5U
Authority: CN
Inventors: 黄志彬; 朱沛杰; 郭源
Original assignee: Northeast Forestry University
Current assignee: Northeast Forestry University
Priority date: 2019-09-05
Filing date: 2019-09-05
Publication date: 2020-05-05
Anticipated expiration: 2029-09-05

Abstract

The utility model relates to the technical field of accessories for computer monitors, in particular to a computer monitor stand with a movement adjustment function, comprising a monitor connecting plate, a connecting seat, a floating seat, a threaded rod, a connecting plate, a clamping plate, a non-standard screw, a top piece. The beneficial effects of the utility model: the display of the computer is installed on the display connecting plate, and the threaded rod is rotated to drive the floating seat to move vertically on the connecting seat by the screw thread force, so as to realize the height adjustment of the display. , the operation is more convenient, in addition, a clamping plate, non-standard screws and a top block are also provided. The non-standard screws are pressed tightly, so that the monitor can be placed on the vertical mounting plate, and there are no parts between the monitor and the desktop at this time, thereby increasing the space utilization rate of the desktop and improving office efficiency.

Description

Computer display support with remove regulatory function

Technical Field

The utility model relates to a computer display is with accessory technical field, concretely relates to computer display support with remove regulatory function.

Background

Computers are widely used in real life, most of original computer displays are electronic display tube type, heavy, large in size and high in power consumption, and are gradually replaced by liquid crystal type displays at present.

The existing computer display is mainly placed on a desktop by installing a base, so that the height of the existing computer display cannot be adjusted, and the actual use requirement cannot be met.

In view of this, chinese patent No. CN201020298409.3 discloses a bracket for a computer monitor, which includes a connector, an adjusting bracket, an upper connecting rod, a lower connecting rod, an upright post, a base, and the like, wherein the base of the bracket can be fixedly installed at the edge of a desktop. The display is arranged on the bracket, the whole desktop below the display is empty, files, books and the like can be placed when the display works, the display is convenient to move and adjust, and the display can be moved back and forth, up and down and left and right and can also be rotated back and forth, left and right, up and down and the like, so that the display screen is adjusted to the optimal position.

In the above-described aspect, although the height of the display can be adjusted, the adjustment operation is troublesome, and therefore, improvement is required.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to overcome the problem that exists among the prior art, provide a computer display support with remove regulatory function, it can realize making things convenient for display altitude mixture control to a certain extent at least.

In order to realize the technical purpose, the technical effect is achieved, the utility model discloses a realize through following technical scheme:

the utility model provides a computer display support with remove regulatory function, includes the display connecting plate, still includes a connecting seat, vertical sliding connection has a floating seat on the connecting seat, the connection can be dismantled on floating seat to the display connecting plate, vertical rotation is connected with a threaded rod on the connecting seat, the threaded rod screw thread pierces through floating seat, the connecting seat top is equipped with the connecting plate to keeping away from display connecting plate direction extension, the connecting plate is kept away from connecting seat one end and is equipped with downwardly extending's grip block, the horizontal both ends of grip block respectively are equipped with a screw and pierce through its non-standard screw, non-standard screw rotates towards connecting seat one end and is connected with the kicking block, enclose into a centre gripping space between grip block and the connecting seat.

Further, the floating seat is connected with the display connecting plate through screws.

Furthermore, two sliding shafts are vertically and symmetrically arranged on the connecting seat, and the sliding shafts are slidably matched with and penetrate through the floating seat.

Further, the threaded rod is rotatably connected to the connecting seat through a mounting bearing.

Further, the clamping seat and the connecting plate are of an integrally formed structure.

Furthermore, an annular clamping block is coaxially arranged on the nonstandard screw, and a clamping groove which is used for the clamping block to be embedded and clamped and can rotate freely is correspondingly arranged on the ejecting block.

Furthermore, plastic handles are arranged on the threaded rod and the non-standard screws.

The utility model has the advantages that: the display of computer is installed on the display connecting plate, rotate through the threaded rod, utilize screw thread rotary force to drive the vertical removal of floating seat on the connecting seat, thereby realize display altitude mixture control, relative prior art's mode, it is more simple and convenient to operate, still set up the grip block in addition, nonstandard screw, the kicking block, through the vertical mounting panel looks block on the centre gripping space that encloses between grip block and the connecting seat and the outside desktop, and support tightly through nonstandard screw, make the display can place on vertical mounting panel, there is not any part between display and the desktop this moment, thereby the space utilization of desktop has been increased, improve the office efficiency.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

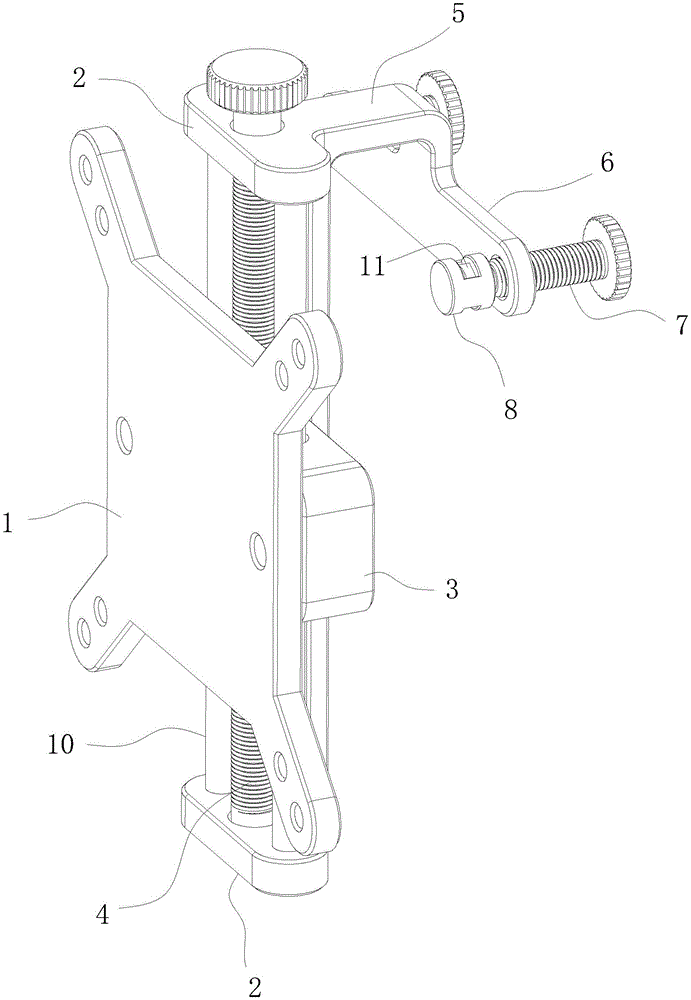

Fig. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic side view of the three-dimensional structure of FIG. 1;

the reference numerals are explained below:

the display device comprises a display connecting plate, a display connecting seat, a display floating seat.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention, and obviously, the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.

As shown in fig. 1-2, a computer display bracket with a movement adjusting function comprises a display connecting plate 1, the display connecting plate 1 is connected with a display through a screw, and further comprises a connecting seat 2, a floating seat 3 is vertically and slidably connected to the connecting seat 2, the display connecting plate 1 is screwed on the floating seat 3, the connecting seat 2 is vertically and rotatably connected with a threaded rod 4 through a mounting bearing (not shown in the figure), the threaded rod 4 penetrates through the floating seat 3 through threads, two sliding shafts 10 are vertically and symmetrically arranged on the connecting seat 2, the sliding shafts 10 penetrate through the floating seat 3 in a sliding fit manner, the floating seat 3 can be limited through the sliding shafts 10, a connecting plate 5 extending in a direction away from the display connecting plate 1 is arranged at the top end of the connecting seat 2, a clamping plate 6 extending downwards is arranged at one end of the connecting plate 5 away from the connecting seat 2, certainly, grip slipper 6 and connecting plate 5 can be integrated into one piece structure, the installation of grip slipper 6 and connecting plate 5 of being convenient for like this, dismantle, the horizontal both ends of grip slipper 6 respectively are equipped with a screw and pierce through its nonstandard screw 7, nonstandard screw 7 rotates towards connecting seat 2 one end and is connected with kicking block 8, and is concrete, the coaxial annular fixture block 11 that is equipped with on the nonstandard screw 7 corresponds be equipped with on kicking block 8 and supply fixture block 11 to inlay the card, and can free rotation's draw-in groove, through fixture block 11 internal rotation and spacing in the draw-in groove for nonstandard screw 7 rotates with kicking block 8 to be connected, enclose into a centre gripping space 9 between grip slipper 6 and the connecting seat 2, furtherly, all be equipped with the plastic handle on threaded rod 4, the nonstandard screw 7, set up the plastic handle and conveniently rotate the operation threaded rod 4, nonstanda.

The utility model discloses when using: the connecting seat, the centre gripping space that encloses between the grip block carries out the block with the vertical mounting panel of outside desktop, make the kicking block be located the mounting panel one of back to the display connecting plate serve, rotate non-standard screw, close soon through the screw thread, the drive kicking block moves towards the mounting panel, after the kicking block supports the mounting panel, rotate non-standard screw again, make the kicking block support the mounting panel tightly, rethread prior art installs outside computer display on the display connecting plate, when adjusting the display height, only need manual rotation threaded rod, close soon through the screw thread of threaded rod and floating seat, drive floating seat vertical removal, then make the display height adjust, because the screw thread is when revolving, have mechanical auto-lock nature, make after the display adjustment, can not produce not become flexible basically.

The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims

1. A computer display support with a mobile adjusting function comprises a display connecting plate (1) and is characterized by further comprising a connecting seat (2), a floating seat (3) is vertically and slidably connected to the connecting seat (2), the display connecting plate (1) is detachably connected to the floating seat (3), a threaded rod (4) is vertically and rotatably connected to the connecting seat (2), the threaded rod (4) penetrates through the floating seat (3) in a threaded manner, a connecting plate (5) extending in the direction away from the display connecting plate (1) is arranged at the top end of the connecting seat (2), a clamping plate (6) extending downwards is arranged at one end, away from the connecting seat (2), of the connecting plate (5), non-standard screws (7) penetrating through the clamping plate in a threaded manner are arranged at the transverse two ends of the clamping plate (6), and a top block (8) is rotatably connected to one end, facing the connecting seat (2), of the non-standard screws (7), a clamping space (9) is enclosed between the clamping plate (6) and the connecting seat (2).

2. Computer monitor stand with movement adjustment according to claim 1, characterised in that the floating mount (3) is screwed to the monitor attachment plate (1).

3. The computer display support with movement adjusting function according to claim 1, characterized in that two sliding shafts (10) are vertically and symmetrically arranged on the connecting base (2), and the sliding shafts (10) are slidably matched and penetrate through the floating base (3).

4. The computer monitor support with movement adjusting function according to claim 1, wherein the threaded rod (4) is rotatably connected to the connecting base (2) through a mounting bearing.

5. The computer monitor support with movement adjusting function according to claim 1, wherein the clamping plate (6) and the connecting plate (5) are of an integral structure.

6. The computer monitor support with movement adjustment function according to claim 1, wherein an annular fixture block (11) is coaxially disposed on the non-standard screw (7), and a slot for the fixture block (11) to be inserted and clamped and capable of rotating freely is disposed on the corresponding top block (8).

7. The computer display bracket with the movement adjusting function according to claim 1, wherein the threaded rod (4) and the non-standard screw (7) are provided with plastic handles.
