CN210455584U

CN210455584U - Foldable placing box

Info

Publication number: CN210455584U
Application number: CN201921423020.4U
Authority: CN
Inventors: 方苏俊
Original assignee: Suzhou Junxin Plastic Co Ltd
Current assignee: Jilin Xunao Network Technology Co ltd
Priority date: 2019-08-29
Filing date: 2019-08-29
Publication date: 2020-05-05
Anticipated expiration: 2029-08-29

Abstract

The utility model relates to the technical field of placing boxes, and discloses a foldable placing box, comprising two vertical plates, four corners on opposite sides of the two vertical plates are integrally formed with hinge blocks, and the two vertical plates are integrally formed with hinge blocks. There are four folding rods between the two folding rods, the left and right ends of the four folding rods are hinged with eight hinge blocks respectively, and the two folding rods on the top and the two folding rods on the bottom are respectively provided with side plates in contact with them. The left and right sides of the two side plates are respectively clamped with the two vertical plates, the bottom between the two vertical plates is provided with a bottom plate, and the bottoms of the two vertical plates both extend to the inner side of the bottom plate. Threaded rods are inserted into the four corners of the bottom of the base plate. The utility model can make full use of the folding function of the placing box when the placing box is not used, fold the placing box, and compress the space occupied by the placing box, which is beneficial to the user's storage and collection, and is convenient for the user to use. .

Description

Foldable placing box

Technical Field

The utility model relates to a place box technical field, specifically be a collapsible box of placing.

Background

The box is the thing that can hold the object, mostly square and have the lid. A box: the box can be used for containing articles, can be used for taking up an object which is put down and moved, on one hand, the box can be used for containing the articles, on the other hand, the box can be convenient for transporting the articles, the attractiveness of the product is improved, and potential values are brought to the product.

However, most of boxes in the current market are generally integrally formed, so that the size of the box cannot be changed, and when the box is not used, the overlarge box occupies a large area of movement or storage space, so that the use of a user is influenced, and the foldable box is provided to solve the problems.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a collapsible box of placing possesses advantages such as collapsible, and it generally is whole shaping to have solved most of box preparations, can cause the volume size of placing the box like this and can't transform, when not using the condition of placing the box, too big box of placing can occupy the removal of large tracts of land or storage space, influences user's use problem.

(II) technical scheme

In order to realize the folding purpose, the utility model provides a following technical scheme: a foldable placing box comprises two vertical plates, hinge blocks are integrally formed at four corners of one side, opposite to the two vertical plates, of each vertical plate, four folding rods are arranged between the two vertical plates, the left ends and the right ends of the four folding rods are respectively hinged with the eight hinge blocks, a side plate in contact with the two folding rods at the top is arranged between the two folding rods at the bottom, the left sides and the right sides of the two side plates are respectively clamped with the two vertical plates, a bottom plate is arranged at the bottom between the two vertical plates, the bottoms of the two vertical plates extend to the inner side of the bottom plate, threaded rods are inserted into four corners at the bottom of the bottom plate, the top ends of the four threaded rods penetrate through the bottom plate and are respectively in threaded connection with the front and the back of the bottoms of the two vertical plates, a cover plate is arranged at the top between the two vertical plates, the tops of the two vertical plates extend, the top parts of the two storage cavities respectively extend to the top parts of the two vertical plates to be communicated with the outside.

Preferably, the folding rod consists of two hinged rods, one ends of the two hinged rods, which are close to each other, are hinged, and one ends of the two hinged rods, which are far away from each other, are hinged with the two hinged blocks on the left side and the right side respectively.

Preferably, the bottom plate all has seted up the ring channel with the opposite one side of apron, two the bottom reservation part of riser extends to the inboard of two ring channels respectively, four the folding rod is located the inboard of two ring channels respectively.

Preferably, two one side that the riser carried on the back mutually all pegs graft and have two square fixed pins, four the one end that square fixed pin is close to the curb plate runs through two risers respectively and extends to the inside of two curb plates.

Preferably, the top of one side that the riser carried on the back mutually all fixedly connected with lifting belt, two lifting belt all is located the bottom of apron.

Preferably, two the front and the equal two stoppers of fixedly connected with in the back of the relative one side of riser, two the left and right sides of the relative one side of curb plate all seted up with stopper matched with draw-in groove, through stopper and draw-in groove looks joint between riser and the curb plate.

(III) advantageous effects

Compared with the prior art, the utility model provides a collapsible box of placing possesses following beneficial effect:

1. this collapsible box of placing, through taking off the threaded rod, let and lose the restriction between two risers and the bottom plate, take off apron and bottom plate simultaneously, lift the curb plate off from between two risers again, thereby make the distance between two risers no longer by excessive restriction, utilize the collapsible effect of folding rod and with articulated of piece, thereby let two risers can be close to each other, then place two curb plates respectively and store in the inside in two storage chambeies, utilize apron and bottom plate respectively from the left and right sides with two riser centre grippings in the middle of, and then fold and reorganize, when not using to place the box, the folding effect of box is placed to the utilization that can be abundant, the occupation of land space that will place the box compresses, be favorable to user's storage, user's use has been made things convenient for.

2. This box is placed to collapsible, constitutes the folding rod through two articulated arms to let the folding rod possess folding effect, because articulated arm is articulated with articulated piece, make the folding rod can carry out certain restriction to the distance between two risers again.

3. This collapsible box of placing through the ring channel of seting up on bottom plate and the apron, conveniently closes bottom plate and apron on two risers through the ring channel, simultaneously because bottom plate and riser pass through threaded rod fixed connection, deuterogamy riser bottom is restricted by the ring channel to position between two fixed risers.

4. This collapsible box of placing fixes the position of riser and curb plate through four square fixed pins for the position of curb plate can be stable, improves and places the stability between the box structure.

5. This collapsible box of placing through two lifting straps, convenient to use person can conveniently lift when the box is placed in the transport removal, has made things convenient for user's use.

6. This collapsible box of placing through the cooperation of stopper and draw-in groove, restricts the location to the position of curb plate, avoids when the installation curb plate, and the curb plate is too by the interior, influences the installation of curb plate.

Drawings

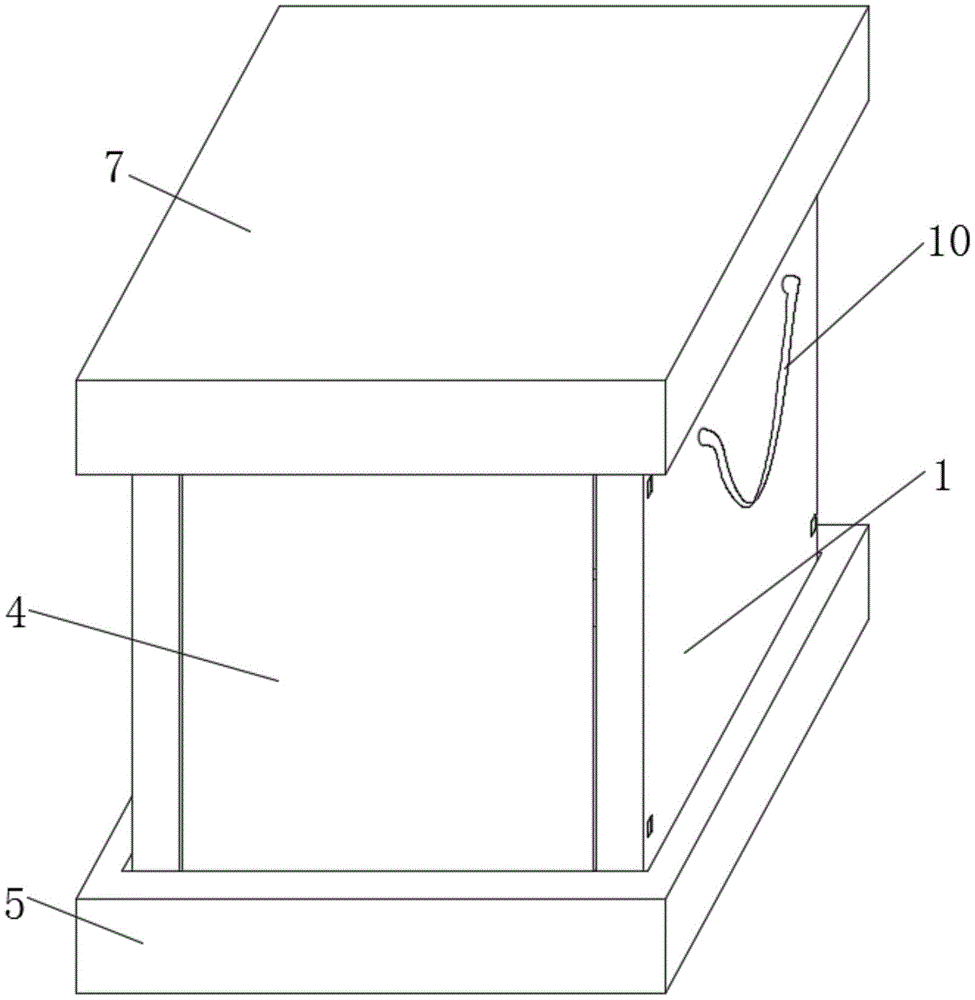

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the connection structure of the hinge block and the folding rod of the present invention;

FIG. 3 is a schematic view of the connecting structure of the vertical plate and the side plate of the present invention;

FIG. 4 is a schematic view of the connection structure of the vertical plate and the threaded rod of the present invention;

fig. 5 is a schematic bottom view of the cover plate of the present invention;

fig. 6 is an enlarged schematic view of a portion a in fig. 3 according to the present invention.

In the figure: 1. a vertical plate; 2. a hinged block; 3. a folding bar; 31. a hinged lever; 4. a side plate; 5. a base plate; 6. a threaded rod; 7. a cover plate; 8. an annular groove; 9. a storage chamber; 10. lifting the pull belt; 11. a limiting block; 12. a card slot; 13. and a square fixing pin.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-6, a foldable storage box comprises two vertical plates 1, hinge blocks 2 are integrally formed at four corners of one side of each vertical plate 1 opposite to the other vertical plate 1, four folding rods 3 are arranged between the two vertical plates 1, the left and right ends of the four folding rods 3 are respectively hinged with the eight hinge blocks 2, side plates 4 in contact with the two folding rods 3 are respectively arranged between the two folding rods 3 at the top and the two folding rods at the bottom, the left and right sides of the two side plates 4 are respectively clamped with the two vertical plates 1, a bottom plate 5 is arranged at the bottom between the two vertical plates 1, the bottoms of the two vertical plates 1 extend to the inner side of the bottom plate 5, threaded rods 6 are respectively inserted into four corners of the bottom plate 5, the top ends of the four threaded rods 6 penetrate through the bottom plate 5 and are respectively in threaded connection with the front and the back of the bottoms of the two vertical plates 1, a cover plate 7 is, the storage cavities 9 are arranged inside the two vertical plates 1, the tops of the two storage cavities 9 respectively extend to the tops of the two vertical plates 1 to be communicated with the outside, the threaded rods 6 are taken down to enable the space between the two vertical plates 1 and the bottom plate 5 to be free from limitation, the cover plate 7 and the bottom plate 5 are taken down at the same time, then the side plates 4 are taken down from the space between the two vertical plates 1, so that the distance between the two vertical plates 1 is not limited excessively, the two vertical plates 1 can be close to each other by utilizing the folding effect of the folding rods 3 and the hinging of the hinging blocks 2, then the two side plates 4 are respectively placed inside the two storage cavities 9 for storage, the two vertical plates 1 are respectively clamped in the middle from the left side and the right side by utilizing the cover plate 7 and the bottom plate 5 for folding and recombination, when the box is not used, the folding effect of the box can be fully utilized, the occupied space for, is beneficial to the storage and collection of users and is convenient for the users to use.

Further, folding rod 3 comprises two articulated mast 31, and two articulated mast 31 want the one end of being close to articulated mutually, and the one end that two articulated mast 31 kept away from mutually is articulated with two articulated pieces 2 of the left and right sides respectively, constitutes folding rod 3 through two articulated mast 31 to let folding rod 3 possess the folding effect, because articulated mast 31 is articulated with articulated piece 2, make folding rod 3 can carry out certain restriction to the distance between two risers 1 again.

Further, annular groove 8 has all been seted up to the one side that bottom plate 5 is relative with apron 7, the bottom reservation part of two risers 1 extends to the inboard of two annular grooves 8 respectively, four folding rods 3 are located the inboard of two annular grooves 8 respectively, annular groove 8 of seting up on through bottom plate 5 and the apron 7, conveniently through annular groove 8 with bottom plate 5 and apron 7 coincide on two risers 1, simultaneously because bottom plate 5 passes through 6 fixed connection of threaded rod with

riser

1, 1 bottom of deuterogamy riser is restricted by annular groove 8, thereby fix position between two risers 1.

Further, two square fixed pins 13 are all inserted to one side that two risers 1 carried on the back mutually, and four square fixed pins 13 are close to the inside that two risers 1 and extend to two curb plates 4 respectively through the one end of curb plate 4, fix the position of riser 1 and curb plate 4 through four square fixed pins 13 for the position of curb plate 4 can be stable, improves and places the stability between the box structure.

Further, the equal fixedly connected with lifting belt 10 in top of one side that two riser 1 carried on the back mutually, two lifting belt 10 all are located the bottom of apron 7, through two lifting belt 10, and convenient to use person can conveniently carry and draw when the box is placed in the transport removal, has made things convenient for user's use.

Further, the front and the back of the relative one side of two risers 1 are two stopper 11 of the equal fixedly connected with, the left and right sides of the relative one side of two curb plates 4 all seted up with stopper 11 matched with draw-in groove 12, through stopper 11 and draw-in groove 12 looks joint between riser 1 and the curb plate 4, through stopper 11 and draw-in groove 12's cooperation, restrict the location to the position of curb plate 4, avoid when installing curb plate 4, curb plate 4 too leans on the interior, influence the installation of curb plate 4.

The working principle is as follows: the threaded rod 6 is taken down to enable the two vertical plates 1 and the bottom plate 5 to lose the limit, the cover plate 7 and the bottom plate 5 are taken down simultaneously, the square fixing pin 13 is pulled out, the side plate 4 is dismounted from the space between the two vertical plates 1, so that the distance between the two vertical plates 1 is not excessively limited, the folding rod 3 is formed by the two hinge rods 31, the folding rod 3 has the folding effect, the hinge rod 31 is hinged with the hinge block 2, the folding rod 3 can limit the distance between the two vertical plates 1 to a certain degree, so that the two vertical plates 1 can be close to each other, then the two side plates 4 are respectively placed in the two storage cavities 9 for storage, the cover plate 7 and the bottom plate 5 are utilized to clamp the two vertical plates 1 in the middle from the left side and the right side respectively, then the folding recombination is carried out, when the box is not used, the folding effect of the box can be fully utilized, the occupied space of the placing box is compressed, which is beneficial to the storage and collection of users and is convenient for the users to use.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A foldable storage box, comprising two vertical plates (1), characterized in that: the four corners on the opposite sides of the two vertical plates (1) are integrally formed with hinge blocks (2), and the two vertical plates (1) are integrally formed with hinge blocks (2). Four folding rods (3) are arranged between the vertical plates (1), the left and right ends of the four folding rods (3) are hinged with eight hinge blocks (2) respectively, and the top two folding rods (3) There are side plates (4) in contact with the two folding rods (3) at the bottom respectively, and the left and right sides of the two side plates (4) are respectively clamped with the two vertical plates (1). A bottom plate (5) is provided at the bottom between each of the vertical plates (1), the bottoms of the two vertical plates (1) both extend to the inner side of the bottom plate (5), and the four corners of the bottom of the bottom plate (5) are A threaded rod (6) is inserted, and the top ends of the four threaded rods (6) penetrate through the bottom plate (5) and are respectively connected with the front and back of the bottom of the two vertical plates (1). 1) The top between the two vertical plates (1) is arranged with the cover plate (7), the tops of the two vertical plates (1) both extend to the inner side of the cover plate (7), and the interiors of the two vertical plates (1) are provided with storage Cavities (9), the tops of the two storage cavities (9) respectively extend to the tops of the two risers (1) and communicate with the outside.

2. A foldable storage box according to claim 1, characterized in that: the folding rod (3) is composed of two hinge rods (31), and the two hinge rods (31) want to be close to one end The ends of the two hinge rods (31) that are far away from each other are hinged with the two hinge blocks (2) on the left and right sides respectively.

3. A foldable storage box according to claim 1, characterized in that: the opposite sides of the bottom plate (5) and the cover plate (7) are provided with annular grooves (8), and two of the vertical The bottom reservation parts of the plate (1) extend to the inner sides of the two annular grooves (8), respectively, and the four folding rods (3) are respectively located inside the two annular grooves (8).

4. A foldable storage box according to claim 1, characterized in that: two square fixing pins (13) are inserted on the opposite sides of the two vertical plates (1), and the four One end of the square fixing pin (13) close to the side plate (4) respectively penetrates the two vertical plates (1) and extends to the inside of the two side plates (4).

5. A foldable storage box according to claim 1, characterized in that: the tops of the opposite sides of the two vertical plates (1) are fixedly connected with a lifting belt (10), and the two Each of the lifting belts (10) is located at the bottom of the cover plate (7).

6. A foldable placing box according to claim 1, characterized in that: two limit blocks (11) are fixedly connected to the front and back of the opposite sides of the two vertical plates (1), and the two The left and right sides of the opposite side of each of the side plates (4) are provided with card slots (12) matched with the limit blocks (11), and the vertical plates (1) and the side plates (4) pass through The limiting block (11) is clamped with the clamping slot (12).
