Abstract
本实用新型公开了一种导尿管固定装置，包括刺毛贴、盖板和透气孔，所述刺毛贴的右侧连接有弹力带，且弹力带的中间连接有固定带，所述盖板安装于固定板的中间，且固定板的内部安置有导尿管，所述弹力带的右侧连接有圆毛贴，所述透气孔安置于固定带的内表面，且固定带的内部连接有锁水棉，所述锁水棉的内侧安装有硅胶垫，且卡槽的左侧安装有凹槽，所述盖板的底端连接有转轴，且盖板的右侧安装有卡扣。该导尿管固定装置通过卡扣和卡槽之间的相互作用，可以使盖板与固定板之间构成一个密封结构，这样就可以将导尿管牢牢卡在凹槽内，防止牵拉，避免出现意外脱管的现象，利用转轴的转动，可以自由闭合盖板，从而便于医护人员对导尿管进行安装与拆卸。
The utility model discloses a catheter fixing device, comprising a burr sticker, a cover plate and a ventilation hole, an elastic band is connected to the right side of the burr sticker, and a fixing belt is connected to the middle of the elastic band, and the cover The plate is installed in the middle of the fixing plate, and the inside of the fixing plate is arranged with a catheter, the right side of the elastic band is connected with a round hair sticker, the ventilation hole is arranged on the inner surface of the fixing band, and the inner connection of the fixing band is There is a water lock cotton, the inner side of the water lock cotton is equipped with a silicone pad, and the left side of the card slot is installed with a groove, the bottom end of the cover plate is connected with a rotating shaft, and the right side of the cover plate is installed with a buckle. The catheter fixing device can form a sealing structure between the cover plate and the fixing plate through the interaction between the buckle and the clamping groove, so that the catheter can be firmly clamped in the groove to prevent pulling , to avoid the phenomenon of accidental detachment of the catheter, and the cover plate can be freely closed by the rotation of the rotating shaft, so as to facilitate the installation and removal of the catheter by medical personnel.
Description
Technical Field
The utility model relates to a medical equipment fixing device technical field specifically is a catheter fixing device.
Background
The catheter needs to be fixed when being used, so that the problems of traction and even catheter detachment when a patient turns over are avoided, the action amplitude is different when the body position of the patient is changed due to different body types of the patient, the reserved catheter length is difficult to achieve the effect that every person can just do, the bed activity of the patient is limited to a certain extent, psychological burden is increased for the patient due to the fact that the patient worrys about the traction or the slipping-off of the catheter, the catheter is frequently accidentally detached when the patient is clinically held, unnecessary pain is brought to the patient, and therefore the research on the catheter fixing device is particularly important.
The existing urinary catheter fixing device generally pastes the catheter fixing paste on the thigh of a patient, so that the fixing is not firm enough, the skin of the patient is injured, the phenomenon of tube falling is easy to occur, meanwhile, the air permeability is poor, the patient is not comfortable, and the fixing is inconvenient.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a catheter fixing device to solve the current catheter fixing device who proposes in the above-mentioned background art and generally paste the fixed subsides of catheter on patient's thigh, fixed firm inadequately like this, and injure patient's skin, and the phenomenon of taking off the pipe easily appears, and the gas permeability is poor simultaneously, and is not comfortable enough, inconvenient fixed problem in addition.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a catheter fixing device, includes thorn hair subsides, apron and bleeder vent, the right side that thorn hair was pasted is connected with the elastic webbing, and the intermediate junction of elastic webbing has the fixed band, the base plate is installed to the centre of fixed band, and the inboard arrangement of base plate has the fixed plate, the apron is installed in the centre of fixed plate, and the inside arrangement of fixed plate has the catheter, the right side of elastic webbing is connected with the round hair and pastes, the bleeder vent is settled in the internal surface of fixed band, and the internal connection of fixed band has the cotton of lock water, the silica gel pad is installed to the inboard of the cotton of lock water, settle the top of fixed plate has the draw-in groove, and the left side of draw-in groove is installed flutedly.
Preferably, the connection mode between the stabbing hair paste and the round hair paste is bonding, and the stabbing hair paste and the round hair paste are uniformly connected with the elastic band in a sewing mode.
Preferably, the width of the elastic band is equal to the width of the fixing band, and the elastic band is distributed symmetrically left and right about the center line of the fixing band.
Preferably, the substrate is tightly attached to the fixing plate, and the groove is fixedly connected with the fixing plate.
Preferably, the cover plate forms a rotating structure through the rotating shaft and the fixing plate, and the connecting mode between the buckle and the clamping groove is clamping connection.
Preferably, a communicating structure is formed between the air holes and the water locking cotton, and the air holes are uniformly distributed along the outer surface of the fixing band.
Preferably, the structure size of the silica gel pad is matched with the structure size of the fixing band, and the structure of the silica gel pad is an elastic structure.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the catheter fixing device can enable the cover plate and the fixing plate to form a sealing structure through the interaction between the buckle and the clamping groove, so that the catheter can be firmly clamped in the groove, the traction is prevented, and the phenomenon of accidental tube detachment is avoided; the cover plate can be freely closed by utilizing the rotation of the rotating shaft, so that the catheter can be conveniently mounted and dismounted by medical personnel;
2. the elastic band has certain elasticity and can be stretched to a certain degree, so that the fixing band can be worn on the legs or the waist of patients with different statures, the traditional sticking mode is changed in a binding mode, the skin of the patients can be prevented from being injured, and the fixing band is firmer and more stable; the adhesive bonding between the stabbing hair patch and the round hair patch is used, so that medical staff can conveniently and quickly bind the fixing belt on the body of a patient, the binding tightness can be adjusted through the adhesive bonding position, and the binding comfort is guaranteed;
3. the air holes are arranged, so that air can be diffused at the position restrained by the patient, and the water-locking cotton can absorb sweat, so that the skin of the patient is ensured to be in a dry environment, and the skin is prevented from having uncomfortable reactions such as pruritus; the silica gel pad has certain elasticity, can cushion the nervous degree that the fixed band was bound, protects patient's skin, avoids appearing the phenomenon of reining in the wound.
Drawings

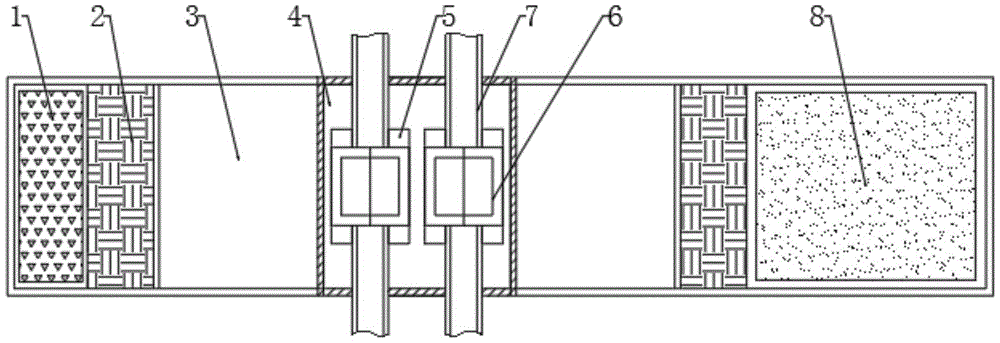

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic view of the bottom view structure of the present invention;
fig. 3 is a schematic view of the connection structure of the fixing plate and the cover plate of the present invention.
In the figure: 1. sticking the stabbing wool; 2. an elastic band; 3. fixing belts; 4. a substrate; 5. a fixing plate; 6. a cover plate; 7. a urinary catheter; 8. round hair paste; 9. air holes are formed; 10. water locking cotton; 11. a silica gel pad; 12. a card slot; 13. a groove; 14. a rotating shaft; 15. and (5) buckling.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a catheter fixing device comprises a thorn hair sticker 1, a cover plate 6 and air holes 9, wherein the right side of the thorn hair sticker 1 is connected with an elastic belt 2, the middle of the elastic belt 2 is connected with a fixing belt 3, the width of the elastic belt 2 is equal to that of the fixing belt 3, the elastic belt 2 is distributed in bilateral symmetry about the center line of the fixing belt 3, the elastic belt 2 has certain elasticity and can be stretched to a certain degree, so that the fixing belt 3 can be worn on legs or waists of patients with different statures, the traditional pasting mode is changed in a binding mode, the skin of the patients can be prevented from being injured, and the fixing belt is firmer and more stable; the middle of the fixing band 3 is provided with a base plate 4, the inner side of the base plate 4 is provided with a fixing plate 5, the cover plate 6 is arranged in the middle of the fixing plate 5, the fixing plate 5 is internally provided with a catheter 7, the right side of the elastic band 2 is connected with a round hair sticker 8, the connection mode between the thorn hair sticker 1 and the round hair sticker 8 is bonding, the connection modes between the thorn hair sticker 1 and the round hair sticker 8 and the elastic band 2 are uniformly sewn and connected, medical personnel can conveniently and quickly bind the fixing band 3 on the body of a patient by utilizing the bonding between the thorn hair sticker 1 and the round hair sticker 8, the degree of tightness of the binding can be adjusted through the bonding position, and the comfort of the binding is ensured;
the air holes 9 are arranged on the inner surface of the fixing band 3, the water locking cotton 10 is connected inside the fixing band 3, a communicating structure is formed between the air holes 9 and the water locking cotton 10, the air holes 9 are uniformly distributed along the outer surface of the fixing band 3, the air holes 9 can disperse air at the position restrained by the patient, the water locking cotton 10 can absorb sweat, the skin of the patient is ensured to be in a dry environment, and the skin is prevented from having uncomfortable reactions such as pruritus; the silica gel pad 11 is arranged on the inner side of the water locking cotton 10, the structural size of the silica gel pad 11 is matched with that of the fixing band 3, the silica gel pad 11 is of an elastic structure, and the silica gel pad 11 has certain elasticity, so that the tension degree bound by the fixing band 3 can be buffered, the skin of a patient can be protected, and the phenomenon of strangulation is avoided;
a clamping groove 12 is arranged above the fixed plate 5, a groove 13 is arranged on the left side of the clamping groove 12, a rotating shaft 14 is connected to the bottom end of the cover plate 6, a buckle 15 is arranged on the right side of the cover plate 6, the base plate 4 and the fixed plate 5 are tightly attached, the groove 13 and the fixed plate 5 are fixedly connected, and a sealing structure can be formed between the cover plate 6 and the fixed plate 5 through the interaction between the buckle 15 and the clamping groove 12, so that the catheter 7 can be firmly clamped in the groove 13, the traction is prevented, and the phenomenon of accidental catheter detachment is avoided; the cover plate 6 forms a rotating structure between the rotating shaft 14 and the fixing plate 5, the connecting mode between the buckle 15 and the clamping groove 12 is clamping connection, the cover plate 6 can be freely closed by utilizing the rotation of the rotating shaft 14, and therefore medical staff can conveniently install and detach the catheter 7.
The working principle is as follows: for the catheter fixing device, firstly, medical staff needs to tightly attach the fixing band 3 to the thigh or waist of a patient, if a male patient proposes to fix the fixing band on the waist, then hold the elastic bands 2 on the left side and the right side with hands and stretch outwards, wind the fixing band 3 around the thigh or waist of the patient for a circle, then bond the thorn paste 1 on the round hair paste 8, so that the fixing band 3 is firmly fixed on the body of the patient, at this time, the tension degree of the fixing band 3 is buffered by the elasticity of the silicon rubber pad 11, then the medical staff can place the catheter 7 in the grooves 13 on the two sides of the fixing plate 5, then rotate the cover plate 6 downwards by the rotating shaft 14 until the buckle 15 is clamped into the clamping groove 12, so that the cover plate 6 covers the fixing plate 5 to form a sealing structure, the catheter 7 is firmly clamped in the grooves 13, and the base plate 4 can support the fixing plate 5, make fixed plate 5 have certain hardness, if need change catheter 7, only need with the step reverse operation of installation can, when constraint patient's health, the constraint position can dispel the gas through bleeder vent 9 to lock cotton 10 can absorb the sweat, make patient's skin be in dry environment, make the practicality of whole device obtain fine improvement, accomplish whole catheter fixing device's use like this.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
