Abstract
本实用新型公开一种肩胸固定约束带，属于医疗安全辅助器械领域。包括约束背心和约束带组，约束背心包括前片和后片，前片和后片在肩部分离、在胸部两侧连接，且前片和后片之间在肩部位置分别连接有第一肩带和第二肩带；约束带组包括设置在约束背心胸部两侧的毛刺带。在本实用新型提供的一种肩胸固定约束带中，约束背心的前片分左片和右片，且左片和右片通过调节带来连接，便于穿下和脱掉；同时在纽扣孔里穿设调节带，比一般的纽扣扣合更加牢固；约束背心的胸部两侧设有毛刺带，一方面可以约束患者，另一方面操作简单；第一肩带和第二肩带上的固定带和扣头进一步增强了对患者的约束效果；约束背心的下端边缘设有锁边，增强了约束背心的牢固度。
The utility model discloses a shoulder-chest fixing restraint belt, which belongs to the field of medical safety auxiliary equipment. Including a restraint vest and a restraint belt group, the restraint vest includes a front piece and a back piece, the front piece and the back piece are separated at the shoulders and connected on both sides of the chest, and the front piece and the back piece are respectively connected at the shoulder position with a first piece. Shoulder straps and secondary shoulder straps; the set of restraint straps includes burr straps disposed on both sides of the chest of the restraint vest. In the shoulder-chest fixing restraint belt provided by the utility model, the front piece of the restraint vest is divided into a left piece and a right piece, and the left piece and the right piece are connected by an adjustment belt, which is convenient to wear and take off; There is an adjustment strap inside, which is more secure than the general button fastening; there are burr straps on both sides of the chest of the restraint vest, on the one hand, it can restrain the patient, on the other hand, it is easy to operate; the first shoulder strap and the second shoulder strap are fixed The straps and buckles further enhance the restraint effect on the patient; the lower edge of the restraint vest is provided with a lock edge, which enhances the firmness of the restraint vest.
Description
Technical Field
The utility model relates to the technical field of medical safety auxiliary instruments, in particular to a clinical safety protection device for patients.
Background
In the modern medical treatment process, most patients who are not conscious after general anesthesia operation or patients who are abnormal in spirit after general anesthesia operation, mental patients and brain diseases cause disturbance of consciousness and restless people and are usually unconscious in sitting up behavior.
In the prior art, in order to prevent the patients from falling down from the bed, being pulled out of a catheter, aggravating diseases and the like, nursing staff usually use a shoulder and chest restraint strap to carry out protective restraint on the patients after informed consent of symbolized family members, but the shoulder and chest restraint strap clinically used at present is not reasonable in structure, and the following defects often occur in the use process:
(1) the protective constraint function cannot be achieved;
(2) can cause skin damage of patients with different degrees, limb peripheral circulation obstruction, limb nerve compression and abnormal sensation, and joint dysfunction of both upper limbs.
The above disadvantages not only bring more pain to the patient, but also bring more additional problems to the medical treatment work in the hospital, and even may aggravate the disease condition or cause new other diseases, in which case, great inconvenience is brought to the medical treatment and medical care.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a shoulder chest is fixed about band to solve the problem that the shoulder chest about band that uses at present can not play protective nature restraint effect to the patient clinically.
In order to solve the technical problem, the utility model provides a shoulder and chest fixing and restraining belt, which comprises a restraining vest and a restraining belt group, wherein,
the restraining vest comprises a front piece and a rear piece, wherein the front piece and the rear piece are separated at the shoulder and are connected at two sides of the chest, and a first shoulder strap and a second shoulder strap are respectively connected between the front piece and the rear piece at the shoulder; the restraining band group comprises burr bands arranged on two sides of the chest of the restraining vest.
Optionally, the restraint strap set further includes a fixing strap and a buckle head respectively connected to the first shoulder strap and the second shoulder strap, and the fixing strap is provided with a plurality of small holes.
Optionally, the lower end edge of the restraining vest is provided with a lock catch.
Optionally, the restraining strap group further comprises a strap ring arranged at the lower end of the restraining vest.
Optionally, the anter includes left part and right part, left part and right part are equipped with a plurality of button hole at chest position symmetry, a plurality of adjusting band is worn to be equipped with in the button hole.
Optionally, at least 2 burr bands are arranged on two sides of the chest along the length direction of the restraining vest.
In the shoulder and chest fixing and restraining belt provided by the utility model, the front piece of the restraining vest is divided into a left piece and a right piece, and the left piece and the right piece are connected through the adjusting belt, so that the restraining vest can be conveniently put on and taken off; meanwhile, the adjusting belt is arranged in the button hole in a penetrating mode, so that the button is firmer to buckle than a common button; the two sides of the chest of the restraining vest are provided with the burr belts, so that the patient can be restrained on one hand, and the operation is simple on the other hand; the fixing belts and the button heads on the first shoulder belt and the second shoulder belt further enhance the restraint effect on the patient; the lower end edge of the restraining vest is provided with a lock edge, so that the firmness of the restraining vest is enhanced.
Drawings

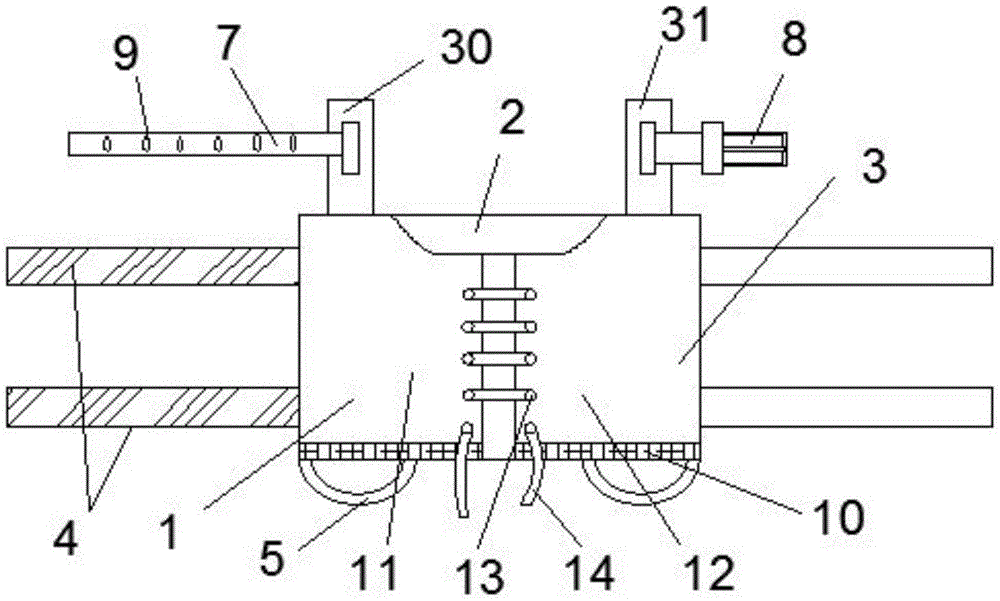

Fig. 1 is a front schematic view of a shoulder and chest fixing and restraining strap provided by the present invention;
fig. 2 is a back schematic view of the shoulder and chest fixing and restraining strap provided by the present invention.
Detailed Description
The shoulder and chest fixing and restraining strap of the present invention will be further described in detail with reference to the accompanying drawings and specific embodiments. The advantages and features of the present invention will become more fully apparent from the following description and appended claims. It should be noted that the drawings are in simplified form and are not to precise scale, and are provided for convenience and clarity in order to facilitate the description of the embodiments of the present invention.
The utility model provides a shoulder and chest fixing and restraining belt, as shown in fig. 1 and 2, including a restraining vest 3 and a restraining belt group, the lower end edge of the restraining vest 3 is provided with a lockstitching edge 10, wherein, the restraining vest 3 comprises a front piece 1 and a rear piece 2, the front piece 1 and the rear piece 2 are separated at the shoulder and connected at the two sides of the chest, and a first shoulder strap 30 and a second shoulder strap 31 are respectively connected at the shoulder between the front piece 1 and the rear piece 2, the first shoulder strap 30 and the second shoulder strap 31 are respectively connected with a fixing belt 7 and a button head 8, the fixing belt 7 is provided with a plurality of small holes 9, the fixing belt 7 and the button head 8 are similar to the working principle of the belt, and the restraining effect on the patient is further enhanced; the restraint strap group also comprises a strap ring 5 arranged at the lower end of the restraint vest 3, and a fixing rope can be arranged on the strap ring 5 in a penetrating way according to the actual condition to further restrain the patient;
the front piece 1 comprises a left piece 11 and a right piece 12, the left piece 11 and the right piece 12 are symmetrically provided with a plurality of button holes 13 at the front of the chest, adjusting belts 14 are arranged in the button holes 13 in a penetrating manner, so that the restraining vest 3 can be conveniently put on and taken off, and meanwhile, the adjusting belts 14 are arranged in the button holes 13 in a penetrating manner, so that the connection is firmer than that of a common button; the restraining band group comprises burr bands 4 arranged on two sides of the chest of the restraining vest 3, and at least 2 burr bands 4 are arranged on two sides of the chest along the length direction of the restraining vest; on the one hand, the patient can be restrained, and on the other hand, the operation is convenient.
The above description is only for the preferred embodiment of the present invention and is not intended to limit the scope of the present invention, and any modification and modification made by those skilled in the art according to the above disclosure are all within the scope of the claims.
