CN210445971U

CN210445971U - Novel nursing tool arrangement box

Info

Publication number: CN210445971U
Application number: CN201921074091.8U
Authority: CN
Inventors: 钱彧
Original assignee: Wuhan University WHU
Current assignee: Wuhan University WHU
Priority date: 2019-07-10
Filing date: 2019-07-10
Publication date: 2020-05-05
Anticipated expiration: 2029-07-10

Abstract

The utility model discloses a novel nursing tool organizing box, comprising a casing, a plurality of lifting mechanisms arranged at the inner bottom of the casing, and a box body whose bottom is connected with the driving end of the lifting mechanism and can be lifted up and down in the casing. The top is provided with two split cover plates, and the two cover plates are locked by the locking device; the box is provided with several pressing devices for pressing the nursing tools. The beneficial effects of the utility model are as follows: the utility model designs a lifting mechanism and an auxiliary lifting mechanism, the box body can be automatically lifted when the cover plate is opened, which is convenient for taking and placing nursing tools; The collision between the nursing tool and the box during the movement of the sorting box is avoided.

Description

Novel nursing tool arrangement box

Technical Field

The utility model relates to a medical care auxiliary assembly technical field, concretely relates to novel nursing tool arrangement case.

Background

Tools used in medical care are various and complex, and a sorting box is needed to sort and summarize the tools. However, the traditional sorting box has poor moving flexibility, the number of built-in storage latches is small, most tools are stacked in the shell together, and the searching is difficult; some heavier tools do not have a hold down process and are prone to breaking the housing. Therefore, there is a need for improvements in the prior art.

Disclosure of Invention

An object of the utility model is to provide a portable, can compress tightly the novel nursing tool arrangement case of accomodating to great instrument to prior art's not enough.

The utility model adopts the technical proposal that: a novel nursing tool sorting box comprises a shell, a plurality of lifting mechanisms and a box body, wherein the lifting mechanisms are arranged at the bottom in the shell, the box body is connected with the driving end of the lifting mechanism at the bottom and can lift up and down in the shell, two oppositely-opened cover plates are arranged at the top of the shell, and the two cover plates are locked through a door locking device; a plurality of pressing devices used for pressing the nursing tools are arranged in the box body.

According to the scheme, the pressing device comprises a vertical support, a pressing support rod, a tensioning rod piece and a pressing seat, the vertical support is arranged in the box body, the upper end of the pressing support rod is hinged with the vertical support rod, and the lower end of the pressing support rod is fixedly connected with the pressing seat; one end of the tensioning rod piece is hinged with the vertical support, and the other end of the tensioning rod piece is hinged with the middle part of the compression support rod.

According to the scheme, the tensioning rod piece comprises a tensioning rod seat A, a tensioning rod seat B, a limiting rod and a tensioning spring; one end of the tension rod seat A is hinged with the vertical support, the other end of the tension rod seat A is fixedly connected with one end of the limiting rod, and the other end of the limiting rod is inserted into the tension rod seat B; the other end of the tension rod seat B is hinged with the middle part of the compression support rod; a tension spring is sleeved on the limiting rod between the tension rod seat A and the tension rod seat B.

According to the scheme, the lifting mechanism comprises a base, two sliding rods, an upper seat and a spring, wherein the two sliding rods are respectively arranged on two sides of the base; the base is fixed at the inner bottom of the shell; the lower end of the sliding rod is fixedly connected with the base, the upper end of the sliding rod horizontally extends towards the inner side, and the extending section is matched with a sliding groove formed in the side part of the upper seat; the bottom of the upper seat is connected with the upper end of a lifting spring, and the lower end of the lifting spring is fixedly connected with the base; when the lifting spring is pressed, the sliding groove of the upper seat connected with the upper end of the lifting spring moves up and down along the sliding rod, and then the box body is driven to move up and down.

According to the scheme, the outer side of the box body is fixedly connected with a horizontal rod, the end part of the horizontal rod is provided with a sliding block, the sliding block is matched with a stepped groove formed in the inner side wall of the shell, and when the box body is lifted, the sliding block moves up and down along the stepped groove; and an auxiliary lifting mechanism is arranged at the bottom of the box body.

According to the scheme, the auxiliary lifting mechanism comprises an auxiliary spring with a horizontal axis and roller connecting rod mechanisms which are symmetrically distributed by taking the auxiliary spring as a center; the roller connecting rod mechanism comprises a roller, a first connecting rod and a second connecting rod, the upper end of the first connecting rod is hinged with the bottom of the box body, the lower end of the first connecting rod is provided with the roller, and the roller can walk along the inner bottom surface of the shell; one end of the second connecting rod is hinged with the first connecting rod, and the other end of the second connecting rod is fixedly connected with the auxiliary spring; when the box upwards moved under elevating system's effect, auxiliary spring received the resilience force effect and contracts back, and its lower extreme of first connecting rod through second connecting rod drive both sides rotates around the upper end, and two gyro wheels that are located auxiliary spring both sides are close to each other under the effect of first connecting rod.

According to the scheme, the top of the box body is provided with a plurality of pulley seats, and the upper parts of the pulley seats are provided with pulleys. The sliding block is arranged outside the box body and matched with the stepped groove arranged on the inner wall of the shell, and when the box body moves up and down, the sliding block slides in the stepped groove; a plurality of partition plates for partitioning the box body are arranged in the box body; a socket for hanging or mounting a small nursing tool is also arranged in the box body.

According to the scheme, a pull rod mechanism is arranged on one side of the shell, and a traveling mechanism is arranged at the bottom of the shell; the pull rod mechanism comprises a pull rod seat, a sliding block and a connecting rod, the pull rod seat is arranged on one side of the shell, a sliding cavity matched with the sliding seat is formed in the pull rod seat, the sliding seat is arranged at the lower end of the pull rod, and the upper end of the pull rod penetrates out of the pull rod seat and is connected with a handle arranged outside.

According to the scheme, the travelling mechanism is arranged in a switching groove at the bottom of one side of the shell and comprises a moving wheel supporting rod, a moving wheel and an arc-shaped supporting frame with a switching track, one end of the moving wheel supporting rod is provided with a wheel shaft, the wheel shaft is matched with the moving wheel, and the other end of the moving wheel supporting rod is hinged in the switching groove; a plurality of positioning holes are formed in the mounting groove, the movable wheel supporting rod is provided with a locking screw, and the locking screw is inserted into the positioning holes to realize the positioning of the movable wheel supporting rod; the moving wheel support rod is fixedly connected with a lug, and the motion track of the lug is matched with the switching track; when the free end of the movable wheel supporting rod rotates along the hinged end, the cam can move along the switching track.

According to the scheme, the shell comprises a shell body, two cover plates are arranged at the top of the shell body, and each cover plate is provided with a handle; the outside of apron is articulated with the top of shell body, and the inboard of two apron is passed through the locking door device and is linked to each other.

According to the scheme, the door locking device comprises a lock seat and a locking mechanism which are respectively arranged on two cover plates, the locking mechanism comprises a bolt seat, a door lock spring and a sliding table with a lock rod, the bolt seat is fixed on one cover plate, a lock groove is formed in the bolt seat, the door lock spring and the sliding table are both arranged in the lock groove, and the door lock spring is always in a compressed state; one end of the door lock spring is fixedly connected with the inner side of the lock groove, the other end of the lock groove is connected with the sliding table, and the lock rod on the sliding table extends out of the bolt seat and is inserted into the lock hole of the lock seat; the sliding table is provided with a pull seat, and the upper end of the pull seat extends out of the lock groove; the sliding table pushes the lock rod to be inserted into the lock hole of the lock seat of the other cover plate under the elastic force action of the door lock spring, so that the two cover plates are locked; when the sliding seat drives the sliding table to move along the compression direction of the door lock spring, the lock rod is pulled out of the lock hole, and the two cover plates are opened.

The utility model has the advantages that:

1. the utility model designs the lifting mechanism and the auxiliary lifting mechanism, the box body can be automatically lifted when the cover plate is opened, and the nursing tool is convenient to take and place; 2. the pressing device is arranged to accommodate the nursing tools with larger mass, so that the nursing tools are prevented from colliding with the box body in the moving process of the sorting box; 3. the pull rod mechanism and the traveling mechanism are designed, the sorting box can be switched to a traveling mode when needing to move, and only the moving wheels are directly dragged, so that labor is saved and reliability is realized; 4. the box body is internally provided with a partition plate and other inserting rod seats, so that the box body is convenient to store; 5. the utility model relates to a rationally.

Drawings

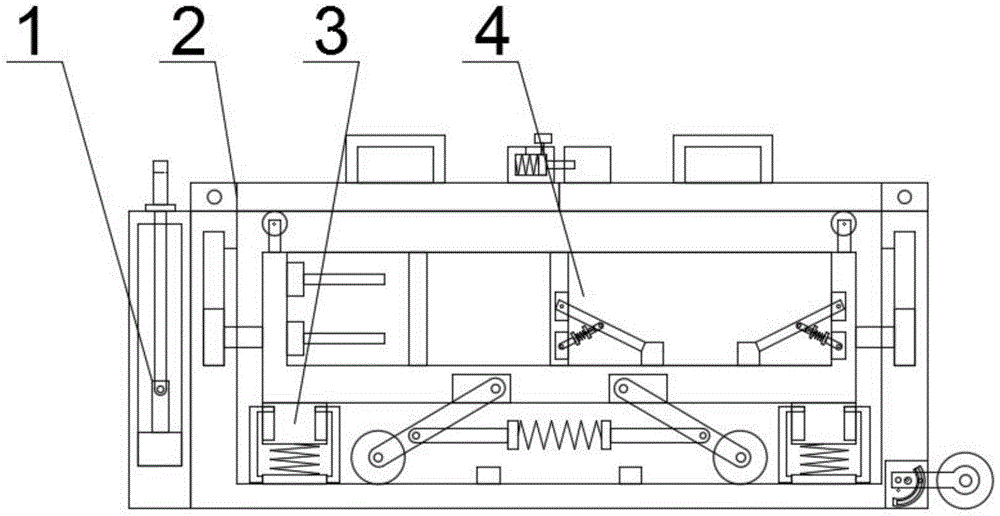

Fig. 1 is a schematic view of the overall structure of an embodiment of the present invention.

Fig. 2 is a schematic structural diagram of the drawbar mechanism in the embodiment.

Fig. 3 is a schematic structural diagram of the housing in this embodiment.

Fig. 4 is a schematic structural diagram of the door locking device in this embodiment.

Fig. 5 is a schematic structural view of the travel mechanism in this embodiment.

Fig. 6 is a schematic structural diagram of the lifting mechanism in this embodiment.

Fig. 7 is a schematic structural diagram of the box body and the auxiliary lifting mechanism in the embodiment.

Fig. 8 is a schematic structural diagram of the pressing device in this embodiment.

Fig. 9 is a schematic view of the connection of the auxiliary spring in this embodiment.

Wherein: 1. a pull rod mechanism; 1-1, a pull rod seat; 1-2, sliding blocks; 1-3, a sliding cavity; 1-4, a pull rod; 1-5, a handle; 2. a housing; 2-1, a shell body; 2-2, a stepped groove; 2-3, a door locking device; 2-3-1, welding blocks; 2-3-2, a left cover plate; 2-3-3, a handle; 2-3-4, a bolt seat; 2-3-5, a door lock spring; 2-3-6, locking groove; 2-3-7, pulling seat; 2-3-8, a sliding table; 2-3-9, lockhole; 2-3-10, lock seat; 2-3-11, right cover plate; 2-4, a limiting block; 2-5, a traveling mechanism; 2-5-1, switching the groove; 2-5-2, arc support frame; 2-5-3, positioning holes; 2-5-4, moving the wheel support bar; 2-5-5, locking screws; 2-5-6, bumps; 2-5-7, wheel axle; 2-5-8, moving wheels; 3. a lifting mechanism; 3-1, a base; 3-2, a lifting spring; 3-3, a sliding rod; 3-4, a sliding groove; 3-5, an upper seat; 4. a box body; 4-1, rolling wheels; 4-2, a first connecting rod; 4-3, a pressing device; 4-3-1, vertical support; 4-3-2, lower mounting groove; 4-3-3, a tension rod seat A; 4-3-4, tensioning the spring; 4-3-5, a limiting rod; 4-3-6, a guide hole; 4-3-7, a tension rod seat B; 4-3-8, pressing the supporting rod; 4-3-9, mounting the groove; 4-3-10, a pressing seat; 4-4, an auxiliary lifting mechanism; 4-5, a notch; 4-6, a sliding block; 4-7, a plug rod seat; 4-8, a pulley seat; 4-9, a second connecting rod; 4-9-1, an auxiliary spring; 4-10, a pulley; 4-11 and a partition board.

Detailed Description

For a better understanding of the present invention, reference is made to the following detailed description taken in conjunction with the accompanying drawings.

The novel nursing tool sorting box shown in fig. 1 comprises a shell 2, a plurality of lifting mechanisms 3 arranged at the bottom in the shell 2, and a box body 4 of which the bottom is connected with the driving end of the lifting mechanism 3 and can be lifted up and down in the shell 2, wherein two oppositely-opened cover plates are arranged at the top of the shell 2, and the two cover plates are locked by a door locking device 2-3; a plurality of pressing devices 4-3 used for pressing the nursing tools are arranged in the box body 4.

In the invention, as shown in fig. 8, the pressing device 4-3 comprises a vertical support 4-3-1, a pressing support rod 4-3-8, a tensioning rod piece and a pressing seat 4-3-10, the vertical support 4-3-1 is arranged in the box body 4, the upper end of the pressing support rod 4-3-8 is hinged with the vertical support 4-3-1 (the upper part of the vertical support 4-3-1 is provided with an upper mounting groove 4-3-9, the upper end of the pressing support rod 4-3-8 is mounted in the upper mounting groove 4-3-9 through a hinged piece), and the lower end of the pressing support rod 4-3-8 is fixedly connected with the pressing seat 4-3-10; one end of the tensioning rod piece is hinged with the vertical support 4-3-1 (the lower part of the vertical support 4-3-1 is provided with a lower mounting groove 4-3-2, one end of the tensioning rod piece is mounted in the lower mounting groove 4-3-2 through a hinged part), and the other end of the tensioning rod piece is hinged with the middle part of the compression support rod 4-3-8. Preferably, the tensioning rod piece comprises a tensioning rod seat A4-3-3, a tensioning rod seat B4-3-7, a limiting rod 4-3-5 and a tensioning spring 4-3-4; one end of the tension rod seat A4-3-3 is hinged with the vertical support 4-3-1, the other end of the tension rod seat A4-3-3 is fixedly connected with one end of the limiting rod 4-3-5, and the other end of the limiting rod 4-3-5 is inserted into the tension rod seat B4-3-7 (a guide hole 4-3-6 is formed in the tension rod seat B4-3-7, and the guide rod is inserted into the guide hole 4-3-6); the other end of the tension rod seat B4-3-7 is hinged with the middle part of the compression support rod 4-3-8; a tension spring 4-3-4 is sleeved on the limiting rod 4-3-5 between the tension rod seat A4-3-3 and the tension rod seat B4-3-7. In the embodiment, the nursing tool is placed at the lower part of the pressing seat 4-3-10; the tension spring 4-3-4 is always in a tension state, the tension rod seat B4-3-7 drives the pressing support rod 4-3-8 to rotate downwards around the hinged end of the tension spring under the action of the resilience force of the tension spring 4-3-4, and the pressing seat 4-3-10 provides downward acting force for the nursing tool to press the nursing tool.

Preferably, as shown in fig. 6, the lifting mechanism 3 comprises a base 3-1, two sliding rods 3-3 respectively arranged at two sides of the base 3-1, an upper seat 3-5 and a spring; the base 3-1 is fixed at the inner bottom of the shell 2; the lower end of the sliding rod 3-3 is fixedly connected with the base 3-1, the upper end of the sliding rod 3-3 horizontally extends towards the inner side, and the extending section is matched with a sliding groove 3-4 arranged at the side part of the upper base 3-5; the bottom of the upper seat 3-5 is connected (welded) with the upper end of the lifting spring 3-2, and the lower end of the lifting spring 3-2 is fixedly connected (welded) with the base 3-1. When the lifting spring 3-2 is pressed, the sliding groove 3-4 of the upper seat 3-5 connected with the upper end of the lifting spring 3-2 moves up and down along the sliding rod 3-3, and then the box body 4 is driven to move up and down.

Preferably, a horizontal rod is fixedly connected to the outer side of the box body 4, a sliding block 4-6 is arranged at the end part of the horizontal rod, the sliding block 4-6 is matched with a stepped groove 2-2 formed in the inner side wall of the shell 2, and when the box body 4 is lifted, the sliding block 4-6 moves up and down along the stepped groove 2-2; an auxiliary lifting mechanism 4-4 is arranged at the bottom of the box body 4, as shown in fig. 7 and 9, the auxiliary lifting mechanism 4-4 comprises an auxiliary spring 4-9-1 with a horizontal axis and roller 4-1 link mechanisms symmetrically distributed by taking the auxiliary spring 4-9-1 as a center; the roller 4-1 connecting rod mechanism comprises a roller 4-1, a first connecting rod 4-2 and a second connecting rod 4-9, the upper end of the first connecting rod 4-2 is hinged with the bottom of the box body 4 (the bottom of the box body 4 is provided with a notch 4-5, the upper end of the first connecting rod 4-2 is hinged in the notch 4-5 through a hinge part), the lower end of the first connecting rod 4-2 is provided with the roller 4-1, and the roller 4-1 can walk along the inner bottom surface of the shell 2; one end of the second connecting rod 4-9 is hinged with the first connecting rod 4-2, and the other end of the second connecting rod 4-9 is fixedly connected with the auxiliary spring 4-9-1; when the box body 4 moves upwards under the action of the lifting mechanism 3, the auxiliary spring 4-9-1 retracts under the action of resilience force, the lower end of the first connecting rod 4-2 at two sides is driven to rotate around the upper end through the second connecting rod 4-9, and the two rollers 4-1 at two sides of the auxiliary spring 4-9-1 are close to each other under the action of the first connecting rod 4-2. In the invention, the inner bottom of the shell 2 is also provided with a limiting block 2-4 for preventing the two rollers 4-1 from colliding with each other.

In the invention, the top of the box body 4 is provided with a plurality of pulley seats 4-8, and the upper parts of the pulley seats 4-8 are provided with pulleys 4-10. A sliding block 4-6 is arranged outside the box body 4, the sliding block 4-6 is matched with a stepped groove 2-2 arranged on the inner wall of the shell, and when the box body 4 moves up and down, the sliding block 4-6 slides in the stepped groove 2-2; a plurality of partition plates 4-11 for partitioning the box body 4 are arranged in the box body 4; also provided in the housing 4 are sockets 4-7 for hanging or mounting smaller care tools.

Preferably, a pull rod mechanism 1 is arranged on one side of the shell 2, and a traveling mechanism 2-5 is arranged at the bottom of the shell 2; as shown in fig. 2, the pull rod mechanism 1 comprises a pull rod 1-4 seat 1-1, a sliding block 1-2 and a connecting rod, the pull rod 1-4 seat 1-1 is arranged at one side of the shell 2, a sliding cavity 1-3 matched with the sliding seat is arranged in the pull rod 1-4 seat 1-1, the sliding seat is arranged at the lower end of the pull rod 1-4, and the upper end of the pull rod 1-4 penetrates through the pull rod 1-4 seat 1-1 and is connected with an external handle 1-5; the handles 1-5 are provided with anti-slip sleeves.

Preferably, as shown in fig. 5, the traveling mechanism 2-5 is installed in a switching groove 2-5-1 at the bottom of one side of the housing 2, the traveling mechanism 2-5 comprises a moving wheel support rod 2-5-4, a moving wheel 2-5-8 and an arc-shaped support frame 2-5-2 with a switching track, one end of the moving wheel support rod 2-5-4 is provided with a wheel shaft 2-5-7, the wheel shaft 2-5-7 is matched with the moving wheel 2-5-8, and the other end of the moving wheel support rod 2-5-4 is hinged in the switching groove 2-5-1; a plurality of positioning holes 2-5-3 are formed in the mounting groove, locking screws 2-5-5 are arranged on the movable wheel supporting rod 2-5-4, and the locking screws 2-5-5 are inserted into the positioning holes 2-5-3 to realize the positioning of the movable wheel supporting rod 2-5-4 (in the embodiment, two transverse and longitudinal positioning holes 2-5-3 are formed in the mounting groove); the moving wheel support rod 2-5-4 is fixedly connected with a lug 2-5-6, and the motion track of the lug 2-5-6 is matched with the switching track; when the free end of the moving wheel support rod 2-5-4 rotates along the hinged end, the cam can move along the switching track. When the movable wheel is not in a movable state, the movable wheel 2-5-8 and the movable wheel supporting rod 2-5-4 are in a horizontal state, and the locking screw 2-5-5 is matched with the transverse positioning hole 2-5-3; when the mobile mode needs to be switched, the locking screws 2-5-5 are loosened and pulled out from the transverse positioning holes 2-5-3, the mobile wheels 2-5-8 are rotated to be supported to the vertical direction (meanwhile, the lugs 2-5-6 move along the switching track), the locking screws 2-5-5 are inserted into the longitudinal positioning holes 2-5-3 and locked, and at the moment, the mobile wheels 2-5-8 can be in contact with the ground; after the pull handle 1-5 is pulled to pull the pull rod 1-4 to the upper end of the sliding seat, a user can pull the sorting box to move on the ground.

Preferably, as shown in fig. 3, the housing 2 includes a housing body 2-1, two cover plates are disposed on the top of the housing body 2-1, and each cover plate is provided with a handle 2-3-3; the outer sides of the cover plates are hinged with the top of the shell body 2-1 (specifically hinged through a welding block 2-3-1 arranged at the top of the shell body 2-1), and the inner sides of the two cover plates are connected through a door locking device 2-3; as shown in fig. 4, the door locking device 2-3 comprises a lock base 2-3-10 and a locking mechanism which are respectively arranged on two cover plates, the locking mechanism comprises a bolt base 2-3-4, a door lock spring 2-3-5 and a sliding table 2-3-8 with a lock rod, the bolt base 2-3-4 is fixed on one cover plate, a lock groove 2-3-6 is arranged in the bolt base 2-3-4, the door lock spring 2-3-5 and the sliding table 2-3-8 are both arranged in the lock groove 2-3-6, and the door lock spring 2-3-5 is always in a compressed state; one end of a door lock spring 2-3-5 is fixedly connected with the inner side of the lock groove 2-3-6, the other end of the lock groove 2-3-6 is connected with the sliding table 2-3-8, a lock rod on the sliding table 2-3-8 extends out of the bolt seat 2-3-4 and is inserted into a lock hole 2-3-9 of the lock seat 2-3-10 (specifically, the lock seat 2-3-10 is provided with a lock hole 2-3-9 matched with the lock rod); the sliding table 2-3-8 is provided with a pull seat 2-3-7, and the upper end of the pull seat 2-3-7 extends out of the lock groove 2-3-6; the sliding table 2-3-8 pushes the lock rod to be inserted into the lock hole 2-3-9 of the other cover plate lock seat 2-3-10 under the elastic force action of the door lock spring 2-3-5, so that the two cover plates are locked; when the sliding table 2-3-8 is driven by the pull seat 2-3-7 along the compression direction of the door lock spring 2-3-5 to move, the lock rod is pulled out of the lock hole 2-3-9, and the two cover plates are opened. The two cover plates are respectively a left cover plate 2-3-2 and a right cover plate 2-3-11.

The utility model discloses in, the arrangement case can make the inner box body upwards rise when the apron is opened: after the two cover plates are unlocked, the cover plate handles 1-5 are pulled upwards, the cover plate handles 1-5 can drive the cover plates to move upwards, the cover plates do not press the pulleys 4-10 at the moment, under the pull-back action of the auxiliary springs 4-9-1, the two rollers 4-1 on the two sides of the auxiliary springs 4-9-1 are close to each other under the action of the first connecting rods 4-2, the box body 4 is lifted upwards by the first connecting rods 4-2 and the second connecting rods 4-9 at the moment, meanwhile, the lifting springs 3-2 in a compressed state rebound to drive the upper seat 3-5 to move upwards, an upward acting force is applied to the box body 4, and the lifting mechanism 3 and the auxiliary lifting mechanisms 4-4 jointly act to realize the lifting of the box body 4. The pressing device 4-3 can press and fix a nursing tool with larger weight, the limiting rod 4-3-5 is pulled upwards, the tool is placed under the pressing seat 4-3-10, and the pressing seat 4-3-10 can be tightly pressed on the tool under the action of the gravity of the pressing seat 4-3-10 and the tension of the tension spring 4-3-4. The storage box can store articles, the box body 4 can store some appliances and articles, the inserting rod seat 4-7 can fix the medical adhesive tape, and the medical adhesive tape is sleeved on the inserting rod seat 4-7 in the using mode.

It should be noted that the above-mentioned embodiments are only preferred embodiments of the present invention, and the present invention is not limited thereto, and although the present invention has been described in detail with reference to the embodiments, it will be apparent to those skilled in the art that modifications can be made to the technical solutions described in the above-mentioned embodiments, or equivalent substitutions of some technical features, but any modifications, equivalents, improvements and the like within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims

1. A novel nursing tool organizer, characterized in that it comprises an outer casing, several lifting mechanisms arranged at the inner bottom of the outer casing, and a box whose bottom is connected with the driving end of the lifting mechanism and can be lifted up and down in the outer casing. The top of the box is provided with two split cover plates, and the two cover plates are locked by the locking device; the box is provided with several pressing devices for pressing the nursing tools.

2. The novel nursing tool organizing box according to claim 1, wherein the pressing device comprises a vertical support, a pressing support rod, a tension rod and a pressing seat, and the vertical support is provided in the In the box, the upper end of the compression support rod is hinged with the vertical support rod, and the lower end of the compression support rod is fixedly connected to the compression seat; one end of the tension rod is hinged with the vertical support, and the other end of the tension rod is connected with the vertical support. The middle part of the compression support rod is hinged; the tension rod includes a tension rod seat A, a tension rod seat B, a limit rod and a tension spring; one end of the tension rod seat A is hinged with the vertical support, The other end of the tension rod seat A is fixedly connected with one end of the limit rod, and the other end of the limit rod is inserted into the tension rod seat B; the other end of the tension rod seat B is hinged with the middle of the compression support rod; A tension spring is sleeved on the limit rod between the tension rod seat A and the tension rod seat B.

3 . The novel nursing tool organizer according to claim 1 , wherein the lifting mechanism comprises a base, two sliding rods, an upper seat and a spring, which are respectively provided on both sides of the base; the base is fixed on the inner part of the casing. 4 . bottom; the lower end of the sliding rod is fixedly connected with the base, the upper end of the sliding rod extends horizontally inwardly, and the extension section is adapted to the sliding groove opened on the side of the upper seat; the bottom of the upper seat is connected with the upper end of the lifting spring, and the lifting The lower end of the spring is fixedly connected with the base; when the lifting spring is pressed, the sliding groove of the upper seat connected with the upper end of the lifting spring moves up and down along the sliding rod, and then drives the box to move up and down.

4. The novel nursing tool organizing box according to claim 1, wherein the outer side of the box body is fixedly connected with a horizontal rod, the end of the horizontal rod is provided with a sliding block, and the sliding block is connected with a step opened on the inner side wall of the casing. The grooves are adapted, and when the box body is lifted and lowered, the slider moves up and down along the stepped groove; the bottom of the box body is provided with an auxiliary lifting mechanism.

5 . The novel nursing tool organizer according to claim 4 , wherein the auxiliary lifting mechanism comprises an auxiliary spring with a horizontal axis, and a roller linkage mechanism symmetrically distributed with the auxiliary spring as the center; the roller linkage mechanism includes A roller, a first connecting rod and a second connecting rod, the upper end of the first connecting rod is hinged with the bottom of the box, the lower end of the first connecting rod is equipped with a roller, and the roller can walk along the inner bottom surface of the casing; the second connecting rod One end of the connecting rod is hinged with the first connecting rod, and the other end of the second connecting rod is fixedly connected with the auxiliary spring; when the box body moves upward under the action of the lifting mechanism, the auxiliary spring is retracted by the rebound force, and is driven by the second connecting rod. The lower ends of the first links on both sides rotate around the upper ends, and the two rollers located on both sides of the auxiliary spring approach each other under the action of the first links.

6. The novel nursing tool organizing box according to claim 1, characterized in that, the top of the box body is provided with a plurality of pulley seats, the upper part of the pulley seat is provided with pulleys, and the outside of the box body is provided with sliders, The sliding block is adapted to the stepped groove provided on the inner wall of the casing, and when the box body moves up and down, the sliding block slides in the stepped groove; the box body is provided with a plurality of partitions for separating the box body; In the socket for hanging or mounting smaller care tools.

7 . The novel nursing tool organizer according to claim 1 , wherein a pull rod mechanism is provided on one side of the casing, and a walking mechanism is installed at the bottom of the casing; the pull rod mechanism comprises a pull rod seat, a sliding block and a connecting rod. 8 . The pull rod seat is arranged on one side of the casing, and a sliding cavity adapted to the sliding seat is opened in the pull rod seat. .

8 . The novel nursing tool organizer according to claim 7 , wherein the running mechanism is installed in the switching groove at the bottom of one side of the casing, and the running mechanism comprises a moving wheel support rod, a moving wheel and a switch with a switch. 9 . The arc-shaped support frame of the track, one end of the moving wheel support rod is equipped with a wheel shaft, the wheel shaft is adapted to the moving wheel, and the other end of the moving wheel support rod is hinged in the switching slot; The wheel support rod is provided with a locking screw, and the locking screw is inserted into the set position hole to realize the positioning of the movable wheel support rod; the movable wheel support rod is fixedly connected with a bump, and the movement track of the bump is adapted to the switching track; When the free end of the moving wheel support rod rotates along the hinged end, the cam can move along the switching track.

9 . The novel nursing tool organizer according to claim 1 , wherein the outer shell comprises a shell body, the top of the shell body is provided with two cover plates, and each cover plate is provided with a handle; It is hinged with the top of the shell body, and the inner sides of the two cover plates are connected by a door locking device.

10 . The novel nursing tool organizer according to claim 9 , wherein the door locking device comprises a lock seat and a locking mechanism respectively arranged on two cover plates, and the locking mechanism comprises a bolt seat, a door and a locking mechanism. 11 . A lock spring and a sliding table with a lock lever, the bolt seat is fixed on a cover plate, a lock groove is arranged in the bolt seat, the door lock spring and the sliding table are both arranged in the lock groove, and the door lock spring is always Compressed state; one end of the door lock spring is fixedly connected to the inner side of the lock slot, the other end of the lock slot is connected to the sliding table, the lock rod on the sliding table extends out of the bolt seat and is inserted into the lock hole of the lock seat; the sliding table is provided with There is a pull seat, and the upper end of the pull seat protrudes from the lock slot; the sliding table pushes the lock rod into the lock hole of the other cover plate lock seat under the elastic force of the door lock spring, so that the two cover plates are locked; the pull seat is along the door. When the compression direction of the lock spring drives the sliding table to move, the lock rod is pulled out of the lock hole, and the two cover plates are opened.
