Abstract

The utility model discloses a folding bag making machine, which comprises a packaging bag feeding area, a bag body pressing machine and a bag edge pressing machine installed on the pressing work platform, a folding workbench, and A folding frame and a buffer frame on the folding table, the folding frame includes a beam, support columns installed at both ends of the beam, a plurality of vertical rods movably installed on the beam, and evenly spaced vertically inserted on the vertical rods The horizontal fixed shaft and the horizontal adjustment shaft installed on the horizontal fixed shaft. In this application, the folding frame is designed as an inverted trapezoidal structure and the packaging bag is folded by using a guide platen, wherein both sides of the packaging bag can be folded, thereby improving the folding efficiency of the packaging bag. The telescopic adjustment between the fixed shaft and the lateral adjustment shaft can increase the scope of use, and the application has a simple and compact structure and has strong applicability.

Description

Folding bag making machine

Technical Field

The utility model relates to a wrapping bag production technical field especially relates to a foldable system bag machine.

Background

The wrapping bag is indispensable article in people's daily life, but in the production of the processing equipment of conventional wrapping bag, at the folding machining efficiency of wrapping bag lower, same equipment processing can only process a set of wrapping bag simultaneously, and the folding size of wrapping bag is not convenient for adjust, has caused wrapping bag production efficiency and machine equipment's utilization ratio lower.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a foldable system bag machine solves the problem of conventional wrapping bag production facility upward roll over a bag inefficiency.

In order to solve the technical problem, the utility model adopts the following technical scheme:

the utility model provides a folding bag making machine, which comprises a packaging bag feeding area, a bag body pressing machine and a bag edge pressing machine which are arranged on a pressing working platform, a folding working platform, and a folding frame and a buffer frame which are arranged on the folding working platform, wherein the folding frame comprises a cross beam, supporting columns which are arranged at two ends of the cross beam, a plurality of vertical rods which are movably arranged on the cross beam, uniformly spaced horizontal fixed shafts which are vertically inserted on the vertical rods, and horizontal adjusting shafts which are arranged on the horizontal fixed shafts; vertical pole, horizontal fixed axle and the crossbeam is in the coplanar, wherein installs the length of horizontal fixed axle on the vertical pole is shortened from last to down in proper order, and a plurality of the end of horizontal fixed axle is on same straight line, bottom horizontal adjustment axle is installed at the bottom to horizontal fixed axle, when the wrapping bag is folded, the tip of bottom horizontal adjustment axle is located the central line of wrapping bag, folding workstation still installs and is used for folding direction clamp plate, wherein direction clamp plate adjusts folding direction through servo telescoping cylinder.

Furthermore, the outer periphery of the end portion, close to the transverse fixing shaft, of the transverse fixing shaft is provided with threads, and blind hole threads matched with the transverse fixing shaft and used for adjusting the total length of the transverse fixing shaft and the transverse adjusting shaft are formed in the transverse adjusting shaft.

Still further, the wrapping bag feed district includes the base and the installation axle of installation waiting to process the wrapping bag and the servo motor of the folding defeated material roller of drive.

Still further, the both ends of folding defeated material roller are installed on the base through the pillar, and folding defeated material roller is higher than the folding leg.

Still further, the buffer frame includes two parallel hinge arms mounted on the folding table and buffer rollers mounted on the hinge arms, wherein the hinge arms are connected by springs below the folding table.

Still further, install on the folding work platform and pass through a plurality of regulation conveying rollers that the wrapping bag is connected with the buffer roll on the buffer shelf.

Still further, a plurality of conveying rollers driven by the first servo motor are further installed on the pressing working platform.

And further, the winding roller arranged on the pressing and ironing working platform drives the winding packaging bag to be wound through a second servo motor.

Still further, two guide pressing plates for folding the two groups of packaging bags are symmetrically arranged on the folding rack.

Compared with the prior art, the utility model discloses a beneficial technological effect: through will folding the shelf design in this application for falling trapezium structure and utilizing the direction clamp plate to carry out the fold to the wrapping bag, wherein the both sides homoenergetic of wrapping bag can carry out folding operation to improve the folding efficiency of wrapping bag, utilize the flexible regulation between horizontal fixed axle and the transverse regulation axle on the folding leg in addition, thereby promote application range, this application simple structure exquisiteness suitability is strong.

Drawings

The present invention will be further explained with reference to the following description of the drawings.

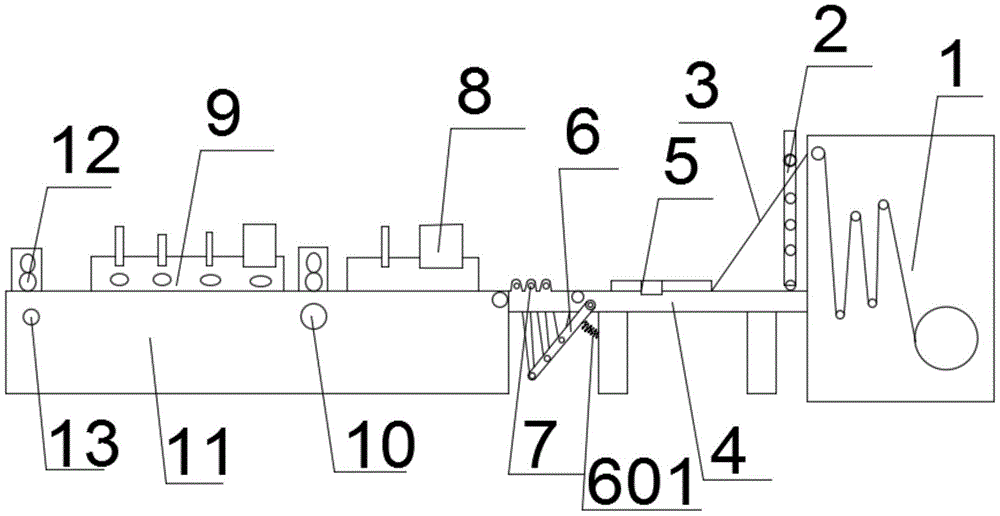

FIG. 1 is a schematic view of a folding bag machine according to the present invention;

FIG. 2 is a schematic view of a folding frame of the folding bag making machine of the present invention;

FIG. 3 is a front view of a folding frame of the folding bag making machine of the present invention;

FIG. 4 is a schematic top view of the folding bag machine of the present invention;

fig. 5 is a schematic top view of the folding bag making machine of the present invention.

Description of reference numerals: 1. a packaging bag feeding area; 101. folding the delivery roller; 2. a folding frame; 201. a support pillar; 202. a cross beam; 203. a vertical rod; 204. a transverse fixed shaft; 205. a lateral adjustment shaft; 2051. a bottom transverse adjustment shaft; 3. folding the packaging bag; 4. a folding work table; 5. a guide pressure plate; 501. a servo telescopic cylinder; 6. a buffer frame; 601. a spring; 7. adjusting the conveying roller; 8. a bag body pressing machine; 9. a bag edge pressing machine; 10. a first servo motor; 11. pressing and ironing the working platform; 12. a wind-up roll; 13. a second servo motor.

Detailed Description

As shown in fig. 1-5, a folding bag making machine comprises a packaging bag feeding area 1, a folding workbench 4, a folding frame 2 mounted on the folding workbench 4 and connected with a folding feed roller 101 in the packaging bag feeding area 1, a guide pressure plate 5 and a buffer frame 6 mounted on the folding workbench 4, a pressing work platform 11 connected with the buffer frame 6 through an adjusting feed roller 7, and a bag body pressing machine 8 and a bag edge pressing machine 9 mounted on the pressing work platform 11, wherein the folding feed roller 101 and the adjusting feed roller 7 are respectively driven by a servo motor; one end side of the folding workbench 4 is provided with the packaging bag feeding area 1, and the other end side of the folding workbench is provided with a pressing workbench 11; the packaging bag feeding area 1 conveys packaging bags to be folded to the folding rack 2 on the pressing and ironing working platform 11 through a folding conveying roller 101; the folding frame 2 comprises a cross beam 202, support columns 201 installed at two ends of the cross beam 202, four vertical rods 203 movably installed on the cross beam 202, four uniformly spaced transverse fixing shafts 204 vertically inserted on the vertical rods 203, and transverse adjusting shafts 205 installed on the transverse fixing shafts 204; the shape formed by the cross beam 202 and the support column 201 is an inverted trapezoidal structure; the vertical rods 203 are uniformly spaced and close to the middle position of the cross beam 202, and play a role in supporting the transverse fixing shaft 204, the vertical rods 203 are hinged on the cross beam 202, so that the adjustment is convenient, and the transverse fixing shaft 204 and the vertical rods 203 have certain gravity action, so that the conveying packaging bags are not lifted; the utility model discloses a folding packaging bag, including vertical pole 203, horizontal fixed axle 204 and crossbeam 202 is in the coplanar, wherein install the length of horizontal fixed axle 204 on vertical pole 203 shortens from last to down in proper order, and four the end of horizontal fixed axle 204 is on same straight line, bottom horizontal adjustment shaft 2051 is installed at horizontal fixed axle 204 at the bottom, and when the wrapping bag was folded, the tip of bottom horizontal adjustment shaft 2051 was located the central line of wrapping bag, the thickness of interval wrapping bag between bottom horizontal adjustment shaft 2051 and the folding workstation 4, folding workstation 4 still installs and is used for folding guide clamp plate 5, wherein guide clamp plate 5 adjusts folding direction through servo telescoping cylinder 501, and wherein the one end of guide clamp plate 5 articulates on folding workstation 4 to the thickness that equals two-layer packing bag between guide clamp plate 5 and the folding workstation 4, wherein the packaging bag is flattened, folded and pressed.

In this embodiment, a thread is formed on an outer peripheral side of the transverse fixing shaft 204 near the end portion, a blind hole thread adapted to the transverse fixing shaft 204 and used for adjusting the total length of the transverse fixing shaft 204 and the transverse adjusting shaft 205 is formed inside the transverse adjusting shaft 205, and an air hole convenient for thread installation is formed in the blind hole thread. Wrapping bag feed area 1 includes the servo motor of the installation axle and the folding delivery roll 101 of drive that base and installation wait to process the wrapping bag and roll. The both ends of folding defeated material roller 101 are passed through the pillar and are installed on the base, and folding defeated material roller 101 is higher than folding leg 2, the both ends movable mounting of folding defeated material roller 101 wherein on the pillar, the pillar can be designed into electronic telescopic cylinder, is convenient for adjust. The buffer frame 6 comprises two parallel articulated arms mounted on the folding table 4 and buffer rollers mounted on the articulated arms, wherein the articulated arms are connected by means of springs 601 underneath the folding table 4. Install on the folding table 4 with the buffer roller on the buffer shelf 6 through the wrapping bag 3 regulation conveying rollers 7 of being connected, wherein under the effect through buffer shelf 6 and buffering arm to guarantee that the folding wrapping bag 3 of wrapping bag process keeps leveling in carrying. The pressing work platform 11 is further provided with a plurality of conveying rollers driven by a first servo motor 10. And a winding roller 12 arranged on the pressing working platform 11 is used for driving a winding packaging bag through a second servo motor 13. As shown in fig. 5, the folding leg 2 is symmetrically provided with two guide pressing plates 5 for folding two groups of packaging bags; thereby carrying out folding and conveying on two groups of packaging bags to be folded.

The action process of the utility model is as follows:

the single-side packaging bag roll in the packaging bag feeding area 1 is conveyed through a roller 101, the single-side packaging bag passes through a gap between the bottom transverse adjusting shaft 2051 and the folding workbench 4, the central line of the single-side packaging bag is overlapped at the end part of the bottom transverse adjusting shaft, the single-side packaging bag passes through the folding frame 2 with the inverted trapezoidal structure and is guided and folded by the guide pressing plate 5 to form a semi-finished folding packaging bag, the semi-finished folding packaging bag is pressed and collected by the bag body pressing machine 8 and the bag edge pressing machine 9 on the pressing and ironing working platform 11, and finally the single-side packaging bag is wound through a winding roller 12.

In the description of the present invention, it is to be understood that the terms "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description of the present invention, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

The above embodiments are only intended to describe the preferred embodiments of the present invention, but not to limit the scope of the present invention, and various modifications and improvements made by those skilled in the art without departing from the design spirit of the present invention should fall within the protection scope defined by the claims of the present invention.

Claims

1. A folding bag making machine, comprising a bag feeding area (1), a bag body pressing machine (8) and a bag edge pressing machine (9) installed on a pressing work platform (11), a folding A workbench (4), a folding frame (2) and a buffer frame (6) installed on the folding workbench (4), characterized in that: the folding frame (2) is an inverted trapezoid structure, which includes a cross beam ( 202), support columns (201) installed at both ends of the beam (202), a plurality of vertical rods (203) are movably installed on the beam (202), and are vertically inserted on the vertical rods (203) at uniform intervals The horizontal fixed shaft (204) and the horizontal adjustment shaft (205) installed on the horizontal fixed shaft (204); the vertical rod (203), the horizontal fixed shaft (204) and the horizontal beam (202) are in the same plane The length of the lateral fixed shafts (204) installed on the vertical rods (203) is shortened from top to bottom in turn, and the ends of the plurality of lateral fixed shafts (204) are on the same straight line, so The lateral fixed shaft (204) is provided with a bottom lateral adjustment shaft (2051) at the lowermost end. When the packaging bag is folded, the end of the bottom lateral adjustment shaft (2051) is located at the centerline of the packaging bag, and the folding table (4) A guide platen (5) for folding is also installed, wherein the guide platen (5) adjusts the direction of folding through a servo telescopic cylinder (501).

2 . The folding bag making machine according to claim 1 , wherein a thread is provided on the outer peripheral side of the lateral fixing shaft (204) close to the end, and the lateral adjusting shaft (205) is internally provided with a screw thread. 3 . The lateral fixing shaft (204) is adapted to a blind hole thread for adjusting the total length of the lateral fixing shaft (204) and the lateral adjusting shaft (205).

3. The folding bag making machine according to claim 1, characterized in that: the packaging bag feeding area (1) comprises a base, a mounting shaft for installing the packaging bag roll to be processed, and a driving folding feeding roller (101). ) of the servo motor.

4. The folding bag making machine according to claim 3, characterized in that: both ends of the folding feeding roller (101) are mounted on the base through a pillar, and the folding feeding roller (101) is high on the folding frame (2).

5. The folding bag making machine according to claim 1, wherein the buffer frame (6) comprises two parallel hinged arms mounted on the folding table (4) and a buffer mounted on the hinged arms A roller, wherein the hinged arm is connected by a spring (601) below the folding table (4).

6. The folding bag making machine according to claim 5, characterized in that: the folding table (4) is provided with a plurality of adjusting conveying rollers connected with the buffer rollers on the buffer frame (6) through the packaging bags (7).

7 . The folding bag making machine according to claim 1 , wherein a plurality of conveying rollers driven by the first servo motor ( 10 ) are also installed on the pressing working platform ( 11 ). 8 .

8. The folding bag making machine according to claim 1, characterized in that: the winding roller (12) installed on the pressing work platform (11) is driven by the second servo motor (13) to wind up the packaging bag .

9 . The folding bag making machine according to claim 1 , wherein the folding frame ( 2 ) is symmetrically installed with two guide pressing plates ( 5 ) for folding two groups of packaging bags. 10 .
