本实用新型公开了一种支持扩展坞功能的多口适配器，包括壳体，所述壳体内设有第一电源管理单元、第二电源管理单元和控制单元，所述第二电源管理单元与控制单元相连接，所述壳体一侧设置有至少一个上行端口和至少一个的下行端口，所述上行端口通过快充识别单元连接至第一电源管理单元，所述下行端口连接至第二电源管理单元，所述上行端口和下行端口连接至控制单元；所述壳体侧面还设有AC连接插脚。本申请采用两个独立的电源管理单元，转换效率更高，发热更小,设计巧妙，大幅减少空间占用，便于携带，充电的同时能够进行数据传输，在不接市电的同时可做扩展坞产品使用，完美的集合了多口适配器、扩展坞两个产品的功能。
The utility model discloses a multi-port adapter supporting a docking station function. At least one uplink port and at least one downlink port are provided on one side of the casing, the uplink port is connected to the first power management unit through the fast charging identification unit, and the downlink port is connected to the second power management unit unit, the upstream port and the downstream port are connected to the control unit; the side of the housing is also provided with AC connection pins. The application adopts two independent power management units, which have higher conversion efficiency, lower heat generation, ingenious design, greatly reduce space occupation, easy to carry, can perform data transmission while charging, and can be used as a docking station when not connected to the mains. The use of the product perfectly integrates the functions of the multi-port adapter and the docking station.
Description
Technical Field
The utility model relates to an adapter device, concretely relates to support many mouthfuls of adapters of docking station function.
Background
At present, people have higher and higher dependence on digital products such as computers, mobile phones and tablets, and the use frequency of charging and data transmission is greatly improved; meanwhile, one person also has a plurality of devices, and different devices are required to be adopted for operation during charging and data transmission, so that the operation is very inconvenient; the traditional adapter only supports a single charging function, and cannot transmit data and audio and video signals while charging a plurality of devices.
The existing docking station products can charge the equipment such as the notebook computer by an external adapter, and the excessive equipment also occupies a large amount of desktop space, so that the equipment is not beautiful and is not convenient to be picked up; when traveling on business trips, various chargers and collectors need to be carried, which is also troublesome.
SUMMERY OF THE UTILITY MODEL
In view of the above, the present invention is directed to a multi-port adapter that supports docking station functionality.
In order to realize the technical purpose, the utility model discloses a scheme is: a multi-port adapter supporting docking station functions comprises a shell, wherein a first power supply management unit, a second power supply management unit and a control unit are arranged in the shell, the second power supply management unit is connected with the control unit, one side of the shell is provided with an uplink port and at least one downlink port, the uplink port is connected to the first power supply management unit through a quick charge identification unit, the downlink port is connected to the second power supply management unit, and the uplink port and the downlink port are connected to the control unit;
preferably, the side surface of the shell is also provided with an AC connecting pin.
Preferably, the first power management unit and the second power management unit convert AC mains power into direct current power required by the device.
Preferably, the uplink port is a TYPE-C interface supporting charging and data transmission.
Preferably, the downstream port is a TYPE-C, USB or a memory card interface supporting charging and data transmission.
Preferably, the downlink port is an HDMI interface supporting audio/video signal transmission.
Preferably, the shell is a PC plastic glue shell.
The utility model has the advantages that: this application adopts two independent power management units, and conversion efficiency is higher, and it is littleer to generate heat, design benefit, and the great reduction space occupies, portable can carry out data transmission when charging, can do the docking station product and use when not connecing the commercial power, and perfect set has many mouthfuls of adapters, the function of two products of docking station.
Drawings

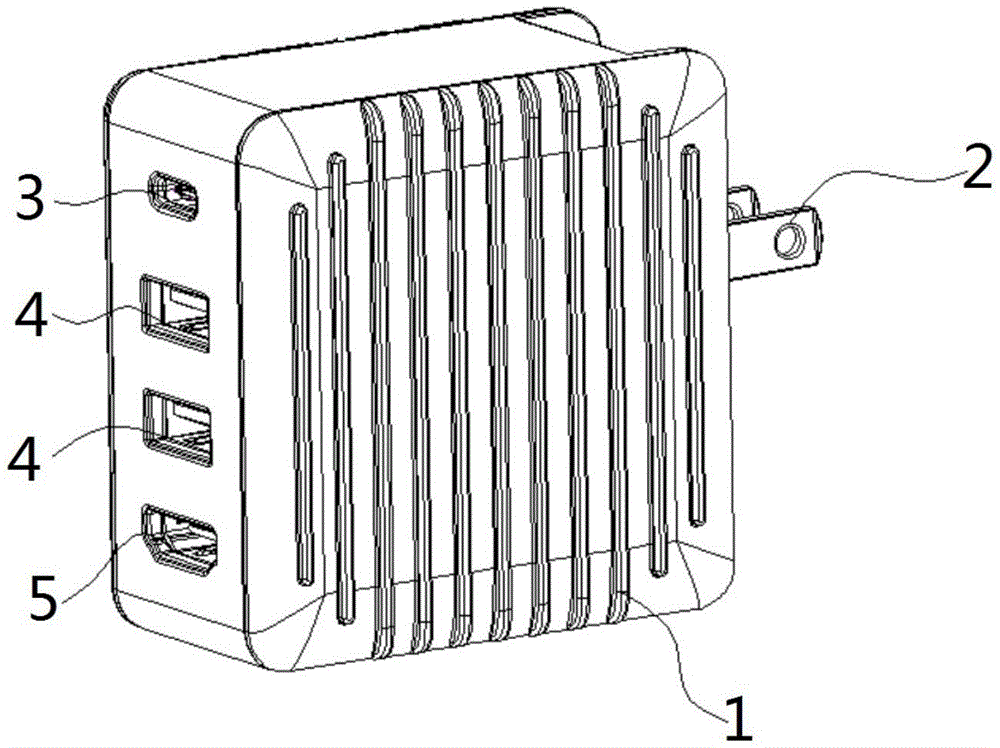

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a block diagram of the present invention.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.
As shown in fig. 1-2, a specific embodiment of the present invention is a multi-port adapter supporting docking station function, including a housing 1, a first power management unit, a second power management unit and a control unit are disposed in the housing, the second power management unit is connected to the control unit, one side of the housing 1 is provided with an uplink port and at least one downlink port, the uplink port is connected to the first power management unit through a fast charging identification unit, the downlink port is directly connected to the second power management unit, and the uplink port and the downlink port are connected to the control unit;
the side of the shell 1 is also provided with an AC connecting pin 2, and the first power management unit and the second power management unit convert AC commercial power into direct current required by equipment, and can be used as a separate docking station under the condition of not being connected with the commercial power.
The working principle of the application is as follows: the adapter is provided with an uplink port, the uplink port is a TYPE-C interface 3 supporting charging and data transmission, the first power management unit converts commercial power into direct current, then the TYPE-C port is powered through the quick charging identification unit, and data transmission can be carried out while quick charging is supported; the adapter is provided with a plurality of downlink ports, the downlink ports of the adapter comprise two TYPE-C, USB supporting charging and data transmission, a memory card interface 4 and an HDMI (high-definition multimedia interface) 5 supporting audio and video signal transmission, and a second power management unit converts commercial power into direct current and then directly supplies power to the TYPE-C, USB, the memory card interface and the HDMI; the control unit is responsible for managing data transmission between the uplink port and the downlink port of the data transmission. The number of the interfaces can be matched at will, and the HDMI audio/video interface device at least comprises an HDMI audio/video interface, a HDMI data transmission uplink port and a HDMI data transmission downlink port.
In order to reduce the weight, the shell is a PC plastic rubber shell.
This application adopts two independent power management units, and conversion efficiency is higher, and it is littleer to generate heat, design benefit, and the great reduction space occupies, portable can carry out data transmission when charging, can do the docking station product and use when not connecing the commercial power, and perfect set has many mouthfuls of adapters, the function of two products of docking station.
The above, only do the preferred embodiment of the present invention, not used to limit the present invention, all the technical matters of the present invention should be included in the protection scope of the present invention for any slight modification, equivalent replacement and improvement of the above embodiments.
Claims (7)
1. A multi-port adapter supporting docking station functionality, comprising: the intelligent charging device comprises a housing, be equipped with first power management unit, second power management unit and the control unit in the casing, second power management unit is connected with the control unit, casing one side is provided with the down port of an ascending port and at least one, the ascending port is connected to first power management unit through filling the recognition cell soon, the port that descends is connected to second power management unit, the ascending port is connected to the control unit with the port that descends.
2. The multi-port adapter supporting docking station functionality according to claim 1, wherein: and the side surface of the shell is also provided with an AC connecting pin.
3. The multi-port adapter supporting docking station functionality according to claim 1, wherein: the first power management unit and the second power management unit convert AC commercial power into direct current required by equipment.
4. The multi-port adapter supporting docking station functionality according to claim 1, wherein: the uplink port is a TYPE-C interface supporting charging and data transmission.
5. The multi-port adapter supporting docking station functionality according to claim 1, wherein: the downlink port is a TYPE-C, USB interface and a memory card interface which support charging and data transmission.
6. The multi-port adapter supporting docking station functionality according to claim 1, wherein: the downlink port is an HDMI interface supporting audio and video signal transmission.
7. The multi-port adapter supporting docking station functionality according to claim 1, wherein: the shell is a PC plastic rubber shell.
