本实用新型公开了一种新型户外用移动式LED光源，包括底部支脚和金属横杆，所述底部支脚安装固定在金属横杆的两端下方上，所述金属横杆的上端设置有U型金属杆，所述金属横杆和U型金属杆通过调节螺栓固定连接，通过固定凸块、弧形遮挡块、斜角固定块和卡扣凹槽所组成的固定遮挡器在使用的时候更加便利，固定遮挡器的固定凸块焊接连接在储电机体上，这样在使用的时候不容易脱落，这样使得弧形遮挡块和斜角固定块构成的形状，可以很好的进行雨水和灰尘的阻挡，而需要固定外部数据线的时候，通过斜角固定块中间的卡扣凹槽，使得可以很好的卡扣固定住，这样在使用的时候不容易造成连接处的松动，这样在使用的时候更加便利。
The utility model discloses a novel outdoor mobile LED light source, comprising a bottom support leg and a metal cross bar, wherein the bottom support leg is installed and fixed on the lower sides of the two ends of the metal cross bar, a U-shaped metal bar is arranged on the upper end of the metal cross bar, the metal cross bar and the U-shaped metal bar are fixedly connected by adjusting bolts, and a fixed shielding device composed of a fixed protrusion, an arc-shaped shielding block, an oblique angle fixing block and a buckle groove is more convenient when in use, and the fixed protrusion of the fixed shielding device is welded and connected to a storage battery body, so that it is not easy to fall off when in use, so that the shape formed by the arc-shaped shielding block and the oblique angle fixing block can well block rain and dust, and when it is necessary to fix the external data line, it can be well buckled and fixed through the buckle groove in the middle of the oblique angle fixing block, so that it is not easy to cause the looseness of the connection when in use, and it is more convenient when in use.
Description
Technical Field
The utility model belongs to the technical field of relevant LED lamp, concretely relates to novel it is outdoor with portable LED light source.
Background
The LED lamp is an electroluminescent semiconductor material chip, silver glue or white glue is solidified on the support, then the chip and the circuit board are connected through silver wires or gold wires, the periphery of the chip and the circuit board is sealed through epoxy resin, the effect of protecting an internal core wire is achieved, and finally the shell is installed, so that the anti-seismic performance of the LED lamp is good. LEDs, light emitting diodes, are solid state semiconductor devices that convert electrical energy into visible light, and can convert electricity directly into light. The heart of the LED is a semiconductor wafer, one end of the wafer is attached to a support, the other end of the wafer is a cathode, and the other end of the wafer is connected with an anode of a power supply, so that the whole wafer is packaged by epoxy resin.
The existing outdoor mobile LED light source technology has the following problems: when the existing outdoor mobile LED light source is used, the wiring terminal does not have a good rainwater shielding device, and the problem that the data connection line is easy to fall off when power is supplied to external electric equipment is solved.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel portable LED light source is used to it is outdoor with current portable LED light source to provide in solving above-mentioned background art when using, the end that charges does not have fine rainwater to shelter from the device, and when giving the power supply of outside consumer, the problem that drops takes place easily for the data connection line.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a novel outdoor portable LED light source of using, includes bottom stabilizer blade and metal horizontal pole, the installation of bottom stabilizer blade is fixed on the both ends below of metal horizontal pole, the upper end of metal horizontal pole is provided with U type metal pole, metal horizontal pole and U type metal pole pass through adjusting bolt fixed connection, the upper end of U type metal pole is provided with the illumination organism, U type metal pole passes through side bolt fixed connection with the illumination organism, the front end of illumination organism is provided with the illumination lamp body, illumination lamp body and illumination organism pass through cross fixed screw fixed connection, the upper end of illumination organism is provided with the metal handle, be provided with the rubber sleeve in the middle of the upper end of metal handle, the rear end of illumination organism is provided with the electricity storage body, be provided with fixed shielding device above the rear end of electricity storage body, fixed shielding device includes fixed lug, the arc hides dog, oblique angle fixed block and buckle recess, fixed lug's lower extreme is provided with the arc and hides the dog, the arc hides the lower extreme of dog and is provided with the oblique angle fixed block, the centre of oblique angle fixed block is provided with the buckle recess, fixed lug connects on the electricity storage machine body.
Preferably, the bottom stabilizer blade includes plastic cylinder, middle metal pole, cup joints recess and anti-skidding recess, be provided with in the middle of the upper end of middle metal pole and cup joint the recess, the both ends of middle metal pole are provided with the plastic cylinder, cylindrical outside a week of plastic is provided with anti-skidding recess, middle metal pole is connected on the metal horizontal pole.
Preferably, adjusting bolt includes anti-skidding rubber ring, metal ring and screw thread column of revolution, metal ring's outside a week is provided with anti-skidding rubber ring, metal ring's lower extreme is provided with the screw thread column of revolution, the screw thread column of revolution is connected on the metal horizontal pole.
Preferably, the outer side shape and size of the illumination lamp housing are equal to the outer side shape and size of the front end of the illumination machine body, and the outer sides of the connection part of the illumination lamp housing and the illumination machine body are positioned on the same straight line.
Preferably, the number of the bottom support legs is two, and the bottom support legs are welded and fixed on the lower portions of the two ends of the metal cross rod in parallel.
Preferably, the number of the cross fixing screws is four, and the cross fixing screws are all fixed on four corners of the lighting lamp housing in parallel.
Preferably, the adjusting bolt is in a shaft center, and two ends of the adjusting bolt are in a symmetrical state.
Compared with the prior art, the utility model provides a novel it is outdoor with portable LED light source possesses following beneficial effect:
the utility model discloses outdoor portable LED light source passes through fixed lug, the arc hides the dog, the fixed ware that hides that oblique angle fixed block and buckle recess are constituteed is more convenient when using, the fixed lug welded connection of the fixed ware that hides is on the electricity storage machine body, be difficult to drop when using like this, make the arc hide the shape that dog and oblique angle fixed block constitute like this, can be fine carry out stopping of rainwater and dust, and when needing fixed external data line, through the buckle recess in the middle of the oblique angle fixed block, make the buckle that can be fine fix, be difficult to cause the not hard up of junction when using like this, it is more convenient when using like this.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description, do not constitute a limitation of the invention, in which:

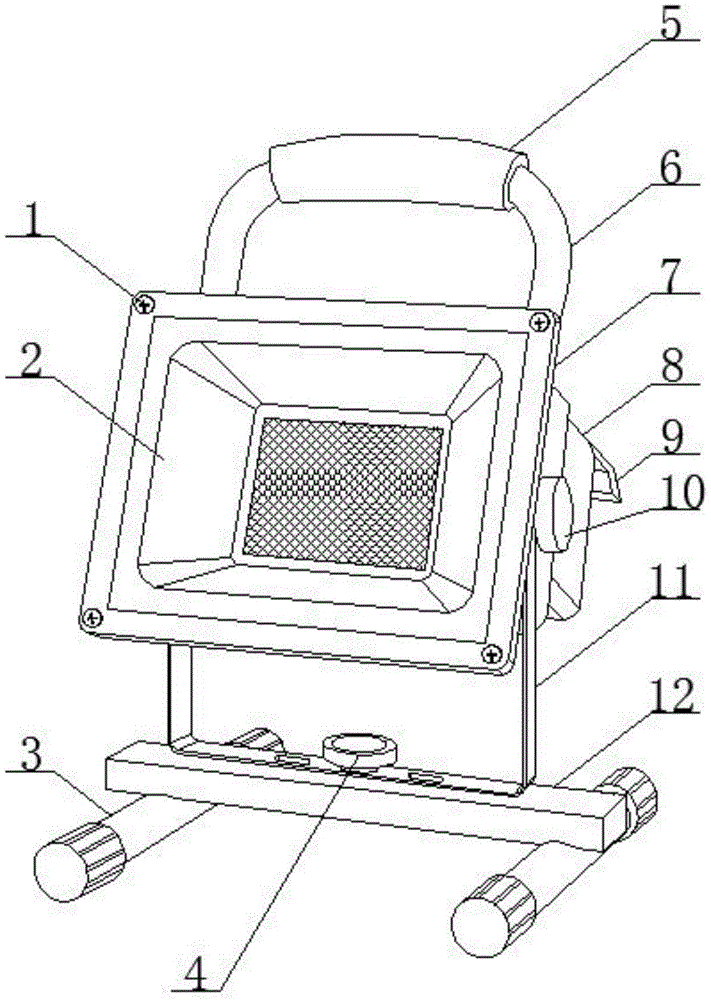

fig. 1 is a schematic structural view of a novel outdoor mobile LED light source provided by the present invention;
fig. 2 is a schematic view of a bottom stand bar structure provided by the present invention;
fig. 3 is a schematic view of an adjusting bolt structure provided by the present invention;
fig. 4 is a schematic structural view of the fixed shutter according to the present invention;
in the figure: 1. a cross-shaped fixing screw; 2. an illumination lamp housing; 3. a bottom leg; 31. a plastic cylinder; 32. an intermediate metal rod; 33. sleeving the groove; 34. an anti-slip groove; 4. adjusting the bolt; 41. an anti-slip rubber ring; 42. a metal ring; 43. a threaded rotating column; 5. a rubber sleeve; 6. a metal handle; 7. an illuminating body; 8. an electricity storage body; 9. fixing a shutter; 91. fixing the bump; 92. an arc-shaped baffle block; 93. an oblique angle fixing block; 94. a snap groove; 10. a side bolt; 11. a U-shaped metal rod; 12. a metal cross bar.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution:
the utility model provides a novel outdoor portable LED light source of using, including bottom stabilizer blade 3 and metal horizontal pole 12, the installation of bottom stabilizer blade 3 is fixed on the both ends below of metal horizontal pole 12, bottom stabilizer blade 3 is provided with two altogether, and the parallel welded fastening of bottom stabilizer blade 3 is on the both ends below of metal horizontal pole 12, bottom stabilizer blade 3 includes plastic cylinder 31, middle metal pole 32, cup joint recess 33 and anti-skidding recess 34, be provided with in the middle of middle metal pole 32's the upper end and cup joint recess 33, middle metal pole 32's both ends are provided with plastic cylinder 31, plastic cylinder 31's outside a week is provided with anti-skidding recess 34, middle metal pole 32 is connected on metal horizontal pole 12. When using, bottom stabilizer blade 3 through metal horizontal pole 12 both ends below to can be fine place the use, and the middle metal pole 32 of bottom stabilizer blade 3 is connected on metal horizontal pole 12 through cup jointing recess 33, later more convenient in welded fastening, and when placing, support through the plastic cylinder 31 at middle metal pole 32 both ends, and the anti-skidding recess 34 in the plastic cylinder 31 outside effectively increases coefficient of friction, make more stable when placing.
The utility model provides a novel outdoor portable LED light source of using, upper end including metal horizontal pole 12 is provided with U type metal pole 11, metal horizontal pole 12 and U type metal pole 11 pass through 4 fixed connection of adjusting bolt, adjusting bolt 4 is the axle center, and adjusting bolt 4's both ends become symmetrical state, adjusting bolt 4 includes anti-skidding rubber ring 41, metal ring 42 and screw thread column 43, metal ring 42's outside a week is provided with anti-skidding rubber ring 41, metal ring 42's lower extreme is provided with screw thread column 43, screw thread column 43 is connected on metal horizontal pole 12. When fixed, metal horizontal pole 12 and U type metal pole 11 are fixed through adjusting bolt 4, make it more convenient when fixed, and adjusting bolt 4's both ends become symmetrical state, thereby make wholly more stable when using, when needs are adjusted, just can rotate the anti-skidding rubber ring 41 in the metal ring 42 outside, make the increase coefficient of friction that rotates, make can be fine drive screw thread column spinner 43 through metal ring 42 and go up and down, thereby it is more convenient when adjusting the use.
The utility model provides a novel outdoor portable LED light source of using, is provided with illumination organism 7 including the upper end of U type metal pole 11, and U type metal pole 11 and illumination organism 7 pass through side bolt 10 fixed connection, and the front end of illumination organism 7 is provided with illumination lamp body 2, and the outside shape size of illumination lamp body 2 equals with the front end outside shape size of illumination organism 7, and the junction outside of illumination lamp body 2 and illumination organism 7 is in on the same straight line. When using, pass through side bolt 10 fixed connection because of illumination organism 7 and U type metal pole 11, make can be fine adjust illumination organism 7 through the elasticity of control side bolt 10, it is more convenient when using like this, and the outside shape size of illumination lamp body 2 equals with the front end outside shape size of illumination organism 7, make more convenient when the equipment, and the junction outside of illumination lamp body 2 and illumination organism 7 is in same straight line, can not take place to obstruct like this when using, make more convenient when using.
The utility model provides a novel portable LED light source is used to open air, passes through 1 fixed connection of cross fixed screw including illumination lamp body 2 and illumination organism 7, and cross fixed screw 1 is provided with four altogether, and the equal parallel fixation of cross fixed screw 1 is on four corners of illumination lamp body 2. When fixed, fix through four cross set screws 1 for illumination lamp body 2 and illumination organism 7 are fixed more firmly, thereby more stable when using.
The utility model provides a novel portable LED light source is used to open air, is provided with metal handle 6 including the upper end of illumination organism 7, is provided with rubber sleeve 5 in the middle of the upper end of metal handle 6, and the rear end of illumination organism 7 is provided with electricity storage machine body 8. When using, illumination organism 7 supplies power through electricity storage organism 8 for use that can be fine, and when removing, through metal handle 6 on the illumination organism 7, make more convenient when removing, and rubber sleeve 5 in the middle of the 6 upper ends of metal handle has certain elasticity dynamics, makes protection personnel hand that can be fine, and more comfortable safety when drawing like this.
The utility model provides a novel outdoor portable LED light source of using, is provided with fixed shielding ware 9 including the rear end top of electricity storage machine body 8, and fixed shielding ware 9 includes fixed lug 91, arc shielding block 92, oblique angle fixed block 93 and buckle recess 94, and the lower extreme of fixed lug 91 is provided with arc shielding block 92, and the arc shielding block 92's lower extreme is provided with oblique angle fixed block 93, and the centre of oblique angle fixed block 93 is provided with buckle recess 94, and fixed lug 91 connects on electricity storage machine body 8. When using, the wiring port behind the electricity storage machine body 8 carries out the rainwater through fixed shielding ware 9 and shelters from, thereby effectively avoid the entering of rainwater, make safer in the wiring, and fixed lug 91 welded connection of shielding ware 9 is on electricity storage machine body 8, be difficult to drop when using like this, make the arc shelter from the shape that dog 92 and oblique angle fixed block 93 constitute like this, can be fine carry out the blockking of rainwater and dust, and when needing fixed external data line, through buckle recess 94 in the middle of oblique angle fixed block 93, make the buckle that can be fine fix, be difficult to cause the not hard up of junction like this when using, it is more convenient like this when using.
The utility model discloses a theory of operation and use flow: the utility model discloses after installing, just can charge novel it is outdoor with portable LED light source, in the time of charging, it is fixed with outside charging power cord through the end that charges on the electricity storage organism 8 for electricity storage organism 8 stores the electric current, is convenient for carry out outdoor use like this. And the connecting wire that charges just can be fixed on fixed shielding ware 9 for effectively avoid taking place not hard up, thereby more stable when charging. And fixed shielding ware 9 is formed through fixed lug 91, arc shielding piece 92, oblique angle fixed block 93 and buckle recess 94, and when needing fixed external data line, through the buckle recess 94 in the middle of the oblique angle fixed block 93 for the buckle that can be fine is fixed, is difficult to cause the not hard up of junction when using like this, makes to charge more stably.
When outdoor use, personnel are through metal handle 6 on the illumination organism 7 for the personnel of being convenient for draw the removal, when drawing the use in addition, through rubber sleeve 5 of 6 upper ends of metal handle, make the protection hand that can be fine not receive the damage, like this it is safer when drawing the removal. When the metal cross rod is placed, the bottom support legs 3 on two sides of the lower end of the metal cross rod 12 are used, so that the metal cross rod is more stable when placed. Later personnel open the switch in the electricity storage machine body 8 outside for supply power, thereby make 7 inside LED lamp pearls of illumination machine body shine and throw light on, and 7 inside LED lamp pearls of illumination machine body pass through the protection of illumination lamp body 2, make difficult to take place to damage. And the outer sides of the joints of the lighting lamp shell 2 and the lighting machine body 7 are positioned on the same straight line, so that no obstruction occurs when the lamp is used, and the lamp is more convenient to use. When the illumination position needs to be adjusted, the personnel loosen the adjusting bolt 4 at the joint of the U-shaped metal rod 11 and the metal cross rod 12, so that the U-shaped metal rod 11 can be well driven to rotate through the metal handle 6, and the illumination position of the illumination machine body 7 can be adjusted. When the illumination angle of the illumination machine body 7 needs to be adjusted, a person loosens the side bolt 10 at the joint of the illumination machine body 7 and the U-shaped metal rod 11, and drives the illumination machine body 7 to rotate through the metal handle 6, so that the illumination angle can be well adjusted. Therefore, when the outdoor lamp is used outdoors, the lighting position and the lighting direction are adjusted, so that the outdoor lamp is more convenient to use.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a novel outdoor portable LED light source with, includes bottom stabilizer blade (3) and metal horizontal pole (12), its characterized in that: the bottom support legs (3) are fixedly arranged below two ends of a metal transverse rod (12), a U-shaped metal rod (11) is arranged at the upper end of the metal transverse rod (12), the metal transverse rod (12) and the U-shaped metal rod (11) are fixedly connected through an adjusting bolt (4), an illuminating machine body (7) is arranged at the upper end of the U-shaped metal rod (11), the U-shaped metal rod (11) and the illuminating machine body (7) are fixedly connected through a side bolt (10), an illuminating lamp shell (2) is arranged at the front end of the illuminating machine body (7), the illuminating lamp shell (2) and the illuminating machine body (7) are fixedly connected through a cross fixing screw (1), a metal handle (6) is arranged at the upper end of the illuminating machine body (7), a rubber sleeve (5) is arranged in the middle of the upper end of the metal handle (6), and an electricity storage machine body (8) is arranged at the rear end of the illuminating machine body, the utility model discloses a storage battery of electricity machine, including the rear end of storage battery body (8) top be provided with fixed shielding ware (9), fixed shielding ware (9) hide dog (92), oblique angle fixed block (93) and buckle recess (94) including fixed lug (91), arc, the lower extreme of fixed lug (91) is provided with arc and hides dog (92), the arc hides the lower extreme of dog (92) and is provided with oblique angle fixed block (93), the centre of oblique angle fixed block (93) is provided with buckle recess (94), fixed lug (91) are connected on storage battery body (8).
2. A novel mobile LED light source for outdoor use according to claim 1, wherein: bottom stabilizer blade (3) include plastic cylinder (31), middle metal pole (32), cup joint recess (33) and anti-skidding recess (34), be provided with in the middle of the upper end of middle metal pole (32) and cup joint recess (33), the both ends of middle metal pole (32) are provided with plastic cylinder (31), the outside a week of plastic cylinder (31) is provided with anti-skidding recess (34), middle metal pole (32) are connected on metal horizontal pole (12).
3. A novel mobile LED light source for outdoor use according to claim 1, wherein: adjusting bolt (4) are including anti-skidding rubber ring (41), metal ring (42) and screw thread column of revolution (43), outside a week of metal ring (42) is provided with anti-skidding rubber ring (41), the lower extreme of metal ring (42) is provided with screw thread column of revolution (43), screw thread column of revolution (43) are connected on metal horizontal pole (12).
4. A novel mobile LED light source for outdoor use according to claim 1, wherein: the shape and the size of the outer side of the illumination lamp shell (2) are equal to the shape and the size of the outer side of the front end of the illumination machine body (7), and the outer sides of the connection part of the illumination lamp shell (2) and the illumination machine body (7) are positioned on the same straight line.
5. A novel mobile LED light source for outdoor use according to claim 1, wherein: the bottom support legs (3) are arranged in two, and the bottom support legs (3) are welded and fixed on the lower portions of the two ends of the metal cross rod (12) in parallel.
6. A novel mobile LED light source for outdoor use according to claim 1, wherein: the lighting lamp is characterized in that the number of the cross fixing screws (1) is four, and the cross fixing screws (1) are fixed on four corners of the lighting lamp shell (2) in parallel.
7. A novel mobile LED light source for outdoor use according to claim 1, wherein: the adjusting bolt (4) is an axis center, and two ends of the adjusting bolt (4) are in a symmetrical state.
