The utility model discloses a full-automatic membrane silk coiling mechanism relates to membrane silk production technical field. This full-automatic membrane silk coiling mechanism, including winding mechanism, bottom plate and direction adjustment mechanism, the bottom fixed mounting of bottom plate has the supporting leg, and the top of bottom plate is provided with winding mechanism, the last membrane silk body that is provided with of winding mechanism, there is the mounting panel at the top of bottom plate through bolt fixed mounting, and one side fixed mounting of mounting panel has the PLC controller, and the top fixed mounting of mounting panel has the guide bracket, is provided with direction adjustment mechanism in the guide bracket, and the inboard top of guide cylinder is rotated and is installed guide roll and lower guide roll, and the setting is connected with last guide roll and lower guide roll transmission to the horizontal guide cylinder of membrane silk body. The utility model discloses simple structure can guarantee the degree of consistency of rolling when carrying out the rolling operation to be favorable to improving the aesthetic property of product processing, the product later stage processing of being convenient for simultaneously is favorable to improving work efficiency.

Description

Full-automatic membrane silk coiling mechanism

Technical Field

The utility model relates to a membrane silk production technical field specifically is a full-automatic membrane silk coiling mechanism.

Background

The full-automatic winding device is mainly used for a discharging part of a coil stock processing production line, discharges raw materials in a mechanical mode for conveying, and is widely applied to processing production lines of silk thread structures such as paper rolls, cloth rolls, plastic rolls, metal coiled materials and the like

Need carry out the rolling operation to it at the in-process of producing manufacturing to the membrane silk, general coiling mechanism function is too simple, can lead to the degree of consistency inconsistent of rolling when carrying out the rolling, leads to the aesthetic property very poor, influences product quality, also is convenient for the later stage to carry out secondary operation simultaneously.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a full-automatic membrane silk coiling mechanism to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a full-automatic membrane silk coiling mechanism, including winding mechanism, bottom plate and direction adjustment mechanism, the bottom fixed mounting of bottom plate has the supporting leg, the top of bottom plate is provided with winding mechanism, the last membrane silk body that is provided with of winding mechanism, there is the mounting panel at the top of bottom plate through bolt fixed mounting, one side fixed mounting of mounting panel has the PLC controller, the top fixed mounting of mounting panel has the guide bracket, be provided with direction adjustment mechanism in the guide bracket, the inboard top of guide cylinder is rotated and is installed guide roll and lower guide roll, the setting is connected with last guide roll and lower guide roll transmission to the horizontal guide cylinder of membrane silk body.

Preferably, the winding mechanism includes wind-up roll, first motor and installing support, and there is the installing support at the top of bottom plate through bolt fixed mounting, rotates through the pivot on the installing support and installs the wind-up roll, and fixed mounting has first motor on the installing support, and the output shaft of first motor passes through the installation pivot fixed connection of shaft coupling and wind-up roll, the one end of fixedly connected with membrane silk body on the wind-up roll, and the membrane silk body is the winding setting on the wind-up roll.

Preferably, the wind-up roll is cylindric, and the front and back both ends of wind-up roll are fixed and are provided with the limiting plate.

Preferably, the direction adjustment mechanism includes the second motor, the threaded rod, the screw slider and connecting piece, the guide bracket slides through the direction adjustment mechanism and is provided with the guide cylinder, the spout has been seted up in the guide bracket, the threaded rod is installed to the spout internal rotation, slidable mounting has the screw slider in the spout, the front side outer fixed surface of guide bracket installs the second motor, the output shaft of second motor passes through the one end fixed connection of shaft coupling with the threaded rod, the top fixed mounting of screw slider has the connecting piece, the top of connecting piece extend to the top of guide bracket and with the bottom fixed connection of guide cylinder.

Preferably, the threaded slider is transversely provided with a threaded through hole matched with the threaded rod in a penetrating manner.

Preferably, the threaded rod transversely penetrates through the threaded slider and is in threaded connection with the threaded slider.

Preferably, the upper guide roll and the lower guide roll have an hourglass shape in side view.

Compared with the prior art, the beneficial effects of the utility model are that:

(1) this full-automatic membrane silk coiling mechanism, through the PLC controller, the cooperation of first motor and wind-up roll is used, can carry out the rolling operation, at the in-process of rolling operation, through the PLC controller, the second motor, the threaded rod, the screw thread slider, the connecting piece, the guide cylinder, the cooperation of going up guide roll and lower guide roll is used, make the reciprocating transverse motion of guide cylinder, can carry out position control to the membrane silk body, thereby can adjust the rolling position on the wind-up roll, thereby make the rolling more even, make the even winding of membrane silk body on the wind-up roll, can also improve the off-the-shelf aesthetic property of rolling simultaneously effectively, the later stage of being convenient for is reprocessed.

(2) This full-automatic membrane silk coiling mechanism uses through the cooperation of last guide roll and guide roll down, can lead to the membrane silk body to rolling form is carried out the transmission, reduces the friction that causes on the membrane silk body, thereby does benefit to the protection degree that improves the membrane silk body again, can realize independent rotational speed control to first motor and second motor through the PLC controller, can rationally carry out the rolling operation according to the working requirement, is favorable to improving work efficiency.

Drawings

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a side view of the winding mechanism of the present invention;

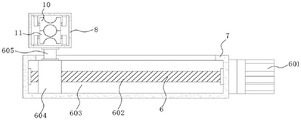

FIG. 3 is a schematic side view of the guiding adjustment mechanism of the present invention;

fig. 4 is a control schematic diagram of the PLC of the present invention.

In the figure: 1 winding mechanism, 101 winding roller, 102 first motor, 103 installing supports, 2 supporting legs, 3 bottom plates, 4 PLC controllers, 5 installing plates, 6 guide adjusting mechanisms, 601 second motor, 602 threaded rods, 603 sliding chutes, 604 threaded sliders, 605 connecting pieces, 7 guide supports, 8 guide cylinders, 9 film wire bodies, 10 upper guide rollers and 11 lower guide rollers.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a full-automatic film wire winding device comprises a winding mechanism 1, a bottom plate 3 and a guide adjusting mechanism 6, wherein a support leg 2 is fixedly installed at the bottom of the bottom plate 3, other processing driving devices are further arranged on the bottom plate 3, the winding mechanism 1 is arranged at the top of the bottom plate 3, a film wire body 9 is arranged on the winding mechanism 1, the winding mechanism 1 comprises a winding roller 101, a first motor 102 and a mounting bracket 103, a mounting bracket 103 is fixedly installed at the top of the bottom plate 3 through bolts, the winding roller 101 is rotatably installed on the mounting bracket 103 through a rotating shaft, the winding roller 101 is cylindrical, limiting plates are fixedly arranged at the front end and the rear end of the winding roller 101, a detachable structural design is adopted between the winding roller 101 and the mounting bracket 103, the winding roller 101 is convenient to be detached at the moment, the detaching mode belongs to a very common technical means in the technical field, the first motor 102 is fixedly installed on, the model of the first motor 102 can be 80ST-M02430, an output shaft of the first motor 102 is fixedly connected with a mounting rotating shaft of a winding roller 101 through a coupler, one end of a film wire body 9 is fixedly connected on the winding roller 101, the film wire body 9 is wound on the winding roller 101, a mounting plate 5 is fixedly mounted at the top of a bottom plate 3 through a bolt, a PLC 4 is fixedly mounted at one side of the mounting plate 5, a guide bracket 7 is fixedly mounted at the top of the mounting plate 5, a guide adjusting mechanism 6 is arranged in the guide bracket 7, the guide adjusting mechanism 6 comprises a second motor 601, a threaded rod 602, a threaded slider 604 and a connecting piece 605, the model of the second motor 601 is CM36L-10, a guide cylinder 8 is slidably arranged on the guide bracket 7 through the guide adjusting mechanism 6, a sliding groove 603 is formed in the guide bracket 7, the threaded rod 602 is rotatably mounted in the sliding groove 603, and the threaded, the threaded slider 604 transversely penetrates through a threaded through hole matched with the threaded rod 602, the threaded rod 602 transversely penetrates through the threaded slider 604 and is in threaded connection with the threaded slider 604, the second motor 601 is fixedly mounted on the outer surface of the front side of the guide support 7, the output shaft of the second motor 601 is fixedly connected with one end of the threaded rod 602 through the coupler, the connecting piece 605 is fixedly mounted at the top of the threaded slider 604, and the top of the connecting piece 605 extends to the upper side of the guide support 7 and is fixedly connected with the bottom of the guide cylinder 8.

An upper guide roller 10 and a lower guide roller 11 are rotatably mounted at the top of the inner side of the guide cylinder 8, the upper guide roller 10 and the lower guide roller 11 are hourglass-shaped in side view, the film wire body 9 is transversely guided by the guide cylinder 8 and is in transmission connection with the upper guide roller 10 and the lower guide roller 11, a winding speed control module is arranged in the PLC 4 and comprises a winding speed calculation unit, a first motor speed control module and a second motor speed control module are arranged in the winding speed calculation unit, the first motor speed control module is electrically connected with a first motor 102, the second motor speed control module is electrically connected with a second motor 601, when the winding device is used, the PLC 4 is used for controlling the first motor 102 to start, the first motor 102 drives the winding roller 101 to rotate, so that winding operation can be carried out, in the winding process, the second motor 601 drives the threaded rod 602 to rotate, the threaded rod 602 drives the threaded slider 604 to transversely move, the threaded sliding block 604 drives the guide cylinder 8 to move transversely through the connecting piece 605, the guide cylinder 8 can perform position adjustment through the matching use of the upper guide roller 10 and the lower guide roller 11, so that the winding position on the winding roller 101 can be adjusted, the guide cylinder 8 can perform reciprocating transverse movement through the driving of the second motor 601, so that the winding is more uniform, the film wire body 9 can be uniformly wound on the winding roller 101, meanwhile, the attractiveness of a winding finished product can be effectively improved, the film wire body 9 can be guided through the matching use of the upper guide roller 10 and the lower guide roller 11, the transmission is performed in a rolling mode, the friction caused on the film wire body 9 is reduced, the protection degree of the film wire body 9 is favorably improved, the independent rotating speed control of the first motor 102 and the second motor 601 can be realized through the PLC 4, the winding operation can be reasonably performed according to the working requirement, is beneficial to improving the working efficiency.

The working principle is as follows: control first motor 102 through PLC controller 4 and start, first motor 102 drives wind-up roll 101 and rotates, thereby can carry out the rolling operation, at the in-process of rolling operation, second motor 601 drive threaded rod 602 rotates, threaded rod 602 drives screw slider 604 lateral motion, screw slider 604 drives guide cylinder 8 lateral motion through connecting piece 605, use through the cooperation of last guide roll 10 and lower guide roll 11, can carry out position control to membrane silk body 9, thereby can adjust the rolling position on wind-up roll 101, make even winding of membrane silk body 9 on wind-up roll 101.

In summary, the following steps:

this full-automatic membrane silk coiling mechanism, through PLC controller 4, the cooperation of first motor 102 and wind-up roll 101 is used, can carry out the rolling operation, at the in-process of rolling operation, through PLC controller 4, second motor 601, threaded rod 602, thread slider 604, connecting piece 605, guide cylinder 8, go up guide cylinder 10 and lower guide cylinder 11's cooperation and use, make 8 reciprocating transverse motion of guide cylinder, can carry out position control to membrane silk body 9, thereby can adjust the rolling position on the wind-up roll 101, thereby make the rolling more even, make even winding on wind-up roll 101 of membrane silk body 9, can also improve the off-the-shelf aesthetic property of rolling simultaneously effectively, the later stage of being convenient for is reprocessed again.

This full-automatic membrane silk coiling mechanism, cooperation through last guide roll 10 and lower guide roll 11 is used, can lead to membrane silk body 9, carry out the transmission to rolling form, reduce the friction that causes on the membrane silk body 9, thereby do benefit to the improvement again to the protection degree of membrane silk body 9, can realize independent rotational speed control to first motor 102 and second motor 601 through PLC controller 4, can rationally carry out the rolling operation according to the working requirement, be favorable to improving work efficiency.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a full-automatic membrane silk coiling mechanism, includes winding mechanism (1), bottom plate (3) and direction adjustment mechanism (6), its characterized in that: the bottom fixed mounting of bottom plate (3) has supporting leg (2), the top of bottom plate (3) is provided with winding mechanism (1), be provided with membrane silk body (9) on winding mechanism (1), there is mounting panel (5) at the top of bottom plate (3) through bolt fixed mounting, one side fixed mounting of mounting panel (5) has PLC controller (4), the top fixed mounting of mounting panel (5) has guide bracket (7), be provided with direction adjustment mechanism (6) in guide bracket (7), the inboard top of guide cylinder (8) is rotated and is installed guide roll (10) and guide roll (11) down, membrane silk body (9) horizontal guide cylinder (8) and with last guide roll (10) and guide roll (11) transmission connection setting down.

2. The full-automatic membrane silk coiling mechanism of claim 1, characterized in that: winding mechanism (1) includes wind-up roll (101), first motor (102) and installing support (103), there is installing support (103) at the top of bottom plate (3) through bolt fixed mounting, install wind-up roll (101) through the pivot rotation on installing support (103), fixed mounting has first motor (102) on installing support (103), the output shaft of first motor (102) passes through the installation pivot fixed connection of shaft coupling with wind-up roll (101), the one end of fixedly connected with membrane silk body (9) on wind-up roll (101), membrane silk body (9) are the winding setting on wind-up roll (101).

3. The full-automatic membrane silk coiling mechanism of claim 2, characterized in that: the winding roller (101) is cylindrical, and limiting plates are fixedly arranged at the front end and the rear end of the winding roller (101).

4. The full-automatic membrane silk coiling mechanism of claim 1, characterized in that: the guide adjusting mechanism (6) comprises a second motor (601), a threaded rod (602), a threaded slider (604) and a connecting piece (605), a guide cylinder (8) is arranged on a guide support (7) in a sliding mode through the guide adjusting mechanism (6), a sliding groove (603) is formed in the guide support (7), the threaded rod (602) is installed in the sliding groove (603) in a rotating mode, the threaded slider (604) is installed in the sliding groove (603), the second motor (601) is fixedly installed on the outer surface of the front side of the guide support (7), the output shaft of the second motor (601) is fixedly connected with one end of the threaded rod (602) through a coupler, the connecting piece (605) is fixedly installed at the top of the threaded slider (604), and the top of the connecting piece (605) extends to the top of the guide support (7) and is fixedly connected with the bottom.

5. The full-automatic membrane silk coiling mechanism of claim 4, characterized in that: and a thread through hole matched with the threaded rod (602) transversely penetrates through the thread sliding block (604).

6. The full-automatic membrane silk coiling mechanism of claim 4, characterized in that: the threaded rod (602) transversely penetrates through the threaded sliding block (604) and is in threaded connection with the threaded sliding block (604).

7. The full-automatic membrane silk coiling mechanism of claim 1, characterized in that: the upper guide roll (10) and the lower guide roll (11) are hourglass-shaped in side view.
