Abstract
本实用新型提供了一种可调节焊接平台。可调节焊接平台的结构是在机架上支撑连接有横轴，在横轴上套接有罩体，在罩体上支撑连接有立轴，立轴的下端通过传动机构接电机，立轴的上端接转盘，在转盘的顶面设置有三爪卡盘，在横轴的轴杆上固定有向下伸出的扇形涡轮，驱动扇形涡轮的蜗杆通过耳板固定在机架上，以通过扇形涡轮带动横轴、罩体和转盘做水平向的偏摆，在蜗杆的端部接有手轮，用以调整转盘的偏摆角度。本实用新型结构简单，操作方便，可用于多种焊接情况。
The utility model provides an adjustable welding platform. The structure of the adjustable welding platform is that a horizontal shaft is supported and connected on the frame, a cover is sleeved on the horizontal shaft, and a vertical shaft is supported and connected on the cover. The lower end of the vertical shaft is connected to the motor through the transmission mechanism, and the upper end of the vertical shaft is connected to the turntable , a three-jaw chuck is arranged on the top surface of the turntable, a fan-shaped turbine extending downward is fixed on the shaft of the horizontal shaft, and the worm driving the fan-shaped turbine is fixed on the frame through the lug plate, so as to drive the horizontal shaft through the fan-shaped turbine , The cover body and the turntable do horizontal deflection, and a hand wheel is connected to the end of the worm to adjust the deflection angle of the turntable. The utility model has the advantages of simple structure and convenient operation, and can be used in various welding situations.
Description
Technical Field
The utility model relates to a device of welding usefulness, specifically speaking are adjustable welded platform.
Background
When the embedded gas pipeline is maintained or rush-repaired, the situation that a new pipeline and the original embedded pipeline need to be welded in a butt joint mode often occurs. Due to the influence of the geographical environment of the embedded pipeline, the construction progress is influenced because constructors cannot quickly realize the opening alignment of the pipeline. And constructor often adopts materials such as brick to build the welding frock of supporting new pipeline temporarily when butt welding, and is consuming time hard, and shift, the incline of new pipeline appear very easily again in welding process, and then influence the welding diameter of pipeline, cause the potential safety hazard even.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a welded platform with adjustable to solve constructor when carrying out the butt welding of pipeline, build the interim frock of supporting pipeline consuming time, hard, the pipeline is easy incline again in pipeline welding process, influences the welding quality's of pipeline problem.
The utility model discloses the purpose realizes like this: an adjustable welding platform is characterized in that a cross shaft is connected to a rack in a supporting mode, a cover body is sleeved on the cross shaft, the cover body is connected with a vertical shaft in a supporting mode, the lower end of the vertical shaft is connected with a motor through a transmission mechanism, the upper end of the vertical shaft is connected with a rotary table, a three-jaw chuck is arranged on the top face of the rotary table, a fan-shaped turbine extending downwards is fixed to a shaft rod of the cross shaft, a worm driving the fan-shaped turbine is fixed to the rack through an ear plate, the cross shaft, the cover body and the rotary table are driven to swing horizontally through the fan-shaped turbine, and a hand wheel is connected to the end portion of the worm and.
The bottom of the frame is connected with an adjusting leg for adjusting the height.
The utility model discloses simple structure, convenient operation can be used to the multiple welding condition. When salvageing the pipeline, can fix the one end of treating welded steel pipe the utility model discloses an on the three-jaw chuck, can make the other end of the steel pipe on the rotary platform realize quick butt joint with former steel pipe through adjusting fan-shaped turbine, practice thrift engineering time, improve and salvage efficiency. The device also plays a role in supporting and fixing the steel pipe to be welded, and solves the problem that the welding quality of the steel pipe is influenced due to the instability of the temporarily built pipeline tool. The device can also be applied to the condition of welding the flange plate at the end part of the steel pipe, the flange plate and the steel pipe are fixed on the three-jaw chuck, the flange plate and the steel pipe are driven to rotate by the motor, and the welding between the steel pipe and the flange plate can be completed by keeping the position of a worker unchanged in the welding process, so that the labor intensity of the worker is reduced, and the welding quality is also promoted.
Drawings

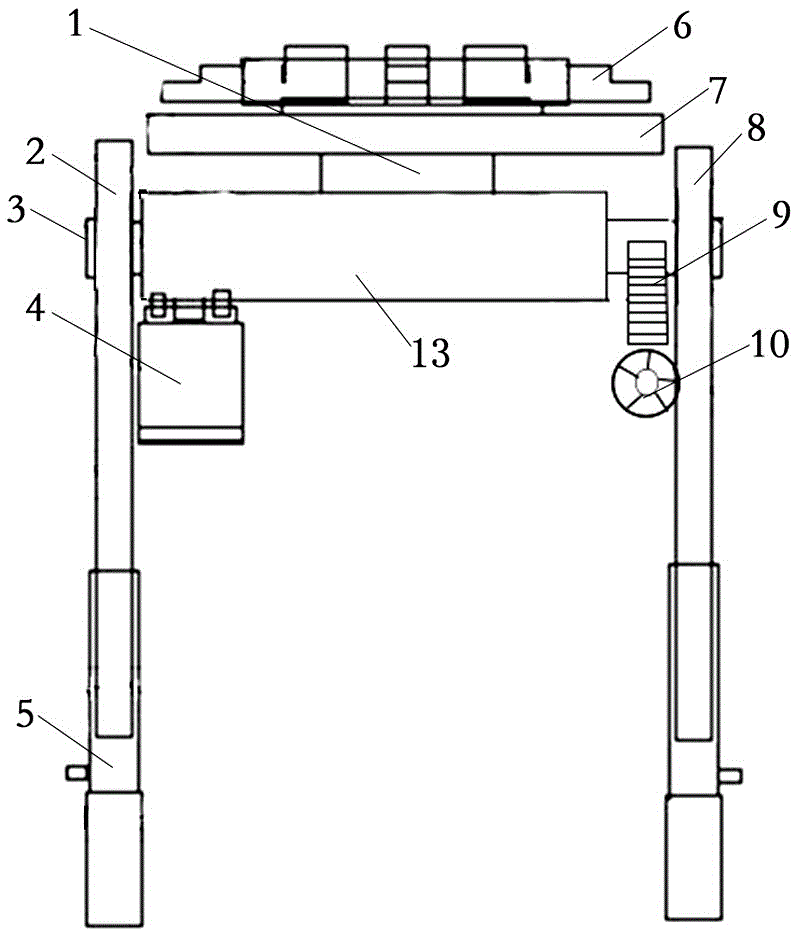

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a side view of the connection of the wire lever to the sector wheel of fig. 1.
In the figure: 1. a vertical shaft; 2. a left vertical plate; 3. a horizontal axis; 4. a motor; 5. adjusting the support legs; 6. a three-jaw chuck; 7. a turntable; 8. a right vertical plate; 9. a sector turbine; 10. a worm; 11. a hand wheel; 12. an ear plate; 13. a cover body; 14. and a limiting nut.
Detailed Description
As shown in fig. 1, the utility model discloses adjustable welded platform includes the frame, and the frame includes left riser 2 and right riser 8, and left riser 2 and right riser 8 are used for strut cross axle 3. Shaft holes are respectively formed in the left vertical plate 2 and the right vertical plate 8, two ends of the transverse shaft respectively penetrate through the shaft holes of the left vertical plate 2 and the right vertical plate 8, and the transverse shaft 3 is clamped between the left vertical plate 2 and the right vertical plate 8.
The horizontal shaft 3 is sleeved with a cover body 13, the vertical shaft 1 is fixed on the cover body 13, and the lower end of the vertical shaft 1 is connected with a motor 4 arranged outside the cover body 13 through a gear mechanism arranged in the cover body 13. The upper end of the vertical shaft 1 is fixed with a turntable 7, the turntable 7 is provided with a three-jaw chuck 6, the axis of the vertical shaft 1 is vertical to the disc surface of the turntable 7, and the axis of the vertical shaft 1 passes through the centers of the turntable 7 and the three-jaw chuck 6. The motor 4 drives the vertical shaft 1 to rotate through a gear mechanism, and further drives the rotary table 7 and the three-jaw chuck 6 on the rotary table 7 to rotate.
A fan-shaped turbine 9 is fixedly mounted downwards at the upper right end of the shaft lever of the transverse shaft 3, and a worm 10 for driving the fan-shaped turbine 9 to rotate is fixed on the right vertical plate 8. The worm 10 wears to establish in the otic placode hole of the otic placode 12 on the face of right riser 8, otic placode 12 has two, sets up respectively at the front end and the rear end of worm 10, and limit nut 14 has been twisted to the foremost end of worm 10, and the rear end of worm 10 is equipped with the boss that supports and lean on otic placode 13, and limit nut 14 and boss combined action restriction worm 10 can only be rotary motion, and concrete structure refers to and is shown in figure 2, for the convenience of worm 10 is rotatory, and the handle is still installed to the rear end of worm 10, the utility model discloses the hand wheel 11 of twisting for the convenience. The utility model discloses a fan-shaped turbine 9 drives cross axle 3, the cover body 13 and carousel 7 and does the level to beat, connects the hand wheel 11 at the tip of worm 10, can adjust the beat angle of carousel 7.
The utility model discloses a four corners of frame bottom are installed four respectively and are adjusted landing leg 5, and the regulation landing leg 5 of this embodiment adopts hydraulic leg, can adjust the whole height and the peaceful degree of this platform through hydraulic leg, and then makes this device applicable in multiple geographical environment.
