The utility model discloses a material feeding unit for material detection, including first horizontal installation sidebar, second horizontal installation sidebar, first cylinder, first pivot, first slope installation sidebar, second slope installation sidebar, the frame is carried in the buffering, the tray carries the frame, buffer spring, the bearing strip, the connecting strip, the bracing piece, the stiffener, it is dull and stereotyped, the cylinder, the connecting plate, first lift sidebar, the second pivot, the second cylinder, second lift sidebar, die clamping cylinder, first drive sprocket, first driven sprocket, first chain, first drive sprocket, second driven sprocket, the second chain, second drive sprocket, first motor and second motor. The utility model discloses rational in infrastructure, can be used to the transport of tray, carry assigned position accessible die clamping cylinder to carry out the clamp of tray four corners department and press from both sides tightly, be convenient for examine time measuring, the clamp of material is got, and the back that finishes is got to the material clamp on the tray, can carry the buffering to carry and carry the frame, and the staff of being convenient for takes away, convenient to use.

Description

Material feeding unit for material detection
Technical Field
The utility model relates to a material feeding unit specifically is a material feeding unit for material detection belongs to material feeding unit application technical field.
Background
When the materials are detected, the materials are generally and orderly placed on a tray for placement; carry through transport structure for get into the detection area, detect through detection device, applicable in the processing of chip and use.
The existing feeding device is used for conveying materials, the materials and the trays cannot be returned, the materials and the trays cannot be operated and taken by workers conveniently, a plurality of workers are required to operate simultaneously, the operation is inconvenient, and the use is inconvenient. Therefore, a material feeding unit for material detection is proposed to the above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a material feeding unit for material detection just in order to solve above-mentioned problem.
The utility model achieves the above purpose through the following technical proposal, a feeding device for material detection comprises a first horizontal installation lateral strip, a second horizontal installation lateral strip, a first inclined installation lateral strip, a second inclined installation lateral strip, a first conveying structure and a second conveying structure, wherein the number of the first conveying structure is two, one of said first transport structures being arranged between a first horizontally mounted sidestrip and a second horizontally mounted sidestrip, the other corresponding first conveying structure is arranged between the first obliquely-installed side strip and the second obliquely-installed side strip, the bottom of the first horizontal installation side strip and the bottom of the second horizontal installation side strip are both fixedly provided with connecting strips, the bottom end of the connecting strip is fixedly connected with the first inclined mounting side strip and the second inclined mounting side strip, and supporting rods are fixedly mounted at the bottom of the first inclined mounting side strip and the bottom of the second inclined mounting side strip;
fixed mounting has the buffering to carry the frame between first slope installation sidebar and the second slope installation sidebar, one side that the frame was carried in the buffering was kept away from to first transport structure is provided with dull and stereotyped, dull and stereotyped fixed surface installs the lift cylinder, and the output fixed mounting of lift cylinder has the connecting plate, the top fixed mounting of connecting plate has first lift sidebar and second lift sidebar, second transport structure sets up between first lift sidebar and second lift sidebar, second transport structure's four corners department all is provided with die clamping cylinder, and die clamping cylinder and first lift sidebar and second lift sidebar rigid coupling.
Preferably, first conveying structure includes a plurality of first cylinder, a first drive sprocket, a first driven sprocket, a plurality of first drive sprocket and first motor, the output shaft of first motor and the middle part of a drive sprocket are fixed to be cup jointed, around twining first chain, a plurality of between a first drive sprocket and the first driven sprocket equal fixed mounting in middle part of the first cylinder has first pivot, and the one end of first pivot is fixed with a drive sprocket and is cup jointed, first drive sprocket is connected with the meshing of first chain.
Preferably, the second conveying structure comprises a plurality of second rollers, a second driving chain wheel, a second driven chain wheel, a plurality of second transmission chain wheel and a second motor, an output shaft of the second motor is fixedly sleeved with the middle of the second driving chain wheel, a second chain is wound between the second driving chain wheel and the second driven chain wheel, a plurality of second rotating shafts are fixedly mounted in the middle of the second rollers, one end of each second rotating shaft is fixedly sleeved with the second transmission chain wheel, and the second transmission chain wheels are meshed with the second chains.
Preferably, the flat plate is vertically and fixedly connected with the support rod, and the reinforcing rod is fixedly arranged between the flat plate and the support rod.
Preferably, the buffering carries the frame to carry the frame by the tray, a plurality of buffer spring and bears the strip and constitute, it carries the inside of frame to bear the strip sliding connection at the tray, a plurality of buffer spring equidistant rigid coupling is in the length direction who bears the strip, the inboard rigid coupling that frame was carried to buffer spring end and tray.
Preferably, an included angle of 10 degrees is formed between the first horizontal installation side strip and the first inclined installation side strip, the first horizontal installation side strip and the second horizontal installation side strip are arranged in parallel, and the first inclined installation side strip and the second inclined installation side strip are arranged in parallel.
The utility model has the advantages that:
1. the feeding device for material detection can be used for conveying the tray, the tray can be clamped at four corners by the clamping cylinder when conveyed to a designated position, the material is clamped when the detection is convenient, and the material can be conveyed to the buffering carrying frame after the clamping of the material on the tray is finished, so that the material can be conveniently taken away by workers and the use is convenient;
2. this kind of material detects uses material feeding unit is carrying out the transport back of material, can make the tray get into the buffering and carry the frame, can cushion through buffer spring to after reducing and falling, the impact that the tray received reduces the damage that the tray received.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without inventive exercise.
FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the buffering carriage structure of the present invention;
FIG. 3 is a schematic view of a first horizontally-installed side strip back structure of the present invention;
fig. 4 is a schematic view of a second lifting side strip back structure of the present invention;

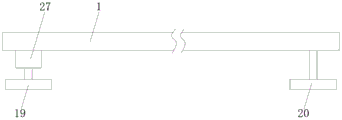

fig. 5 is a schematic structural view of a first horizontally installed side bar and a first motor of the present invention;
fig. 6 is a schematic structural view of the second lifting side bar and the second motor of the present invention.
In the figure: 1. the device comprises a first horizontal installation lateral strip, a second horizontal installation lateral strip, a first roller, a first rotating shaft, a first inclined installation lateral strip, a second roller, a first roller, a second rotating shaft, a second rotating.
Detailed Description
In order to make the objects, features and advantages of the present invention more obvious and understandable, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention, and obviously, the embodiments described below are only some embodiments of the present invention, but not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Referring to fig. 1-6, a feeding device for material detection includes a first horizontal installation side bar 1, a second horizontal installation side bar 2, a first inclined installation side bar 5, a second inclined installation side bar 6, a first conveying structure and a second conveying structure, the number of the first conveying structure is two, one of said first transport structures is arranged between a first horizontally mounted side bar 1 and a second horizontally mounted side bar 2, the other of said first conveying structures corresponding thereto is arranged between a first obliquely mounted sidebar 5 and a second obliquely mounted sidebar 6, the bottom of the first horizontal installation lateral strip 1 and the bottom of the second horizontal installation lateral strip 2 are both fixedly provided with a connecting strip 8, and the bottom end of the connecting strip 8 is fixedly connected with the first inclined mounting side strip 5 and the second inclined mounting side strip 6, the bottom of the first inclined mounting side strip 5 and the bottom of the second inclined mounting side strip 6 are both fixedly provided with a support rod 9;
fixed mounting has the buffering to carry frame 7 between first slope installation sidebar 5 and the second slope installation sidebar 6, one side that buffering carried frame 7 was kept away from to first transport structure is provided with dull and stereotyped 11, dull and stereotyped 11 fixed surface installs lift cylinder 12, and lift cylinder 12's output fixed mounting has connecting plate 13, the top fixed mounting of connecting plate 13 has first lift sidebar 14 and second lift sidebar 17, second transport structure sets up between first lift sidebar 14 and second lift sidebar 17, the four corners department of second transport structure all is provided with die clamping cylinder 18, and die clamping cylinder 18 and first lift sidebar 14 and second lift sidebar 17 rigid coupling, and first horizontal installation sidebar 1, second slope installation sidebar 6 and second lift sidebar 17 are first motor 27, second motor 28, first driven sprocket 20, first drive sprocket 22, A second driven sprocket 24 and a second drive sprocket 26 provide the mounting.
The first conveying structure comprises a plurality of first rollers 3, a first driving chain wheel 19, a first driven chain wheel 20, a plurality of first transmission chain wheels 22 and a first motor 27, an output shaft of the first motor 27 is fixedly sleeved with the middle part of the first driving chain wheel 19, a first chain 21 is wound between the first driving chain wheel 19 and the first driven chain wheel 20, a plurality of first rotating shafts 4 are fixedly mounted at the middle parts of the first rollers 3, one ends of the first rotating shafts 4 are fixedly sleeved with the first transmission chain wheels 22, the first transmission chain wheels 22 are meshed and connected with the first chain 21, the first rotating shafts 4 are rotatably mounted through first horizontal mounting side strips 1, second horizontal mounting side strips 2, first inclined mounting side strips 5 and second inclined mounting side strips 6 for bearing, and the first rollers 3 can convey pallets after rotating; the second conveying structure comprises a plurality of second rollers 16, a second driving chain wheel 23, a second driven chain wheel 24, a plurality of second transmission chain wheels 26 and a second motor 28, an output shaft of the second motor 28 is fixedly sleeved with the middle part of the second driving chain wheel 23, a second chain 25 is wound between the second driving chain wheel 23 and the second driven chain wheel 24, a second rotating shaft 15 is fixedly mounted at the middle part of each of the plurality of second rollers 16, one end of the second rotating shaft 15 is fixedly sleeved with the second transmission chain wheel 26, the second transmission chain wheels 26 are meshed with the second chain 25, the second rollers 16 are rotatably mounted through the first lifting side strips 14 and the second lifting side strips 17, and the second rollers 16 are supported; the flat plate 11 is vertically and fixedly connected with the support rod 9, and the reinforcing rod 10 is fixedly arranged between the flat plate 11 and the support rod 9, so that the flat plate 11 is supported and fixed; the buffer carrying frame 7 is composed of a tray carrying frame 701, a plurality of buffer springs 702 and a carrying strip 703, the carrying strip 703 is slidably connected inside the tray carrying frame 701, the plurality of buffer springs 702 are fixedly connected in the length direction of the carrying strip 703 at equal intervals, the tail ends of the buffer springs 702 are fixedly connected with the inner side of the tray carrying frame 701, and the buffer springs 702 provide buffering to reduce the damage; form 10 contained angles between first horizontal installation sidebar 1 and the first slope installation sidebar 5, and parallel arrangement between first horizontal installation sidebar 1 and the second horizontal installation sidebar 2, parallel arrangement between first slope installation sidebar 5 and the second slope installation sidebar 6 can provide installation space for two first transport structure, carries through two first transport structure.
When the utility model is used, the electrical components appearing in the application are externally connected with a power supply and a control switch when in use, the tray is placed at one side of the first horizontal installation side strip 1 and the second horizontal installation side strip 2, the first motor 27 drives the first driving sprocket 19 to rotate, the first driving sprocket 22 is driven by the first driven sprocket 20 and the first chain 21 to rotate, thereby the first roller 3 is driven to convey the tray to the second conveying structure, the clamping cylinder 18 clamps the four corners of the tray to realize fixation, the detection device clamps the materials on the tray to detect, after the materials on the tray are completely detected, the lifting cylinder 12 descends to align the first lifting side strip 14 and the second lifting side strip 17 with the first inclined installation side strip 5 and the second inclined installation side strip 6, the second motor 28 drives the second driving sprocket 23 to rotate, the second driven sprocket 24 and the second chain 25 are used for transmission, the second driving sprocket 26 is rotated, the second roller 16 is rotated, the tray is conveyed to a position between the first inclined installation side strip 5 and the second inclined installation side strip 6 for conveying, then the tray enters the buffering carrying frame 7 and is conveyed to a position between the first inclined installation side strip 5 and the second inclined installation side strip 6, the lifting cylinder 12 ascends to enable the first lifting side strip 14 and the second lifting side strip 17 to be in butt joint with the second horizontal installation side strip 2 and the first horizontal installation side strip 1, and the next tray is borne and lifted.
The lifting cylinder 12 adopts a NKDGB10 type lifting cylinder produced by Zhejiang thunder Intelligent science and technology limited company and a related matched power supply and circuit thereof.
The clamping cylinder 18 is a CDQ2B100-50-50-DCM type cylinder manufactured by Feipulon pneumatic hydraulic Co., Ltd., Leqing, and its associated power supply and circuit.
The first motor 27 and the second motor 28 are both a 42HS03 motor manufactured by guangdong haichuan automation ltd and its associated power supply and circuit.
It is well within the skill of those in the art to implement, without undue experimentation, the present invention does not relate to software and process improvements, as related to circuits and electronic components and modules.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.

Claims (6)

1. The utility model provides a material feeding unit for material detects which characterized in that: including first horizontal installation sidebar (1), second horizontal installation sidebar (2), first slope installation sidebar (5), second slope installation sidebar (6), first transport structure and second transport structure, first transport structure's figure is two, one of them first transport structure sets up between first horizontal installation sidebar (1) and second horizontal installation sidebar (2), another that corresponds with it first transport structure sets up between first slope installation sidebar (5) and second slope installation sidebar (6), the equal fixed mounting in bottom of first horizontal installation sidebar (1) and bottom of second horizontal installation sidebar (2) has connecting strip (8), and the bottom of connecting strip (8) and first slope installation sidebar (5) and second slope installation sidebar (6) rigid coupling, the bottom of first slope installation sidebar (5) and the bottom of second slope installation sidebar (6) all fixed mounting have the bracing piece ((6) ((support rod) 9) (ii) a
Fixed mounting has the buffering to carry frame (7) between first slope installation sidebar (5) and the second slope installation sidebar (6), one side that buffering carried frame (7) is kept away from to first transport structure is provided with dull and stereotyped (11), the fixed surface of dull and stereotyped (11) installs lift cylinder (12), and the output fixed mounting of lift cylinder (12) has connecting plate (13), the top fixed mounting of connecting plate (13) has first lift sidebar (14) and second lift sidebar (17), second transport structure sets up between first lift sidebar (14) and second lift sidebar (17), the four corners department of second transport structure all is provided with die clamping cylinder (18), and die clamping cylinder (18) and first lift sidebar (14) and second lift sidebar (17) rigid coupling.
2. The feeding device for material detection as claimed in claim 1, wherein: first conveying structure includes a plurality of first cylinder (3), first drive sprocket (19), first driven sprocket (20), the first drive sprocket (22) of a plurality of and first motor (27), the output shaft of first motor (27) and the fixed middle part of first drive sprocket (19) cup joint, around winding first chain (21), a plurality of between first drive sprocket (19) and first driven sprocket (20) the equal fixed mounting in middle part of first cylinder (3) has first pivot (4), and the one end of first pivot (4) and first drive sprocket (22) fixed cup joint, first drive sprocket (22) is connected with first chain (21) meshing.
3. The feeding device for material detection as claimed in claim 1, wherein: the second conveying structure comprises a plurality of second rollers (16), a second driving chain wheel (23), a second driven chain wheel (24), a plurality of second transmission chain wheels (26) and a second motor (28), an output shaft of the second motor (28) is fixedly sleeved with the middle of the second driving chain wheel (23), a second chain (25) is wound between the second driving chain wheel (23) and the second driven chain wheel (24), a plurality of second rotating shafts (15) are fixedly installed in the middle of the second rollers (16), one ends of the second rotating shafts (15) are fixedly sleeved with the second transmission chain wheels (26), and the second transmission chain wheels (26) are meshed with the second chain wheels (25).
4. The feeding device for material detection as claimed in claim 1, wherein: the flat plate (11) is vertically and fixedly connected with the supporting rod (9), and the reinforcing rod (10) is fixedly arranged between the flat plate (11) and the supporting rod (9).
5. The feeding device for material detection as claimed in claim 1, wherein: the buffer carrying frame (7) is composed of a tray carrying frame (701), a plurality of buffer springs (702) and a carrying strip (703), the carrying strip (703) is connected to the inside of the tray carrying frame (701) in a sliding mode, the buffer springs (702) are fixedly connected to the length direction of the carrying strip (703) at equal intervals, and the tail ends of the buffer springs (702) are fixedly connected to the inner side of the tray carrying frame (701).
6. The feeding device for material detection as claimed in claim 1, wherein: an included angle of 10 degrees is formed between the first horizontal installation side strip (1) and the first inclined installation side strip (5), the first horizontal installation side strip (1) and the second horizontal installation side strip (2) are arranged in parallel, and the first inclined installation side strip (5) and the second inclined installation side strip (6) are arranged in parallel.
