CN210384122U - Tool suitable for premature infant to touch parent-child - Google Patents
Tool suitable for premature infant to touch parent-child Download PDFInfo
- Publication number
- CN210384122U CN210384122U CN201920439883.4U CN201920439883U CN210384122U CN 210384122 U CN210384122 U CN 210384122U CN 201920439883 U CN201920439883 U CN 201920439883U CN 210384122 U CN210384122 U CN 210384122U
- Authority
- CN
- China
- Prior art keywords
- belts
- premature infant
- parent
- wrapping cloth
- child
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Professional, Industrial, Or Sporting Protective Garments (AREA)
Abstract
本实用新型公开了一种适用于早产儿进行亲子抚触的工具，使用该工具时，需先将包裹布本体靠置在大人胸前，再将两条腰带相扣接以将整个工具与大人进行固定；接着，大人躺下或半坐卧位，将早产儿面部朝向大人前胸并抱置在大人胸前，此时早产儿臀部置于定位片体上，调整好早产儿的位置后再将腰臀部定位带与第一扣带进行绑接；然后，再将两条肩带搭置在大人肩部并将两条肩带相扣合。此时，便完成了早产儿与大人之间的定位。该工具使用方便，且简单。且该工具配备有盖被体，需要使用时从容置槽内取出即可，不需使用时折叠好塞回容置槽内，使用方便,可减少看护人员的人数，避免需要多人进行照顾。
The utility model discloses a tool suitable for parent-child stroking of premature infants. When using the tool, a wrapping cloth body needs to be placed on the breast of an adult first, and then two belts are buckled to connect the entire tool to the adult. Fixation; then, the adult lies down or in a semi-recumbent position, and the premature infant faces the adult's front chest and holds it on the adult's chest. At this time, the premature infant's buttocks are placed on the positioning sheet, and the premature infant's position is adjusted before Bind the waist and hip positioning belt with the first buckle belt; then, place the two shoulder belts on the adult's shoulders and fasten the two shoulder belts. At this point, the positioning between the premature infant and the adult is completed. The tool is easy to use and simple. And the tool is equipped with a quilt body, which can be taken out from the accommodating slot when needed, and folded and put back into the accommodating slot when not in use.
Description
Technical Field
The utility model relates to an instrument suitable for premature infant carries out parent-child and smooths and touches.
Background
Live born infants born before 37 weeks of gestational age are called premature or immature infants, which have poorer organ function and adaptability than term infants, and low birth weight and premature infants are considered to be associated with high mortality, morbidity of newborns and infants. The care of these premature infants raises concerns about local health and social systems. Special care should be given to premature infants.
In the current special care of the premature infant, the premature infant is basically sent to a monitoring ward prepared by a hospital, and nurses and doctors look at the nursing ward alone, so that the mother has few chances to see the baby, and the development of the nervous system of the premature infant, intimacy and safety of the mother or father cannot be well established. These problems have been noticed in recent years, and development care and family-involved management have been gradually developed around the world, and the parent-child care has a positive influence on the neural physique, sleep, breast milk intake, pain reduction, immunity and the like of a newborn, and can reduce the anxiety degree of the mother of the newborn and the economic burden of the family, and reduce the death rate and the morbidity of the newborn. Adopt nearly 3 meters rectangular shape to hold the piece of cloth during parent-child skin contact nursing, from chest back alternately winding at the waist knot fixed at last, the premature infant is located and holds in the piece of cloth, though fixed effectual, the premature infant activity is restricted. Although the holding towel is easy to obtain, the holding towel is too long and easy to fall off to the ground to cause pollution, the operation is inconvenient, the cross winding method is slightly complex, the use skill is not easy to master, and various pipelines on the body of the premature infant need to be nursed and fixed by a specially-assigned person, so that the labor is consumed. Therefore, it is urgently needed to design a novel product capable of solving the above problems so as to promote the development of parent-child activities, promote the development of the nervous system of the premature infant and better establish the intimacy and the safety of the premature infant and parents.
SUMMERY OF THE UTILITY MODEL
The utility model provides an instrument that is applicable to premature infant and carries out parent-child and smooths and touch, it has overcome the not enough that the background art exists. The utility model provides a technical scheme that its technical problem adopted is:
the utility model provides a be applicable to premature infant and carry out parent-child and touch instrument which characterized in that: it includes:
the wrapping cloth comprises a wrapping cloth body, wherein two first buckling belts, an accommodating groove and a first sewing part are arranged on the outer side of the wrapping cloth body, and the first sewing part is close to an opening of the accommodating groove;
the waist and hip positioning piece comprises a positioning piece body and two waist and hip positioning belts, the positioning piece body is fixedly connected to the lower end of the wrapping cloth body, the two waist and hip positioning belts are respectively and fixedly connected to two sides of the positioning piece body, and the two waist and hip positioning belts can be respectively connected with the two first buckling belts in a binding manner;
the two waistbands are fixedly connected to the outer side of the positioning sheet body and can be separately connected;
the quilt cover body is provided with a second sewing part, the quilt cover body is fixedly connected outside the wrapping cloth body through the sewing matching of the first sewing part and the second sewing part, and the quilt cover body can be placed in the containing groove after being folded;
the two shoulder belts are fixedly connected to the top end of the wrapping cloth body, and the two shoulder belts are connected in a separable mode.
In a preferred embodiment: the top end of the wrapping cloth body is also provided with two head positioning pieces which are arranged at intervals, and the head positioning pieces are positioned on the front side of the shoulder straps; the outer sides of the two shoulder straps are respectively provided with a second buckle belt, and the two head positioning pieces can be respectively connected with the two second buckle belts in a binding manner.
In a preferred embodiment: the head positioning piece is in a long triangular shape, and the width of the bottom end of the head positioning piece is larger than that of the top end of the head positioning piece.
In a preferred embodiment: the wrapping cloth body top still is equipped with and holds in the palm the neck, should hold in the palm the neck and be located between two head spacers.
In a preferred embodiment: two sides of each shoulder strap are respectively provided with a first binding band, and two first binding bands on two sides of the same shoulder strap can be bound together to form a first limiting groove for limiting one or more pipelines in an infusion catheter, a nasogastric tube and a breathing machine pipeline which are required by the upper half of a premature infant.
In a preferred embodiment: two second bandages on two sides of each waistband can be bound together to form a second limiting groove for limiting one or more pipelines in an infusion catheter and a monitor connecting line required by the lower body of the premature infant.
Compared with the background technology, the technical scheme has the following advantages:
1. when the tool is used, the wrapping cloth body is required to be leaned against the chest of an adult, and then the two waistbands are buckled with each other to fix the whole tool with the adult; then, the adult lies down or sits at a half-recumbent position, the face of the premature infant faces the front chest of the adult and is held in front of the chest of the adult, the hip of the premature infant is placed on the positioning sheet body at the moment, and the waist and hip positioning belt and the first buckle belt are bound and connected after the position of the premature infant is adjusted; then, the two shoulder straps are put on the shoulders of the adult and are buckled. At this point, the positioning between the premature infant and the adult is completed. The tool is convenient and simple to use. The quilt cover body is arranged on the tool, and can be taken out from the containing groove when in use, and can be folded and filled back into the containing groove when not in use, and the quilt cover body is fixedly connected outside the wrapping cloth body, so that the quilt cover body is not easy to slide off, and can ensure that a mother and a baby are in close contact with each other and can fully keep warm for the premature baby. The tool is provided with the limiting groove, so that various pipelines on the premature infant can be effectively fixed, the number of nurses can be reduced, and the need of multiple people for caring is avoided; the premature infant can be effectively fixed by the positioning sheet body 50 and the waist-hip fixing belts 20, so that the premature infant is in close contact with parents, the activity of the premature infant is not influenced, and the comfort of the mother and the infant is improved.
Convenient to use, and can reduce the number of nursing personnel, avoid needing many people to look after.
2. Two head spacers can better fix a position premature infant's head, prevent that the head from appearing the condition of rocking.
3. The head locating plate is rectangular triangle-shaped, and its bottom width is greater than the top width to better radian when rotating with the head is corresponding, and is more comfortable.
4. The wrapping cloth body top still is equipped with the support neck, holds in the palm the neck and can protect premature infant's neck.
5. Two first bandages can bind together in order to form first spacing groove for carry on spacingly to required infusion pipe, nasogastric tube, the breathing machine pipeline etc. of half body on the premature infant, prevent to stroll the infusion pipe or the nasogastric tube of mouth, the breathing machine pipeline etc. of touching the in-process head and being dragged and lead to breaking over, drop and produce danger carrying out the parent.
6. Two second bandages can bind together in order to form the spacing groove of second for carry on spacingly to required infusion pipe of premature infant lower body, monitor connecting wire etc. prevent to be dragging and lead to breaking over, drop and produce danger carrying out the infusion pipe, monitor connecting wire etc. that parent stroked the in-process shank.
Drawings
The present invention will be further explained with reference to the drawings and examples.

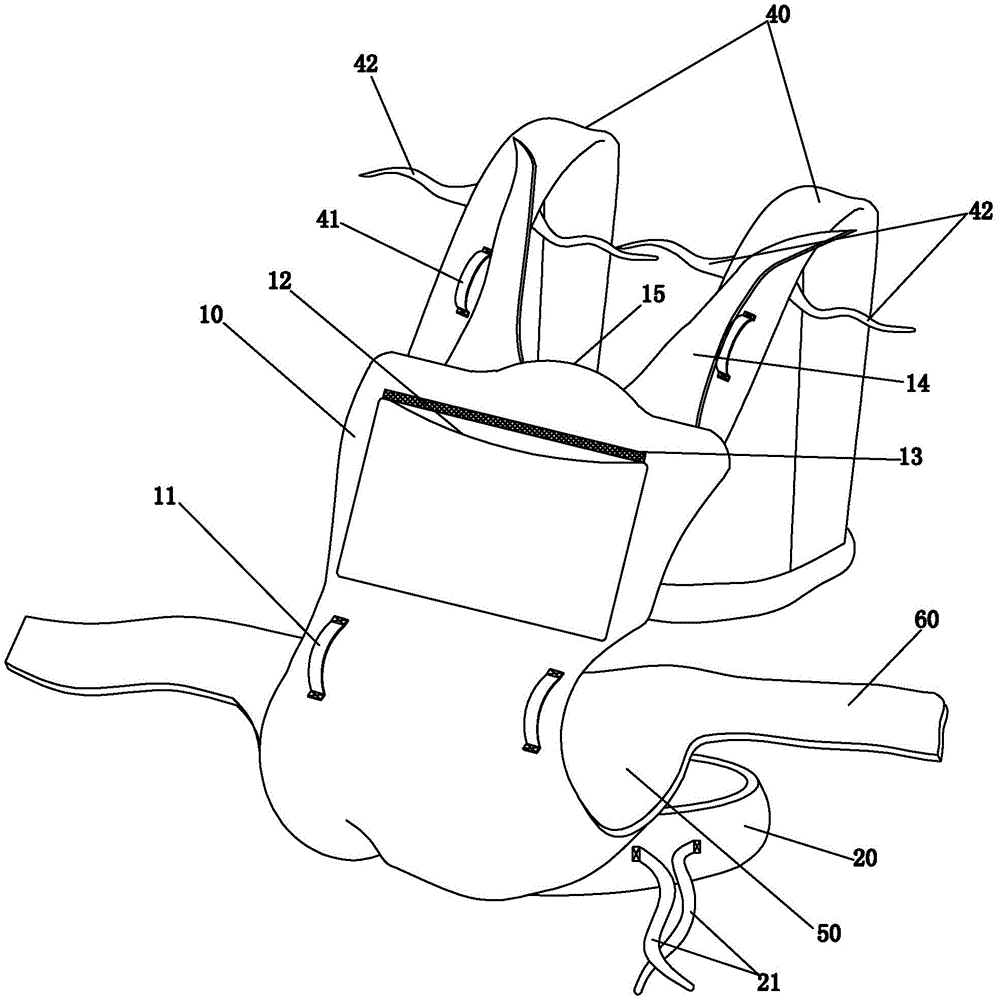

Fig. 1 shows one of the overall schematic views of the tool.
Fig. 2 shows a second overall schematic view of the tool.
Fig. 3 is a schematic view showing the state of the quilt body when it is unfolded.
Fig. 4 is a schematic view showing the state in which the quilt body is in the first step of folding.
Fig. 5 is a schematic view showing a state in which the quilt body is in the second step of folding.
Fig. 6 is a schematic view showing the state in which the quilt body is in the third step of folding.
Fig. 7 is a schematic view showing the state in which the quilt body is in the fourth folding step.
Fig. 8 shows the application state diagram of the tool.
Detailed Description
Referring to fig. 1 to 2, a preferred embodiment of a tool for a premature infant to touch the infant by the child comprises a wrapping cloth body 10, a waist and hip positioning member, two waist belts 20, a comforter body 30, and two shoulder belts 40.
Two first buckle belts 11, a containing groove 12 and a first sewing part 13 are arranged on the outer side of the wrapping cloth body 10, and the first sewing part 13 is close to the containing groove 12 and is opened. As shown in fig. 1, the two first fastening strips 11 are located at the lower part of the outer side of the wrapping cloth body 10 near the hip of the premature infant, the accommodating groove 12 is rectangular and located above the outer side of the wrapping cloth body 10, and the first sewn portion 13 is a transverse strip shape and has a length matched with the opening length of the accommodating groove 12.
In this embodiment, the top end of the wrapping cloth body 10 is further provided with two head positioning pieces 14 arranged at intervals, and the head positioning pieces 14 are located at the front side of the shoulder straps 40. The two head positioning pieces 14 can better position the head of the premature infant and prevent the head from shaking.
In this embodiment, the head positioning plate 14 is a long triangular shape, and the width of the bottom end is greater than the width of the top end. The head positioning plate 14 is in a long triangular shape, and the width of the bottom end of the head positioning plate is larger than that of the top end of the head positioning plate, so that the head positioning plate corresponds to the radian of the head when the head rotates better and is more comfortable.
In this embodiment, the top end of the wrapping cloth body 10 is further provided with a neck support portion 15, and the neck support portion 15 is located between the two head positioning pieces 14. As shown in fig. 1, the neck support portion 15 is upwardly protruded.
Waist buttockss portion setting element includes a location lamellar body 50 and two waist buttockss portion location areas 60, and location lamellar body 50 rigid coupling is at the wrapping cloth body 10 lower extreme, and two waist buttockss location areas 60 rigid coupling respectively are in the 50 body both sides of location lamellar body, and two waist buttockss portion location areas 60 can be tied up with two first area of buckling 11 respectively and connect.
The two waistbands 20 are both fixedly connected to the outer side of the positioning sheet 50, and the two waistbands 20 can be separately connected. The two waist bands 20 can be connected by stitching.
In this embodiment, two sides of each waistband 20 are provided with a second binding band 21, and the two second binding bands 21 on two sides of the same waistband 20 can be bound together to form a second limiting groove for limiting the infusion catheter 1 required by the lower body of the premature infant and one or more pipelines in the monitor connecting line. As shown in fig. 8, the two second straps 21 can be bound together to form a second limiting groove for limiting the infusion catheter, the monitor connecting line and the like required by the lower body of the premature infant, so as to prevent the infusion catheter, the monitor connecting line and the like on the leg from being dragged, folded and falling off to cause danger in the process of touching by the parent.
The comforter body 30 is provided with a second sewing part 31, the comforter body 30 is fixedly connected outside the wrapping cloth body 10 through the sewing matching of the first sewing part 13 and the second sewing part 31, and the comforter body 30 can be placed in the containing groove 12 after being folded. As shown in fig. 3, the middle of the top of the comforter body 30 is provided with an opening 32, when the comforter body 30 is put on the back of the premature infant, the head of the premature infant can extend out of the comforter body 30 through the opening 32, the exposure of the pipeline of the head is ensured, and the using condition of the pipeline can be observed at any time.
The two shoulder straps 40 are fixedly connected to the top end of the wrapping cloth body 10, and the two shoulder straps 40 can be separately connected. The two shoulder straps 40 may be connected by stitching.
In this embodiment, the two shoulder straps 40 are provided with second fastening strips 41 at the outer sides thereof, and the two head positioning pieces 14 can be respectively connected with the two second fastening strips 41.
In this embodiment, two first straps 42 are provided on two sides of each shoulder strap 40, and the two first straps 42 on two sides of the same shoulder strap 40 can be bound together to form a first limiting groove for limiting one or more lines of an infusion catheter, a nasal feeding tube and a breathing machine tube required by the upper half of the premature infant. As shown in fig. 8, the two first straps 42 can be bound together to form a first limiting groove for limiting one or more lines of the infusion catheter, the nasogastric tube and the respirator tube required by the upper half of the premature infant, so as to prevent the infusion catheter at the head, the nasogastric tube at the mouth and the respirator tube at the nose from being dragged, broken and falling off to cause danger in the process of parent touch.
All parts of the tool are made of soft cloth materials, so that the use safety of premature babies is guaranteed.
When the tool is used, the wrapping cloth body 10 is required to be leaned against the chest of an adult, and then the two waistbands 20 are buckled to fix the whole tool with the adult; then, the adult lies down or sits at a half-recumbent position, the face of the premature infant faces the front chest of the adult and is held in front of the chest of the adult, the hip of the premature infant is placed on the positioning sheet body 50 at the moment, and the waist and hip positioning belt 60 and the first buckle belt 11 are bound and connected after the position of the premature infant is adjusted; then, the two shoulder straps 40 are put on the shoulder of the adult and the two shoulder straps 40 are fastened. At this point, the positioning between the premature infant and the adult is completed. When the upper half of the premature infant is provided with an infusion catheter or a nasal feeding tube and a breathing machine pipeline, the pipeline can be limited by the two first binding bands 42; when the lower half of the premature infant has the infusion catheter, the monitor connecting line and other pipelines, the pipelines can be limited by the two second binding bands 21. When the cover body 30 is needed to be used, the cover body 30 can be taken out of the containing groove 12 and opened, and the premature infant can be covered on the back of the premature infant, and when the use is not needed, the folding can be carried out according to the steps shown in the figures 3, 4, 5, 6 and 7 in sequence, and the cover body 30 is plugged into the containing groove 12 after the folding is finished. The tool is provided with the quilt body, the quilt can be taken out from the containing groove 12 when in use, and can be folded and plugged into the containing groove 12 when not in use, so that the tool is convenient to use, the number of nurses can be reduced, and the care by a plurality of persons is avoided.
The above description is only a preferred embodiment of the present invention, and therefore the scope of the present invention should not be limited by this description, and all equivalent changes and modifications made within the scope and the specification of the present invention should be covered by the present invention.
Claims (6)
1. The utility model provides a be applicable to premature infant and carry out parent-child and touch instrument which characterized in that: it includes:
the wrapping cloth comprises a wrapping cloth body, wherein two first buckling belts, an accommodating groove and a first sewing part are arranged on the outer side of the wrapping cloth body, and the first sewing part is close to an opening of the accommodating groove;
the waist and hip positioning piece comprises a positioning piece body and two waist and hip positioning belts, the positioning piece body is fixedly connected to the lower end of the wrapping cloth body, the two waist and hip positioning belts are respectively and fixedly connected to two sides of the positioning piece body, and the two waist and hip positioning belts can be respectively connected with the two first buckling belts in a binding manner;
the two waistbands are fixedly connected to the outer side of the positioning sheet body and can be separately connected;
the quilt cover body is provided with a second sewing part, the quilt cover body is fixedly connected outside the wrapping cloth body through the sewing matching of the first sewing part and the second sewing part, and the quilt cover body can be placed in the containing groove after being folded;
the two shoulder belts are fixedly connected to the top end of the wrapping cloth body, and the two shoulder belts are connected in a separable mode.
2. The tool suitable for parent-child stroking of premature infants according to claim 1, wherein: the top end of the wrapping cloth body is also provided with two head positioning pieces which are arranged at intervals, and the head positioning pieces are positioned on the front side of the shoulder straps; the outer sides of the two shoulder straps are respectively provided with a second buckle belt, and the two head positioning pieces can be respectively connected with the two second buckle belts in a binding manner.
3. The tool suitable for parent-child stroking of premature infants according to claim 2, wherein: the head positioning piece is in a long triangular shape, and the width of the bottom end of the head positioning piece is larger than that of the top end of the head positioning piece.
4. The tool suitable for parent-child stroking of premature infants according to claim 2, wherein: the wrapping cloth body top still is equipped with and holds in the palm the neck, should hold in the palm the neck and be located between two head spacers.
5. The tool suitable for parent-child stroking of premature infants according to claim 1, wherein: two sides of each shoulder strap are respectively provided with a first binding band, and two first binding bands on two sides of the same shoulder strap can be bound together to form a first limiting groove for limiting one or more pipelines in an infusion catheter, a nasogastric tube and a breathing machine pipeline which are required by the upper half of a premature infant.
6. The tool suitable for parent-child stroking of premature infants according to claim 1, wherein: two second bandages on two sides of each waistband can be bound together to form a second limiting groove for limiting one or more pipelines in an infusion catheter and a monitor connecting line required by the lower body of the premature infant.
