The utility model discloses a modular solar panel, including solar cell panel and the installing frame of mutually supporting with solar cell panel, set up the first mounting groove of mutually supporting with solar cell panel on the roof of installing frame, install the electric element of mutually supporting with solar cell panel in the first mounting groove, fixed mounting has the annular mounting panel on the lateral wall on solar cell panel top, set up the annular mounting groove of mutually supporting with the annular mounting panel on the inside wall on first mounting groove top, fixed mounting has the annular connecting block on the diapire of annular mounting panel, and the bottom of annular connecting block is inserted and is established on the inboard diapire of annular mounting groove. The utility model discloses in can be convenient install solar cell panel to the installing frame in or tear out from the installing frame to can be convenient maintain, maintain and change solar cell panel, not only improve solar cell panel's result of use, also prolonged solar cell panel's life.
Description
Technical Field
The utility model relates to a solar panel technical field especially relates to a modular solar panel.
Background
The solar cell is a photoelectric semiconductor slice which directly generates electricity by utilizing sunlight, a single solar cell can not be directly used as a power supply, a plurality of single solar cells are required to be connected in series and in parallel and tightly packaged into a module as the power supply, and the solar panel is an assembly part assembled by a plurality of solar cells, is a core part in a solar power generation system and is also the most important part in the solar power generation system.
Current solar panel mostly is with solar cell panel fixed mounting in the installing frame of mutually supporting with solar cell panel, and the installation is dismantled inconveniently to be not convenient for maintain, maintain and change solar cell panel, consequently need make the improvement to this.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem of inconvenience is dismantled in solar panel's the installation among the prior art, and a modular solar panel who provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a combined solar panel comprises a solar panel and a mounting frame matched with the solar panel, wherein a first mounting groove matched with the solar panel is formed in the top wall of the mounting frame, an electric element matched with the solar panel is installed in the first mounting groove, an annular mounting plate is fixedly installed on the outer side wall of the top end of the solar panel, an annular mounting groove matched with the annular mounting plate is formed in the inner side wall of the top end of the first mounting groove, an annular connecting block is fixedly installed on the bottom wall of the annular mounting plate, the bottom end of the annular connecting block is inserted into the bottom wall of the inner side of the annular mounting groove, an annular connecting groove matched with the annular connecting block is formed in the bottom wall of the inner side of the annular mounting groove, and two limiting blocks are symmetrically and movably installed on the outer side wall of the bottom end of the annular, two spacing grooves mutually supporting with the stopper are seted up to the symmetry on the inside wall of annular spread groove, and spacing groove and stopper one-to-one, two impartial distance installs a plurality of second balls on the inside wall of spacing groove, and the second ball all contacts with each other with the stopper, symmetrical threaded connection has two threaded rods mutually supporting with the stopper on the lateral wall of installing frame, and two threaded rods extend to two spacing inslots respectively.
Preferably, two handles are symmetrically and fixedly mounted on the top wall of the annular mounting plate.
Preferably, a sealing gasket matched with the annular connecting block is fixedly arranged on the bottom wall of the inner side of the annular connecting groove.
Preferably, a plurality of first balls are uniformly installed on the inner side wall of the annular connecting groove, and the first balls are in mutual contact with the annular connecting block.
Preferably, two second mounting grooves mutually supporting with the stopper are seted up to the symmetry on the lateral wall of annular connecting block bottom, two impartial distance is inserted on the inside wall of second mounting groove and is equipped with a plurality of movable rods, and the equal fixed mounting of one end that the second mounting groove was kept away from to the movable rod is on the lateral wall of stopper, every all around being equipped with the spring on the lateral wall of movable rod, and the both ends difference fixed mounting of spring is on the lateral wall of stopper and the inside wall of second mounting groove.
Preferably, the annular mounting panel on the diapire symmetry fixed mounting have two locating levers, two constant head tanks of mutually supporting with the locating lever have been seted up to the symmetry on the inboard diapire of annular mounting groove.
Compared with the prior art, the utility model discloses there is following beneficial effect:
1. the solar panel can be conveniently installed in or detached from the installation frame, so that the solar panel can be conveniently maintained, maintained and replaced, the use effect of the solar panel is improved, and the service life of the solar panel is prolonged;
2. simple structure need not to install the dismantlement to solar panel that just can be convenient with the help of devices such as bolts, convenient operation, and practical function is good.
Drawings

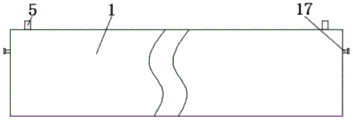

Fig. 1 is a front structural sectional view of a combined solar panel according to the present invention;
fig. 2 is a schematic front structural view of a combined solar panel according to the present invention;
fig. 3 is an enlarged view of a portion a of the structure of a combined solar panel.
In the figure: 1 solar cell panel, 2 installing frames, 3 first mounting grooves, 4 annular mounting plates, 5 handles, 6 annular mounting grooves, 7 annular connecting blocks, 8 annular connecting grooves, 9 sealing gaskets, 10 first balls, 11 limiting blocks, 12 second mounting grooves, 13 movable rods, 14 springs, 15 limiting grooves, 16 second balls, 17 threaded rods and 18 positioning rods.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a modular solar panel, including solar cell panel 1 and the installing frame 2 of mutually supporting with solar cell panel 1, set up the first mounting groove 3 of mutually supporting with solar cell panel 1 on the roof of installing frame 2, install the electric elements of mutually supporting with solar cell panel 1 in the first mounting groove 3, fixed mounting has annular mounting panel 4 on the lateral wall on solar cell panel 1 top, symmetrical fixed mounting has two handles 5 on the roof of annular mounting panel 4, be convenient for carry annular mounting panel 4 and solar cell panel 1.
An annular mounting groove 6 which is matched with the annular mounting plate 4 is arranged on the inner side wall at the top end of the first mounting groove 3, an annular connecting block 7 is fixedly arranged on the bottom wall of the annular mounting plate 4, the bottom end of the annular connecting block 7 is inserted on the bottom wall of the inner side of the annular mounting groove 6, an annular connecting groove 8 matched with the annular connecting block 7 is arranged on the bottom wall of the inner side of the annular mounting groove 6, a sealing gasket 9 matched with the annular connecting block 7 is fixedly arranged on the bottom wall of the inner side of the annular connecting groove 8, can improve the sealing performance of the connection of the annular connecting block 7, the annular mounting plate 4 and the solar cell panel 1 with the mounting frame 2, a plurality of first balls 10 are uniformly arranged on the inner side wall of the annular connecting groove 8, the first balls 10 are in mutual contact with the annular connecting block 7, the horizontal direction of the annular connecting block 7, the annular mounting plate 4 and the solar cell panel 1 can be prevented from shaking.
Two stopper 11 of mobile installation of symmetry on the lateral wall of 7 bottoms of annular connecting block, two second mounting grooves 12 of mutually supporting with stopper 11 are seted up to the symmetry on the lateral wall of 7 bottoms of annular connecting block, impartial distance is inserted on the inside wall of two second mounting grooves 12 and is equipped with a plurality of movable rods 13, and the equal fixed mounting of one end that second mounting groove 12 was kept away from to movable rod 13 is on stopper 11's lateral wall, all around being equipped with spring 14 on every movable rod 13's the lateral wall, and spring 14's both ends respectively fixed mounting on stopper 11's lateral wall and second mounting groove 12's inside wall, stopper 11 all can remove with the free horizontal direction.
Two spacing grooves 15 that mutually support with stopper 11 are seted up to the symmetry on annular spread groove 8's the inside wall, and spacing groove 15 and stopper 11 one-to-one, impartial distance installs a plurality of second balls 16 on two spacing groove 15's the inside wall, and second ball 16 all contacts with stopper 11 each other, can prevent stopper 11, annular connecting block 7, annular mounting panel 4 and solar cell panel 1 rock from top to bottom, symmetrical threaded connection has two threaded rods 17 of mutually supporting with stopper 11 on the lateral wall of installing frame 2, and two threaded rods 17 extend to respectively in two spacing grooves 15.
Symmetrical fixed mounting has two locating levers 18 on the diapire of annular mounting panel 4, and the symmetry is seted up two constant head tanks of mutually supporting with locating lever 18 on the diapire of 6 inboards of annular mounting groove, is convenient for accurate, quick insert annular connecting block 7 in annular spread groove 8.
In the utility model, the annular connecting block 7 is inserted into the annular connecting groove 8 and the positioning rod 18 is inserted into the corresponding positioning groove, when the bottom end of the annular connecting block 7 is tightly contacted with the sealing washer 9, the spring 14 pushes one end of the limiting block 11 to move into the limiting groove 15 due to the recovery of the elasticity thereof, so that the limiting block 15, the annular connecting block 7, the annular mounting plate 4 and the solar cell panel 1 can be fixedly mounted on the mounting frame 2; the threaded rod 17 is rotated and the limiting block 11 is pushed to the outer side of the limiting groove 15, so that the limiting block 15, the annular connecting block 7, the annular mounting plate 4 and the solar cell panel 1 can be conveniently detached from the mounting frame 2.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a modular solar panel, includes solar cell panel (1) and mutually support installing frame (2) with solar cell panel (1), its characterized in that: the solar cell panel mounting structure is characterized in that a first mounting groove (3) matched with a solar cell panel (1) is formed in the top wall of the mounting frame (2), an electric element matched with the solar cell panel (1) is installed in the first mounting groove (3), an annular mounting plate (4) is fixedly installed on the outer side wall of the top end of the solar cell panel (1), an annular mounting groove (6) matched with the annular mounting plate (4) is formed in the inner side wall of the top end of the first mounting groove (3), an annular connecting block (7) is fixedly installed on the bottom wall of the annular mounting plate (4), the bottom end of the annular connecting block (7) is inserted into the inner side bottom wall of the annular mounting groove (6), an annular connecting groove (8) matched with the annular connecting block (7) is formed in the inner side bottom wall of the annular mounting groove (6), two limiting blocks (11) are symmetrically and movably installed on the outer side wall of the, two spacing grooves (15) of mutually supporting with stopper (11) are seted up to the symmetry on the inside wall of annular spread groove (8), and spacing groove (15) and stopper (11) one-to-one, two impartial distance is installed a plurality of second balls (16) on the inside wall of spacing groove (15), and second ball (16) all contact with stopper (11) each other, symmetrical threaded connection has two threaded rods (17) of mutually supporting with stopper (11) on the lateral wall of installing frame (2), and two threaded rods (17) extend to respectively in two spacing grooves (15).
2. The modular solar panel according to claim 1, wherein: two handles (5) are symmetrically and fixedly arranged on the top wall of the annular mounting plate (4).
3. The modular solar panel according to claim 1, wherein: and a sealing gasket (9) matched with the annular connecting block (7) is fixedly arranged on the inner side bottom wall of the annular connecting groove (8).
4. The modular solar panel according to claim 1, wherein: a plurality of first balls (10) are uniformly installed on the inner side wall of the annular connecting groove (8), and the first balls (10) are in mutual contact with the annular connecting block (7).
5. The modular solar panel according to claim 1, wherein: two second mounting grooves (12) of mutually supporting with stopper (11), two are seted up to the symmetry on the lateral wall of annular connecting block (7) bottom impartial distance is inserted and is equipped with a plurality of movable rods (13) on the inside wall of second mounting groove (12), and the equal fixed mounting of one end that second mounting groove (12) were kept away from in movable rod (13) is on the lateral wall of stopper (11), every all around being equipped with spring (14) on the lateral wall of movable rod (13), and the both ends difference fixed mounting of spring (14) is on the lateral wall of stopper (11) and the inside wall of second mounting groove (12).
6. The modular solar panel according to claim 1, wherein: the symmetry fixed mounting has two locating levers (18) on the diapire of annular mounting panel (4), two constant head tanks of mutually supporting with locating lever (18) are seted up to the symmetry on the diapire of annular mounting groove (6) inboard.
