本实用新型公开了一种带有手臂托架结构的移动式注射椅，包括一用于患者进行静脉注射时休息的注射椅本体，所述注射椅本体包括椅座，在所述椅座的后侧设有与患者背部曲线轮廓相贴合的椅背，在所述椅座四个顶角的下端分别设有用于支撑椅座的支脚，在所述椅座的两侧分别设有便于患者进行放置手臂的左、右扶手；在所述左扶手或右扶手上设有一手臂托架结构。本实用新型患者在进行静脉注射时，能够对患者的手臂进行稳定的支撑，避免患者在进行静脉注射时手臂发生晃动，且能够使医护人员进行准确的穿刺定位。
The utility model discloses a mobile injection chair with an arm bracket structure, which comprises an injection chair body for resting when a patient performs intravenous injection. The side is provided with a chair back that fits with the curve contour of the patient's back, the lower ends of the four top corners of the chair seat are respectively provided with feet for supporting the chair seat, and the two sides of the chair seat are respectively provided with convenient for the patient to carry out The left and right armrests of the arm are placed; an arm bracket structure is arranged on the left armrest or the right armrest. The utility model can stably support the patient's arm when the patient is undergoing intravenous injection, avoid the arm shaking of the patient during the intravenous injection, and enable medical staff to perform accurate puncture positioning.
Description
Technical Field
The utility model relates to the technical field of medical equipment, in particular to a portable injection chair with arm bracket structure.
Background
Intravenous injection is a medical procedure in which liquid substances such as blood, medical solutions, nutritional solutions, etc. are injected directly into the veins of a patient. Intravenous injection can be divided into transient and continuous intravenous injection, and transient intravenous injection is usually directly injected into veins by a syringe, namely common 'injection'; continuous intravenous injection is performed as an intravenous drip, commonly known as a "drip".
Medical personnel are when carrying out transient intravenous route to the patient, at first let the patient sit on the injection chair, then place patient's arm on the handrail of injection chair, the cylinder that will adsorb the liquid medicine at last inserts in patient's vein, slowly pour into patient's vein with the liquid medicine, because patient's arm is simple only places on the handrail of injection chair, medical personnel are when carrying out intravenous route for the patient, patient's arm is very easily taken place to rock, it carries out accurate puncture location to be difficult to make medical personnel, if the dislocation back takes place for the injection puncture, medical personnel need inject the puncture again, medical personnel's the injection degree of difficulty has not only been improved, and still brought great misery for the patient, great inconvenience has been brought for medical personnel's intravenous route work.
SUMMERY OF THE UTILITY MODEL
For solving the problem that prior art exists, the utility model aims at providing a reasonable in design, simple structure, convenient operation, the patient can carry out stable support to patient's arm when carrying out intravenous route, avoids patient arm when carrying out intravenous route to take place to rock, and can make medical personnel carry out the portable injection chair that has arm bracket structure of accurate puncture location.
For solving the above technical problem, the utility model discloses a following technical scheme realizes:
a movable injection chair with an arm bracket structure comprises
The injection chair body comprises a chair seat, the rear side of the chair seat is provided with a chair back which is attached to the curve outline of the back of a patient, the lower ends of four top corners of the chair seat are respectively provided with a support leg for supporting the chair seat, and the two sides of the chair seat are respectively provided with a left handrail and a right handrail which are convenient for the patient to place the arms;
the intravenous injection support is characterized in that an arm bracket structure is arranged on the left handrail or the right handrail and comprises a connecting rod which is integrally L-shaped, one end of the connecting rod is detachably arranged on the left handrail or the right handrail, an adjusting rod is inserted into the other end of the connecting rod, an arc-shaped support frame used for supporting the arm of a patient needing intravenous injection is arranged at the upper end of the adjusting rod, and an adjusting rod locking knob used for locking the lower end of the adjusting rod inside the adjusting rod is arranged on the outer wall of the other end of the connecting rod.
The utility model discloses a preferred embodiment be equipped with the supplementary tray that is used for placing medical personnel's auxiliary articles for use when carrying out intravenous injection on the regulation pole, the tray sets up on adjusting the pole through the installation pole, the one end setting of installation pole is on the tray be equipped with on the other end of installation pole and be used for the cover to establish the installation cover on adjusting the pole be equipped with on the installation cover and lock its installation cover locking knob on adjusting the pole.
In a preferred embodiment of the present invention, an arm pad made of soft material is disposed in the groove of the arc-shaped supporting frame.
In a preferred embodiment of the present invention, a cushion for improving comfort of a patient is provided on the seat.
In a preferred embodiment of the present invention, universal wheels are provided at the lower ends of the legs.
Compared with the prior art, the utility model discloses be equipped with an arm bracket structure on left handrail or right handrail, can carry out effectual support to patient's arm through arc support frame, the patient is when carrying out intravenous route, can carry out stable support to patient's arm, avoid the patient arm to take place to rock when carrying out intravenous route, and can make medical personnel carry out accurate puncture location, medical personnel's the injection degree of difficulty has not only been reduced, and still alleviateed the patient and painful sense when carrying out intravenous route, the intravenous route work of giving medical personnel has brought great facility.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

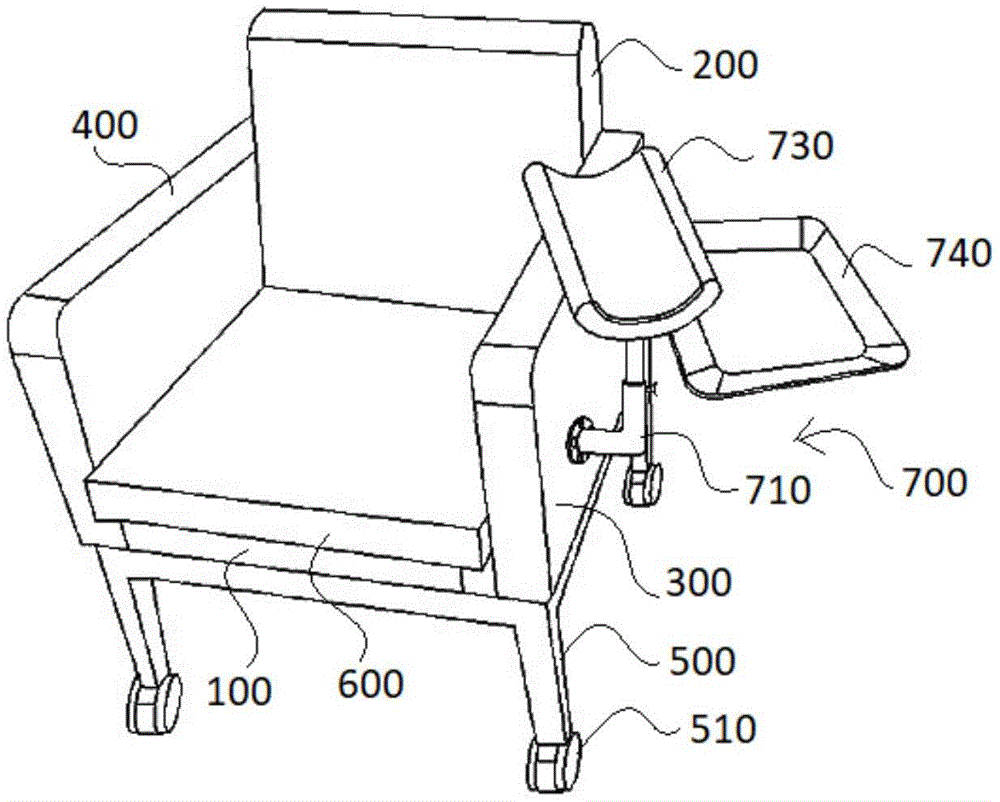

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural view of the arm bracket structure of the present invention.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand and understand, the present invention is further explained by combining with the specific drawings.
Referring to fig. 1 and 2, a mobile injection chair with an arm rest structure is shown, comprising an injection chair body and an arm rest structure 700.
The injection chair body is used for the patient to have a rest when carrying out intravenous route, and the injection chair body includes seat support 100, is equipped with the back of the chair 200 of laminating mutually with patient's back curve profile in the rear side of seat support 100, is equipped with the stabilizer blade 500 that is used for supporting the seat support respectively at the lower extreme of 100 four apex angles of seat support, is equipped with respectively in the both sides of seat support 100 to be convenient for the patient to place the left and right handrail 300, 400 of arm.
Be equipped with on the outer wall of the other end of connecting rod 710 and be used for adjusting pole locking knob 770 inside with the lower extreme locking of regulation pole 720, when unscrewing regulation pole locking knob 770, can adjust the height of regulation pole 720 and ARC support frame angle, after the angle modulation who will adjust the height of pole 720 and ARC support frame 730 to the required position of patient, will adjust pole locking knob 770 locking can, further improved the comfort level of patient when carrying out intravenous route.
Be equipped with the supplementary tray 740 that is used for placing medical personnel's auxiliary articles when carrying out intravenous route on adjusting pole 720, for example place alcohol cotton etc. tray 740 sets up on adjusting pole 720 through installation pole 750, and the one end setting of installation pole 750 is on tray 740, is equipped with on the other end of installation pole 750 to be used for the cover to establish installation cover 751 on adjusting pole 720.
The mounting sleeve 751 is provided with a mounting sleeve locking knob 760 for locking the mounting sleeve 751 on the adjusting rod 720, the height and angle of the tray 740 can be adjusted when the mounting sleeve locking knob 760 is screwed, and the mounting sleeve locking knob 760 can be locked after the height and angle of the tray 740 are adjusted to a position required by medical care personnel.
Be equipped with the arm cushion 731 that adopts soft materials to make in arc support frame 730's the recess, adopt the comfort level that this kind of structure can effectual improvement patient's arm, reduce the patient nervous degree when carrying out intravenous route, the medical personnel of being convenient for carry out intravenous route.
The cushion 600 for improving the comfort of the patient is arranged on the chair seat 100, and the adoption of the structure can enable the patient to sit on the chair seat 100 more comfortably, thereby further improving the practicability of the injection chair.
The universal wheel 510 is arranged at the lower end of the supporting leg 500, and the injection chair can be conveniently moved to a position required by medical staff through the outward wheel 510, so that the practicability of the injection chair is further improved.
To sum up the utility model discloses be equipped with an arm bracket structure on left handrail or right handrail, can carry out effectual support to patient's arm through arc support frame, the patient can carry out stable support to patient's arm when carrying out intravenous injection, avoid the patient arm to take place to rock when carrying out intravenous injection, and can make medical personnel carry out accurate puncture location, medical personnel's the injection degree of difficulty has not only been reduced, and still alleviateed the patient and painful sense when carrying out intravenous injection, the intravenous injection work of giving medical personnel has brought great facility.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
