CN210351465U

CN210351465U - An active network distribution frame

Info

Publication number: CN210351465U
Application number: CN201921919641.1U
Authority: CN
Inventors: 谢兵; 陈鹏; 王小蓓; 周启智
Original assignee: Huanglongtan Hydropower Plant of State Grid Hubei Electric Power Co Ltd; State Grid Corp of China SGCC
Current assignee: Huanglongtan Hydropower Plant of State Grid Hubei Electric Power Co Ltd; State Grid Corp of China SGCC
Priority date: 2019-11-08
Filing date: 2019-11-08
Publication date: 2020-04-17
Anticipated expiration: 2029-11-08

Abstract

The utility model relates to the technical field of network distribution frames, and discloses a movable network distribution frame, which comprises a wiring cabinet, a plurality of evenly arranged wiring boards are arranged inside the wiring cabinet, and the front end of the wiring board is provided with There are a plurality of evenly distributed wiring holes, the left and right sides of the wiring board are fixedly connected with fixed plates, and the left and right inner side walls of the wiring cabinet are fixedly connected with multiple sets of T-shaped slide rails corresponding to the position of the wiring board. Each group of two T-shaped slide rails are slidably connected with T-shaped sliders inside, the two fixing plates are fixedly connected to the two T-shaped sliders respectively through a plurality of first screws, and the front side of the wiring board is provided with a stopper The front end of the baffle is provided with a plurality of wire harness slots corresponding to the positions of the wire insertion holes. The utility model is convenient to assemble and disassemble the network distribution frame, can prevent the network cable joint and the network cable distribution frame from falling off and affect the use, and can also dissipate heat inside the network distribution frame, which is convenient for people to use.

Description

Movable network distribution frame

Technical Field

The utility model relates to a network distribution frame technical field especially relates to a movable network distribution frame.

Background

The distribution frame is used for terminal user line or trunk line, and can allocate the apparatus connected to them, the distribution frame is the most important assembly in the management subsystem, it is the junction which realizes the cross connection of two subsystems of vertical trunk line and horizontal wiring, the distribution frame is usually installed on the machine cabinet or wall, through the installation accessories, the distribution frame can meet the requirements of UTP, STP, coaxial cable, optical fiber, audio and video in the whole line, the distribution frame commonly used in network engineering has twisted pair distribution frame and optical fiber distribution frame, according to the different use places and uses, it is divided into two categories of main distribution frame and intermediate distribution frame.

Need use the distribution frame in the network line, generally need connect many net twines in the distribution frame, and among the prior art, when network distribution frame and net twine are connected, generally be through net twine socket and net twine articulate, when the construction master connects other net twines, make net twine joint and net twine socket drop easily to influence the network and use, the influence provides a movable network distribution frame.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving among the prior art when network distribution frame is connected with the net twine, generally be through net twine socket and net twine articulate, when the construction master connects other net twines, make net twine joint and net twine socket drop easily to influence the problem that the network used, and a movable network distribution frame that provides.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a movable network distribution frame comprises a distribution cabinet, wherein a plurality of uniformly arranged distribution boards are arranged inside the distribution cabinet, a plurality of plug wire holes are uniformly distributed at the front end of each distribution board, fixed plates are fixedly connected to the left side and the right side of each distribution board, a plurality of groups of T-shaped slide rails corresponding to the positions of the distribution boards are fixedly connected to the left inner side wall and the right inner side wall of each distribution cabinet, T-shaped slide blocks are respectively and slidably connected to the inside of each group of two T-shaped slide rails, the two fixed plates are respectively and fixedly connected with the two T-shaped slide blocks through a plurality of first screws, a baffle plate is arranged on the front side of each distribution board, a plurality of bunching grooves corresponding to the positions of the plug wire holes are arranged at the front end of each baffle plate, L-shaped plates are respectively and fixedly connected to the left end and the right end of each baffle plate through a second screw, and a spring is fixedly connected to one, the inside of distribution cabinet still is equipped with heat dissipation mechanism.

Preferably, the heat dissipation mechanism comprises a suction fan arranged inside the wiring cabinet, the suction fan is arranged at the rear side of the plurality of wiring boards, the rear inner side wall of the distribution cabinet is fixedly connected with two symmetrically arranged limiting slide rails, the inner parts of the two limiting slide rails are respectively connected with a limiting slide block in a sliding way, the two opposite ends of the two limiting slide blocks are respectively and fixedly connected with the left side and the right side of the suction fan, wherein the inside of the limit slide rail on the left side is provided with a reciprocating screw rod which is vertically arranged, the upper end and the lower end of the reciprocating screw rod are respectively and rotationally connected with the upper side wall and the lower side wall of the limit slide rail through rolling bearings, the reciprocating screw rod is connected with the left limit slide block in a threaded fit manner, the upper end of the limit slide rail is fixedly connected with a rotating motor, the output end of the rotating motor is rotatably connected with the upper end of the reciprocating screw rod through a coupler, and a plurality of radiating holes which are uniformly distributed are formed in the inner side wall of the rear portion of the wiring cabinet.

Preferably, the right side the inside of spacing slide rail is equipped with the slide bar of vertical setting, the upper and lower both ends of slide bar respectively with the upper and lower lateral wall fixed connection of spacing slide rail, the right side spacing slider passes through-hole and slide bar sliding connection.

Preferably, the wiring board is provided in at least three, and the wiring holes at the front end of the wiring board are provided in at least five.

Preferably, the four corners of the bottom of the wiring cabinet are fixedly connected with rollers.

Preferably, the surface of the wiring cabinet and the surface of the wiring board are coated with an anticorrosive paint.

Compared with the prior art, the utility model provides a movable network distribution frame possesses following beneficial effect:

1. this movable network distribution frame, can be with fixed plate and T shape slider fixed connection through a plurality of first screws that are equipped with, thereby can be with patchboard and T shape slider fixed connection, can be with the front end fixed connection of L shaped plate and T shape slide rail through being equipped with a plurality of second screws, thereby can be with baffle and T shape slide rail fixed connection, and convenient to detach, plug wire connector can insert through the plug wire hole that is equipped with, can place the net twine through the pencil groove that is equipped with, can exert elasticity to T shape slider through being equipped with the spring, T shape slider can exert pressure to the fixed plate, the fixed plate can exert pressure to the patchboard, thereby the patchboard can exert pressure to the net twine connector, make net twine connector and baffle offset, avoid the net twine connector to become flexible and influence the network use with the plug wire hole.

2. This movable network distribution frame, can arrange the outside of distribution cabinet with the inside heat of distribution cabinet through the suction fan that is equipped with and a plurality of louvre, thereby dispel the heat to distribution cabinet inside, it is rotatory to drive reciprocal lead screw through the rotating electrical machines that is equipped with, reciprocal lead screw is rotatory to drive left side limit slider reciprocating motion from top to bottom, left side limit slider can drive suction fan reciprocating motion from top to bottom, thereby increase the scope of induced drafting of suction fan, be convenient for improve the inside radiating efficiency of suction fan to the distribution cabinet, be convenient for people use.

The part that does not relate to among the device all is the same with prior art or can adopt prior art to realize, the utility model discloses be convenient for assemble and dismantle network distribution frame, and can avoid the net twine to connect and drop with the net twine distribution frame and influence the use, can also advance the heat dissipation to network distribution frame's inside, the people of being convenient for use.

Drawings

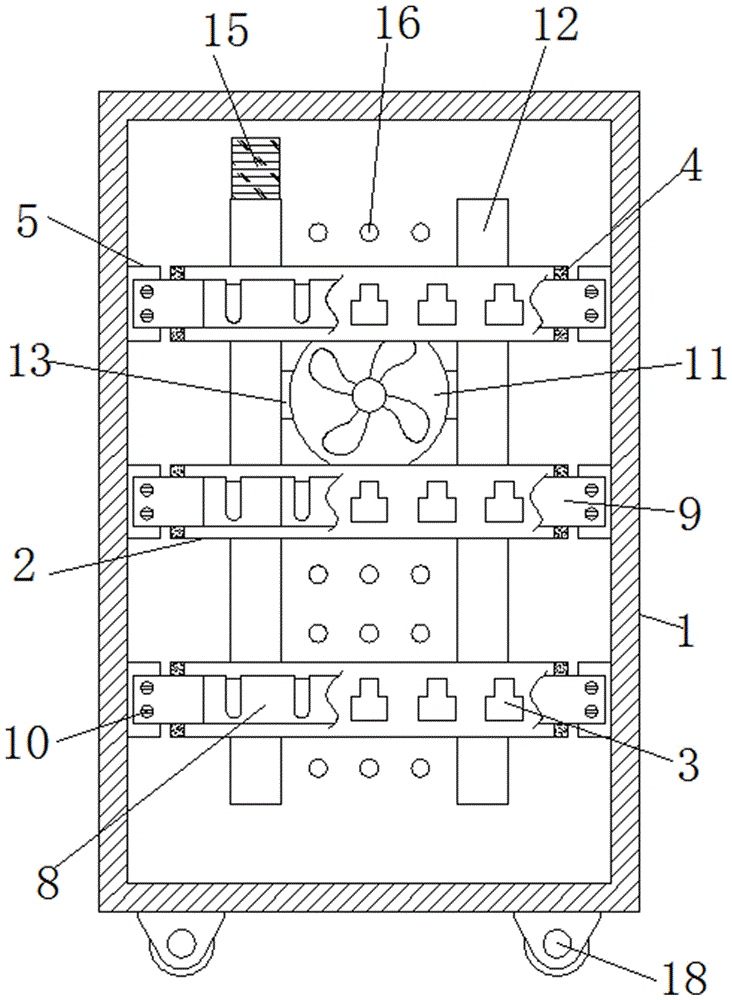

Fig. 1 is a schematic structural diagram of a movable network distribution frame according to the present invention.

Fig. 2 is a schematic top view of the structure of fig. 1.

Fig. 3 is a sectional view taken along a-a in fig. 2.

In the figure: the wiring cabinet comprises a wiring cabinet 1, a wiring board 2, a wiring hole 3, a fixing plate 4, a sliding rail 5T-shaped, a sliding block 6T-shaped, a first screw 7, a baffle 8, a 9L-shaped plate, a second screw 10, a suction fan 11, a sliding rail 12 limiting, a sliding block 13 limiting, a reciprocating screw 14, a rotating motor 15, heat dissipation holes 16, a sliding rod 17, rollers 18 and springs 19.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-3, a movable network distribution frame comprises a distribution cabinet 1, a plurality of uniformly arranged distribution boards 2 are arranged inside the distribution cabinet 1, a plurality of uniformly distributed wire insertion holes 3 are arranged at the front end of the distribution boards 2, fixing plates 4 are fixedly connected to the left and right sides of the distribution boards 2, a plurality of sets of T-shaped slide rails 5 corresponding to the positions of the distribution boards 2 are fixedly connected to the left and right inner side walls of the distribution cabinet 1, T-shaped slide rails 6 are slidably connected to the inside of each set of two T-shaped slide rails 5, the two fixing plates 4 are respectively and fixedly connected to the two T-shaped slide rails 6 through a plurality of first screws 7, a baffle plate 8 is arranged at the front end of the distribution board 2, a plurality of wire bunching grooves corresponding to the positions of the wire insertion holes 3 are arranged at the front end of the baffle plate 8, L-shaped plates 9 are fixedly connected to the left and right ends of the baffle plate 8, one end of the T-shaped sliding block 6, which is far away from the baffle plate 8, is fixedly connected with a spring 19, and a heat dissipation mechanism is further arranged inside the wiring cabinet 1.

The heat dissipation mechanism comprises a suction fan 11 arranged inside the wiring cabinet 1, the suction fan 11 is arranged at the rear side of the wiring boards 2, two symmetrically arranged limiting slide rails 12 are fixedly connected to the rear inner side wall of the wiring cabinet 1, limiting slide blocks 13 are respectively and slidably connected inside the two limiting slide rails 12, two opposite ends of the two limiting slide blocks 13 are respectively and fixedly connected with the left side and the right side of the suction fan 11, wherein a vertically arranged reciprocating screw rod 14 is arranged inside the left limiting slide rail 12, the upper end and the lower end of the reciprocating screw rod 14 are respectively and rotatably connected with the upper side wall and the lower side wall of the limiting slide rail 12 through rolling bearings, the reciprocating screw rod 14 is in threaded fit connection with the left limiting slide block 13, a rotating motor 15 is fixedly connected to the upper end of the limiting slide rail 12, the output end of the rotating motor 15 is rotatably connected with the upper end of the reciprocating screw rod 14 through a, can arrange the outside of distribution cabinet 1 with the inside heat of distribution cabinet 1 through the suction fan 11 that is equipped with and a plurality of louvre 16, thereby dispel the heat to distribution cabinet 1 inside, can drive reciprocal lead screw 14 rotation through the rotating electrical machines 15 that is equipped with, reciprocal lead screw 14 rotation can drive left side limit slider 13 reciprocating motion from top to bottom, left side limit slider 13 can drive suction fan 11 reciprocating motion from top to bottom, thereby increase suction fan 11's the scope of induced drafting, be convenient for improve suction fan 11 to the inside radiating efficiency of distribution cabinet 1.

The inside of the right limiting slide rail 12 is provided with a vertically arranged slide bar 17, the upper end and the lower end of the slide bar 17 are respectively fixedly connected with the upper side wall and the lower side wall of the limiting slide rail 12, and the right limiting slide block 13 is slidably connected with the slide bar 17 through a through hole, so that the suction fan 11 is more stable in up-and-down reciprocating movement.

The wiring board 2 is at least three, and the plug wire hole at the front end of the wiring board 2 is at least five, so that the utilization rate of the wiring cabinet 1 can be improved.

The bottom four corners of the distribution cabinet 1 are fixedly connected with idler wheels 18, so that people can move the distribution cabinet 1 conveniently.

The surface of the wiring cabinet 1 and the surface of the wiring board 2 are both coated with anticorrosive paint, so that the wiring cabinet 1 and the wiring board 2 are prevented from being corroded and damaged.

In the utility model, when in use, the fixing plate can be fixedly connected with the T-shaped sliding block 6 through the plurality of first screws 7, thereby the wiring board 2 can be fixedly connected with the T-shaped sliding block 6, the L-shaped plate 9 can be fixedly connected with the front end of the T-shaped sliding rail 5 through the plurality of second screws 10, thereby the baffle 8 can be fixedly connected with the T-shaped sliding rail 5, and the disassembly is convenient, the network cable connector can be inserted through the wiring hole 3, the network cable can be placed through the wiring groove, the spring 19 can be arranged to exert elasticity on the T-shaped sliding block 6, the T-shaped sliding block 6 can exert pressure on the fixing plate 4, the fixing plate 4 can exert pressure on the wiring board 2, thereby the wiring board 2 can exert pressure on the network cable connector, the network cable connector is abutted against the baffle 8, the network cable connector is prevented from being loosened from the wiring hole 3 to influence the network use, can arrange the outside of distribution cabinet 1 with the inside heat of distribution cabinet 1 through the suction fan 11 that is equipped with and a plurality of louvre 16, thereby dispel the heat to distribution cabinet 1 inside, can drive reciprocal lead screw 14 rotation through the rotating electrical machines 15 that is equipped with, reciprocal lead screw 14 rotation can drive left side limit slider 13 reciprocating motion from top to bottom, left side limit slider 13 can drive suction fan 11 reciprocating motion from top to bottom, thereby increase suction fan 11's the scope of induced drafting, be convenient for improve suction fan 11 to the inside radiating efficiency of distribution cabinet 1, and the people of being convenient for use.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A movable network distribution frame, comprising a distribution cabinet (1), characterized in that a plurality of evenly arranged distribution boards (2) are arranged inside the distribution cabinet (1), and the distribution The front end of the wiring board (2) is provided with a plurality of evenly distributed wiring holes (3), the left and right sides of the wiring board (2) are fixedly connected with fixing boards (4), and the wiring cabinet (1) ) are fixedly connected to the left and right inner side walls of a plurality of sets of T-shaped slide rails (5) corresponding to the position of the wiring board (2), and the interiors of the two T-shaped slide rails (5) of each set are slidably connected with T-shaped slide rails (5). T-shaped sliders (6), the two fixing plates (4) are fixedly connected to the two T-shaped sliders (6) respectively through a plurality of first screws (7). A baffle (8) is provided on the side, the front end of the baffle (8) is provided with a plurality of wire harness slots corresponding to the positions of the wire insertion holes (3), and the left and right ends of the baffle (8) are fixedly connected There are L-shaped plates (9), and the two L-shaped plates (9) are fixedly connected with the front ends of the two T-shaped slide rails (5) respectively through second screws (10). A spring (19) is fixedly connected to one end of the ) away from the baffle plate (8), and a heat dissipation mechanism is also provided inside the wiring cabinet (1).

2 . The movable network distribution frame according to claim 1 , wherein the heat dissipation mechanism comprises a suction fan ( 11 ) arranged inside the wiring cabinet ( 1 ), and the suction fan ( 11 ) It is arranged on the rear side of a plurality of wiring boards (2), and two symmetrically arranged limit slide rails (12) are fixedly connected to the rear inner side wall of the wiring cabinet (1). The interior of the (12) is slidably connected to the limit sliders (13), and the opposite ends of the two limit sliders (13) are respectively fixedly connected to the left and right sides of the suction fan (11). The interior of the limit slide rail (12) is provided with a vertically arranged reciprocating screw rod (14), and the upper and lower ends of the reciprocating screw rod (14) are respectively connected to the upper and lower side walls of the limit slide rail (12) through rolling bearings. Rotating connection, the reciprocating screw rod (14) is threadedly connected with the limit slider (13) on the left side, the upper end of the limit slide rail (12) is fixedly connected with a rotating motor (15), the rotating motor The output end of (15) is rotatably connected with the upper end of the reciprocating screw (14) through a coupling, and a plurality of evenly distributed heat dissipation holes (16) are opened on the rear inner wall of the wiring cabinet (1).

3 . The movable network distribution frame according to claim 2 , wherein a vertically arranged sliding rod ( 17 ) is arranged inside the limit slide rail ( 12 ) on the right side. The upper and lower ends of the rod (17) are respectively fixedly connected with the upper and lower side walls of the limit slide rail (12), and the limit slide block (13) on the right side is slidably connected with the slide rod (17) through the through hole.

4. A movable network distribution frame according to claim 1, characterized in that there are at least three distribution boards (2), and the plug holes at the front end of the distribution board (2) are at least three. for five settings.

5 . The movable network distribution frame according to claim 1 , characterized in that, the four corners of the bottom of the distribution cabinet ( 1 ) are fixedly connected with rollers ( 18 ). 6 .

6 . The movable network distribution frame according to claim 1 , wherein the surface of the wiring cabinet ( 1 ) and the surface of the wiring board ( 2 ) are both coated with anti-corrosion paint. 7 .
