Abstract
The utility model relates to a computer equipment technical field specifically is a computer machine case damping device, including spacing tank tower, spacing tank tower is external frame plate and built-in frame plate, erect the buffer frame between external frame plate and the built-in frame plate, the buffer frame includes the arc body frame, built-in gim peg is installed to the outer end intermediate position of arc body frame, the arc body frame is fixed mounting through built-in gim peg and built-in frame plate, fixed foot is all installed to the inboard angular position of arc body frame, the left and right sides of external frame plate all is provided with the spacing groove, fixed foot is installed the sliding block through the activity bolt, the sliding block is spacing in the spacing groove, the closure frame plate is still installed to both sides around the spacing tank tower. This application adopts centre gripping type structure, decomposes the effort, reduces the impact of striking effort to single position to cooperate through buffer spring, keep the stability of computer machine case.
Description
Technical Field
The utility model relates to a computer equipment technical field specifically is a computer machine case damping device.
Background
The computer is commonly called as computer, is a modern electronic computing machine for high-speed computation, can perform numerical computation and logic computation, and also has the function of storage and memory. The intelligent electronic device can be operated according to a program, and can automatically process mass data at a high speed.
In the transportation process of the computer, some manufacturers simply package and protect the computer, so that the computer shakes in the packaging box in the transportation process, internal elements of the computer are damaged, and the service life of the computer is shortened. Therefore, there is a need to provide a new computer damping device to solve the above technical problems.
Chinese patent (No. CN 207557846U) discloses a computer damping device, which performs fixing operation by using L-shaped fixing mechanisms arranged in a staggered manner, but the current models of computer cases do not have uniform standards, and the operation adaptability of the computer damping device is poor, and the computer damping device cannot be suitable for various computer cases.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a computer machine case damping device to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a damping device for a computer case comprises a limiting case frame, wherein an external frame plate and an internal frame plate of the limiting case frame form a clamping cavity between the internal frame plates at the left side and the right side, a buffer frame is erected between the external frame plate and the internal frame plate and comprises an arc-shaped main frame, a built-in fixing bolt is installed at the middle position of the outer end of the arc-shaped main frame, the arc-shaped main frame is fixedly installed with the internal frame plate through the built-in fixing bolt, fixing feet are installed at the inner side corner positions of the arc-shaped main frame, limiting grooves are formed in the left side and the right side of the external frame plate, sliding blocks are installed on the fixing feet through movable bolts and limited in the limiting grooves, locking frame plates are further installed on the front side and the rear side of the limiting case frame, adjusting seats are movably installed on the locking frame plates, adjusting frames are installed on the locking frame plates, and bidirectional screw, the adjusting seat is provided with a built-in screw hole, the bidirectional screw rod penetrates through the built-in screw hole, the bottom of the adjusting seat is provided with a fixing clamp plate, and an inner groove of the fixing clamp plate is matched with the outer width of the built-in frame plate.
As a further aspect of the present invention: the two-way screw takes the central line as the axis, and the directions of the external threads of the left section and the right section of the two-way screw are opposite.
As a further aspect of the present invention: buffer springs are installed respectively at the two ends of the sliding block, and the buffer springs are connected between the sliding block and the corresponding limiting groove inner wall respectively.
As a further aspect of the present invention: and an adjusting knob is arranged on the locking frame plate and is arranged at the driving end of the bidirectional screw rod.
As a further aspect of the present invention: the utility model discloses a buffer structure, including built-in frame plate, buffer cavity, buffer frame, buffer support, extrusion sleeve, buffer support, buffer frame, fixed base plate, buffer support, buffer base plate, buffer cavity and buffer cushion, the both ends of built-in frame plate are bending type structure, form the buffer cavity between the both ends of built-in frame plate and the external frame plate, be provided with the buffer frame in the buffer cavity, the buffer frame includes fixed base plate, the last a plurality of buffering supports of installing of fixed base plate, all be movable the installing of extrusion sleeve on the buffering support, the built-in gag.
As a further aspect of the present invention: an extrusion spring is wound on the limiting rod and connected between the fixed base plate and the extrusion sleeve.
Compared with the prior art, the beneficial effects of the utility model are that:
in order to keep the stability of computer machine case, this application adopts centre gripping type structure, and the arc body frame plays the effect of decomposition effort, reduces the impact of striking effort to single position, and external fixed foot passes through the sliding block and is spacing in the spacing inslot, has certain small amplitude fluctuation's effect to cooperate through buffer spring, further reduce striking effort, keep the stability of computer machine case.
This application adopts the modularized design, through screw drive, adjusts the interval between the regulation seat of both sides, and built-in frame plate block respectively between the regulation seat of front and back side relevant position to can adjust the centre gripping interval of built-in frame plate, satisfy the demand of not unidimensional computer machine case.
This application designs every buffering support and is independently to carry out buffering operation, supports whole supporting effect by the face and changes the multiple spot position into and support, reaches more accurate spacing buffering effect to further keep its stability.
It is to be understood that both the foregoing general description and the following detailed description are exemplary and explanatory only and are not restrictive of the application.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with the present application and together with the description, serve to explain the principles of the application. Also, the drawings and the description are not intended to limit the scope of the present concepts in any way, but rather to illustrate the concepts of the present disclosure to those skilled in the art by reference to specific embodiments.
Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural view of the middle arc-shaped main frame of the utility model.
FIG. 3 is a schematic view of the structure of the region A in FIG. 2
Fig. 4 is a schematic structural view of the locking frame plate of the present invention.

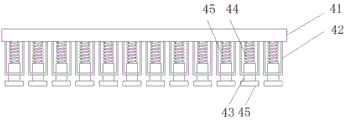

Fig. 5 is a schematic structural diagram of the middle buffer frame according to the present invention.

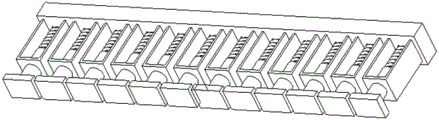

Fig. 6 is a schematic structural diagram of the middle buffer frame according to the present invention.
In the figure: 1-limit box frame, 11-external frame plate, 12-internal frame plate, 13-clamping cavity, 14-buffer cavity, 2-buffer frame, 21-arc main frame, 22-internal fixing bolt, 23-limit groove, 24-fixing foot, 25-movable bolt, 26-sliding block, 27-buffer spring, 3-locking frame plate, 31-adjusting seat, 32-adjusting frame, 33-bidirectional screw, 34-fixing clamping plate, 35-adjusting knob, 4-buffer frame, 41-fixing base plate, 42-buffer frame, 43-extrusion sleeve, 44-limit rod and 45-buffer pad.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, examples of which are shown in the drawings. When the following description refers to the accompanying drawings, like numbers in different drawings represent the same or similar elements, unless otherwise indicated.
It is to be understood that the embodiments described are only some embodiments of the invention, and not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The first embodiment is as follows:
referring to fig. 1, 2 and 3, a computer case damping device includes a limiting case frame 1, the limiting case frame 1 is formed by an external frame plate 11 and an internal frame plate 12, a clamping cavity 13 is formed between the internal frame plates 12 on the left and right sides, a buffer frame 2 is erected between the external frame plate 11 and the internal frame plate 12, the buffer frame 2 includes an arc main frame 21, an internal fixing bolt 22 is installed at the middle position of the outer end of the arc main frame 21, the arc main frame 21 is fixedly installed with the internal frame plate 12 through the internal fixing bolt 22, fixing feet 24 are installed at the inner side corner position of the arc main frame 21, limiting grooves 23 are respectively installed on the left and right sides of the external frame plate 11, sliding blocks 26 are installed on the fixing feet 24 through movable bolts 25, the sliding blocks 26 are limited in the limiting grooves 23, and buffer springs 27 are respectively installed at the two ends of the sliding blocks 26, the buffer springs 27 are respectively connected between the sliding blocks 26 and the inner walls of the corresponding limiting grooves 23.
In order to keep the stability of computer machine case, this application adopts centre gripping type structure, during the operation, with the quick-witted case centre gripping between built-in frame plate 12, the effect of external frame plate 11 to built-in frame plate 12 formation buffering and protection again, arc body frame 21 plays the effect of decomposition effort, reduces the impact of striking effort to single position, and external fixed foot 24 is spacing in spacing groove 23 through sliding block 26, has certain small amplitude undulant effect to cooperate through buffer spring 27, further reduce striking effort, keep the stability of computer machine case.
Referring to fig. 1 and 4, locking frame plates 3 are further mounted on the front side and the rear side of the limiting box frame 1, adjusting seats 31 are movably mounted on the locking frame plates 3, adjusting frames 32 are mounted on the locking frame plates 3, two-way screws 33 are mounted on the adjusting frames 32, the directions of the external threads of the left section and the right section of the two-way screws 33 are opposite with the central line as the axis, internal screw holes are formed in the adjusting seats 31, the two-way screws 33 penetrate through the internal screw holes, fixing splints 34 are mounted at the bottoms of the adjusting seats 31, the internal grooves of the fixing splints 34 are matched with the external width of the internal frame plate 12, adjusting knobs 35 are arranged on the locking frame plates 3, and the adjusting knobs 35 are mounted at the driving ends of the two-way.
In order to adapt to the computer machine case of different grade type, this application adopts the modularized design, drives two-way screw rod 33 through adjust knob 35 and moves to adjust the position of adjusting seat 31, thereby adjust the interval between the adjusting seat 31 of both sides, built-in frame plate 12 block respectively between the adjusting seat 31 of front and back side corresponding position, thereby can adjust the centre gripping interval of built-in frame plate 12, satisfy the demand of not unidimensional computer machine case.
Example two:
referring to fig. 1, fig. 5 and fig. 6, the present embodiment is further optimized as an embodiment, on the basis that both ends of the internal frame plate 12 are bent structures, and the bent structures are designed to engage and limit four corners of the computer case,
This application still is provided with buffer frame 4 and further cushions the shock attenuation to the four corners position of computer machine case, and buffer frame 4 adopts the mode of single-point type extrusion buffering. Considering that computer machine case itself is not smooth structure, every buffering support 42 of this application design is independently to carry out buffering operation, supports whole supporting effect by the face and changes the multiple spot position into and support, reaches more accurate spacing buffering effect to further keep its stability.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (6)
1. A computer case damping device comprises a limiting case frame (1), wherein an external frame plate (11) and an internal frame plate (12) are arranged on the limiting case frame (1), a clamping cavity (13) is formed between the internal frame plates (12) on the left side and the right side, a buffer frame (2) is erected between the external frame plate (11) and the internal frame plate (12), the buffer frame (2) comprises an arc-shaped main frame (21), the damping device is characterized in that a built-in fixing bolt (22) is installed in the middle position of the outer end of the arc-shaped main frame (21), the arc-shaped main frame (21) is fixedly installed with the internal frame plate (12) through the built-in fixing bolt (22), fixing feet (24) are installed at the inner side corner positions of the arc-shaped main frame (21), limiting grooves (23) are formed in the left side and the right side of the external frame plate (11), and sliding blocks (26) are installed on the fixing feet (24, sliding block (26) are spacing in spacing groove (23), closure frame plate (3) are still installed to both sides around spacing tank tower (1), be movable installation on closure frame plate (3) and adjust seat (31), install on closure frame plate (3) alignment jig (32), install two-way screw rod (33) on alignment jig (32), be provided with built-in screw on adjusting seat (31), two-way screw rod (33) are worn to establish in built-in screw, solid fixed splint (34) are installed to the bottom of adjusting seat (31), the inside groove of solid fixed splint (34) and the outer width phase-match of built-in frame plate (12).
2. The computer case shock-absorbing device according to claim 1, wherein the two-way screw (33) has opposite directions of external threads on its left and right segments about a center line.
3. The computer case shock-absorbing device according to claim 1, wherein buffer springs (27) are respectively installed at both ends of the sliding block (26), and the buffer springs (27) are respectively connected between the sliding block (26) and the inner wall of the corresponding limiting groove (23).
4. The computer cabinet shock absorbing device according to claim 1, wherein the locking frame plate (3) is provided with an adjusting knob (35), and the adjusting knob (35) is installed at the driving end of the bidirectional screw (33).
5. The computer case shock-absorbing device according to any one of claims 1 to 4, wherein two ends of the internal frame plate (12) are bent, a buffer cavity (14) is formed between the two ends of the internal frame plate (12) and the external frame plate (11), a buffer frame (4) is arranged in the buffer cavity (14), the buffer frame (4) comprises a fixed base plate (41), a plurality of buffer brackets (42) are mounted on the fixed base plate (41), extrusion sleeves (43) are movably mounted on the buffer brackets (42), limit rods (44) are mounted in the buffer brackets (42), the extrusion sleeves (43) are respectively sleeved on the corresponding limit rods (44), and buffer pads (45) are mounted at the outer ends of the extrusion sleeves (43).
6. The computer case shock-absorbing device according to claim 5, wherein the position-limiting rod (44) is wound with a pressing spring (44), and the pressing spring (44) is connected between the fixed base plate (41) and the pressing sleeve (43).
