Abstract
本实用新型公开了一种洗墙灯，包括主灯体、上出光扩散板、上出光LED灯板、下出光LED灯板、光学透镜和安装挂板，1、从安装成本来讲，这款洗墙灯安装简便，可以自行安装，安装快速，节约成本，且灯具的长度可自由拼接；2、从出光效果来讲，这款灯具的上出光LED灯板倾斜设置，光通过上出光扩散板抛洒出去，这样上出光洗得更远更均匀；下出光处设计有挡板结构，防眩效果好，光学透镜使下出光偏向墙边洗去，防止光外洒，起到防眩作用，并且有效提高光的利用率，增加洗墙距离。
The utility model discloses a wall washer lamp, comprising a main lamp body, an upper light-emitting diffusion plate, an upper light-emitting LED lamp board, a lower light-emitting LED lamp board, an optical lens and a mounting hanging plate. 1. In terms of installation cost, this wall washer lamp is easy to install and can be installed by oneself, which is fast and cost-saving, and the length of the lamp can be freely spliced; 2. In terms of light-emitting effect, the upper light-emitting LED lamp board of this lamp is tilted, and the light is thrown out through the upper light-emitting diffusion plate, so that the upper light is washed farther and more evenly; a baffle structure is designed at the lower light outlet, which has a good anti-glare effect, and the optical lens makes the lower light be washed toward the wall to prevent the light from spilling outward, thereby playing an anti-glare role, and effectively improving the utilization rate of light and increasing the wall washing distance.
Description
Technical Field
The utility model relates to an illumination lamps and lanterns technical field, concretely relates to wash pinup.
Background
Traditional indoor lighting washes the smallpox for satisfying the light-emitting, and the effect of wall is washed to lower light-emitting, and the way is to do the furred ceiling around the room, and is great to the transformation in room like this, and general preparation flow is: 1. measuring room dimensions and determining ceiling structure; 2. constructing a nailing-wood frame, wiring and capping a plate; 3. coloring the exterior of the suspended ceiling with paint; 4. and (5) installing the lamp. The furred ceiling structure preparation is complicated, consuming time, and is with high costs, generally please professional workman's preparation, and lamps and lanterns all will be arranged from top to bottom to the furred ceiling, more increase owner's cost.
General furred ceiling adopts wooden material, light in weight, and is with low costs, but wooden material brings safety to catch a trouble for the fire prevention, and wooden material is anticorrosive moreover, the capability ratio of preventing plant diseases and insect pests is poor, and wooden furred ceiling durability is poor, can increase the cost during the change, easily produces building rubbish, is not friendly to the environment.
The traditional peripheral ceiling lamp is unsatisfactory in light emitting effect, the traditional method is that the lamp strip is generally arranged in the hidden groove for emitting light to illuminate the ceiling, only the problem of illumination is solved, but the light is not aesthetic, the beautiful level of a room is lowered, and the ceiling is too bright and dark obviously and too hard because the light is too concentrated; the wall is washed downwards to the installation section of thick bamboo lamp to lower light-emitting, and the problem that brings is that light is too concentrated, washes wall light and shade and does not have the transition, and light is hard and crude, and the down lamp shines down the time anti-dazzle effect poor moreover, and light is dazzling.
SUMMERY OF THE UTILITY MODEL
The utility model aims at designing a wall washer lamp to solve the problem of proposing among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a wall washer lamp, its characterized in that: the LED lamp comprises a main lamp body, an upper light-emitting diffusion plate, an upper light-emitting LED lamp panel, a lower light-emitting LED lamp panel, an optical lens and a mounting hanging plate; the upper light-emitting diffusion plate and the upper light-emitting LED lamp panel are fixed above the main lamp body; the upper light-emitting LED lamp panel is obliquely arranged; the lower light-emitting LED lamp panel and the optical lens are fixed below the main lamp body; the upper light-emitting diffusion plate is positioned above the upper light-emitting LED lamp panel; the optical lens is positioned below the lower light-emitting LED lamp panel; the rear of the main lamp body is fixedly connected with the mounting hanging plate.
Further, main lamp body both sides are equipped with the side cap, can seal main lamp body, avoid getting into debris such as dust and promote whole aesthetic feeling.
Furthermore, the main lamp body is provided with a baffle, and the main lamp body and the baffle are integrally formed, so that the anti-dazzle effect is good.
Furthermore, the inclination angle of the upward light-emitting LED lamp panel is 30-60 degrees.
Further, wash the pinup and still be equipped with corner spare, can install at the corner of wall, can fix two corners of washing the pinup for can absorb and wash the error on the pinup length, make the installation of washing the pinup more convenient, swift, can effectively avoid washing the corner of pinup and producing the gap at two, secondly, still played good sheltering from and decorating the function.
Furthermore, the main lamp body is made of aluminum materials or PC fireproof plastics, and is free of inflammables and fire hazards.
Furthermore, the upper light emitting diffusion plate is a flat diffusion plate or an arc lampshade.
Compared with the prior art, the beneficial effects of the utility model are that: 1: the wall washer lamp is simple and convenient to mount, can be mounted by self, is fast to mount, saves cost, and can be freely spliced due to the length of the lamp;
2: from the light emitting effect, the light emitted from the lamp passes through the upper light emitting diffusion plate, and the light scattered out is washed more uniformly; the design of light-emitting department has the baffle structure down, through optical lens's processing back, and lower light-emitting is washed to the wall limit, prevents that light from spilling outward, plays anti-dazzle effect to effectively improve the utilization ratio of light, increase and wash the wall distance.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

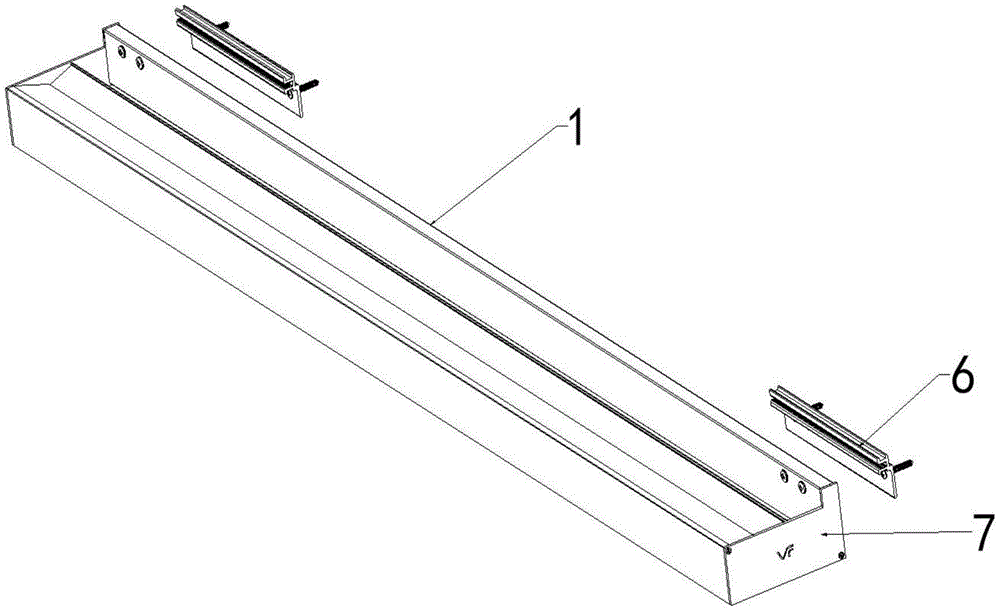

FIG. 1 is a schematic perspective view of the wall washer of the present invention;
FIG. 2 is an exploded view of the wall washer of the present invention;
FIG. 3 is a diagram illustrating the installation effect of the wall washer of the present invention;
FIG. 4 is a cross-sectional view of the wall washer of the present invention;
FIG. 5 is a cross-sectional view of the wall washer of the present invention;
fig. 6 is a schematic perspective view of the corner fitting of the present invention;
FIG. 7 is a combination view of the wall washer and the corner piece of the present invention;
fig. 8 is a schematic view of the corner fitting and the cover plate of the present invention.
The names of the components identified in the figures are as follows: 1. a main lamp body; 2. an upper light emitting diffusion plate; 3. an LED lamp panel emits light upwards; 4. a lower light-emitting LED lamp panel; 5. an optical lens; 6. mounting a hanging plate; 7. a side cover; 8. a baffle plate; 9. a corner fitting; 10. and (7) a cover plate.
Detailed Description
The technical solution of the present invention will be described clearly and completely with reference to the accompanying drawings, and obviously, only some embodiments, not all embodiments, of the present invention are described. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Example one
Referring to fig. 1 to 4, a wall washer lamp includes a main lamp body 1, a flat diffusion plate, an upper light-emitting LED lamp panel 3, a lower light-emitting LED lamp panel 4, an optical lens 5, and a mounting hanging plate 6; the upper light-emitting diffusion plate 2 and the upper light-emitting LED lamp panel 3 are fixed above the main lamp body 1; the upper light-emitting LED lamp panel 3 is obliquely arranged; the lower light-emitting LED lamp panel 4 and the optical lens 5 are both fixed below the main lamp body 1; the upper light emitting diffusion plate 2 is positioned above the upper light emitting LED lamp panel 3; the optical lens 5 is positioned below the lower light-emitting LED lamp panel 4; the rear part of the main lamp body 1 is fixedly connected with the mounting hanging plate 6.
Further, as a preferred embodiment, the main lamp body 1 is provided with side covers 7 at both sides thereof, so that the main lamp body 1 can be closed, thereby preventing foreign materials such as dust from entering and improving the overall aesthetic feeling.
Further, in a preferred embodiment, a baffle plate 8 is provided on the main lamp body 1, and the main lamp body 1 and the baffle plate 8 are integrally molded, so that the antiglare effect is good.
Further as a preferred embodiment, the inclination angle of the upward-light-emitting LED lamp panel 3 is 30 ° to 60 °.
Further, as a preferred embodiment, the main lamp body 1 is made of aluminum or PC fireproof plastic, and the lamp is mainly made of aluminum, so that no inflammable substance exists and no fire hazard exists.
Further, as a preferred embodiment, the upward light-emitting diffuser 2 is a flat diffuser or an arc lampshade.
The working principle is as follows: fixing the mounting hanging plate 6 below the ceiling by using self-tapping screws, wherein the heights of the two sides of the fixed mounting hanging plate 6 are consistent; the lamp is integrally hung on the hanging position of the mounting hanging plate 6; locking screws are used for fixing the lamp and the mounting hanging plate 6 together; and (5) connecting power as required to finish installation.
The beneficial effects are that: 1. the wall washer lamp is simple and convenient to mount, can be mounted by self, is fast to mount, saves cost, and can be freely spliced due to the length of the lamp;
2. in terms of light emitting effect, the upper light emitting LED lamp panel of the lamp is obliquely arranged, and light is thrown out through the upper light emitting diffusion plate, so that the upper light emitting is washed farther and more uniformly; the design of light-emitting department has the baffle structure down, and anti-dazzle effectual, and optical lens makes light-emitting deviation to wall limit wash down, prevents that light from spilling outward, plays anti-dazzle effect to effectively improve the utilization ratio of light, increase and wash the wall distance.
Example two
Referring to fig. 5, the wall washing lamp comprises a main lamp body 1, an arc-shaped lampshade 2, an upper light-emitting LED lamp panel 3, a lower light-emitting LED lamp panel 4, an optical lens 5 and a mounting hanging plate 6; the arc lampshade 2 and the upper light-emitting LED lamp panel 3 are fixed above the main lamp body 1; the upper light-emitting LED lamp panel 3 is obliquely arranged; the lower light-emitting LED lamp panel 4 and the optical lens 5 are both fixed below the main lamp body 1; the arc lampshade 2 is positioned above the upper light-emitting LED lamp panel 3; the optical lens 5 is positioned below the lower light-emitting LED lamp panel 4; the rear part of the main lamp body 1 is fixedly connected with the mounting hanging plate 6.
The working principle is as follows: fixing the mounting hanging plate 6 below the ceiling by using self-tapping screws, wherein the heights of the two sides of the fixed mounting hanging plate 6 are consistent; the lamp is integrally hung on the hanging position of the mounting hanging plate 6; locking screws are used for fixing the lamp and the mounting hanging plate 6 together; and (5) connecting power as required to finish installation.
The beneficial effects are that: the wall washing lamp is simple and convenient to mount, can be mounted by oneself, is fast to mount, saves cost, and can be spliced freely in length.
EXAMPLE III
Referring to fig. 6 to 8, the wall washer lamp includes a main lamp body 1, an upper light emitting diffusion plate 2, an upper light emitting LED lamp panel 3, a lower light emitting LED lamp panel 4, an optical lens 5, a mounting hanging plate 6 and a corner piece 9; the upper light-emitting diffusion plate 2 and the upper light-emitting LED lamp panel 3 are fixed above the main lamp body 1; the upper light-emitting LED lamp panel 3 is obliquely arranged; the lower light-emitting LED lamp panel 4 and the optical lens 5 are both fixed below the main lamp body 1; the upper light emitting diffusion plate 2 is positioned above the upper light emitting LED lamp panel 3; the optical lens 5 is positioned below the lower light-emitting LED lamp panel 4; the rear of the main lamp body 1 is fixedly connected with the mounting hanging plate 6, and the two wall washing lamps are connected and arranged at the corner through corner pieces 9.
The working principle is as follows: firstly, the corner fittings 9 are fixed at the corners of the wall by two mounting hanging plates 6 through self-tapping screws, then the ends of two wall washing lamps are placed in the corner fittings 9, the cover plate 10 covers the corner fittings 9, and the other ends of the two wall washing lamps are fixed on the mounting hanging plates 6 through the self-tapping screws, so that the mounting is completed.
The beneficial effects are that: the wall washing lamp is simple and convenient to mount, can be mounted by oneself, is fast to mount, saves cost, and can be spliced freely in length.
It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. The terms "above," "below," "rear," and the like are used herein for illustrative purposes only.
The foregoing is a more detailed description of the present invention, taken in conjunction with the specific preferred embodiments thereof, and it is not intended that the invention be limited to the specific embodiments shown and described. To the utility model belongs to the technical field of ordinary technical personnel, do not deviate from the utility model discloses under the prerequisite of design, can also make a plurality of simple deductions or replacement, all should regard as belonging to the utility model discloses a protection scope.
