The utility model discloses a prefabricated T roof beam diaphragm beam of portable adjustable assembled supports collet device, including supporting the top support, support the top support lower extreme and be equipped with the steel pipe of symmetric distribution, be equipped with the steel sheet of symmetric distribution between the steel pipe, steel sheet and the steel pipe outside fastening connection, all be equipped with the threaded rod in the steel pipe, install circular nut on the threaded rod of foreign language steel pipe lower extreme mouth of pipe below, through screw-thread fit connection between circular nut and the threaded rod, the threaded rod lower extreme all is equipped with the turning block, the laminating of turning block both sides has the supporting shoe, is equipped with the regulating spindle on the turning block simultaneously, the regulating spindle rotates with the supporting shoe to be connected, the supporting shoe; support the jacking height through circular nut regulation, support the jacking top surface and laminate with T roof beam diaphragm roof beam bottom surface until, avoid the diaphragm roof beam to be in unsettled state after the form removal, for a billet pad, need not to assemble, convenient to use, accurate height-adjusting simultaneously adapts to the slope in different places.
Description
Technical Field
The utility model relates to a prefabricated T roof beam neighborhood specifically is a prefabricated T roof beam diaphragm support collet device of portable adjustable assembled.
Background
At present, the pedestal for supporting the diaphragm beam is not used for the pedestal of the domestic prefabricated T beam, the diaphragm beam is in a suspended state after being demolded, the concrete strength is unstable at the initial stage of demolding, and the diaphragm beam is suspended and is easy to fall.
After the prefabricated T-shaped beam is demolded, workers generally cannot work at the position of the diaphragm beam, or a wood block support cushion is adopted, and the wood block support cushion has the following obvious disadvantages:
1. the assembly is scattered, and the cleaning, the arrangement and the orderliness of the whole field are greatly influenced;
2. the wood block assembly is not easy to reach the proper height, and even if the wood block is processed according to the height, the field is uneven;
3. the assembly is troublesome.
Therefore, in view of the above problems, there is a need for a portable adjustable prefabricated T-beam diaphragm support shoe device.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a prefabricated T roof beam diaphragm of portable adjustable assembled supports collet device solves the problem that the background art provided.
The purpose of the utility model can be realized by the following technical scheme:
the utility model provides a prefabricated T roof beam diaphragm beam of portable adjustable assembled supports collet device, holds in the palm including supporting, its characterized in that, support the support and hold in the palm the lower extreme and be equipped with the steel pipe of symmetric distribution, be equipped with the steel sheet of symmetric distribution between the steel pipe, steel sheet and the outside fastening connection of steel pipe.
All be equipped with the threaded rod in the steel pipe, install circular nut on the threaded rod of foreign language steel pipe lower extreme mouth of pipe below, be connected through screw-thread fit between circular nut and the threaded rod.
The threaded rod lower extreme all is equipped with the turning block, and the laminating of turning block both sides has the supporting shoe, is equipped with the regulating spindle on the turning block simultaneously, and the regulating spindle rotates with the supporting shoe to be connected, and the supporting shoe lower extreme is equipped with the leg seat.
Furthermore, the upper end of the supporting jacking is provided with symmetrically distributed limiting clamps.
Furthermore, handles which are symmetrically distributed are welded on the outer side of the circular nut.
The utility model has the advantages that:
the utility model discloses a circular nut is adjusted and is supported a support height, holds in the palm top surface and the laminating of T roof beam diaphragm beam bottom surface until supporting, avoids being in unsettled state after the diaphragm beam form removal, for a billet pad, need not to assemble, convenient to use, accurate height-adjusting simultaneously adapts to the slope in different places.
Drawings
The present invention will be further described with reference to the accompanying drawings.

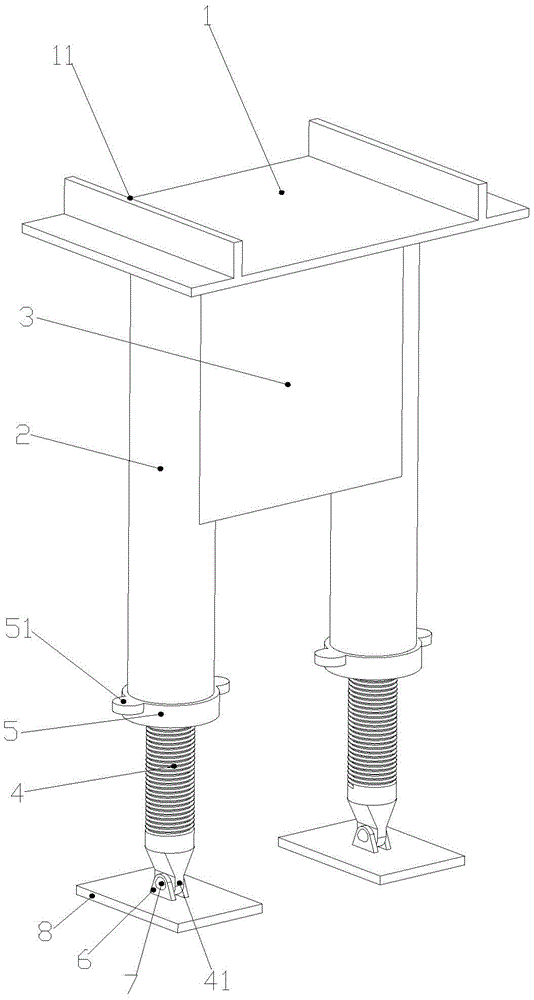

FIG. 1 is a schematic structural view of a portable adjustable assembly type prefabricated T-beam diaphragm supporting bottom support device of the present invention;
fig. 2 is a perspective sectional view of the present invention;
fig. 3 is a schematic diagram of the implementation state of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "open hole", "upper", "lower", "thickness", "top", "middle", "length", "inner", "around", and the like, indicate positional or positional relationships, are merely for convenience in describing the present invention and to simplify the description, and do not indicate or imply that the components or elements referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
As shown in figures 1 and 2, the portable adjustable assembly type prefabricated T-beam diaphragm beam supporting bottom support device comprises a supporting top support 1, wherein limiting fixtures 11 which are symmetrically distributed are arranged at the upper end of the supporting top support 1, steel pipes 2 which are symmetrically distributed are arranged at the lower end of the supporting top support 1, steel plates 3 which are symmetrically distributed are arranged between the steel pipes 2, and the steel plates 3 are fixedly connected with the outer sides of the steel pipes 2.
Threaded rods 4 are arranged in the steel pipes 2, round nuts 5 are arranged on the threaded rods 4 below the pipe orifices at the lower ends of the foreign language steel pipes 2, and the round nuts 5 are connected with the threaded rods 4 in a threaded fit manner; during the use, steel pipe 2 makes the mouth of pipe of steel pipe 2 lower extreme overlap joint at circular nut 5 upper end all the time because self gravity factor, and when external force rotated circular nut 5, steel pipe 2 changed along with circular nut 5 altitude variation.
The lower end of the threaded rod 4 is provided with a rotating block 41, two sides of the rotating block 41 are attached with supporting blocks 6, meanwhile, the rotating block 41 is provided with an adjusting shaft 7, the adjusting shaft 7 is rotatably connected with the supporting blocks 6, and the lower end of the supporting block 6 is provided with a supporting foot seat 8; when the supporting foot seat 8 is fixed, the rotating block 41 is rotated, the rotating block 41 rotates around the axis of the adjusting shaft 7, and the supporting foot seat 8 is made to adapt to the gradient of different fields through the rotation of the adjusting shaft 7.
The using method comprises the following steps: as shown in fig. 3, the utility model is placed to the bottom of the prefabricated T-beam diaphragm beam, wherein the limiting clamps 11 are positioned at both sides of the T-beam diaphragm beam, the height of the supporting top support 1 is adjusted by the round nut 5 until the top surface of the supporting top support 1 is attached to the bottom surface of the T-beam diaphragm beam, and the diaphragm beam is prevented from being in a suspended state after being demoulded; meanwhile, the supporting foot seat 8 is adapted to the gradient of different fields by adjusting the rotation of the adjusting shaft 7.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention.
Claims (3)
1. A portable adjustable assembly type prefabricated T-beam diaphragm beam supporting bottom support device comprises a supporting top support (1), and is characterized in that symmetrically distributed steel pipes (2) are arranged at the lower end of the supporting top support (1), symmetrically distributed steel plates (3) are arranged between the steel pipes (2), and the steel plates (3) are fixedly connected with the outer sides of the steel pipes (2);
threaded rods (4) are arranged in the steel pipes (2), round nuts (5) are mounted on the threaded rods (4) below the pipe orifices at the lower ends of the foreign language steel pipes (2), and the round nuts (5) are connected with the threaded rods (4) in a threaded fit manner;
the lower end of the threaded rod (4) is provided with a rotating block (41), supporting blocks (6) are attached to two sides of the rotating block (41), an adjusting shaft (7) is arranged on the rotating block (41), the adjusting shaft (7) is rotatably connected with the supporting blocks (6), and supporting foot seats (8) are arranged at the lower end of the supporting blocks (6).
2. The portable adjustable prefabricated T-beam diaphragm support base device according to claim 1, characterized in that the upper end of the support base (1) is provided with symmetrically distributed limiting clamps (11).
3. The portable adjustable prefabricated T-beam diaphragm support shoe device according to claim 1, characterized in that symmetrically distributed handles (51) are welded on the outer side of the circular nut (5).
