Abstract
本实用新型公开了一种森吉米尔二十辊轧机用止推轴承润滑结构，包括轴承座、止推轴承、销轴和压板，所述止推轴承固定在轴承座，所述轴承座和止推轴承通过销轴连接，所述轴承座的两个侧臂的顶端设有压板，所述压板通过螺钉与轴承座连接。所述润滑结构能够保证止推轴承的长期稳定运行，同时可以克服因止推轴承损坏导致第一中间辊横移精度丧失的问题，避免了因横移精度丧失导致轧制过程中钢带表面质量缺陷的产生，最终达到提高设备生产效率、降低生产成本的目标。
The utility model discloses a thrust bearing lubricating structure for a Sendzimir twenty-high rolling mill, which comprises a bearing seat, a thrust bearing, a pin shaft and a pressing plate. The thrust bearing is fixed on the bearing seat, and the bearing seat and the thrust The bearings are connected by pins, the top ends of the two side arms of the bearing seat are provided with pressing plates, and the pressing plates are connected with the bearing seat by screws. The lubricating structure can ensure the long-term stable operation of the thrust bearing, and at the same time, it can overcome the problem that the traverse accuracy of the first intermediate roll is lost due to the damage of the thrust bearing, and avoid the loss of the traverse accuracy which leads to the surface quality of the steel strip during the rolling process. The generation of defects ultimately achieves the goal of improving equipment production efficiency and reducing production costs.
Description
Technical Field
The utility model relates to a senjimier twenty high rolls mill field. In particular to a novel thrust bearing lubricating structure of a Sendzimir twenty-high rolling mill.
Background
The Sendzimir twenty-high roll mill has great advantages in plate shape control and plate brightness. In order to prevent the working roll from moving back and forth when the rolling mill works, a set of thrust bearing device is respectively arranged on the transmission side and the operation side. However, when the first intermediate roll is axially displaced during high-speed operation, the thrust bearings at both ends are seriously damaged, so that the service life of the thrust bearing is greatly reduced to about 10 days. In addition, the thrust bearing is lubricated by emulsion splashed in the rolling process, and the lubricating effect of the bearing is poor.
SUMMERY OF THE UTILITY MODEL
For making up the not enough of above technical problem, the utility model provides a novel can prolong footstep bearing life, improve the footstep bearing lubricating structure for the Sendzimir twenty-roller mill of bearing lubrication effect.
The utility model discloses a realize through following technical scheme:
the utility model provides a thrust bearing lubricating structure for twenty roller mills of sendzimir, includes bearing frame, thrust bearing, round pin axle and clamp plate, thrust bearing fixes at the bearing frame, bearing frame and thrust bearing pass through the round pin hub connection, the top of two side arms of bearing frame is equipped with the clamp plate, the clamp plate passes through the screw and is connected with the bearing frame.
Furthermore, the bearing seat comprises a base and two raised side arms which are integrally formed, the cross section of the base is rectangular, 6 through holes are formed in the base, two threaded holes are formed in the upper end face and the lower end face of each side arm respectively, and the threaded holes are used for fixing the pressing plate and correspond to the through holes in the pressing plate.
Furthermore, the clamp plate is equipped with two through-holes for last, the size of clamp plate is the same with the size of bearing frame side arm section.
Furthermore, an oil inlet channel is machined in the center of the axial direction of the pin shaft on one side, an oil outlet channel is machined in the position, corresponding to the center of the thrust bearing, of the radial direction of the pin shaft, and the oil outlet channel is intersected with the oil inlet channel.
Furthermore, the depth of the oil inlet channel is 85-105mm, and the diameter of the oil inlet channel is smaller than the width of the pin shaft.
Furthermore, the diameter of the oil outlet channel is 2-4 mm.
Further, the oil inlet channel is externally connected with an oil-gas lubricating device.
The utility model has the advantages that: through the technical design of the thrust bearing lubricating structure, the long-term stable operation of the thrust bearing stopping of the intermediate transverse moving device of the Sendzimir twenty-high rolling mill is met, meanwhile, the problem that the transverse moving precision of the first intermediate roll is lost due to the damage of the thrust bearing can be solved through the novel lubricating structure, the surface quality defect of the steel strip in the rolling process due to the loss of the transverse moving precision is avoided, and the aims of improving the production efficiency of equipment and reducing the production cost are finally achieved.
Drawings
The present invention will be further explained with reference to the accompanying drawings.

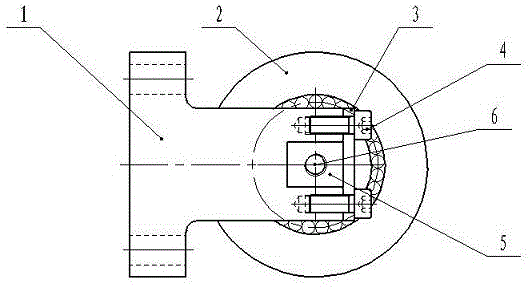

Fig. 1 is a side view of a thrust bearing lubricating structure of the present invention.
Fig. 2 is a front view of the thrust bearing lubricating structure of the present invention.
Fig. 3 is a side view of the pin shaft of the present invention.
Fig. 4 is a front view of the hinge pin of the present invention.
Fig. 5 is a front view of the bearing seat of the present invention.
Fig. 6 is a side view of the bearing seat of the present invention.
Fig. 7 is a top view of the bearing seat of the present invention.
Fig. 8 is a front view of the pressing plate of the present invention.
Fig. 9 is a side view of the pressure plate of the present invention.
In the figure, 1-bearing seat, 2-thrust bearing, 3-pressure plate, 4-screw, 5-pin shaft, 6-oil inlet channel, 7-oil outlet channel, 8-bearing seat base and 9-bearing seat side arm.
Detailed Description
In order that the above objects, features and advantages of the present invention may be more clearly understood, the present invention will be further described with reference to specific embodiments. It should be noted that the embodiments and features of the embodiments of the present application may be combined with each other without conflict.
Example 1
Referring to fig. 1-9, the utility model discloses a thrust bearing lubricating structure for sengemel twenty-roller mill, including bearing frame 1, thrust bearing 2, round pin axle 5 and clamp plate 3, bearing frame 1 includes base 8 and two raised side arms 9 of integrated into one piece, base 8 cross section is the rectangle, be equipped with 6 through-holes on the base 8, be equipped with two screw holes on two upper and lower top end faces of side arm 9 respectively, the screw hole corresponds with the through-hole on clamp plate 3 for fixed clamp plate 3, thrust bearing 2 fixes the centre at two side arms 9 of bearing frame 1, the model of thrust bearing 2 is NUTR35, bearing frame 1 and thrust bearing 2 are connected through round pin axle 5, the top of two side arms of bearing frame 1 is equipped with clamp plate 3, be equipped with two through-holes on clamp plate 3, the size of clamp plate 3 is the same with the sectional size of side arm 9 of bearing frame 1, the pressure plate 3 is connected with the bearing seat 1 through a screw 4.
The central point of one side axial direction of round pin axle 5 puts and processes there is oil feed passageway 6, round pin axle 5 radial direction is put the processing in the department of putting corresponding to footstep bearing 2 central point and is had oil outlet channel 7, oil outlet channel 7 is crossing with oil feed passageway 6, the oil feed leads to, and 6 the degree of depth is 85mm, the diameter of oil feed passageway 6 is less than the width of round pin axle 5, the diameter of oil outlet channel 7 is 2mm, the external oil gas lubricating arrangement of oil feed passageway 6.
Example 2
Referring to fig. 1-9, the utility model discloses a thrust bearing lubricating structure for sengemel twenty-roller mill, including bearing frame 1, thrust bearing 2, round pin axle 5 and clamp plate 3, bearing frame 1 includes base 8 and two raised side arms 9 of integrated into one piece, base 8 cross section is the rectangle, be equipped with 6 through-holes on the base 8, be equipped with two screw holes on two upper and lower top end faces of side arm 9 respectively, the screw hole corresponds with the through-hole on clamp plate 3 for fixed clamp plate 3, thrust bearing 2 fixes the centre at two side arms 9 of bearing frame 1, the model of thrust bearing 2 is NUTR35, bearing frame 1 and thrust bearing 2 are connected through round pin axle 5, the top of two side arms of bearing frame 1 is equipped with clamp plate 3, be equipped with two through-holes on clamp plate 3, the size of clamp plate 3 is the same with the sectional size of side arm 9 of bearing frame 1, the pressure plate 3 is connected with the bearing seat 1 through a screw 4.
The central point of one side axial direction of round pin axle 5 puts and processes there is oil feed passageway 6, round pin axle 5 radial direction is put the processing in the department of corresponding to footstep bearing 2 central point and is had oil outlet channel 7, oil outlet channel 7 is crossing with oil feed passageway 6, the degree of depth of oil feed passageway 6 is 105mm, the diameter of oil feed passageway 6 is less than the width of round pin axle 5, the diameter of oil outlet channel 7 is 4mm, the external oil gas lubricating arrangement of oil feed passageway 6.
Example 3
Referring to fig. 1-9, the utility model discloses a thrust bearing lubricating structure for sengemel twenty-roller mill, including bearing frame 1, thrust bearing 2, round pin axle 5 and clamp plate 3, bearing frame 1 includes base 8 and two raised side arms 9 of integrated into one piece, base 8 cross section is the rectangle, be equipped with 6 through-holes on the base 8, be equipped with two screw holes on two upper and lower top end faces of side arm 9 respectively, the screw hole corresponds with the through-hole on clamp plate 3 for fixed clamp plate 3, thrust bearing 2 fixes the centre at two side arms 9 of bearing frame 1, the model of thrust bearing 2 is NUTR35, bearing frame 1 and thrust bearing 2 are connected through round pin axle 5, the top of two side arms of bearing frame 1 is equipped with clamp plate 3, be equipped with two through-holes on clamp plate 3, the size of clamp plate 3 is the same with the sectional size of side arm 9 of bearing frame 1, the pressure plate 3 is connected with the bearing seat 1 through a screw 4.
The central point of one side axial direction of round pin axle 5 puts and processes there is oil feed passageway 6, round pin axle 5 radial direction is put the processing of department corresponding to footstep bearing 2 central point and is had oil outlet channel 7, oil outlet channel 7 is crossing with oil feed passageway 6, the degree of depth of oil feed passageway 6 is 95mm, the diameter of oil feed passageway 6 is less than the width of round pin axle 5, the diameter of oil outlet channel 7 is 3mm, the external oil gas lubricating arrangement of oil feed passageway 6.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in other forms, and any person skilled in the art may use the above-mentioned technical contents to change or modify the equivalent embodiment into equivalent changes and apply to other fields, but any simple modification, equivalent change and modification made to the above embodiments according to the technical matters of the present invention will still fall within the protection scope of the technical solution of the present invention.
