Abstract
本实用新型公开了一种夹具操作组件，包括第一套环，所述第一套环的一侧外壁上设置有杆套，所述杆套上远离第一套环的一端嵌入有支撑杆，且杆套的一侧外壁上通过螺纹旋合连接有紧固螺母，所述支撑杆上远离杆套的一端设置有第二套环，所述第一套环的一侧外壁上靠近第二套环的一侧位置处嵌入有空心转杆。该夹具操作组件，通过第一套环、第二套环、杆套和支撑杆的相互配合，使得夹具在夹紧管状工件时可以对管状工件支撑支持，保证夹紧的稳定性，避免出现倾斜的问题，提高后续加工的稳定性，通过第一锥齿轮、丝杠、第二锥齿轮和夹头的相互配合，使得管状工件贯穿后进行固定，四个夹头在保证夹紧牢固性的同时还能适应不同直径工件的夹紧固定。
The utility model discloses a clamp operation assembly, comprising a first collar, a rod sleeve is arranged on one side outer wall of the first collar, and a support rod is embedded in the end of the rod sleeve away from the first collar, And the outer wall of one side of the rod sleeve is connected with a fastening nut by screwing, the end of the support rod away from the rod sleeve is provided with a second collar, and the outer wall of one side of the first collar is close to the second collar. A hollow rotating rod is embedded at one side of the ring. The clamp operation assembly, through the mutual cooperation of the first collar, the second collar, the rod sleeve and the support rod, enables the clamp to support the tubular workpiece when clamping the tubular workpiece, ensuring the stability of clamping and avoiding tilting. Through the cooperation of the first bevel gear, the lead screw, the second bevel gear and the collet, the tubular workpiece can be fixed after being penetrated, and the four collets can ensure the firmness of the clamping at the same time. It can also adapt to the clamping and fixing of workpieces with different diameters.
Description
Technical Field
The utility model relates to an anchor clamps technical field specifically is an anchor clamps operating module.
Background
The jig is a device for fixing a processing object to occupy a correct position for receiving construction or inspection in a machine manufacturing process.
The existing clamp is difficult to support the tubular workpiece when clamping the tubular workpiece, and when the length of the tubular workpiece is long, one end of the tubular workpiece is difficult to ensure the stability of the workpiece after clamping, so that the workpiece is easy to tilt downwards, and the stability of subsequent processing is influenced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an anchor clamps operating module to it is difficult to guarantee the tight stability of clamp when pressing from both sides tight tubular workpiece to propose current anchor clamps among the solution above-mentioned background art, and easy slope causes the unstable problem of follow-up processing.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an anchor clamps operating element, includes the first lantern ring, be provided with the rod cover on one side outer wall of the first lantern ring, the one end embedding of keeping away from the first lantern ring on the rod cover has the bracing piece, and closes soon through the screw thread on one side outer wall of rod cover and be connected with fastening nut, the one end of keeping away from the rod cover on the bracing piece is provided with the second lantern ring, one side position department of being close to the second lantern ring on one side outer wall of the first lantern ring imbeds and has hollow bull stick, the one end of hollow bull stick is provided with the hand wheel, and the one end of keeping away from the hand wheel on the hollow bull stick is provided.
Preferably, a screw rod is arranged inside the first sleeve ring, a second bevel gear is arranged at one end of the screw rod and is connected with the first bevel gear through gear teeth in a meshed manner, and a chuck is connected to the outer wall of one side of the screw rod in a screwed manner through threads.
Preferably, a supporting plate is arranged at a position, close to the screw, on one side of the inner portion of the first sleeve ring, a spring is arranged on the outer wall of one side of the supporting plate, a ball seat is arranged at one end, far away from the supporting plate, of the spring, and balls are embedded into the outer wall of one side of the ball seat.
Preferably, a soft rubber cushion is arranged on the outer wall of one side of the clamping head.
Preferably, a groove is formed in the position, close to one side of the chuck, on the outer wall of one side of the first lantern ring.
Preferably, the number of the lead screws is four, and the four lead screws are uniformly arranged in the first sleeve ring.
Compared with the prior art, the beneficial effects of the utility model are that: the clamp operation assembly enables the clamp to support the tubular workpiece when clamping the tubular workpiece through mutual matching of the first sleeve ring, the second sleeve ring, the rod sleeve and the support rod, so that the clamping stability is ensured, the problem of inclination is avoided, and the stability of subsequent processing is improved;
according to the clamp operation assembly, the tubular workpiece is fixed after penetrating through the first bevel gear, the lead screw, the second bevel gear and the chucks are matched with one another, and the four chucks can be suitable for clamping and fixing workpieces with different diameters while clamping firmness is guaranteed;
this anchor clamps operating module through mutually supporting of spring, ball seat and ball for reduce friction when tubulose work piece removes, guarantee the convenience of material loading unloading.
Drawings

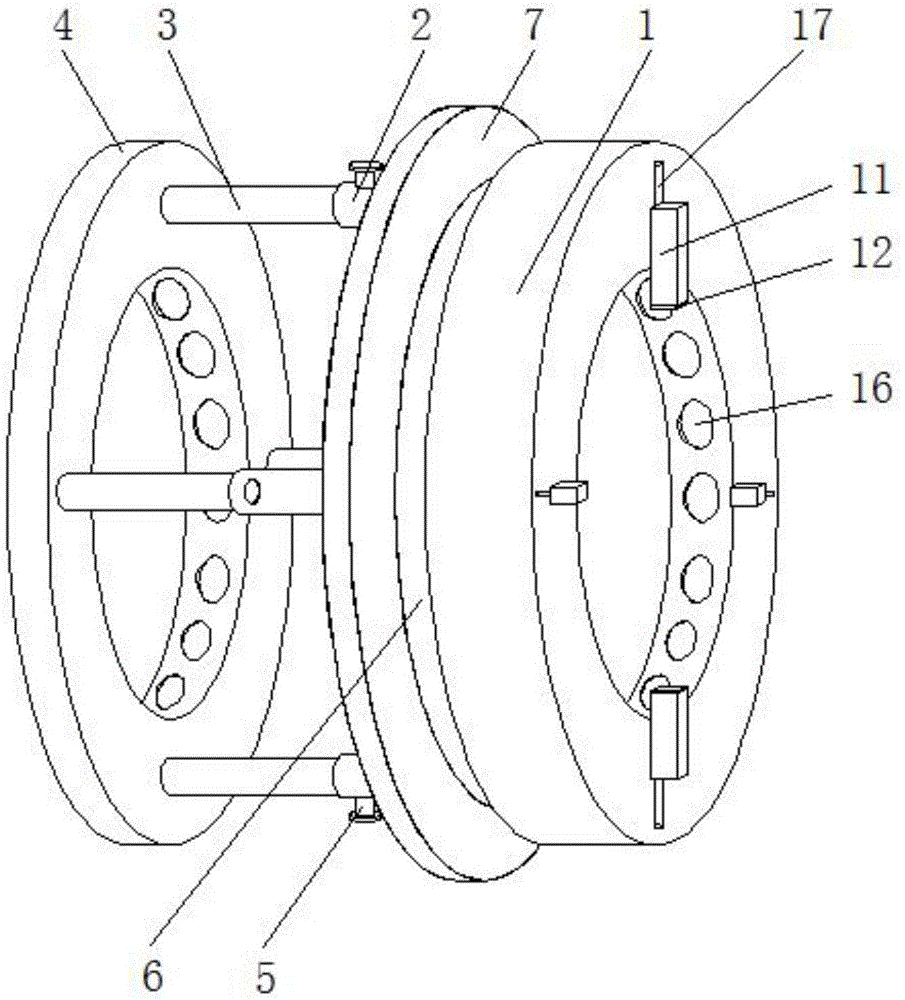

Fig. 1 is a front view of the present invention;
FIG. 2 is a side view of the first collar of the present invention;
fig. 3 is a front view of the first collar of the present invention;
fig. 4 is an enlarged view of the position a of the present invention.
In the figure: 1. a first collar; 2. a rod sleeve; 3. a support bar; 4. a second collar; 5. fastening a nut; 6. a hollow rotating rod; 7. a hand wheel; 8. a first bevel gear; 9. a lead screw; 10. a second bevel gear; 11. a chuck; 12. a soft rubber cushion; 13. a support plate; 14. a spring; 15. a ball seat; 16. a ball bearing; 17. and (4) a groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a clamp operating assembly comprises a first sleeve ring 1, a rod sleeve 2, a support rod 3, a second sleeve ring 4, a fastening nut 5, a hollow rotating rod 6, a hand wheel 7, a first bevel gear 8, a lead screw 9, a second bevel gear 10, a chuck 11, a soft rubber pad 12, a support plate 13, a spring 14, a ball seat 15, balls 16 and a groove 17, wherein the rod sleeve 2 is arranged on the outer wall of one side of the first sleeve ring 1, the support rod 3 is embedded in one end, far away from the first sleeve ring 1, of the rod sleeve 2, the fastening nut 5 is connected to the outer wall of one side of the rod sleeve 2 through thread screwing, the second sleeve ring 4 is arranged at one end, far away from the rod sleeve 2, of the support rod 3, the hollow rotating rod 6 is embedded in the position, close to the second sleeve ring 4, of one side of the outer wall of the first sleeve ring 1, the hand wheel 7 is arranged at one end of the hollow rotating rod 6, and the first, the tubular workpiece is supported by the first collar 1 and the second collar 4.
Furthermore, a lead screw 9 is arranged inside the first lantern ring 1, a second bevel gear 10 is arranged at one end of the lead screw 9, the second bevel gear 10 is meshed with the first bevel gear 8 through gear teeth, and a chuck 11 is connected to the outer wall of one side of the lead screw 9 in a screwing mode through threads, so that the function of clamping a tubular workpiece is achieved.
Furthermore, a supporting plate 13 is arranged at a position, close to the lead screw 9, on one side of the inside of the first lantern ring 1, a spring 14 is arranged on the outer wall of one side of the supporting plate 13, a ball seat 15 is arranged at one end, far away from the supporting plate 13, on the spring 14, and balls 16 are embedded into the outer wall of one side of the ball seat 15, so that friction force is reduced.
Furthermore, a soft rubber pad 12 is arranged on the outer wall of one side of the chuck 11, so that the workpiece is prevented from being damaged by extrusion.
Furthermore, a groove 17 is formed in the outer wall of one side of the first lantern ring 1, which is close to one side of the chuck 11, so that the chuck 11 can move on the first lantern ring 1 conveniently.
Furthermore, the number of the lead screws 9 is four, and the four lead screws 9 are uniformly arranged in the first lantern ring 1, so that the stability of clamping the workpiece is ensured.
The working principle is as follows: in use, the first collar 1 is mounted on the apparatus and, when it is desired to clamp a tubular workpiece to be machined, adjusting the distance between the first sleeve ring 1 and the second sleeve ring 4 according to the length of the tubular workpiece, stretching the support rod 3, pulling the support rod 3 out of the rod sleeve 2, after the support rod is pulled to the required distance, the fastening nut 5 is screwed down, the tubular workpiece is inserted into the first lantern ring 1 and the second lantern ring 4, the hand wheel 7 is rotated, the hand wheel 7 drives the first bevel gear 8 to rotate through the hollow rotating rod 6, through the meshing connection of the first bevel gear 8 and the second bevel gear 10, the second bevel gear 10 drives the screw rod 9 to rotate, the chuck 11 moves on the lead screw 9 through the screwing connection of the lead screw 9 and the chucks 11, the tubular workpiece is clamped through the four chucks 11, before the tubular workpiece is clamped, the ball 16 on the ball seat 15 can be well supported and moved, so that the tubular workpiece can be conveniently moved and clamped.
It should be finally noted that the above only serves to illustrate the technical solution of the present invention, and not to limit the scope of the present invention, and that simple modifications or equivalent replacements performed by those skilled in the art to the technical solution of the present invention do not depart from the spirit and scope of the technical solution of the present invention.
