Abstract

The utility model discloses a construction waste recovery processing device, the on-line screen storage device comprises a base, the upper surface of base and the bottom fixed connection of dead lever, the lower surface swing joint of head and fly leaf is passed through on the top of dead lever, the first fixed block of the equal fixedly connected with of lower surface of the upper surface of base and fly leaf, and two first fixed blocks are located the right side of dead lever. This construction waste recovery processing device, through setting up the base, the dead lever, the head moving device, the fly leaf, electric putter, the round pin axle, first fixed block and second fixed block, thereby can extend through on-off control electric putter, thereby the right flank that drives the box through the fly leaf risees, and then when clearing up the construction waste in the box, the whole discharges of construction waste in the box, thereby when handling construction waste next time, can guarantee that effective space is sufficient, and avoid causing the processing work of part repetition, thereby construction waste's treatment effeciency has been improved.

Description

Construction waste recycling device
Technical Field
The utility model relates to a construction waste technical field specifically is a construction waste recovery processing device.
Background
The construction waste refers to residue soil, waste materials, sludge and other wastes generated in the process of constructing, laying, dismantling and repairing various buildings, structures, pipe networks and the like by construction, construction units or individuals, and residue soil waste generated in the construction production usually needs to be crushed by a device for secondary utilization, but most of the existing construction waste treatment devices cannot discharge all the materials in the device when the waste is treated, so that the effective space is reduced and part of repeated treatment work is caused when the construction waste is treated next time, and the treatment efficiency of the construction waste is reduced.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a construction waste recovery processing device has solved the present most construction waste processing device and when having handled the waste material, often can not be with the whole discharges of material in the device to lead to leading to when handling construction waste next time, causing effective space to reduce, and lead to the fact the processing work of part repetition, thereby reduced construction waste's treatment effeciency's problem.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a construction waste recycling device comprises a base, wherein the upper surface of the base is fixedly connected with the bottom end of a fixed rod, the top end of the fixed rod is movably connected with the lower surface of a movable plate through a movable device, the upper surface of the base and the lower surface of the movable plate are fixedly connected with first fixed blocks, two first fixed blocks are positioned on the right side of the fixed rod, the first fixed blocks are movably connected with second fixed blocks through pin shafts, opposite surfaces of the two second fixed blocks are respectively fixedly connected with the top end and the bottom end of an electric push rod, the upper surface of the movable plate is fixedly connected with the lower surface of a box body, a first bearing is arranged in the center of the inner part of the upper surface of the box body, a feed inlet is arranged on the upper surface of the box body and positioned on the left side of the first bearing, the first bearing is sleeved on the outer surface of a first rotating shaft, the top end of, the right flank of motor and the left surface fixed connection of first fixed plate, the lower surface of fixed plate and the last fixed surface of box are connected, the top fixed connection of first bearing and broken axle is passed to the bottom of first pivot, the surface of broken axle is provided with a plurality of broken poles, and broken pole evenly distributed is at the surface of broken axle.
Preferably, the movable device comprises two third fixing plates, the opposite surfaces of the two third fixing plates are fixedly connected with second bearings, the opposite surfaces of the two second bearings are respectively sleeved with the two ends of the same second rotating shaft, the outer surface of the second rotating shaft is fixedly connected with the top ends of the fixing rods, and the upper surfaces of the third fixing plates are fixedly connected with the lower surfaces of the movable plates.
Preferably, the discharge gate has been seted up to the left surface of box, and the left surface of discharge gate is provided with the baffle, the left surface of baffle passes through the hinge and the left surface swing joint of box.
Preferably, the left side surface of the baffle is provided with a handle, and the handle is positioned in the center of the left side surface of the baffle.
Preferably, the right flank fixedly connected with sliding sleeve of box, and the sliding sleeve cup joints the surface at the slide bar, the bottom fixedly connected with second fixed plate of slide bar, the last fixed surface of second fixed plate is connected with the spring, and the top of spring and the lower fixed surface of sliding sleeve are connected, the spring cup joints the surface at the slide bar.
Preferably, a power supply and a switch are arranged on the right side face of the box body, the output end of the power supply is electrically connected with the input end of the switch, and the output end of the switch is electrically connected with the input ends of the motor and the electric push rod respectively.
(III) advantageous effects
The utility model provides a construction waste recovery processing device possesses following beneficial effect:
1. this construction waste recovery processing device, through setting up the base, the dead lever, the head, the fly leaf, electric putter, the round pin axle, first fixed block and second fixed block, thereby can extend through on-off control electric putter, and then drive first fixed block upwards through electric putter, and then drive the right-hand member upwards rotation of fly leaf, thereby it risees to drive the right flank of box through the fly leaf, and then when the construction waste in the clearance box, the whole discharges of construction waste in the box, thereby when handling construction waste next time, can guarantee effective space sufficient, and avoid causing the processing work of part repetition, thereby construction waste's treatment effeciency has been improved.
2. This construction waste recovery processing device, through setting up the baffle to can prevent through the baffle that construction waste from spilling from the discharge gate at the in-process of handling, through setting up the handle, thereby make things convenient for people to open the baffle through the handle, through setting up sliding sleeve and slide bar, thereby can fix the baffle through the slide bar, through setting up the spring, thereby can utilize spring self elasticity to make slide bar automatic recovery original position.
3. This construction waste recovery processing device through setting up first fixed plate to can prevent that the motor from taking place to rock at the pivoted in-process, just the utility model discloses compact structure, reasonable in design, the practicality is strong.
Drawings

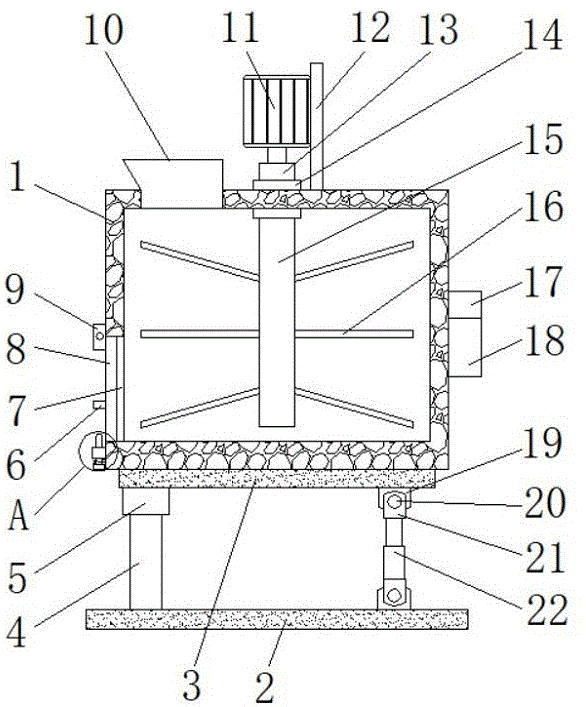

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
FIG. 2 is a schematic side view of the present invention;
fig. 3 is an enlarged schematic structural view at a position a of the present invention;
fig. 4 is an enlarged schematic structural view of the utility model at the position B;
fig. 5 is an enlarged schematic structural view of the mobile device of the present invention.
In the figure: the device comprises a box body 1, a base 2, a movable plate 3, a fixed rod 4, a movable device 5, a third fixed plate 51, a second bearing 52, a second rotating shaft 53, a handle 6, a discharge hole 7, a baffle 8, a hinge 9, a feed inlet 10, a motor 11, a first fixed plate 12, a first rotating shaft 13, a first bearing 14, a crushing shaft 15, a crushing rod 16, a switch 17, a power supply 18, a first fixed block 19, a pin shaft 20, a second fixed block 21, an electric push rod 22, a second fixed plate 23, a spring 24, a sliding sleeve 25 and a sliding rod 26.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-5, the utility model provides a technical solution: a construction waste recycling device comprises a base 2, the upper surface of the base 2 is fixedly connected with the bottom end of a fixed rod 4, the top end of the fixed rod 4 is movably connected with the lower surface of a movable plate 3 through a movable device 5, the movable device 5 is arranged, so that the movable plate 3 can rotate around the movable device 5, the movable device 5 comprises two third fixed plates 51, the opposite surfaces of the two third fixed plates 51 are fixedly connected with second bearings 52, the opposite surfaces of the two second bearings 52 are respectively sleeved with the two ends of the same second rotating shaft 53, the outer surface of the second rotating shaft 53 is fixedly connected with the top end of the fixed rod 4, the upper surface of the third fixed plate 51 is fixedly connected with the lower surface of the movable plate 3, the upper surface of the base 2 and the lower surface of the movable plate 3 are respectively fixedly connected with first fixed blocks 19, and the two first fixed blocks 19 are positioned on the, the first fixed block 19 is movably connected with the second fixed block 21 through a pin shaft 20, opposite surfaces of the two second fixed blocks 21 are fixedly connected with the top end and the bottom end of an electric push rod 22 respectively, the upper surface of the movable plate 3 is fixedly connected with the lower surface of the box body 1, and by arranging the base 2, the fixed rod 4, the movable device 5, the movable plate 3, the electric push rod 22, the pin shaft 20, the first fixed block 19 and the second fixed block 21, the extension of the electric push rod 22 can be controlled through the switch 17, the first fixed block 19 is driven to rotate upwards through the electric push rod 22, the right end of the movable plate 3 is driven to rotate upwards, the right side surface of the box body 1 is driven to lift through the movable plate 3, and when the construction waste in the box body 1 is cleaned, the construction waste in the box body 1 is completely discharged, so that when the construction waste is treated next time, an effective, and avoids causing partial repeated processing work, thereby improving the processing efficiency of the construction waste, the left side surface of the box body 1 is provided with the discharge port 7, the left side surface of the discharge port 7 is provided with the baffle 8, by arranging the baffle 8, the construction waste can be prevented from spilling out of the discharge port 7 in the processing process through the baffle 8, the left side surface of the baffle 8 is provided with the handle 6, by arranging the handle 6, people can conveniently open the baffle 8 through the handle 6, the handle 6 is positioned at the center of the left side surface of the baffle 8, the left side surface of the baffle 8 is movably connected with the left side surface of the box body 1 through the hinge 9, the right side surface of the box body 1 is fixedly connected with the sliding sleeve 25, the sliding sleeve 25 is sleeved on the outer surface of the sliding rod 26, by arranging the sliding sleeve 25 and the sliding rod 26, the baffle 8 can be fixed through the sliding rod 26, the spring 24 is fixedly connected to the upper surface of the second fixing plate 23, the spring 24 is arranged, so that the sliding rod 26 can automatically restore to the original position by the elasticity of the spring 24, the top end of the spring 24 is fixedly connected with the lower surface of the sliding sleeve 25, the spring 24 is sleeved on the outer surface of the sliding rod 26, the right side surface of the box body 1 is provided with the power supply 18 and the switch 17, the output end of the power supply 18 is electrically connected with the input end of the switch 17, the output end of the switch 17 is electrically connected with the input ends of the motor 11 and the electric push rod 22 respectively, the center inside the upper surface of the box body 1 is provided with the first bearing 14, the upper surface of the box body 1 is provided with the feed inlet 10, the feed inlet 10 is positioned at the left side of the first bearing 14, the first bearing 14 is sleeved on the outer surface of the first rotating shaft 13, the top end of the first rotating shaft, through setting up first fixed plate 12 to can prevent that motor 11 from taking place to rock at the pivoted in-process, the lower surface of fixed plate and the last fixed surface of box 1 are connected, and the top fixed connection of first bearing 14 and broken axle 15 is passed to the bottom of first pivot 13, and the surface of broken axle 15 is provided with a plurality of broken poles 16, through setting up broken pole 16, thereby can carry out crushing treatment with construction waste, and broken pole 16 evenly distributed is at the surface of broken axle 15.
When the garbage crusher is used, firstly, construction garbage is put into the box body 1 through the feed inlet 10, at the moment, the motor 11 is controlled to rotate through the switch 17, so that the motor 11 drives the first rotating shaft 13 to rotate, and further, the crushing shaft 15 is driven to rotate through the first rotating shaft 13, so that the crushing rod 16 is driven to rotate through the crushing shaft 15, and further, the construction garbage in the box body 1 is crushed, after the crushing is finished, the motor 11 is controlled to stop rotating through the switch 17, so that the crushing shaft 15 stops rotating, at the moment, the second fixing plate 23 is pulled downwards, so that the sliding rod 26 is driven to move downwards through the second fixing plate 23, at the moment, the spring 24 is stretched by downward pulling force until the top end of the sliding rod 26 is completely separated from the baffle 8, at the same time, the handle 6 is pulled leftwards, so that the baffle 8 is opened through the handle 6, at the moment, the switch 17 controls the electric, and then the right side of the movable plate 3 is driven to rotate upwards, and then the right side of the box body 1 is driven to rotate upwards through the movable plate 3, so that the treated construction waste can be discharged, and after the discharge is finished, the electric push rod 22 is reset through the control switch 17, so that the movable plate 3 and the box body 1 are reset, and the treatment work of the building is completed.
In conclusion, 1, this construction waste recycling device, through setting up base 2, dead lever 4, mobile device 5, fly leaf 3, electric putter 22, round pin axle 20, first fixed block 19 and second fixed block 21, thereby can control electric putter 22 extension through switch 17, and then drive first fixed block 19 through electric putter 22 and upwards rotate, and then drive the right-hand member of fly leaf 3 and upwards rotate, thereby it risees to drive the right flank of box 1 through fly leaf 3, and then when clearing up the construction waste in the box 1, discharge the whole construction waste in the box 1, thereby when handling construction waste next time, can guarantee that effective space is sufficient, and avoid causing partial repeated processing work, thereby construction waste's treatment efficiency has been improved.
2. This construction waste recovery processing device, through setting up baffle 8, thereby can prevent through baffle 8 that construction waste from spilling from discharge gate 7 at the in-process of handling, through setting up handle 6, thereby make things convenient for people to open baffle 8 through handle 6, through setting up sliding sleeve 25 and slide bar 26, thereby can fix baffle 8 through slide bar 26, through setting up spring 24, thereby can utilize spring 24 self elasticity to make slide bar 26 automatic recovery original position.
3. This construction waste recovery processing device is through setting up first fixed plate 12 to can prevent that motor 11 from taking place to rock at the pivoted in-process, just the utility model discloses compact structure, reasonable in design, the practicality is strong.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. The utility model provides a construction waste recovery processing device, includes base (2), its characterized in that: the upper surface of the base (2) is fixedly connected with the bottom of the fixed rod (4), the top end of the fixed rod (4) is movably connected with the lower surface of the movable plate (3) through a movable device (5), the upper surface of the base (2) and the lower surface of the movable plate (3) are fixedly connected with first fixed blocks (19), the two first fixed blocks (19) are positioned on the right side of the fixed rod (4), the first fixed blocks (19) are movably connected with second fixed blocks (21) through pin shafts (20), opposite surfaces of the two second fixed blocks (21) are respectively fixedly connected with the top end and the bottom end of an electric push rod (22), the upper surface of the movable plate (3) is fixedly connected with the lower surface of the box body (1), a first bearing (14) is arranged at the center of the inner part of the upper surface of the box body (1), a feed inlet (10) is arranged on the upper surface of the box body (1), and feed inlet (10) are located the left side of first bearing (14), and first bearing (14) cup joint the surface at first pivot (13), the top of first pivot (13) and the output shaft fixed connection of motor (11), the right flank of motor (11) and the left surface fixed connection of first fixed plate (12), the lower surface of fixed plate and the last fixed surface of box (1) are connected, the top fixed connection of first bearing (14) and broken axle (15) is passed to the bottom of first pivot (13), the surface of broken axle (15) is provided with a plurality of broken poles (16), and broken pole (16) evenly distributed is at the surface of broken axle (15).
2. The construction waste recycling device according to claim 1, wherein: the movable device (5) comprises two third fixing plates (51), the opposite surfaces of the two third fixing plates (51) are fixedly connected with second bearings (52), the opposite surfaces of the two second bearings (52) are respectively sleeved with the two ends of the same second rotating shaft (53), the outer surface of the second rotating shaft (53) is fixedly connected with the top end of the fixing rod (4), and the upper surface of each third fixing plate (51) is fixedly connected with the lower surface of the movable plate (3).
3. The construction waste recycling device according to claim 1, wherein: discharge gate (7) have been seted up to the left surface of box (1), and the left surface of discharge gate (7) is provided with baffle (8), the left surface of baffle (8) passes through hinge (9) and the left surface swing joint of box (1).
4. The construction waste recycling device according to claim 3, wherein: the left side face of the baffle (8) is provided with a handle (6), and the handle (6) is positioned in the center of the left side face of the baffle (8).
5. The construction waste recycling device according to claim 1, wherein: the right flank fixedly connected with sliding sleeve (25) of box (1), and sliding sleeve (25) cup joint the surface at slide bar (26), the bottom fixedly connected with second fixed plate (23) of slide bar (26), the last fixed surface of second fixed plate (23) is connected with spring (24), and the top of spring (24) and the lower fixed surface of sliding sleeve (25) are connected, spring (24) cup joint the surface at slide bar (26).
6. The construction waste recycling device according to claim 1, wherein: the right side face of the box body (1) is provided with a power supply (18) and a switch (17), the output end of the power supply (18) is electrically connected with the input end of the switch (17), and the output end of the switch (17) is electrically connected with the input ends of the motor (11) and the electric push rod (22) respectively.
