Abstract
用于术后护理的医用弹力裤，涉及医疗辅助器械的技术领域，包括裤体，裤体包括裤腰和裤腿，裤腰和裤腿均采用混纺有纳米银纤维制成的弹力布制成，挡部的前侧面设有换药口，两个裤腿与腹股沟部位对应处分别设有用于放置压力气囊的气囊袋，本实用新型设计合理，在纳米银纤维的抗菌性能下实现杀菌灭菌的效果，避免该裤体与患者接触处的细菌滋生，设置换药口，换药过程中无需将裤体脱下，可保护患者隐私，避免来回脱、穿裤体对患者伤口造成伤害，又方便医护人员对患者进行换药，同时通过压力气囊的充气膨胀来调整加压力度，以适应不同患者的需要，保证疗效，而且该裤体设置拉链为其脱、穿提供方便，进而为患者更换或清洗弹力裤带来便利。
Medical elastic trousers for post-operative care relate to the technical field of medical aids, including a trouser body, the trouser body includes a trouser waist and trouser legs, the trouser waist and trouser legs are both made of elastic fabric blended with nano-silver fibers, and the blocking part is The front side is provided with a dressing opening, and the corresponding parts of the two trouser legs and the groin are respectively provided with air bags for placing pressure air bags. Bacteria grow at the contact point between the trousers body and the patient. A dressing change port is provided, and the trousers body does not need to be taken off during the dressing change process, which can protect the patient's privacy, avoid taking off and wearing the trousers body and causing damage to the patient's wound, and it is also convenient for medical staff to treat the patient. Dressing is changed, and at the same time, the pressure force is adjusted by the inflation and expansion of the pressure airbag to meet the needs of different patients and ensure the curative effect, and the trousers are provided with zippers to facilitate their taking off and wearing, so as to replace or clean the elastic trousers for patients. Come convenient.
Description
Technical Field
The utility model relates to the technical field of medical auxiliary equipment, concretely relates to medical elasticity trousers for postoperative care.
Background
Clinical care after radical treatment such as penis cancer and anal canal cancer needs a nursing trousers that is applicable to vulva cancer, penis cancer and anal canal cancer, and nursing trousers can avoid because the postoperative conventional pressurization is wrapped the back and probably takes place incision hemorrhage, oozing blood or dead space to and avoid the postoperative lymphangiod edema to appear, alleviate the patient and cause physiology and psychological burden, embodied humanized nursing more, thereby guaranteed the curative effect.
And there are some problems in the nursing trousers that current is applicable to vulva cancer, penis cancer and anal canal cancer: 1. the sand bag is used for applying pressure, the pressure degree can not be adjusted at any time, the requirements of different patients can not be met, and the curative effect can not be ensured; 2. the dressing change at the wound is inconvenient, the whole nursing trousers need to be taken off, the privacy of the patient cannot be guaranteed, and the nursing trousers can touch the operation wound carelessly when being taken off or worn, so that the pain of the patient is caused, and the nursing of medical staff is also troublesome; 3. the nursing trousers do not have the sterilization function, the body of a patient is inconvenient to move after the operation, bacteria are easy to breed when the nursing trousers are in long-term contact with the patient, and the risk of infection is increased.
SUMMERY OF THE UTILITY MODEL
Aiming at the above, in order to solve the problems that the prior nursing trousers suitable for vulvar cancer, penis cancer and anal canal cancer are pressed by sand bags, the pressure degree can not be adjusted at any time, the dressing change at the wound is inconvenient, the nursing trousers do not have the degerming function, and the like, the utility model provides medical elastic trousers for postoperative nursing, the design of the utility model is reasonable, the effect of sterilization and disinfection is realized under the antibacterial property of the nano silver fiber, the bacteria breeding at the contact part of the trousers body and the patient is avoided, the medicine replacement port is arranged, the trousers body does not need to be taken off in the medicine replacement process, can protect the privacy of the patient, avoid the injury to the wound of the patient caused by the back and forth taking off and wearing of the trousers body, facilitate the medical care personnel to change the medicine for the patient, meanwhile, the pressurizing degree is adjusted by the inflation and expansion of the pressure air bag so as to adapt to the requirements of different patients and ensure the curative effect, and the zipper arranged on the trousers body provides convenience for taking off and wearing the trousers, thereby bringing convenience for patients to replace or clean the elastic trousers.
The technical scheme is as follows: including the trousers body, the trousers body is including the waist of trousers and trouser legs, waist of trousers and trouser legs all adopt the blending to have the elasticity cloth that nano silver fibre made to make, two the trouser legs junction forms fender portion, the leading flank that keeps off the portion is equipped with the mouth of changing dressings, the mouth of changing dressings department is equipped with the front side door, the front side door is used for opening or is closed the mouth of changing dressings, two trouser legs and inguinal position correspond the department and are equipped with the air bag that is used for placing pressure airbag respectively.
Preferably, the left side and the right side of the trousers body are symmetrically provided with two zippers, and the zippers are arranged from the top end to the bottom end of the trousers body.
Preferably, the baffle part is provided with a hole for passing through the catheter.
Preferably, any side of preceding side door with the waist of trousers adopts the sewing connection, other sides of preceding side door with the waist of trousers adopts the magic to paste and is connected.
Preferably, the front side door is made of silver fiber fabric.
Preferably, the air bag is made of inelastic fabric, the left edge, the right edge and the lower edge of the air bag are connected with the trouser legs in a sewing mode, the pressure air bag is in the minimum state, and the pressure air bag can be placed in the air bag from the top opening of the air bag.
Preferably, the pressure air bag comprises a bag body and a gas valve arranged on the bag body and used for controlling inflation and deflation, and the bag body is made of flexible and air-tight materials.
Preferably, the waist and the legs are integrally formed.
The utility model provides a medical elasticity trousers for postoperative care compares beneficial effect with prior art and is:
the utility model has reasonable design, the inside of the elastic trousers contains the nano silver fiber, the sterilization and disinfection effects are realized under the antibacterial property of the nano silver fiber, the bacteria breeding at the contact part of the trousers body and the patient is avoided, and the infection at the wound is effectively prevented;
2 the utility model is provided with the medicine changing port, the trousers body does not need to be taken off in the medicine changing process, the privacy of the patient can be protected, the injury to the wound of the patient caused by the back-and-forth taking off and wearing of the trousers body can be avoided, and the medicine changing of the patient by medical staff is facilitated;
the utility model replaces the sand bag by the inflation of the pressure air bag, and the pressure air bag can adjust the pressurizing degree at any time to meet the requirements of different patients and ensure the curative effect;
4 the utility model discloses set up the zip fastener at trousers body side, make taking off of the trousers body, wear comparatively convenient, change or wash the elasticity trousers for the patient and bring convenience, reduce and change the painful sense of elasticity trousers in-process patient.
The utility model discloses waist of trousers and trouser legs all adopt the blending to have the elasticity cloth that nano-silver fibre made to make, can the homogeneous action in the groin lymph gland department that cleans in the clinical care after operations such as external vulva cancer, can avoid because the postoperative conventional pressurization is wrapped the back and probably takes place the incision and bleed, oozing blood or dead space, and avoid the lymphatic vessel edema that the postoperative probably appears, alleviate patient's physiology and psychological burden, humanized nursing has been reflected more, thereby guarantee the curative effect, reach the dual purpose of surface of a wound hemostasis and reduction lymphatic vessel edema.
Drawings

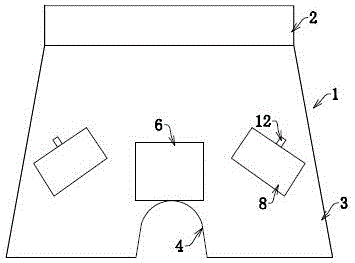

Fig. 1 is a front view of the utility model.
Fig. 2 is a front view of the utility model with the front side door open.
Fig. 3 is a front view of the middle pressure air bag of the utility model.
In the figure: 1-trousers body, 2-trousers waist, 3-trousers legs, 4-baffle part, 5-medicine changing port, 6-front side door, 8-air bag, 9-pressure air bag, 10-zipper, 11-bag body and 12-gas valve.
The specific embodiments,
The technical solutions of the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings, and it is to be understood that the described embodiments are only some embodiments of the present invention, and not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those skilled in the art without creative efforts belong to the protection scope of the present invention, and in the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate the orientation or position relationship based on the orientation or position relationship shown in the drawings, and are only for convenience of description of the present invention and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus cannot be understood as limiting the present invention.
Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance throughout the present disclosure, it being understood that unless otherwise expressly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and can be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The present invention will be described in further detail below with reference to specific embodiments and with reference to the accompanying drawings.
Embodiment one, as shown in fig. 1-3, a medical elasticity trousers for postoperative care, including the trousers body 1, the trousers body includes the waist of trousers 2 and trouser legs 3, wherein, the waist of trousers 2 and trouser legs 3 all adopt the blending to have the stretch cloth that nano silver fibre made to make, and the waist of trousers 2 and trouser legs 3 adopt integrated into one piece, and two trouser legs 3 junctions form fender portion 4. Wherein, the trousers body 1 the inside contains the nanometer silver fibre, realizes the effect of disinfecting and sterilizing under the antibiotic performance of nanometer silver fibre, avoids the bacterial growing of this trousers body 1 and patient's contact department, effectively prevents the infection of wound.
The front side of the blocking part 4 is provided with a medicine changing port 5, the medicine changing port 5 is provided with a front side door 6, and the front side door 6 is used for opening or closing the medicine changing port 5. Any side of front side door 6 adopts to sew up with the waist of trousers 2 to be connected, and other sides and the waist of trousers 2 of front side door 6 adopt the magic to paste to be connected. In the present embodiment, the front side door 6 is made of a silver fiber fabric. Establish and replace medicine mouth 5, need not to take off the trousers body 1 in the process of changing dressings, can protect patient's privacy, avoid making a round trip to take off, wear the trousers body 1 and cause the injury to patient's wound, make things convenient for medical personnel to change dressings to the patient again.
The corresponding parts of the two trouser legs 3 and the groin part are respectively provided with an air bag 8 for placing a pressure air bag 9. The sand bag in the prior art is replaced by the inflation of the pressure air bag 9, and the pressure degree of the pressure air bag 9 can be adjusted at any time to adapt to the requirements of different patients and ensure the curative effect.
The utility model discloses waist of trousers and trouser legs all adopt the blending to have the elasticity cloth that nano-silver fibre made to make, can evenly act on the inguinal lymph gland department that cleans in the clinical care after operations such as external vulva cancer, can avoid because the conventional pressurization of postoperative is wrapped the back and probably takes place the incision and bleed, oozing blood or dead space, and avoid the lymphangiod edema that the postoperative probably appears, alleviate patient's physiology and psychological burden, humanized nursing has been reflected more, thereby guarantee the curative effect, reach the dual purpose of surface of a wound hemostasis and reduction lymphangiod edema.
Wherein, the air bag 8 is made of inelastic fabric, the left, right and lower edges of the air bag 8 are connected with the trouser legs 3 by sewing, and the pressure air bag 9 is in the minimum state and can be placed in the air bag 8 from the top opening of the air bag 8.
The pressure air bag 9 comprises a bag body 11 and a gas valve 12 arranged on the bag body 11 for controlling inflation and deflation, the bag body 11 is made of a flexible and air-tight material, wherein the bag body 11, the gas valve 12 and the connection mode thereof in the pressure air bag 9 are well known in the prior art and will not be described in more detail in the embodiment. The pressure adjustment is performed by inflating the pressure bladder 9 by an external air source, such as an air cylinder or a balloon.
In the second embodiment, on the basis of the above embodiments, two zippers 10 are symmetrically arranged on the left side and the right side of the trousers body 1, and the zippers 10 are arranged from the top end to the bottom end of the trousers body 1. Wherein, the side edge of the zipper 10 is sewed on the trousers body 1, and the zipper 10 is arranged, so that the trousers body 1 is convenient to take off and wear, thereby bringing convenience for patients to replace or clean the elastic trousers and reducing the pain of the patients in the process of replacing the elastic trousers.
In the third embodiment, in addition to the above embodiments, the blocking portion 4 is further provided with a hole (not shown in the figure, as long as the ureter is ensured to pass through) for passing through the catheter, and the hole is beneficial to the management of the wound ureter and the excretion of the patient.
The utility model has reasonable design, the waist and the legs of the trousers are both made of elastic cloth made of blended nano-silver fiber, can be uniformly applied to the cleaned inguinal lymph node in the clinical care after operations such as vulvar cancer and the like, can avoid incision bleeding, bleeding or dead space which can occur after the conventional pressure dressing after the operation, and avoids lymphatic edema which may appear after operation, lightens the physiological and psychological burdens of patients, embodies humanized nursing, thereby ensuring the curative effect, achieving the dual purposes of wound surface hemostasis and lymphatic vessel edema reduction, realizing the sterilization and disinfection effects on the antibacterial performance of the nano-silver fiber, avoiding the bacterial breeding at the contact part of the trousers body and the patient, arranging the dressing change port, facilitating the medical care personnel to change the dressing for the patient, meanwhile, the pressurizing degree is adjusted through the inflation and expansion of the pressure air bag so as to adapt to the requirements of different patients and ensure the curative effect.
While the present invention has been particularly shown and described with reference to the preferred embodiments thereof, and many methods and approaches to the practice thereof, it will be understood by those skilled in the art that various changes in form and details may be made therein without departing from the spirit and scope of the present invention as defined by the appended claims.
Claims (8)
1. A medical elasticity trousers for postoperative care, including the trousers body (1), its characterized in that, the trousers body (1) is including the waist of trousers (2) and trouser legs (3), waist of trousers (2) and trouser legs (3) all adopt the blending to have the elasticity cloth that nano silver fibre made to make, two trouser legs (3) junction forms fender portion (4), the leading flank that keeps off portion (4) is equipped with medicine changing mouth (5), medicine changing mouth (5) department is equipped with preceding side door (6), preceding side door (6) are used for opening or are closed medicine changing mouth (5), two trouser legs (3) correspond the department with inguinal position and are equipped with gasbag (8) that are used for placing pressure air bag (9) respectively.
2. The medical elastic trousers for postoperative care according to claim 1, wherein two zippers (10) are symmetrically arranged on the left and right sides of the trousers body (1), and the zippers (10) are arranged from the top end to the bottom end of the trousers body (1).
3. The medical elastic trousers for postoperative care according to claim 1, wherein the baffle (4) is provided with holes for passing a catheter.
4. The medical elastic trousers for post-operative care according to claim 1, wherein any one side of said front side door (6) is connected with said waist of trousers (2) by sewing, and the other sides of said front side door (6) are connected with said waist of trousers (2) by magic tape.
5. The pair of medical stretch pants for postoperative care according to claim 1, wherein the front side door (6) is made of silver fiber fabric.
6. The pair of medical elastic trousers for post-operative care according to claim 1, wherein said air bag (8) is made of inelastic fabric, the left, right and lower edges of said air bag (8) are connected with said trouser legs (3) by sewing, and when said pressure air bag (9) is in a minimum state, said pressure air bag (9) can be placed in said air bag (8) from the top opening of said air bag (8).
7. The medical elastic trousers for post-operative care according to claim 6, wherein said pressure air bag (9) comprises a bag body (11) and a gas valve (12) arranged on the bag body (11) for controlling inflation and deflation, said bag body (11) is made of flexible and gas-tight material.
8. The medical elastic trousers for post-operative care according to claim 1, wherein the waist (2) and the legs (3) are integrally formed.
