Abstract
本实用新型公开了一种用于化妆品粉料的双色定量挤出分切机，包括机架，机架的上端一侧设有伺服电机，机架的上端另一侧设有输送带，机架的上端位于伺服电机和输送带之间设有料筒安装座，料筒安装座上密封连接有双色料筒，伺服电机上连接有与其联动的螺杆，螺杆与输送带垂直分布，螺杆穿过双色料筒的下部并将双色料筒内的化妆品粉料向着输送带所在处挤出，机架上端位于输送带的上方设有对挤出的化妆品粉料进行分切的分切机构。本实用新型可以替代人工，提高效率和精度。
The utility model discloses a double-color quantitative extruding and slitting machine for cosmetic powder, which comprises a frame. One side of the upper end of the frame is provided with a servo motor, and the other side of the upper end of the frame is provided with a conveyor belt. The upper end of the servo motor is located between the servo motor and the conveyor belt with a barrel mounting seat. The barrel mounting seat is sealed with a two-color barrel. The servo motor is connected with a screw that is linked with it. The screw and the conveyor belt are vertically distributed, and the screw passes through the two-color material. The lower part of the barrel extrudes the cosmetic powder in the two-color barrel toward the conveyor belt, and the upper end of the frame is located above the conveyor belt with a slitting mechanism for slitting the extruded cosmetic powder. The utility model can replace labor and improve efficiency and precision.
Description
Technical Field
The utility model belongs to the technical field of cosmetics powder processing equipment and specifically relates to a cutting machine is extruded to double-colored ration for cosmetics powder.
Background
Along with the development of cosmetics trade, the demand of cosmetics is bigger and bigger, traditional cosmetics powder has manual stirring and cuts with the cutter is manual, not only inefficiency, and it is difficult for guaranteeing to cut the precision, along with the improvement of people's standard of living simultaneously, the consumption demand to cosmetics increases, there is better market demand to two kinds of colours or polychrome, appearance etc. of cosmetics simultaneously, the producer produces the cosmetic baking powder product of double-colored and even polychrome powder, original manual foundation make-up embryo preparation mode can't satisfy the demand, need the research and development of a double-colored and many toner base embryo automaton that replaces manual preparation urgently.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome above-mentioned prior art not enough, provide a double-colored ration extrusion cutting machine for cosmetics powder, can replace the manual work, raise the efficiency and the precision.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a double-colored ration is extruded and is cut machine for cosmetics powder, includes the frame, upper end one side of frame is equipped with servo motor, and the upper end opposite side of frame is equipped with the conveyer belt, and the upper end of frame is located and is equipped with the feed cylinder mount pad between servo motor and the conveyer belt, sealing connection has double-colored feed cylinder on the feed cylinder mount pad, the last screw rod that is connected with rather than the linkage of servo motor, screw rod and conveyer belt vertical distribution, the screw rod pass the lower part of double-colored feed cylinder and extrude the cosmetics powder in the double-colored feed cylinder towards conveyer belt place, the top that the frame upper end is located the conveyer belt is equipped with the cutting mechanism that cuts the cosmetics powder.
And an extrusion device for extruding the cosmetic powder inside the double-color charging barrel downwards is arranged above the double-color charging barrel.
The extrusion device comprises a pressure plate and a driving source, wherein the pressure plate is used for extruding the cosmetic powder in the double-color material cylinder downwards, and the driving source is used for driving the pressure plate to lift up and down.
Double-colored feed cylinder includes vertical parallel arrangement's big feed cylinder and little feed cylinder, the upper portion of big feed cylinder and little feed cylinder opens and inside cavity, and the horizontal takeover intercommunication of horizontal distribution is passed through to the bottom of big feed cylinder and little feed cylinder, the bottom of horizontal takeover is equipped with the mounting disc with the sealed installation of feed cylinder mount pad.
The driving source is a cylinder.
The cylinder includes big cylinder and little cylinder, the pressure disk includes big pressure disk and little pressure disk, in the big cylinder drives big pressure disk oscilaltion and downward laminating stretches into big feed cylinder when big pressure disk descends, in the laminating stretches into little feed cylinder downwards when little cylinder drives little pressure disk oscilaltion and little pressure disk descends.
And a power box is arranged on one side of the upper end of the rack, and the servo motor is positioned in the power box.
And an air cylinder mounting plate capable of moving back and forth along the power box is arranged above the power box, and the large air cylinder and the small air cylinder are both positioned on the air cylinder mounting plate.
The upper end of the charging barrel mounting seat is provided with symmetrical supporting parts, the supporting parts penetrate through the mounting disc from bottom to top, and the screw penetrates through the two supporting parts.
And one end of the transverse connecting pipe, which is close to the conveying belt, is hermetically connected with a mold core.
The utility model has the advantages that:
the method comprises the following steps that firstly, a double-color charging barrel is adopted, a large air cylinder and a small air cylinder are used for driving powder to be pressed into a screw, and the large air cylinder and the small air cylinder are controlled by adjustable pressure, so that the powder can be effectively pressed into the screw according to the required proportion of the double-color powder;
secondly, the screw is designed with variable diameters, so that auxiliary powder in front of the extruded powder can easily enter the screw, and the two-color powder is fully mixed and compacted in the screw;
thirdly, a mold core is arranged at the front end of the double-color charging barrel, and the mold core can be replaced according to the shape of the powder blank, so that the production requirements of the powder blanks in various shapes are met;
the screw is driven by a servo motor, so that the mixing speed of the powder bed charge can be accurately controlled, and the compactness of the powder bed charge blank is ensured;
fifthly, the double-color material cylinder is arranged on the material cylinder mounting seat, and the support part of the material cylinder mounting seat is designed to be precisely matched with the screw rod, so that the screw rod can be supported, the pressing force of the powder pressing cylinder on the screw rod is offset, the screw rod can be ensured to freely run under the action of external force, and the disassembly and cleaning of the double-color material cylinder are facilitated;
sixthly, the cylinder is installed on the cylinder mounting panel, and cylinder mounting panel accessible manual mode back-and-forth movement can remove the cylinder mounting panel to the rear when adding the powder, makes things convenient for the manual work to add double-colored feed cylinder to the powder, moves the cylinder mounting panel to the work position during operation, locks the location again.
The invention not only can realize the automatic production of the double-toner base blank and improve the manufacturing efficiency and precision of the base blank, but also fully considers the maintenance and the public use of multiple varieties, and has higher practical value.
Drawings
Fig. 1 is a perspective view of the present invention;

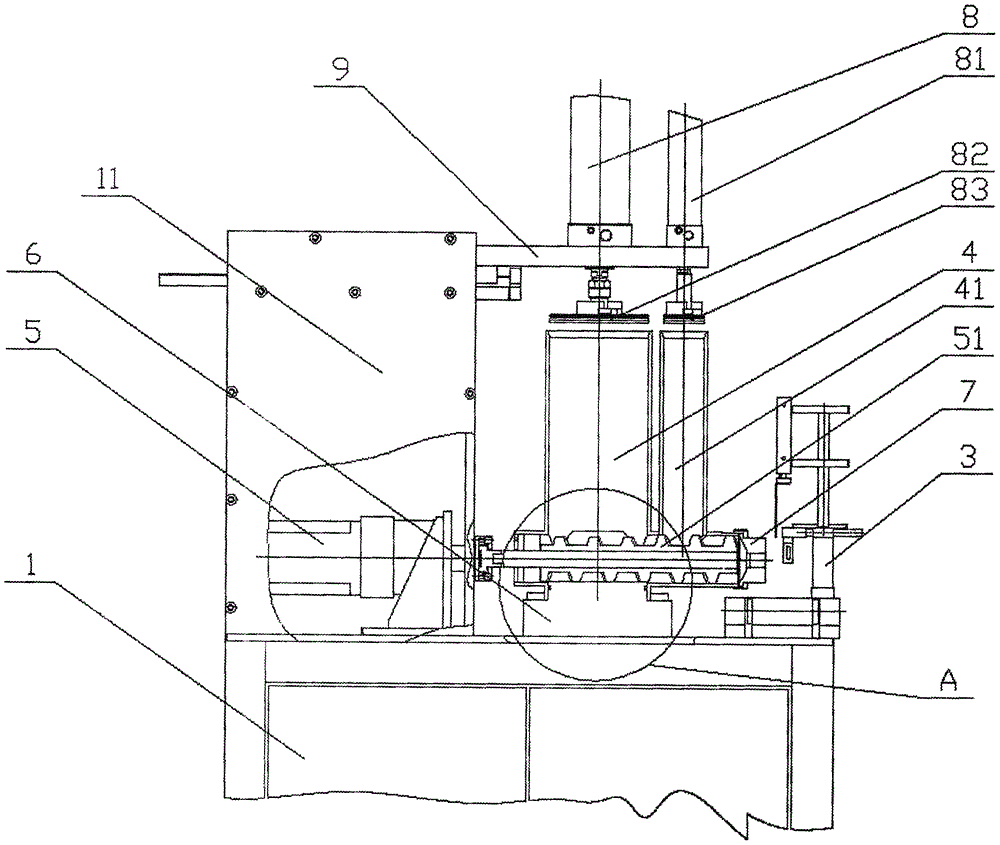

fig. 2 is a left side view of the present invention;
FIG. 3 is an enlarged view taken at A in FIG. 2;
fig. 4 is a front view of the present invention;
FIG. 5 is a schematic structural view of the two-color cartridge of the present invention;
fig. 6 is a perspective view of the screw rod of the present invention;
fig. 7 is a perspective view of the rotating shaft of the present invention;
fig. 8 is a front view of the cartridge mount of the present invention;
fig. 9 is a side view of the cartridge mount of the present invention.
In the figure: the cutting machine comprises a frame 1, a power box 11, a conveying belt 2, a cutting mechanism 3, a large material barrel 4, a small material barrel 41, a transverse connecting pipe 42, a mounting disc 43, a servo motor 5, a screw 51, a rotating shaft 52, a material barrel mounting seat 6, a support part 61, a mold core 7, a large air cylinder 8, a small air cylinder 81, a large pressure plate 82, a small pressure plate 83 and an air cylinder mounting plate 9.
Detailed Description
The invention will be further described with reference to the accompanying drawings and specific embodiments:
as shown in fig. 1 to 9, a double-color quantitative extrusion splitting machine for cosmetic powder comprises a frame 1, wherein a servo motor 5 is arranged on one side of the upper end of the frame 1, a conveying belt 2 is arranged on the other side of the upper end of the frame 1, a charging barrel mounting seat 6 is arranged between the servo motor 5 and the conveying belt 2 and positioned at the upper end of the frame 1, a double-color charging barrel is hermetically connected onto the charging barrel mounting seat 6, a screw 51 linked with the servo motor 5 is connected onto the servo motor 5, a rotating shaft 52 is connected onto the servo motor 5, and the outer wall of the rotating shaft 52 is sleeved with the connecting screw 51, so that the speed of the screw 51 can be adjusted according to the.
The screw rods 51 are vertically distributed with the conveying belt 2, the screw rods 51 penetrate through the lower part of the double-color material cylinder and extrude the cosmetic powder in the double-color material cylinder to the position of the conveying belt 2, the diameter of the screw rods 51 is designed to be a reducing structure, wherein the diameter of the screw rods 51 positioned at the lower section of the large material cylinder 4 is smaller than that of the screw rods 51 positioned at the lower section of the small material cylinder 41.
And a splitting mechanism 3 for splitting the extruded cosmetic powder is arranged at the upper end of the rack 1 above the conveyer belt 2. The slitting mechanism 3 includes a cutting blade and a driving mechanism for controlling the cutting blade to move up and down to perform slitting.
And an extrusion device for extruding the cosmetic powder inside the double-color charging barrel downwards is arranged above the double-color charging barrel.
The extrusion device comprises a pressure plate and a driving source, wherein the pressure plate is used for extruding the cosmetic powder in the double-color material cylinder downwards, and the driving source is used for driving the pressure plate to lift up and down.
The double-color material cylinder comprises a large material cylinder 4 and a small material cylinder 41 which are vertically arranged in parallel, the diameter of the large material cylinder 4 is larger than that of the small material cylinder 41, the large material cylinder 4 is positioned behind the powder moving direction, and the small material cylinder 41 is positioned in front of the powder moving direction.
The upper parts of the large material barrel 4 and the small material barrel 41 are open and hollow, the bottoms of the large material barrel 4 and the small material barrel 41 are communicated through a transverse connecting pipe 42 which is transversely distributed, and the bottom of the transverse connecting pipe 42 is provided with a mounting disc 43 which is hermetically mounted with the material barrel mounting seat 6.
The driving source is a cylinder.
The cylinder includes big cylinder 8 and little cylinder 81, the pressure disk includes big pressure disk 82 and little pressure disk 83, big cylinder 8 drives big pressure disk 82 oscilaltion and downward laminating when big pressure disk 82 descends and stretches into big feed cylinder 4, laminating downwards when little cylinder 81 drives little pressure disk 83 oscilaltion and little pressure disk 83 descends and stretches into little feed cylinder 41.
One side of the upper end of the rack 1 is provided with a power box 11, and the servo motor 5 is positioned in the power box 11.
The cylinder mounting panel 9 that can follow headstock 11 back-and-forth movement is equipped with to the top of headstock 11, big cylinder 8 and little cylinder 81 all are located cylinder mounting panel 9, and cylinder mounting panel 9 designs into back-and-forth movement structure, makes things convenient for reinforced of double-colored feed cylinder.
The upper end of the charging barrel mounting seat 6 is provided with symmetrical supporting parts 61, the supporting parts 61 penetrate through the mounting disc 43 from bottom to top, the screw 51 penetrates between the two supporting parts 61, and the two supporting parts 61 and the screw 51 are designed in a matched mode, so that a fixed double-color charging barrel can be mounted, the auxiliary support for the screw 51 can be achieved, and the reliable movement of the screw 51 is ensured.
A mold core 7 is hermetically connected to one end of the transverse connecting pipe 42 close to the conveying belt 2. The powder blank is designed into various corresponding shapes such as round, square and the like according to different shape requirements of the powder blank, and the mold core 7 is replaced according to production requirements.
The principle of the utility model is that: be used for the shaping of cosmetics double-colored base powder and separate into single powder base embryo, the manual work adds two kinds of colour powders in the double-colored feed cylinder, the big feed cylinder 4 is put into to the dominant color powder, the minor ingredient powder is put into little feed cylinder 41, press in respectively by two cylinders with double-colored feed cylinder complex screw rod 51, screw rod 51 is controlled by servo motor 5, the screw rod 51 is rotatory to carry out mixing stirring to dominant color powder and auxiliary color powder, and extrude the shaping through the mold core 7 of double-colored feed cylinder, then cut the mechanism 3 by installing in 2 tops of conveyer belt and cut according to the length that sets for, cut the cutting blade on the mechanism 3 and down the cutting powder, the foundation that cuts falls on conveyer belt 2 and conveys in the collection feed cylinder. For the powder extrusion with different shapes, the replacement of the mold core 7 with the corresponding shape can be realized, thereby not only greatly improving the powder precision, but also improving the working efficiency.
The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.
Claims (10)
1. The utility model provides a double-colored ration extrusion cutting machine for cosmetics powder, includes frame (1), its characterized in that: the upper end one side of frame (1) is equipped with servo motor (5), and the upper end opposite side of frame (1) is equipped with conveyer belt (2), and the upper end of frame (1) is located and is equipped with feed cylinder mount pad (6) between servo motor (5) and conveyer belt (2), sealing connection has double-colored feed cylinder on feed cylinder mount pad (6), be connected with screw rod (51) rather than the linkage on servo motor (5), screw rod (51) and conveyer belt (2) vertical distribution, screw rod (51) pass the lower part of double-colored feed cylinder and extrude the cosmetics powder in the double-colored feed cylinder towards conveyer belt (2) place, the top that frame (1) upper end is located conveyer belt (2) is equipped with cuts mechanism (3) of cutting the cosmetics powder of extruding.
2. The double-color quantitative extrusion splitting machine for cosmetic powder according to claim 1, characterized in that: and an extrusion device for extruding the cosmetic powder inside the double-color charging barrel downwards is arranged above the double-color charging barrel.
3. The double-color quantitative extrusion splitting machine for cosmetic powder according to claim 2, characterized in that: the extrusion device comprises a pressure plate and a driving source, wherein the pressure plate is used for extruding the cosmetic powder in the double-color material cylinder downwards, and the driving source is used for driving the pressure plate to lift up and down.
4. The double-color quantitative extrusion splitting machine for cosmetic powder according to claim 3, characterized in that: double-colored feed cylinder includes vertical parallel arrangement's big feed cylinder (4) and little feed cylinder (41), the upper portion of big feed cylinder (4) and little feed cylinder (41) is opened and inside cavity, and horizontal takeover (42) intercommunication through transverse distribution is passed through to the bottom of big feed cylinder (4) and little feed cylinder (41), the bottom of horizontal takeover (42) is equipped with mounting disc (43) with feed cylinder mount pad (6) sealed mounting.
5. The double-color quantitative extrusion splitting machine for cosmetic powder according to claim 4, wherein: the driving source is a cylinder.
6. The double-color quantitative extrusion splitting machine for cosmetic powder according to claim 5, characterized in that: the cylinder includes big cylinder (8) and little cylinder (81), the pressure disk is including big pressure disk (82) and little pressure disk (83), laminating downwards when big cylinder (8) drive big pressure disk (82) oscilaltion and big pressure disk (82) descend and stretch into big feed cylinder (4), laminating downwards when little cylinder (81) drive little pressure disk (83) oscilaltion and little pressure disk (83) descend stretches into little feed cylinder (41).
7. The double-color quantitative extrusion splitting machine for cosmetic powder according to claim 6, characterized in that: one side of the upper end of the rack (1) is provided with a power box (11), and the servo motor (5) is positioned in the power box (11).
8. The double-color quantitative extrusion splitting machine for cosmetic powders according to claim 7, characterized in that: the air cylinder mounting plate (9) capable of moving back and forth along the power box (11) is arranged above the power box (11), and the large air cylinder (8) and the small air cylinder (81) are both located on the air cylinder mounting plate (9).
9. The double-color quantitative extrusion splitting machine for cosmetic powder according to claim 4, wherein: the upper end of the charging barrel mounting seat (6) is provided with symmetrical supporting parts (61), the supporting parts (61) penetrate through the mounting disc (43) from bottom to top, and the screw (51) penetrates between the two supporting parts (61).
10. The double-color quantitative extrusion splitting machine for cosmetic powder according to claim 4, wherein: and one end of the transverse connecting pipe (42) close to the conveying belt (2) is connected with a mold core (7) in a sealing way.
