Abstract
本实用新型公开了一种智慧社区物业管理用显示屏，包括安装座和显示屏，所述安装座内部底端设有第一转杆，所述第一转杆一端与安装座一侧内壁转动连接，且第一转杆另一端延伸位于安装座外部并连接有电机，所述第一转杆上固定连接有一号锥齿轮，所述安装座内部两侧均设有丝杆，所述丝杆一端通过轴承与安装座内部顶端转动连接。本实用新型通过将显示屏通过安装座与墙面固定连接，可以保证显示屏安装的稳定性，同时可以通过安装座内部设有的一号转杆和丝杆对显示屏的高度进行调节，灵活性好，通过设置清洁箱，可以利用电机转动带动一号转杆转动，使二号转杆转动，从而使清洁装置转动，利用清洁装置旋转对下降或者上升的显示屏进行清洁，清洁效果好。
The utility model discloses a display screen for property management in a smart community, comprising a mounting seat and a display screen. A first rotating rod is arranged at the inner bottom end of the mounting seat, and one end of the first rotating rod rotates with the inner wall of one side of the mounting seat. and the other end of the first rotating rod extends outside the mounting seat and is connected with a motor, a No. One end is rotatably connected to the inner top of the mounting seat through a bearing. The utility model can ensure the stability of the installation of the display screen by fixedly connecting the display screen to the wall through the mounting seat, and at the same time, the height of the display screen can be adjusted through the No. By setting the cleaning box, the rotation of the motor can be used to drive the rotation of the No. 1 rotating rod, and the No. 2 rotating rod can be rotated, so that the cleaning device can be rotated, and the descending or rising display screen can be cleaned by the rotation of the cleaning device, and the cleaning effect is good.
Description
Technical Field
The utility model relates to a relevant technical field of display screen specifically is a display screen is used in property management of wisdom community.
Background
The display screen is also called a display, belongs to the I/O equipment of a computer, namely input/output equipment, and is a display tool which displays a certain electronic file on a screen through specific transmission equipment and reflects the electronic file to human eyes.
However, the conventional display screen for property management has the following disadvantages: the most direct fixed mounting of display screen is on the wall, highly be not convenient for adjust, and the display screen uses the back surface can the adhesion dust for a long time, influences the effect of publicity, because the display screen position is higher, is not convenient for to clean, and current display screen mount pad does not possess self-cleaning device, influences the use, needs improve.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a wisdom community display screen for property management to solve the most direct fixed mounting of current display screen that mentions in the above-mentioned background art on the wall, highly be not convenient for adjust, and the display screen uses the rear surface for a long time can the adhesion dust, influence the effect of publicity, because the display screen position is higher, be not convenient for to cleaning, and current display screen mount pad does not possess self-cleaning device, influences the problem of using.
In order to achieve the above object, the utility model provides a following technical scheme: a display screen for smart community property management comprises a mounting seat and a display screen, wherein a first rotating rod is arranged at the bottom end inside the mounting seat, one end of the first rotating rod is rotatably connected with the inner wall of one side of the mounting seat, the other end of the first rotating rod extends out of the mounting seat and is connected with a motor, a first bevel gear is fixedly connected onto the first rotating rod, lead screws are arranged on two sides inside the mounting seat, one end of each lead screw is rotatably connected with the top end inside the mounting seat through a bearing, a second bevel gear is fixedly connected onto the other end of each lead screw, the second bevel gear is meshed with the first bevel gear, lead screw nuts are arranged on the lead screws, the lead screw nuts are fixedly connected with one side of the upper end of the display screen, a cleaning box is arranged on one side of the mounting seat, the display screen is arranged between the cleaning box and the mounting seat, and two ends of the cleaning, the inside both ends of cleaning box all are equipped with the second bull stick, be connected with driving belt on the second bull stick, driving belt passes the connecting seat and is connected with first bull stick, second bull stick one end is connected with cleaning box one side inner wall rotation, and second bull stick other end fixedly connected with third bevel gear, No. three bevel gear meshes and is connected with No. four bevel gears, No. four bevel gear one side fixedly connected with pivot, the pivot rotates with cleaning box to be connected, and pivot one end extends and is located the cleaning box outside and is connected with cleaning device, cleaning device and display screen surface contact.
Preferably, a sliding block is installed on one side of the display screen, and a sliding groove matched with the sliding block is formed in the surface of the installation seat.
Preferably, the two sides of the surface of the mounting seat are provided with through grooves, and the lead screw nut extends to be located outside the through grooves.
Preferably, belt pulleys are arranged on the first rotating rod and the second rotating rod, and the transmission belt is connected with the first rotating rod and the second rotating rod through the belt pulleys.
Preferably, the diameter of the first bevel gear is smaller than that of the second bevel gear, and the diameter of the third bevel gear is larger than that of the fourth bevel gear.
Preferably, the cleaning device adopts a cleaning soft brush or cleaning cotton.
Preferably, the mounting seat is fixedly connected with the wall surface through a bolt.
The utility model provides a wisdom community display screen for property management possesses following beneficial effect:
(1) the utility model discloses a pass through mount pad and wall fixed connection with the display screen, can guarantee the stability of display screen installation, can adjust the height of display screen through a bull stick and the lead screw that the mount pad is inside to be equipped with simultaneously, the flexibility is good, convenient to use.
(2) The utility model discloses a set up the clean case, can be through starter motor, utilize the motor to rotate and drive a bull stick and rotate to make a bull stick drive No. two bull sticks and rotate, thereby make clean rotation, utilize the cleaning device rotation to clean descending or ascending display screen, clean effectual, convenient to use.
Drawings
Fig. 1 is a schematic view of the overall structure of the present invention;

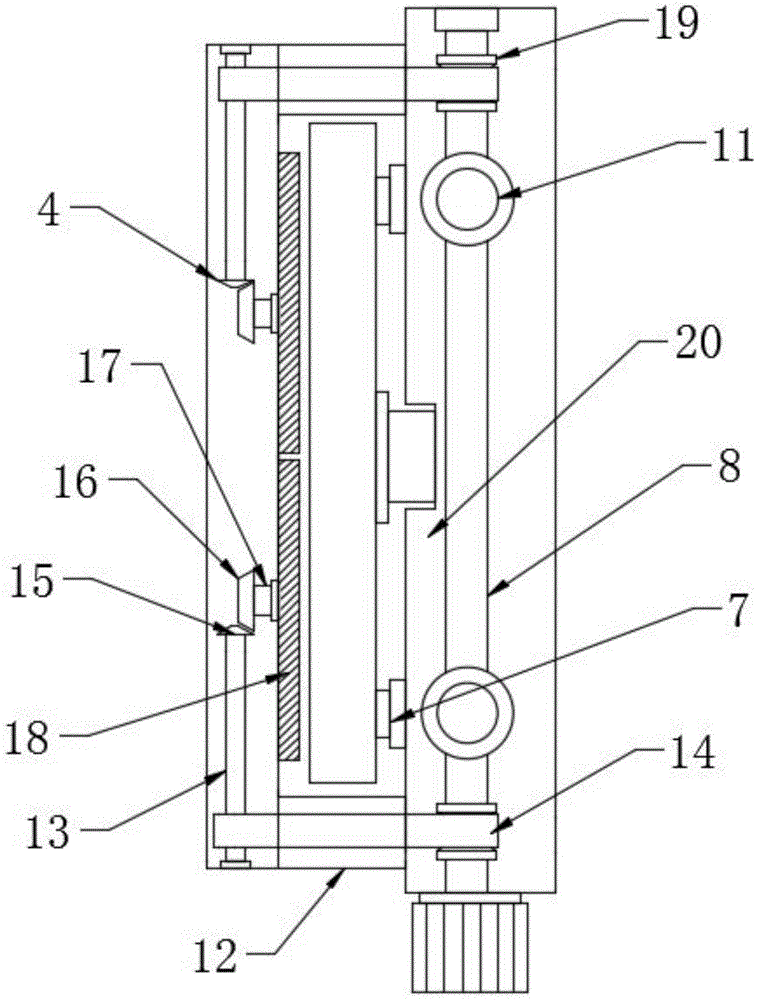

fig. 2 is a schematic top view structure of the present invention;
FIG. 3 is a schematic view of the internal structure of the mounting base of the present invention;
fig. 4 is a schematic structural diagram of a front view of the mounting seat of the present invention.
In the figure: 1. a mounting seat; 2. a display screen; 3. a motor; 4. a cleaning tank; 5. a chute; 6. a screw rod; 7. a feed screw nut; 8. a first rotating lever; 9. a first bevel gear; 10. a second bevel gear; 11. a bearing; 12. a connecting seat; 13. a second rotating rod; 14. a drive belt; 15. a third bevel gear; 16. a fourth bevel gear; 17. a rotating shaft; 18. a cleaning device; 19. a belt pulley; 20. a slider; 21. a through groove.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
As shown in fig. 1-4, the utility model provides a technical solution: a display screen for smart community property management comprises a mounting seat 1 and a display screen 2, wherein a first rotating rod 8 is arranged at the bottom end inside the mounting seat 1, one end of the first rotating rod 8 is rotatably connected with the inner wall of one side of the mounting seat 1, the other end of the first rotating rod 8 extends out of the mounting seat 1 and is connected with a motor 3, a first bevel gear 9 is fixedly connected onto the first rotating rod 8, lead screws 6 are arranged on two sides inside the mounting seat 1, one end of each lead screw 6 is rotatably connected with the top end inside the mounting seat 1 through a bearing 11, a second bevel gear 10 is fixedly connected with the other end of each lead screw 6, the second bevel gear 10 is meshed with the first bevel gear 9, a lead screw nut 7 is arranged on each lead screw 6, the lead screw nut 7 is fixedly connected with one side of the upper end of the display screen 2, a cleaning box 4 is arranged on one side of the mounting seat 1, the display screen 2 is positioned between the cleaning box, cleaning box 4 both ends all are through connecting seat 12 and 1 fixed connection of mount pad, the inside both ends of cleaning box 4 all are equipped with second bull stick 13, be connected with drive belt 14 on the second bull stick 13, drive belt 14 passes connecting seat 12 and is connected with first bull stick 8, second bull stick 13 one end is connected with cleaning box 4 one side inner wall rotation, and 13 other end fixedly connected with bevel gear No. three 15 of second bull stick, bevel gear No. three 15 meshes and is connected with bevel gear No. four 16, bevel gear No. four 16 one side fixedly connected with pivot 17, pivot 17 rotates with cleaning box 4 to be connected, and 17 one end of pivot extends to be located cleaning box 4 outside and be connected with cleaning device 18, cleaning device 18 and 2 surface contact of display screen.
A sliding block 20 is installed on one side of the display screen 2, and a sliding groove 5 matched with the sliding block 20 is formed in the surface of the installation base 1, so that the sliding block 20 can slide in the sliding groove 5 when the display screen 2 is lifted, and the lifting stability is improved; through grooves 21 are formed in the two sides of the surface of the mounting seat 1, and the lead screw nut 7 extends out of the through grooves 21, so that the lead screw nut 7 can drive the display screen 2 to move up and down when moving up and down; the first rotating rod 8 and the second rotating rod 13 are both provided with belt pulleys 19, the transmission belt 14 is connected with the first rotating rod 8 and the second rotating rod 13 through the belt pulleys 19, and the first rotating rod 8 can be utilized to rotate, so that the belt pulleys 19 drive the second rotating rod 13 to rotate; the diameter of the first bevel gear 9 is smaller than that of the second bevel gear 10, the diameter of the third bevel gear 15 is larger than that of the fourth bevel gear 16, so that the screw rod 6 can rotate slowly, the display screen 2 can lift stably at a constant speed, the rotating speed of the cleaning device 18 can be ensured to be high, and the cleaning effect is good; the cleaning device 18 adopts a cleaning soft brush or cleaning cotton, and the surface of the display screen 2 can be cleaned by the cleaning soft brush or the cleaning cotton; the mounting seat 1 is fixedly connected with the wall surface through bolts, and the mounting stability of the mounting seat 1 can be guaranteed.
It should be noted that, when the display screen for the property management of the smart community works, the display screen 2 can be fixedly connected with the screw rod nut 7 through the connecting piece, then the mounting base 1 is integrally and fixedly connected with the wall surface through the bolt, when the surface of the display screen 2 needs to be cleaned, the motor 3 is utilized to rotate forward to drive the first rotating rod to rotate, the first bevel gear 9 is meshed with the second bevel gear 10 to rotate while the first rotating rod rotates, so that the screw rod 6 rotates forward, the screw rod nut 7 moves downwards to enable the display screen 2 to slowly and stably move downwards, the sliding block 20 slides downwards in the sliding groove 5 while the display screen 2 moves downwards, the first rotating rod drives the second rotating rod to rotate through the transmission belt 14, the second rotating rod is meshed with the fourth bevel gear 16 through the third bevel gear 15 to rotate, so that the rotating shaft 17 drives the cleaning device 18 to rotate, and the cleaning device 18 is utilized to clean the surface of the display screen 2 moving downwards, after the display screen 2 moves down to the fixed position, utilize the motor 3 reversal to make the screw-nut 7 drive the display screen 2 and slowly shift up and reset, cleaning device 18 can carry out the secondary to the display screen 2 that rises simultaneously and clean effectually, convenient to use guaranteeing.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a wisdom community display screen for property management, includes mount pad (1) and display screen (2), its characterized in that: a first rotating rod (8) is arranged at the bottom end inside the mounting seat (1), one end of the first rotating rod (8) is rotatably connected with the inner wall of one side of the mounting seat (1), the other end of the first rotating rod (8) extends out of the mounting seat (1) and is connected with a motor (3), a first bevel gear (9) is fixedly connected onto the first rotating rod (8), lead screws (6) are arranged on two sides inside the mounting seat (1), one end of each lead screw (6) is rotatably connected with the top end inside the mounting seat (1) through a bearing (11), a second bevel gear (10) is fixedly connected onto the other end of each lead screw (6), the second bevel gear (10) is meshed with the first bevel gear (9), a lead screw nut (7) is arranged on each lead screw (6), the lead screw nut (7) is fixedly connected with one side of the upper end of the display screen (2), a cleaning box (4) is arranged on one side of the mounting seat (1), the display screen (2) is positioned between the cleaning box (4) and the mounting seat (1), two ends of the cleaning box (4) are fixedly connected with the mounting seat (1) through connecting seats (12), two ends of the interior of the cleaning box (4) are respectively provided with a second rotating rod (13), the second rotating rods (13) are connected with a transmission belt (14), the transmission belt (14) penetrates through the connecting seats (12) to be connected with the first rotating rods (8), one end of each second rotating rod (13) is rotatably connected with the inner wall of one side of the cleaning box (4), the other end of each second rotating rod (13) is fixedly connected with a third bevel gear (15), the third bevel gear (15) is connected with a fourth bevel gear (16) in a meshed manner, one side of the fourth bevel gear (16) is fixedly connected with a rotating shaft (17), the rotating shaft (17) is rotatably connected with the cleaning box (4), one end of the rotating shaft (17) extends to be positioned outside the cleaning box (4) and is connected with a cleaning device (18, the cleaning device (18) is in surface contact with the display screen (2).
2. The smart community property management display screen of claim 1, wherein: a sliding block (20) is installed on one side of the display screen (2), and a sliding groove (5) matched with the sliding block (20) is formed in the surface of the installation seat (1).
3. The smart community property management display screen of claim 1, wherein: through grooves (21) are formed in two sides of the surface of the mounting seat (1), and the lead screw nut (7) extends to be located outside the through grooves (21).
4. The smart community property management display screen of claim 1, wherein: all be equipped with belt pulley (19) on first bull stick (8) and second bull stick (13), driving belt (14) are connected with first bull stick (8) and second bull stick (13) through belt pulley (19).
5. The smart community property management display screen of claim 1, wherein: the diameter of the first bevel gear (9) is smaller than that of the second bevel gear (10), and the diameter of the third bevel gear (15) is larger than that of the fourth bevel gear (16).
6. The smart community property management display screen of claim 1, wherein: the cleaning device (18) adopts a cleaning soft brush or cleaning cotton.
7. The smart community property management display screen of claim 1, wherein: the mounting seat (1) is fixedly connected with the wall surface through bolts.
