Abstract
本实用新型公开一种具有减震功能的地源热泵机房，包括基座和外壳，基座为立方体结构，基座上设置有外壳，还设置有安装板，安装板为矩形平板，安装板底面中心设置有承重块，基座上表面设置有承重槽，承重块可在承重槽内滑动，安装板两侧对称设置有接触块，接触块为立方体，接触块外侧面为倾斜表面，基座上对应接触块位置设置有凸起的滑动腔，滑动腔内滑动连接有滑动缓冲块，滑动缓冲块朝向接触块侧面倾斜且贴合接触块的倾斜表面；滑动缓冲块与滑动腔内朝向滑动腔开口的底面之间均匀设置有水平放置弹簧，承重块底面与承重槽底面之间均匀设置有竖直放置的弹簧。所述的具有减震功能的地源热泵机房，方便地源热泵机组安装，同时具有较好的减震作用。
The utility model discloses a ground source heat pump machine room with shock absorption function, which comprises a base and a casing, wherein the base is a cubic structure, the base is provided with a casing, and a mounting plate is also arranged, the mounting plate is a rectangular flat plate, and the bottom surface of the mounting plate is A load-bearing block is arranged in the center, a load-bearing groove is arranged on the upper surface of the base, and the load-bearing block can slide in the load-bearing groove. Contact blocks are symmetrically arranged on both sides of the mounting plate. The contact block is a cube, and the outer side of the contact block is an inclined surface. A convex sliding cavity is arranged corresponding to the position of the contact block, and a sliding buffer block is slidably connected in the sliding cavity. The sliding buffer block is inclined toward the side of the contact block and fits the inclined surface of the contact block; the sliding buffer block and the sliding cavity open toward the sliding cavity A horizontally placed spring is evenly arranged between the bottom surfaces of the load-bearing blocks, and a vertically placed spring is evenly arranged between the bottom surface of the load-bearing block and the bottom surface of the load-bearing groove. The ground source heat pump machine room with the shock absorption function is convenient for the installation of the ground source heat pump unit, and at the same time has a better shock absorption effect.
Description
Technical Field
The utility model belongs to the technical field of ground source heat pump equipment, specifically a ground source heat pump computer lab with shock-absorbing function.
Background
The ground source heat pump is a device for transferring low-grade heat energy to high-grade heat energy by inputting a small amount of high-grade energy into shallow land energy. The ground source heat pump unit comprises a compressor and other equipment, and vibrations of different degrees can be generated in the using process of the ground source heat pump unit, and the vibrations can cause certain damage to the ground source heat pump unit. Therefore, the damping device is required to be matched with the ground source heat pump unit for use, so that the damage of vibration to the ground source heat pump unit can be effectively reduced, and the service life of the ground source heat pump unit is prolonged. However, most of the existing damping devices need additional equipment to be independently installed and debugged, the installation is complex, the debugging process is complex, and the erection difficulty of the ground source heat pump unit is increased.
Disclosure of Invention
The purpose of the invention is as follows: the utility model aims at providing a ground source heat pump computer lab with shock-absorbing function to not enough in the prior art, make things convenient for ground source heat pump unit to install, have better cushioning effect simultaneously.
The technical scheme is as follows: in order to achieve the purpose, the utility model provides a ground source heat pump machine room with shock-absorbing function, which comprises a base and a shell, wherein the base is of a cubic structure, the shell is arranged on the base and is a hollow cube with a closed top, a mounting plate is arranged on the base and is a rectangular flat plate, a mounting hole for mounting a ground source heat pump unit is arranged on the mounting plate, a bearing block is arranged at the center of the bottom surface of the mounting plate, the bearing block is a cylinder with a rectangular or circular section, a bearing groove is arranged on the upper surface of the base, the bearing block can slide in the bearing groove, contact blocks are symmetrically arranged on two sides of the mounting plate, the contact blocks are cubes, the outer side surface of each contact block is an inclined surface, the inclined surface is gradually raised from inside to outside, a raised sliding cavity is arranged on the base corresponding to the position of each contact block, the sliding cavity, the sliding buffer block is connected in the sliding cavity in a sliding mode, faces to the side face of the contact block, is an inclined surface and is attached to the inclined surface of the contact block; the spring is placed to the level that evenly is provided with between the intracavity of sliding buffer block and the sliding cavity open-ended bottom surface, evenly is provided with the vertical spring of placing between bearing block bottom surface and the bearing groove bottom surface, all is provided with the reference column on sliding cavity bottom surface, sliding buffer block side, bearing block bottom surface and the bearing groove bottom surface with the location spring position, and the reference column is bellied cylinder, and the cover inlays at the spring inner circle.
As an improvement of the scheme, the surface of the base is provided with a sliding groove, the bottom of the sliding buffer block is provided with a roller, the roller can slide in the sliding groove, and then the sliding buffer block can slide along the direction of the sliding cavity.
As a modification of the scheme, a rubber cushion pad is arranged on the end face of the positioning column.
As an improvement of the scheme, the base is buried under the ground, and the shell is positioned on the ground.
As a modification of the scheme, the inner wall surface of the shell is adhered with silencing cotton.
Has the advantages that: a ground source heat pump computer lab with shock-absorbing function, its mounting panel lower part bearing block can slide in the bearing groove, is provided with the spring between bearing block and the bearing groove and cushions. The mounting panel both sides are provided with the contact piece, and when the mounting panel reciprocated, the contact piece can promote the slip buffer block and carry out the horizontal direction motion along the slip chamber, is provided with the spring between slip buffer block and the slip chamber and cushions. During actual installation, the ground source heat pump unit is directly installed on the installation plate, and independent buffer equipment does not need to be additionally installed, so that the ground source heat pump equipment is convenient to erect.
The ground source heat pump machine room with the damping function provides a platform with a buffering function for mounting a ground source heat pump unit, an independent damping device is not required to be additionally mounted, the mounting process of the ground source heat pump unit is reduced, the debugging time of independent damping equipment is saved, the erection speed of the ground source heat pump unit is greatly accelerated, and the erection efficiency is improved.
Drawings

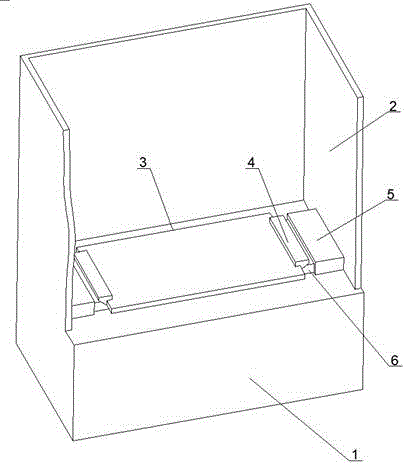

Fig. 1 is a schematic structural diagram of a ground source heat pump machine room with a shock absorption function;
fig. 2 is a schematic cross-sectional view of the ground source heat pump machine room with the shock absorption function;
FIG. 3 is a schematic diagram of the distribution of the springs of the sliding buffer block;
FIG. 4 is a schematic view of the distribution of the springs of the bearing blocks;
FIG. 5 is an enlarged view at A;
enlarged view at FIG. 6 and B;
FIG. 7 is a schematic view of the positioning post structure;
list of reference numerals: 1. a base; 2. a housing; 3. mounting a plate; 4. a contact block; 5. a sliding cavity; 6. a sliding buffer block; 7. a bearing block; 8. a load bearing groove; 9. a spring; 10. a positioning column; 11. a cushion pad; 12. a chute; 13. a roller; 14. and (3) soil.
Detailed Description
The present invention will be further illustrated with reference to the accompanying drawings and specific embodiments, which are to be understood as merely illustrative of the invention and not as limiting the scope of the invention. It should be noted that the terms "front," "back," "left," "right," "upper" and "lower" used in the following description refer to directions in the drawings, and the terms "inner" and "outer" refer to directions toward and away from, respectively, the geometric center of a particular component.
As shown in fig. 1, the ground source heat pump machine room with the shock absorption function comprises a base 1 and a shell 2, wherein the base 1 is of a cubic structure, the shell 2 is arranged on the base 1, the shell 2 is a hollow cube with a closed top, and silencing cotton is adhered to the surface of the inner wall of the shell 2. The top and front sides and parts of the sides of the housing 2 are removed in order to make the structure inside the housing 2 clear.
As shown in fig. 2, the base 1 is buried under the ground with the soil 14 around, and the housing 2 is located on the ground. The ground source heat pump unit installation structure comprises a base 1, wherein an installation plate 3 is arranged on the base 1, the installation plate 3 is a rectangular flat plate, an installation hole for installing a ground source heat pump unit is formed in the installation plate 3, a bearing block 7 is arranged in the center of the bottom surface of the installation plate 3, the bearing block 7 is a cylinder with a rectangular section, a bearing groove 8 is formed in the upper surface of the base 1, the bearing block 7 can slide in the bearing groove 8, contact blocks 4 are symmetrically arranged on two sides of the installation plate 3, each contact block 4 is a cube, the outer side surface of each contact block 4 is an inclined surface, the inclined surface gradually rises from inside to outside, a protruding sliding cavity 5 is arranged on the base 1 corresponding to the contact block 4, each sliding cavity 5 is a cube shell and is open towards the side surface of each contact block 4, a sliding buffer block 6 is connected in each sliding; evenly be provided with the level in the slip buffer block 6 and the slip chamber 5 and place spring 9 towards between the 5 open-ended bottom surfaces in slip chamber, evenly be provided with vertical spring 9 of placing between 7 bottom surfaces of bearing block and the 8 bottom surfaces of bearing groove, all be provided with reference column 10 on 5 bottom surfaces of slip chamber, the 6 side of slip buffer block, 7 bottom surfaces of bearing block and the 8 bottom surfaces of bearing groove and use the positioning spring 9 position, reference column 10 is bellied cylinder, and the cover inlays at the spring 9 inner circle. Fig. 6 illustrates a spring 9 between the bearing block 7 and the bearing groove 8 as an example, positioning pillars 10 are correspondingly disposed on the bottom surfaces of the bearing block 7 and the bearing groove 8, and two ends of the spring 9 are sleeved outside the positioning pillars 10. As shown in FIG. 3, there are two sliding buffer blocks 6 and two springs 9 in the sliding cavity 5, which are symmetrically distributed in the horizontal direction and the reverse direction. As shown in figure 4, 4 springs 9 are arranged between the bearing block 7 and the bearing groove 8 and are distributed in a central symmetry way.
As shown in fig. 5, the surface of the base 1 is provided with a sliding groove 12, the bottom of the sliding buffer block 6 is provided with a roller 13, the roller 13 can slide in the sliding groove 12, and the sliding buffer block 6 can slide along the direction of the sliding cavity 5.
As shown in fig. 7, a cushion pad 11 made of rubber is provided on an end surface of the positioning post 10. The damage caused by the fact that the positioning columns 10 are in hard contact with each other due to overlarge vibration amplitude is relieved.
The technical means disclosed in the invention scheme are not limited to the technical means disclosed in the above embodiments, but also include the technical scheme formed by any combination of the above technical features.
Claims (5)
1. The ground source heat pump machine room with the shock absorption function is characterized by comprising a base (1) and a shell (2), wherein the base (1) is of a cube structure, the shell (2) is arranged on the base (1), the shell (2) is a hollow cube with a closed top, a mounting plate (3) is arranged on the base (1), the mounting plate (3) is a rectangular flat plate, a mounting hole for mounting a ground source heat pump unit is formed in the mounting plate (3), a bearing block (7) is arranged at the center of the bottom surface of the mounting plate (3), the bearing block (7) is a cylinder with a rectangular or circular section, a bearing groove (8) is formed in the upper surface of the base (1), the bearing block (7) can slide in the bearing groove (8), contact blocks (4) are symmetrically arranged on two sides of the mounting plate (3), the contact blocks (4) are cubes, and the outer side surfaces of the contact blocks (4) are inclined surfaces, the inclined surface is gradually raised from inside to outside, a raised sliding cavity (5) is arranged on the base (1) corresponding to the contact block (4), the sliding cavity (5) is a cubic shell and is open towards the side surface of the contact block (4), a sliding buffer block (6) is connected in the sliding cavity (5) in a sliding manner, and the side surface of the sliding buffer block (6) facing the contact block (4) is an inclined surface and is attached to the inclined surface of the contact block (4); evenly be provided with level between slip chamber (5) open-ended bottom surface in slip buffer block (6) and slip chamber (5) and place spring (9), evenly be provided with vertical spring (9) of placing between bearing block (7) bottom surface and bearing groove (8) bottom surface, slip chamber (5) bottom surface, slip buffer block (6) side, all be provided with reference column (10) on bearing block (7) bottom surface and bearing groove (8) bottom surface and use positioning spring (9) position, reference column (10) are bellied cylinder, the cover inlays in spring (9) inner circle.
2. The ground source heat pump machine room with the shock absorption function as claimed in claim 1, wherein: the surface of the base (1) is provided with a sliding groove (12), the bottom of the sliding buffer block (6) is provided with a roller (13), the roller (13) can slide in the sliding groove (12), and then the sliding buffer block (6) can slide along the direction of the sliding cavity (5).
3. The ground source heat pump machine room with the shock absorption function as claimed in claim 2, wherein: the end face of the positioning column (10) is provided with a rubber cushion pad (11).
4. The ground source heat pump machine room with the shock absorption function as claimed in claim 3, wherein: the base (1) is buried under the ground, and the shell (2) is located on the ground.
5. The ground source heat pump machine room with the shock absorption function as claimed in claim 4, wherein: and silencing cotton is adhered to the surface of the inner wall of the shell (2).
