CN210241218U - An OLED indoor lighting fixture - Google Patents
An OLED indoor lighting fixture Download PDFInfo
- Publication number
- CN210241218U CN210241218U CN201921291375.2U CN201921291375U CN210241218U CN 210241218 U CN210241218 U CN 210241218U CN 201921291375 U CN201921291375 U CN 201921291375U CN 210241218 U CN210241218 U CN 210241218U
- Authority
- CN
- China
- Prior art keywords
- oled
- lighting fixture
- indoor lighting
- lamp
- slot
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/30—Semiconductor lamps, e.g. solid state lamps [SSL] light emitting diodes [LED] or organic LED [OLED]
Landscapes
- Non-Portable Lighting Devices Or Systems Thereof (AREA)
Abstract
本实用新型提供了一种OLED室内照明灯具，适应于照明灯技术领域的生产与应用，OLED室内照明灯具包括，灯体，灯体包括通过螺栓固定在其底部的安装板，安装板底部左侧开有槽口，且槽口内壁开有侧槽，槽口顶部通过金属胶粘接固定有镍板，且槽口中布置有与其匹配的磁吸板，磁吸板前端贯穿有至其后端的杆体，本实用新型的有益效果在于：通过设置磁吸板、镍板以及杆体，能够方便安装人员进行安装工作，同时通过设置外环体、环形罩以及弹簧柱，在保证安装稳固的前提下，有效的减少的螺栓的使用，提升了该种OLED室内照明灯具的美观性和便装性，解决了现有的OLED室内照明灯具美观性低和不便于安装的问题。
The utility model provides an OLED indoor lighting fixture, which is suitable for production and application in the technical field of lighting lamps. The OLED indoor lighting fixture comprises a lamp body. The lamp body comprises a mounting plate fixed on the bottom of the lamp by bolts. The left side of the bottom of the mounting plate There is a slot, and the inner wall of the slot has a side slot, the top of the slot is fixed with a nickel plate by metal glue, and a matching magnetic plate is arranged in the slot, and the front end of the magnetic plate runs through the rod body to the rear end. , the beneficial effect of the utility model is: by setting the magnetic suction plate, the nickel plate and the rod body, it can facilitate the installation personnel to carry out the installation work, and at the same time, by setting the outer ring body, the annular cover and the spring column, on the premise of ensuring the installation stability, effectively The use of the reduced bolts improves the aesthetics and convenience of the OLED indoor lighting fixture, and solves the problems of low aesthetics and inconvenient installation of the existing OLED indoor lighting fixture.
Description
Technical Field
The utility model belongs to the technical field of the light technique and specifically relates to a OLED indoor lighting lamp is related to.
Background
The lighting lamp has a plurality of varieties, such as a ceiling lamp, a desk lamp, a floor lamp, a wall lamp and a spot lamp, the lighting lamp is not only limited to illumination but also can be used for household eyes, and the lighting lamp plays a role in decoration in more times.
When the lamp shade is installed, in order to enable the lamp shade to be installed more stably with the illuminating lamp, the existing illuminating lamp is usually installed through bolts, the stability is good, the appearance is not attractive enough, meanwhile, the installing position of the illuminating lamp is high, the installing personnel are very inconvenient to install, some small screws need to be carried by the installing personnel, the screws drop easily during installation, and the installing personnel are inconvenient to install.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is: the OLED indoor lighting lamp solves the problems that an existing OLED indoor lighting lamp is low in attractiveness and inconvenient to install.
The to-be-solved technical problem of the utility model adopts following technical scheme to realize: an OLED indoor lighting fixture comprising:
the lamp body comprises a mounting plate fixed at the bottom of the lamp body through a bolt, the left side of the bottom of the mounting plate is provided with a notch, and the inner wall of the notch is provided with a side groove, the top of the notch is fixedly connected with a nickel plate through metal glue, and a magnetic suction plate matched with the notch is arranged in the notch, a rod body penetrating to the rear end of the magnetic suction plate is arranged at the front end of the magnetic suction plate, and two ends of the rod body are inserted into the side grooves, the outer ring body fixed with the mounting plate through screws is surrounded on the periphery of the lamp body, the top of the outer ring body is provided with an annular groove, the outer wall of the outer ring body is provided with four hole sites which are uniformly distributed and communicated with the annular groove, a lampshade is arranged above the outer ring body, and the lampshade comprises an annular cover which is positioned at the bottom of the lampshade and is integrated with the lampshade, four necking mouths which are uniformly distributed are formed in the outer wall of the annular cover, and spring columns are embedded into the necking mouths.
Preferably, the magnetic suction plate is movably connected with the side groove through a rod body.
Preferably, the surfaces of the lampshade and the annular cover are adhered with films.
Preferably, the annular cover is matched with the annular groove, and the surface of the annular cover and the inside of the annular groove are uniformly distributed with matched grains.
Preferably, the diameter of the spring post is equal to the diameter of the hole site.
Preferably, the lamp body is composed of an OLED lamp tube and a lamp housing.
Compared with the prior art, the beneficial effects of the utility model are that: through setting up magnetism suction disc, nickel plate and the body of rod, can make things convenient for the installer to carry out installation work, simultaneously through setting up outer annular body, annular cover and spring post, under the firm prerequisite of guaranteeing the installation, the use of the bolt of effectual reduction has promoted the aesthetic property and the just dress nature of this kind of OLED indoor lighting lamp.
Drawings

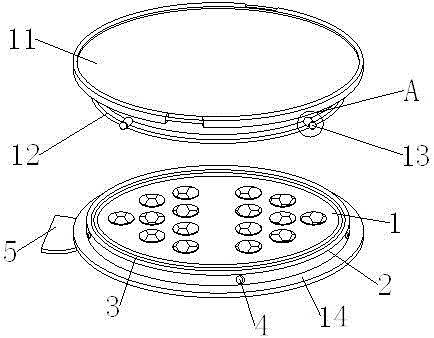

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic enlarged view of a part a of the spring post in the structure diagram 1 of the present invention.
Fig. 3 is a schematic view of the bottom split between the structure mounting plate and the magnetic attraction plate of the present invention.
The labels in the figure are: 1-lamp body, 2-outer ring body, 3-annular groove, 4-hole site, 5-magnetic attraction plate, 6-notch, 7-nickel plate, 8-side groove, 9-rod body, 10-necking, 11-lampshade, 12-annular cover, 13-spring column and 14-mounting plate.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is described in detail below with reference to the accompanying drawings and specific embodiments, and it should be understood that the specific embodiments described herein are only used for explaining the present invention and are not used for limiting the present invention.
the lamp body 1, the lamp body 1 includes the mounting panel 14 of bolt fastening in its bottom, open on the left of mounting panel 14 bottom has notch 6, and the side slot 8 has been opened to notch 6 inner wall, notch 6 top is fixed with nickel board 7 through the metal cement bonding, and arrange in the notch 6 rather than the magnetic board 5 of inhaling of matching, the front end of magnetic board 5 runs through the body of rod 9 to its rear end, and the body of rod 9 both ends are pegged graft in the side slot 8, magnetic board 5 is through body of rod 9 and side slot 8 swing joint, installer when carrying out the installation work, can install mounting panel 14 to the erection point earlier, then stimulate magnetic board 5 left, magnetic board 5 can be through the body of rod 9 along the side slot 8 activity to pull out from notch 6, after pulling out one end distance magnetic board 5, make magnetic board 5 and nickel board 7 actuation together, thereby make magnetic board 5 be difficult for rocking after pulling out, the installer can lay small parts such as screws required to be used during installation on the magnetic attraction plate 5, the screws can be adsorbed on the magnetic attraction plate 5, after the installation, the magnetic attraction plate 5 is pushed rightwards to the notch 6, the clamping can be carried out, the appearance is not influenced, and the installer can carry out installation work conveniently.
In embodiment 2, as shown in fig. 1-2, an outer ring body 2 fixed to the mounting plate 14 through screws is surrounded on the outer circumference of the lamp body 1, the top of the outer ring body 2 is provided with an annular groove 3, the outer wall of the outer ring body 2 is provided with four hole sites 4 uniformly arranged and communicated with the annular groove 3, a lamp shade 11 is arranged above the outer ring body 2, the lamp shade 11 includes an annular cover 12 integrally arranged at the bottom thereof, the annular cover 12 is matched with the annular groove 3, the surface of the annular cover 12 and the inside of the annular groove 3 are uniformly distributed with engaged grains, the outer wall of the annular cover 12 is provided with four uniformly arranged necking openings 10, spring posts 13 are embedded in the necking openings 10, the diameter of the spring posts 13 is equal to the diameter of the hole sites 4, and an installer can press the spring posts 13 inwards when installing the lamp shade 11, the spring column 13 is retracted into the throat 10, then the annular cover 12 is rotated into the annular groove 3, when the spring column 13 rotates together with the annular cover 12 to correspond to the hole site 4, the spring column 13 will pop out immediately and be clamped into the hole site 4, so that the annular cover 12 and the lampshade 11 are limited, the annular cover 12 and the lampshade 11 are not easy to fall off, and the stability is good.
The surfaces of the lampshade 11 and the annular cover 12 are attached with films, and the films can reduce the abrasion to the surfaces of the lampshade 11 and the annular cover 12 in the installation work.
The lamp body 1 is composed of an OLED lamp tube and a lamp shell, and the energy consumption of the OLED lamp tube is low, so that excessive energy can not be consumed even if the lamp body 1 is used for a long time.
The above description is only exemplary of the present invention and should not be taken as limiting, and all changes, equivalents, and improvements made within the spirit and principles of the present invention should be understood as being included in the scope of the present invention.
