Abstract
本实用新型公开了一种新型棕榈叶人造板，包括经干燥脱脂处理的粽叶碎屑层，所述粽叶碎屑层内间隔嵌装若干由粽叶木质部加工成的支撑骨架；所述粽叶碎屑层两侧均设置有棕叶木质部碎屑层和纤维板压层；所述棕叶木质部碎屑层由加工支撑骨架后的余料粉碎胶合而成。本实用新型充分利用了棕榈叶、棕榈叶叶柄的木质部以及加工木质部产生的碎屑分别制成棕叶碎屑层、支撑骨架和棕叶木质部碎屑层，支撑骨架可以保证棕叶碎屑层也拥有良好的韧性和抗压强度，同时其亦具备良好的保温性能，两侧设置纤维板压层不仅保证其外观，亦可降低其材料的要求，例如竹木板，力求整体均采用再生能力强的材料制造而成。
The utility model discloses a new type of palm leaf artificial board, which comprises a dried and degreasing treated zongzi leaf debris layer, wherein a plurality of supporting frames processed from the xylem of the zong leaf are embedded in the said zong leaf scrap layer at intervals; Both sides of the leaf debris layer are provided with a palm leaf xylem debris layer and a fiberboard laminate; the palm leaf xylem debris layer is formed by pulverizing and gluing the remaining materials after processing the supporting skeleton. The utility model makes full use of the palm leaf, the xylem of the palm leaf petiole and the debris produced by processing the xylem to form the palm leaf debris layer, the supporting skeleton and the palm leaf xylem debris layer, respectively, and the supporting framework can ensure that the palm leaf debris layer is also It has good toughness and compressive strength, and it also has good thermal insulation performance. The fiberboard laminates on both sides not only ensure its appearance, but also reduce the requirements of its materials, such as bamboo boards, and strive to use materials with strong recyclability as a whole. manufactured.
Description
Technical Field
The utility model relates to an wood-based plate technical field, in particular to palm leaf wood-based plate.
Background
With the improvement of consumption consciousness of people at present, more and more places are paid attention to furniture, floors, wallboards and the like which are made of original ecological materials, the traditional wood materials are short in supply and demand due to the fact that the timber forming time is long and the demand is gradually increased, and natural disasters can be caused due to over-exploitation. The palm and the evergreen arbor are 10m in height, the leaves can be harvested for several times in one year, the quantity is large, the leaves fall behind and the petioles fall down along with the leaves, the palm and the evergreen arbor are widely planted along the coastal zone, the growth period is short, and if the leaves and the leaf diameters can be used as raw materials to manufacture artificial boards, a large amount of wood consumption can be saved.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to provide a novel palm leaf wood-based plate of making by palm leaf and petiole as the main material.
The technical scheme of the utility model is that:
a novel artificial palm leaf board comprises a dry and degreased reed leaf fragment layer, wherein a plurality of supporting frameworks processed by reed leaf xylem are embedded at intervals in the reed leaf fragment layer; palm leaf xylem fragment layers and fiberboard laminated layers are arranged on the two sides of the reed leaf fragment layers; the palm leaf xylem chipping layer is formed by smashing and gluing excess materials after the supporting framework is processed.
Further, the upper side of the laminated surface of the fiber board is polished.
Further, the polished surface of the fiber board lamination layer is coated with a coating slurry or a varnish layer.
Furthermore, the fiberboard laminated layer is formed by hot-pressing and gluing a plurality of tiled bamboo strips.
The utility model discloses an useful part lies in:
the utility model discloses palm leaf, palm leaf petiole's xylem and the piece that processing xylem produced make palm leaf piece layer, support chassis and palm leaf xylem piece layer respectively, support chassis can guarantee that palm leaf piece layer also possesses good toughness and compressive strength, it also possesses good thermal insulation performance simultaneously, both sides set up the fiberboard and press the layer and not only guarantee its outward appearance, the requirement of its material of also reducing, bamboo plank for example, strive for whole material manufacturing that all adopts the regeneration ability to be strong and form.
Drawings

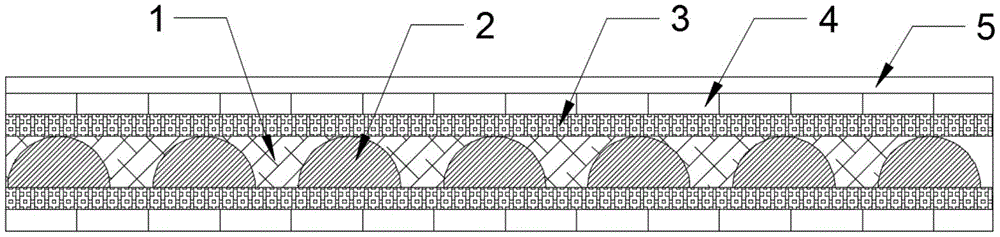

Fig. 1 is a schematic structural diagram of the present invention.
In the figure: 1-palm leaf scrap layer, 2-supporting framework, 3-palm leaf xylem scrap layer, 4-fiberboard laminated layer and 5-varnish layer.
Detailed Description
The following describes the present invention with reference to the accompanying drawings. It should be noted that the description of the embodiments is provided to help understanding of the present invention, but the present invention is not limited thereto. In addition, the technical features related to the embodiments of the present invention described below may be combined with each other as long as they do not conflict with each other.
As shown in fig. 1:
a novel palm leaf artificial board comprises a reed leaf fragment layer 1 which is subjected to drying and degreasing treatment, wherein a plurality of supporting frameworks 2 processed by reed leaf xylem are embedded in the reed leaf fragment layer 1 at intervals; palm leaf xylem scrap layers 3 and fiberboard laminated layers 4 are arranged on the two sides of the reed leaf scrap layer 1; the palm leaf xylem chip layer 3 is formed by crushing and gluing excess materials after the support framework 2 is processed.
Specifically, the cross section of the supporting framework 2 is processed into a semicircular shape, and because the shape of the xylem of the petiole of the palm leaf is close to the shape of a circular arc, the circular arc is processed into the shape of the circular arc, so that the maximum cross section can be reserved, the strength is increased, and the semicircular stress dispersion effect is good and the pressure resistance is realized.
Specifically, the upper fiberboard laminate 4 is surface-polished.
Specifically, the surface of the polished fiber board laminated layer 4 is coated with a coating slurry or a varnish layer 5.
Specifically, the fiberboard laminated layer 4 is formed by hot-pressing and gluing a plurality of tiled bamboo strips, and may also be made of wattle or wood strips.
The utility model discloses wholly adopt present ripe veneer hot pressing technique preparation can, recommend to use the glue that ageing resistance and waterproof nature are good, for example phenol-formaldehyde resin or epoxy.
The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the described embodiments. It will be apparent to those skilled in the art that various changes, modifications, substitutions and alterations can be made in the embodiments without departing from the principles and spirit of the invention, and the scope of the invention is to be accorded the full scope of the claims.
Claims (4)
1. A novel palm leaf artificial board is characterized in that: the bamboo leaf support frame comprises a bamboo leaf scrap layer (1) which is subjected to drying and degreasing treatment, wherein a plurality of support frames (2) processed by a bamboo leaf xylem are embedded in the bamboo leaf scrap layer (1) at intervals; palm leaf xylem scrap layers (3) and fiberboard laminated layers (4) are arranged on the two sides of the reed leaf scrap layer (1); the palm leaf xylem chip layer (3) is formed by crushing and gluing excess materials after the support framework (2) is processed.
2. The novel artificial palm leaf board of claim 1, wherein: the surface of the upper fiber board laminated layer (4) is polished.
3. The novel artificial palm leaf board of claim 2, wherein: the surface of the polished fiber board laminated layer (4) is coated with a coating slurry or a varnish layer (5).
4. The novel artificial palm leaf board of claim 1, wherein: the fiberboard laminated layer (4) is formed by hot-pressing and gluing a plurality of tiled bamboo strips.
