Abstract
The utility model discloses a water seepage and drainage structure for roof landscape of a house, which comprises a roof, a planting structure and a water tank, wherein the planting structure is arranged above the roof, the planting structure comprises a bottom plate, side plates and a baffle plate, the side plates are symmetrically arranged on the left and right of the upper end of the bottom plate, a plurality of water permeable holes are arranged on the upper end of the bottom plate, a plurality of drain holes are arranged on the lower end of the bottom plate, four drain holes are arranged on the lower end of the bottom plate, a drain cover is arranged at the position of the lower end of the bottom plate corresponding to the drain holes, the lower end of the drain cover is connected with a drain pipe, the water tank is arranged on the right of the planting structure, the left end of the water tank is communicated with one end of a water delivery pipe, the other end of the water delivery pipe is communicated with four drain pipes, the water penetrates out excessive water through geotextile, then flows into, saving water resources.
Description
Technical Field
The utility model relates to a drainage technical field specifically is a seepage drainage structures for house roof view.
Background
Roof greening increases urban green land area and improves the increasingly deteriorated human living environment space; the method improves the stand of urban high-rise buildings and the current situation of natural land and plants which are replaced by hard pavement of a plurality of roads; the damage to human beings caused by excessive cutting down of natural forests, urban heat island effect caused by pollution of various waste gases, sand storm and the like is improved; the method has the advantages of developing the greening space of human beings, building a rural city, improving the living conditions of people, improving the quality of life, beautifying the urban environment and improving the ecological effect.
Because these afforestation measures are gone on waterproof building basis mostly, must appear the too much problem that can't permeate in time and get rid of rainwater when raining greatly, the rainwater of discharging can't obtain reuse simultaneously, the water resource is wasted. Accordingly, those skilled in the art have provided a seepage and drainage structure for roof landscapes of houses to solve the problems set forth in the above background art.
Disclosure of Invention
An object of the utility model is to provide a ooze drainage structures for house roof view to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a water seepage and drainage structure for house roof landscape comprises a roof, planting structures and a water tank, wherein the planting structures are arranged above the roof and comprise bottom plates, side plates and baffle plates, the side plates are symmetrically arranged on the left and right sides of the upper end of the bottom plate, the baffle plates are symmetrically arranged on the front and back sides of the upper end of the bottom plate, the left ends and the right ends of the two baffle plates are respectively and fixedly connected with the inner ends of the two side plates, geotextile is laid on the upper end of the bottom plate, a soil layer is arranged on the upper end of the geotextile, the height of the soil layer is lower than that of the side plates and the;
the upper end of the bottom plate is provided with a plurality of water permeable holes, the lower end of the bottom plate is provided with a plurality of drain holes, the number of the drain holes is four, a drain cover is arranged at the position of the lower end of the bottom plate corresponding to the drain holes, and the lower end of the drain cover is connected with a drain pipe;
roof upper end sets up the water tank, and the water tank is located the planting structure right-hand, and the water tank left end communicates raceway one end, and four drain pipes of raceway other end intercommunication, water tank upper end erection bracing frame, the spray gun has been placed to the support frame upper end, and water tank right-hand member installation water pump, water pump upper end intercommunication spray pipe one end, the spray pipe other end intercommunication spray gun right-hand member, water pump lower extreme intercommunication drinking-water pipe one end, the drinking-water pipe other end intercommunication water tank right-hand member.
As a further aspect of the present invention: a set of fixed block of planting structure lower extreme bilateral symmetry installation, and the fixed block lower extreme has seted up the fixed slot, and the bracing piece is connected in the fixed slot of fixed block lower extreme, and the roof is connected to the bracing piece lower extreme, fixedly connected with connecting rod between the bracing piece.
As a further aspect of the present invention: the side surfaces of the periphery of the planting structure correspond to the side plates and the baffle plates, a water collecting tank is arranged, the upper end of the water collecting tank and the upper end of the planting structure are on the same horizontal line, the lower end of the water collecting tank is communicated with one end of a water distribution pipe, and the other end of the water distribution pipe is communicated with a water delivery pipe.
As a further aspect of the present invention: the water tank inner wall bilateral symmetry installation slide rail, and the slide rail is located the raceway below, is equipped with the filter between two slide rails, and filter and slide rail sliding connection.
As a further aspect of the present invention: the rear end of the water tank is provided with a sliding door corresponding to the filter plate, the left end of the sliding door is provided with a hinge, the sliding door is rotatably connected with the water tank through the hinge, and the right part of the rear end of the sliding door is provided with a key lock.
As a further aspect of the present invention: the roof upper end is equipped with the outlet, and the outlet is located the water tank right-hand side, and the water tank right-hand member intercommunication overflow pipe one end, and the overflow pipe is located the slide rail below, and the outlet is connected to the overflow pipe other end.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a geotechnological cloth infiltration goes out unnecessary water, and in the rethread hole of permeating water flowed into the bottom plate, then flowed to the drain cover through the drain hole in, rethread drain pipe and water delivery pipe flow to the water tank in, store the water resource, when the view flower need water in fine day, the water pistol is handed to the user, opens the water pump, takes out the rainwater of storing in the water tank through the drinking-water pipe, transmits to the water pistol through the drinking-water pipe on, watches the flower and sprays the view, saves the water resource.
The utility model discloses planting structure injects the recess of fixed block through the bracing piece in, fixes, and convenient dismantles planting structure simultaneously, removes the transportation, during rivers intake box. Impurity that probably contains in the aquatic is filtered through the filter earlier, avoids water to block up the drinking-water pipe when the extraction.
Drawings
Fig. 1 is a schematic structural view of a water seepage and drainage structure for roof landscape of a house.
Fig. 2 is a schematic structural view of a water tank in a seepage and drainage structure for roof landscape of a house.
Fig. 3 is a schematic structural view of a bottom plate in a seepage and drainage structure for roof landscapes of a house.

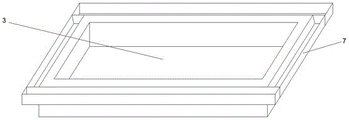

Fig. 4 is a perspective view of a planting structure in a seepage and drainage structure for roof landscape of a house.
In the figure: 1. a roof; 11. a water outlet; 2. a support bar; 21. a connecting rod; 3. planting structure; 31. geotextile; 32. a soil layer; 33. landscape flowers; 4. a base plate; 41. water permeable holes; 42. a drain hole; 43. a fixed block; 44. a drain cover; 45. a drain pipe; 5. a side plate; 6. a baffle plate; 7. a water collection tank; 71. a water diversion pipe; 81. a water tank; 82. a slide rail; 83. a filter plate; 84. a water delivery pipe; 85. an overflow pipe; 86. sliding the door; 87. a hinge; 88. a key lock; 89. a support frame; 9. a water pump; 91. a water pumping pipe; 92. a water spray pipe; 93. a water spraying gun.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Please refer to fig. 1-4, in the embodiment of the utility model, a water drainage structures oozes for house roof view, including roof 1, planting structure 3, water tank 81, 1 top on roof is equipped with planting structure 3, and planting structure 3 is including bottom plate 4, curb plate 5, baffle 6, and bottom plate 4 upper end bilateral symmetry installation curb plate 5, and symmetry installation baffle 6 around bottom plate 4 upper end, and both ends difference fixed connection both sides board 5 about two baffles 6 lean on interior one end, and geotechnological cloth 31 has been laid to bottom plate 4 upper end, and geotechnological cloth 31 upper end is equipped with soil horizon 32, and soil horizon 32 highly is less than the height of curb plate 5 and baffle 6, plants in the soil horizon 32 and has view flower 33.
The upper end of the bottom plate 4 is provided with a plurality of water permeable holes 41, the lower end of the bottom plate 4 is provided with a plurality of water drainage holes 42, the number of the water drainage holes 42 is four, a drainage cover 44 is arranged at the position of the lower end of the bottom plate 4 corresponding to the water drainage holes 42, and the lower end of the drainage cover 44 is connected with a drainage pipe 45.
1 upper end on roof sets up water tank 81, and it is right-hand that water tank 81 is located planting structure 3, and water tank 81 left end intercommunication raceway 84 one end, four drain pipes 45 of raceway 84 other end intercommunication, water tank 81 upper end erection bracing frame 89, and spray gun 93 has been placed to support frame 89 upper end, and water tank 81 right-hand member installation water pump 9, water pump 9 upper end intercommunication spray pipe 92 one end, and the spray pipe 92 other end intercommunication spray gun 93 right-hand member, water pump 9 lower extreme intercommunication suction pipe 91 one end, the suction pipe 91 other end intercommunication water tank 81 right-hand member lower part.
A set of fixed block 43 of planting structure 3 lower extreme bilateral symmetry installation, and the fixed slot has been seted up to fixed block 43 lower extreme, and the bracing piece 2 is connected in the fixed slot of fixed block 43 lower extreme, and 2 lower extremes of bracing piece connect roof 1, fixedly connected with connecting rod 21 between the bracing piece 2.
The circumferential sides of the planting structures 3 are provided with water collecting tanks 7 corresponding to the side plates 5 and the baffle plates 6, the upper ends of the water collecting tanks 7 and the upper ends of the planting structures 3 are on the same horizontal line, the lower ends of the water collecting tanks 7 are communicated with one end of a water distribution pipe 71, and the other end of the water distribution pipe 71 is communicated with a water delivery pipe 84.
Slide rails 82 are symmetrically arranged on the left and right of the inner wall of the water tank 81, the slide rails 82 are located below the water delivery pipe 84, a filter plate 83 is arranged between the two slide rails 82, and the filter plate 83 is connected with the slide rails 82 in a sliding mode.
The rear end of the water tank 81 is provided with a sliding door 86 corresponding to the position of the filter plate 83, the left end of the sliding door 86 is provided with a hinge 87, the sliding door 86 is rotatably connected with the water tank 81 through the hinge 87, and the right part of the rear end of the sliding door 86 is provided with a key lock 88.
The water outlet 11 is arranged at the upper end of the roof 1, the water outlet 11 is positioned at the right side of the water tank 81, the right end of the water tank 81 is communicated with one end of an overflow pipe 85, the overflow pipe 85 is positioned below the slide rail 82, and the other end of the overflow pipe 85 is connected with the water outlet 11.
The utility model discloses a theory of operation is: landscape flowers 33 are cultivated in the soil layer 32, when the water amount in the planting structure 3 is too large in heavy rain, the excessive water permeates out through the geotextile 31 and flows into the bottom plate 4 through the water permeable holes 41, then the water flows into the drainage cover 44 through the drainage holes 42 and flows into the water tank 81 through the drainage pipe 45 and the water delivery pipe 84, when the water flows into the water tank 81, impurities which may be contained in the water are filtered through the filter plate 83, the water pumping pipe 91 is prevented from being blocked when the water is pumped, the water in the planting structure 3 overflows when the water amount is too large, the overflowing water flows into the water collecting tank 7, flows into the water delivery pipe 84 through the water distribution pipe 71 and then flows into the water tank 81, the speed of the water tank 81 is increased, when the water tank 81 is full of storage, the excessive water flows to the drainage port 11 through the overflow pipe 85, when the landscape flowers 33 need to be watered in sunny days, the water spray gun 93 of a user opens the water pump 9, the rainwater stored in the water tank 81 is pumped out through the water pumping pipe 91 by, is transmitted to a water spray gun 93 through a water spray pipe 92 to spray the landscape flower 33.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A water seepage and drainage structure for house roof landscape comprises a roof (1), planting structures (3) and a water tank (81), and is characterized in that the planting structures (3) are arranged above the roof (1), each planting structure (3) comprises a bottom plate (4), side plates (5) and baffle plates (6), the side plates (5) are symmetrically installed at the upper end of the bottom plate (4) in the left-right direction, the baffle plates (6) are symmetrically installed at the upper end of the bottom plate (4) in the front-back direction, the left end and the right end of each baffle plate (6) are respectively and fixedly connected with the inner ends of the two side plates (5), geotextile (31) are laid at the upper end of the bottom plate (4), a soil layer (32) is arranged at the upper end of the geotextile (31), the soil layer (32) is lower than the side plates (5) and the baffle plates (6;
the water drainage device is characterized in that a plurality of water permeable holes (41) are formed in the upper end of the bottom plate (4), a plurality of water drainage holes (42) are formed in the lower end of the bottom plate (4), the number of the water drainage holes (42) is four, a water drainage cover (44) is arranged at the position, corresponding to the water drainage holes (42), of the lower end of the bottom plate (4), and the lower end of the water drainage cover (44) is connected with a water drainage pipe (;
roof (1) upper end sets up water tank (81), water tank (81) are located planting structure (3) right-hand side, water tank (81) left end intercommunication raceway (84) one end, raceway (84) other end intercommunication four drain pipes (45), water tank (81) upper end erection bracing frame (89), spray gun (93) have been placed to support frame (89) upper end, water tank (81) right-hand member installation water pump (9), water pump (9) upper end intercommunication spray pipe (92) one end, spray pipe (92) other end intercommunication spray gun (93) right-hand member, water pump (9) lower extreme intercommunication drinking-water pipe (91) one end, drinking-water pipe (91) other end intercommunication water tank (81) right-hand member lower part.
2. The seepage and drainage structure for the roof landscape of a house as claimed in claim 1, wherein a set of fixing blocks (43) are symmetrically arranged at the left and right of the lower end of the planting structure (3), fixing grooves are formed at the lower ends of the fixing blocks (43), the supporting rods (2) are connected in the fixing grooves at the lower ends of the fixing blocks (43), the lower ends of the supporting rods (2) are connected with the roof (1), and connecting rods (21) are fixedly connected between the supporting rods (2).
3. The seepage and drainage structure for the roof landscape of a house as claimed in claim 1, wherein the peripheral side of the planting structure (3) is provided with a water collecting tank (7) corresponding to the side plate (5) and the baffle (6), the upper end of the water collecting tank (7) and the upper end of the planting structure (3) are on the same horizontal line, the lower end of the water collecting tank (7) is communicated with one end of the water diversion pipe (71), and the other end of the water diversion pipe (71) is communicated with the water delivery pipe (84).
4. The seepage and drainage structure for the roof landscape of a house according to claim 1, wherein slide rails (82) are symmetrically arranged on the inner wall of the water tank (81) in the left-right direction, the slide rails (82) are positioned below the water delivery pipe (84), a filter plate (83) is arranged between the two slide rails (82), and the filter plate (83) is connected with the slide rails (82) in a sliding manner.
5. The seepage and drainage structure for the roof landscape of a house as claimed in claim 1, wherein a sliding door (86) is arranged at the rear end of the water tank (81) corresponding to the position of the filter plate (83), a hinge (87) is arranged at the left end of the sliding door (86), the sliding door (86) is rotatably connected with the water tank (81) through the hinge (87), and a key lock (88) is arranged at the right part of the rear end of the sliding door (86).
6. The seepage and drainage structure for the roof landscape of the house as claimed in claim 1, wherein the roof (1) is provided with a drainage outlet (11) at the upper end, the drainage outlet (11) is positioned at the right side of the water tank (81), the right end of the water tank (81) is communicated with one end of the overflow pipe (85), the overflow pipe (85) is positioned below the slide rail (82), and the other end of the overflow pipe (85) is connected with the drainage outlet (11).
