The utility model discloses a protective pad absorption rate measuring instrument, which belongs to the technical field of protective pads. A pad absorption multiplier tester, comprising a base, the top of the base is connected with a placing plate, the top of the placing plate is connected with a pad body, the top outer walls on both sides of the base are connected with support plates, two A fixed plate is connected between the support plates, and the fixed plate is provided with a concave hole, a transparent tube is connected in the concave hole, the outer wall of the transparent tube is provided with a scale line, and the inner wall of the transparent tube is respectively connected There are a first piston and a second piston, the second piston is rotatably connected to the inner wall of the transparent tube, and the outer walls of the first piston and the second piston are drilled with corresponding through holes, and the bottom of the transparent tube is also A water outlet pipe corresponding to the body of the protective pad is connected; the utility model can conveniently measure the absorption performance of the body of the protective pad, with convenient operation, less manual labor, improved work efficiency and convenient use.

Description

Pad absorption rate apparatus

Technical Field

The utility model relates to a protection pad technical field especially relates to a protection pad absorption rate apparatus.

Background

When women have the sanitary towel and the menstrual period becomes embarrassing any more, people invent the protection pad similar to the sanitary towel in principle, the protection pad can absorb daily secretion outside the menstrual period of women, the female annoyance is greatly relieved, the protection pad is generally smaller and thinner, and therefore people do not feel uncomfortable, and the protection pad is a very useful invention.

The absorption rate of protection pad is an important technical index of measuring protection pad absorbency, therefore, after the protection pad production is accomplished, need detect its absorbency usually, but the apparatus structure among the prior art is too complicated, and the hand labor volume is great, has reduced work efficiency, and troublesome poeration, not convenient to use.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problems in the prior art and providing a pad absorption rate tester.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a protection pad absorption rate apparatus, includes the base, the top of base is connected with places the board, the top of placing the board is connected with the protection pad body, the top outer wall of base both sides all is connected with the backup pad, two be connected with the fixed plate between the backup pad, be equipped with the shrinkage pool on the fixed plate, the shrinkage pool in-connection has the hyaline tube, the outer wall of hyaline tube is equipped with the scale mark, the inner wall of hyaline tube is connected with first piston and second piston respectively, the second piston rotates the inner wall of connection at the hyaline tube, just the outer wall of first piston and second piston all cuts corresponding through-hole, the bottom of hyaline tube still is connected with the outlet pipe that corresponds with the protection.

Preferably, an arc plate is further connected in the concave hole, the arc plate abuts against the outer wall of the transparent tube, and an elastic element is further connected between the arc plate and the inner wall of the concave hole.

Preferably, the outer wall of the top of the second piston is connected with a connecting rod, and the top of the connecting rod is connected with a handle.

Preferably, the outer wall of the transparent pipe is connected with a limiting plate, and the inner wall of the transparent pipe is further connected with a limiting ring.

Preferably, the top of backup pad is connected with the roof, it has the recess to cut on the roof, be equipped with the round hole in the recess, the bottom of roof is connected with the hose that communicates relatively with the round hole, the one end that the round hole was kept away from to the hose is connected in the transparent pipe.

Preferably, the outer wall of the top of the base is further connected with a threaded rod, the outer wall of the threaded rod is rotatably connected with a rotating block, the outer wall of the threaded rod is further connected with a fixing nut in a threaded manner, and the fixing nut abuts against the outer wall of the rotating block.

Compared with the prior art, the utility model provides a protection pad absorption rate apparatus possesses following beneficial effect:

1. the pad absorption multiplying power tester comprises a pad body to be tested is placed on a placing plate on a base, a rotating block on the outer wall of a threaded rod is rotated to press the pad body, a rubber pad is arranged on the outer wall of the rotating block to prevent the pad body from being crushed, a fixing nut is screwed to abut against the rotating block to fix the position of the rotating block, a transparent pipe is inserted into a concave hole, an arc plate in the concave hole clamps the transparent pipe under the action of an elastic element to fix the position of the transparent pipe, the elastic element can be a spring or an elastic sheet and the like, the outer wall of the transparent pipe is connected with a limiting plate to prevent the transparent pipe from sliding off from the concave hole, a hose at the bottom of a top plate is connected into the transparent pipe to inject water into a groove on the top plate, and water flows into the hose through a round hole to flow above a second piston in the transparent pipe, because the second piston closely offsets with first piston, can make rivers can not flow, then rotate the handle, thereby drive the connecting rod and rotate, thereby the position of through-hole on the adjustable second piston, it is corresponding to make its through-hole on the first piston, thereby can make rivers fall down, can conveniently control its velocity of flow simultaneously, then rivers then can be followed on outlet pipe flows to protection pad body, and be equipped with the scale on the hyaline tube, thereby can judge the water uptake of protection pad body, then the accessible observes the condition survey protection pad body's the absorption rate condition of protection pad body, the spacing ring can carry on spacingly to first piston and second piston, and be equipped with the inclined plane on the spacing ring, then can follow the intraductal pull out of hyaline tube with the second piston.

The part that does not relate to in the device all is the same with prior art or can adopt prior art to realize, the utility model discloses can be convenient survey the absorption performance to the protection pad body, convenient operation, the amount of labour is little, has improved work efficiency, convenient to use.

Drawings

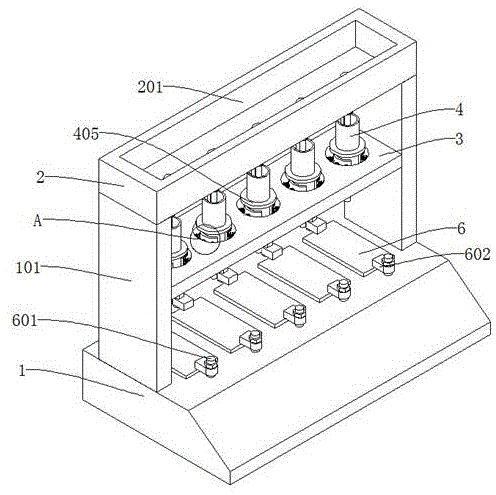

Fig. 1 is a schematic structural view of a pad absorption rate tester provided by the present invention;

fig. 2 is a schematic structural view of a pad absorption rate tester provided by the present invention;

fig. 3 is a schematic structural view of the bottom of a pad absorption rate tester provided by the present invention;

FIG. 4 is a schematic structural view of a transparent tube of a pad absorption rate measuring instrument according to the present invention;

fig. 5 is a schematic structural view of a portion a in fig. 1 of a pad absorption rate measuring instrument according to the present invention.

In the figure: 1. a base; 101. a support plate; 2. a top plate; 201. a groove; 202. a circular hole; 3. a fixing plate; 301. concave holes; 302. a circular arc plate; 303. an elastic element; 4. a transparent tube; 401. a water outlet pipe; 402. a first piston; 403. a second piston; 404. a through hole; 405. a limiting plate; 406. a limiting ring; 407. a connecting rod; 408. a handle; 5. a hose; 6. placing the plate; 601. a threaded rod; 602. rotating the block; 603. and (5) fixing the nut.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-4, a pad absorption rate tester, including base 1, the top of base 1 is connected with places board 6, the top of placing board 6 is connected with the pad body, the top outer wall of base 1 both sides all is connected with backup pad 101, be connected with fixed plate 3 between two backup pads 101, be equipped with shrinkage pool 301 on the fixed plate 3, shrinkage pool 301 in-connection has transparent pipe 4, the outer wall of transparent pipe 4 is equipped with the scale mark, the inner wall of transparent pipe 4 is connected with first piston 402 and second piston 403 respectively, second piston 403 rotates and connects the inner wall at transparent pipe 4, and the outer wall of first piston 402 and second piston 403 all cuts corresponding through-hole 404, the bottom of transparent pipe 4 still is connected with outlet pipe 401 corresponding with the pad body.

Referring to fig. 1-5, an arc plate 302 is further connected inside the concave hole 301, the arc plate 302 abuts against the outer wall of the transparent tube 4, and an elastic element 303 is further connected between the arc plate 302 and the inner wall of the concave hole 301.

Referring to fig. 4, a connecting rod 407 is connected to an outer wall of a top portion of the second piston 403, and a handle 408 is connected to a top portion of the connecting rod 407.

Referring to fig. 4, the outer wall of the transparent tube 4 is connected with a limit plate 405, and the inner wall of the transparent tube 4 is also connected with a limit ring 406.

Referring to fig. 2 and 3, a top plate 2 is connected to the top of the supporting plate 101, a groove 201 is cut in the top plate 2, a circular hole 202 is formed in the groove 201, a hose 5 which is relatively communicated with the circular hole 202 is connected to the bottom of the top plate 2, and one end, far away from the circular hole 202, of the hose 5 is connected to the transparent tube 4.

Referring to fig. 1 and 2, a threaded rod 601 is further connected to an outer wall of the top of the base 1, a rotating block 602 is rotatably connected to an outer wall of the threaded rod 601, a fixing nut 603 is further connected to an outer wall of the threaded rod 601 through a thread, and the fixing nut 603 abuts against an outer wall of the rotating block 602.

In the utility model, firstly, the protection pad body to be measured is placed on the placing plate 6 on the base 1, then the rotating block 602 on the outer wall of the threaded rod 601 is rotated, so that the rotating block 602 presses the protection pad body, and the outer wall of the rotating block 602 is provided with the rubber pad, so that the protection pad body can not be crushed, then the fixing nut 603 is screwed, so that the rotating block 602 is pressed, so that the position of the rotating block 602 is fixed, then the transparent tube 4 is inserted into the concave hole 301, the arc plate 302 in the concave hole 301 can clamp the transparent tube 4 under the action of the elastic element 303, so that the position of the transparent tube 4 is fixed, the elastic element 303 can be a spring or a shrapnel, etc., the outer wall of the transparent tube 4 is connected with the limiting plate 405, so that the transparent tube 4 can not slide down from the concave hole 301, then the hose 5 at the bottom of the top plate 2 is connected in the transparent tube 4, the water flows into the hose 5 through the circular hole 202, and then flows into the transparent tube 4 above the second piston 403, since the second piston 403 is tightly pressed against the first piston 402, the water flow is prevented from flowing out, then the handle 408 is rotated to rotate the connecting rod 407, so that the position of the through hole 404 on the second piston 403 can be adjusted to correspond to the through hole 404 on the first piston 402, so that the water flow can fall down, and the flow rate can be conveniently controlled, then the water flow will flow from the water outlet pipe 401 to the pad body, and the transparent pipe 4 is provided with scales, thereby the water absorption capacity of the protection pad body can be judged, the absorption rate condition of the protection pad body can be measured by observing the condition of the protection pad body, the stop collar 406 may limit the position of the first piston 402 and the second piston 403, and the limit ring 406 is provided with an inclined surface, the second piston 403 can be pulled out from the transparent tube 4.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a protection pad absorption rate apparatus, includes base (1), its characterized in that, the top of base (1) is connected with places board (6), the top of placing board (6) is connected with the protection pad body, the top outer wall of base (1) both sides all is connected with backup pad (101), two be connected with fixed plate (3) between backup pad (101), be equipped with shrinkage pool (301) on fixed plate (3), shrinkage pool (301) in-connection has transparent pipe (4), the outer wall of transparent pipe (4) is equipped with the scale mark, the inner wall of transparent pipe (4) is connected with first piston (402) and second piston (403) respectively, second piston (403) rotate to be connected the inner wall in transparent pipe (4), just corresponding through-hole (404) have all been dug to the outer wall of first piston (402) and second piston (403), the bottom of the transparent tube (4) is also connected with a water outlet pipe (401) corresponding to the protection pad body.

2. The absorption capacity measuring instrument for the protection pad according to claim 1, wherein an arc plate (302) is further connected in the concave hole (301), the arc plate (302) abuts against the outer wall of the transparent tube (4), and an elastic element (303) is further connected between the arc plate (302) and the inner wall of the concave hole (301).

3. The pad absorption capacity measuring instrument according to claim 1, wherein a connecting rod (407) is connected to the outer wall of the top of the second piston (403), and a handle (408) is connected to the top of the connecting rod (407).

4. The pad absorption capacity measuring instrument according to claim 3, wherein the outer wall of the transparent tube (4) is connected with a limit plate (405), and the inner wall of the transparent tube (4) is further connected with a limit ring (406).

5. The absorption capacity tester for the protection pad according to claim 3, wherein a top plate (2) is connected to the top of the supporting plate (101), a groove (201) is formed in the top plate (2), a circular hole (202) is formed in the groove (201), a hose (5) which is communicated with the circular hole (202) is connected to the bottom of the top plate (2), and one end, far away from the circular hole (202), of the hose (5) is connected to the transparent pipe (4).

6. The absorption capacity measuring instrument for the protection pad as claimed in claim 1, wherein a threaded rod (601) is further connected to the outer wall of the top of the base (1), a rotating block (602) is rotatably connected to the outer wall of the threaded rod (601), a fixing nut (603) is further connected to the outer wall of the threaded rod (601) in a threaded manner, and the fixing nut (603) abuts against the outer wall of the rotating block (602).
