Abstract
本实用新型公开了一种水窖用一体化净水器，涉及净水器领域，该水窖用一体化净水器，包括水窖本体和不锈钢柜，所述水窖本体位于不锈钢柜的右侧，所述不锈钢柜内壁的背面固定连接有支架，所述支架的正面与净水机的背面固定连接，所述不锈钢柜的上表面从左至右依次镶嵌有第一水龙头、水池和第二水龙头，所述第一水龙头、水池和第二水龙头均位于净水机的上方，所述不锈钢柜内壁的右侧固定连接有储水箱，所述储水箱位于净水机的右侧，所述储水箱内壁的侧面固定连接有浮球液位开关，所述水窖本体的内部设置有潜水泵。本实用新型通过设置净水机、水池、储水箱、浮球液位开关和自吸泵，解决了使用水窖中水较为不便的问题。
The utility model discloses an integrated water purifier for a water cellar, which relates to the field of water purifiers. The integrated water purifier for a water cellar comprises a water cellar body and a stainless steel cabinet. The water cellar body is located on the right side of the stainless steel cabinet. The back of the inner wall of the stainless steel cabinet is fixedly connected with a bracket, the front of the bracket is fixedly connected to the back of the water purifier, and the upper surface of the stainless steel cabinet is inlaid with a first faucet, a pool and a second faucet in sequence from left to right. The faucet, the first faucet, the pool and the second faucet are all located above the water purifier, and a water storage tank is fixedly connected to the right side of the inner wall of the stainless steel cabinet, and the water storage tank is located on the right side of the water purifier. A float level switch is fixedly connected to the side of the inner wall of the water tank, and a submersible pump is arranged inside the water cellar body. The utility model solves the problem of inconvenience in using the water in the water cellar by arranging a water purifier, a pool, a water storage tank, a floating ball liquid level switch and a self-priming pump.
Description
Technical Field
The utility model relates to a water purifier technical field specifically is an integration water purifier for cistern.
Background
The water cellar is a water conservancy facility dug into a well shape underground in arid or semiarid rural areas for storing rainwater, snow water and the like, is used for solving the drinking water problem of people in the arid or semiarid areas, can be used for drinking by people, drinking by livestock or farmland irrigation, and can play a role in collecting water resources to protect soil.
When drinking water in a water cellar, alum and bleaching powder are required to be added into the drinking water for disinfection, a cover of the water cellar is required to be covered in time after water use is finished, foreign matters are prevented from entering the water cellar, and the water is required to be disinfected when the water in the water cellar is used every time, so that the water in the water cellar is inconvenient to use.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an integrated water purifier is used to cistern has solved the comparatively inconvenient problem of use cistern normal water.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an integration water purifier is used in cistern, includes cistern body and stainless steel cabinet, the cistern body is located the right side of stainless steel cabinet, the back fixedly connected with support of stainless steel cabinet inner wall, the front of support and the back fixed connection of purifier, the upper surface of stainless steel cabinet is inlayed from a left side to the right side in proper order and is had first tap, pond and second tap, first tap, pond and second tap all are located the top of purifier, the right side fixedly connected with storage water tank of stainless steel cabinet inner wall, the storage water tank is located the right side of purifier, the side fixedly connected with floater liquid level switch of storage water tank inner wall, the inside of cistern body is provided with the immersible pump, the output fixedly connected with inlet tube of immersible pump.
The one end that the immersible pump was kept away from to the inlet tube runs through cistern body and stainless steel cabinet in proper order and is linked together with the storage water tank, the bottom fixedly connected with self priming pump of stainless steel cabinet inner wall, the self priming pump is located the below of purifier, second tap and storage water tank all are linked together with the self priming pump, the self priming pump is linked together with the purifier, first tap is linked together with the purifier, the left side fixedly connected with electrically controlled device of stainless steel cabinet inner wall, electrically controlled device is located the left side of purifier, floater liquid level switch and immersible pump all are connected with the electrically controlled device electricity, the left side of stainless steel cabinet is from last to fixedly connected with pond drain and blowdown tap down in proper order, the pond drain is linked together with the pond, blowdown tap is linked together with the.
Preferably, the bottom of the inner wall of the water storage tank is a downward inclined plane, and the water storage tank is a stainless steel water tank.
Preferably, the purifier includes purifier body, filter core fixing base, first filter core and second filter core, purifier body fixed connection is in the front of support, the quantity of filter core fixing base is two, two the bottom of filter core fixing base respectively with the top fixed connection of first filter core and second filter core, first filter core is located the left side of second filter core.
Preferably, the first filter element is a ceramic filter element, and the second filter element is a PP cotton filter element.
Preferably, the bottom of the inner wall of the water tank is an inclined plane inclined downwards, and the first water faucet and the second water faucet are both gooseneck water faucets.
(III) advantageous effects
The utility model provides a cistern is with integration water purifier possesses following beneficial effect:
the utility model discloses a set up the purifier, the pond, the storage water tank, floater liquid level switch and self priming pump, when using, the immersible pump operation, carry the water in the cistern to the storage water tank in, when the surface of water in the storage water tank reachs floater liquid level switch position, electrically controlled device control immersible pump stall, from the priming pump work, water in the storage water tank is through the filtration of purifier, finally reach the drinking standard, when using the water in the cistern body, through the purifier, integrated designs such as storage water tank and stainless steel cabinet, form the integration water purifier, water to in the cistern body filters the disinfection, all carry out disinfection when need not using the water in the cistern body at every turn, the more convenient effect of water in the use cistern body has been reached, the comparatively inconvenient problem of use cistern normal water has been solved.
Drawings

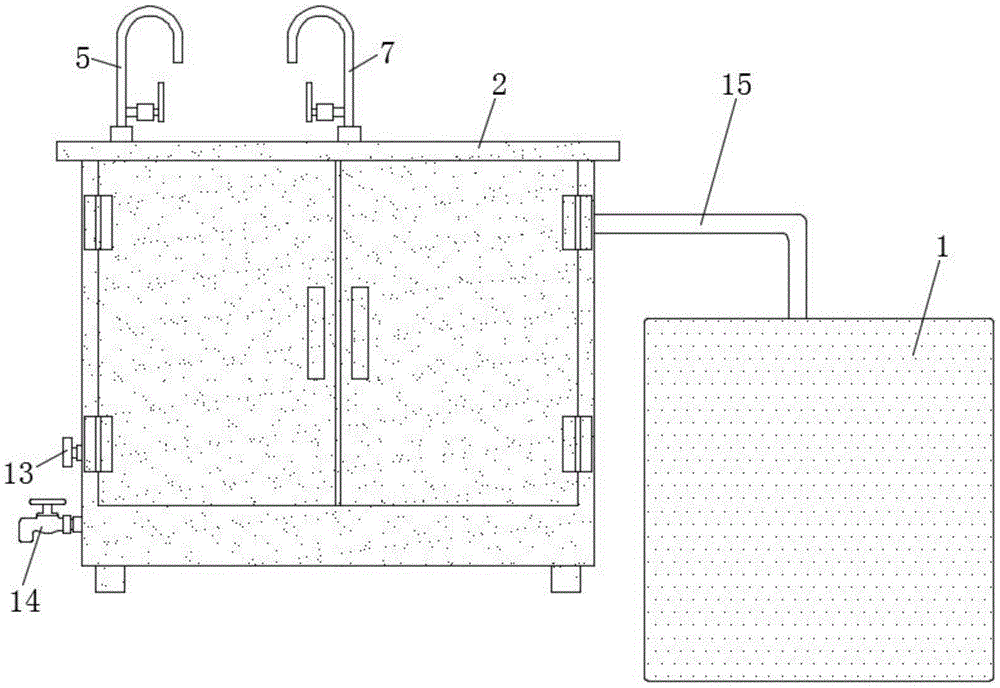

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a front sectional view of the water purifier of the present invention;
fig. 3 is a right sectional view of the bracket of the present invention.
In the figure: 1. a cistern body; 2. a stainless steel cabinet; 3. a support; 4. a water purifier; 401. a water purifier body; 402. a filter element fixing seat; 403. a first filter element; 404. a second filter element; 5. a first water tap; 6. a pool; 7. a second faucet; 8. a water storage tank; 9. a float ball liquid level switch; 10. a submersible pump; 11. a self-priming pump; 12. an electric control device; 13. a drain outlet of the water tank; 14. a sewage tap; 15. and (4) a water inlet pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-3, the utility model provides a technical solution: an integrated water purifier for a water cellar comprises a water cellar body 1 and a stainless steel cabinet 2, wherein the water cellar body 1 is positioned on the right side of the stainless steel cabinet 2, a support 3 is fixedly connected to the back of the inner wall of the stainless steel cabinet 2, the support 3 and the stainless steel cabinet 2 can be connected in a welding manner, the front of the support 3 is fixedly connected with the back of a water purifier 4, the support 3 and the water purifier 4 are connected in a bolt manner, a first faucet 5, a water tank 6 and a second faucet 7 are sequentially embedded in the upper surface of the stainless steel cabinet 2 from left to right, the first faucet 5, the water tank 6 and the second faucet 7 are all positioned above the water purifier 4, a water storage tank 8 is fixedly connected to the right side of the inner wall of the stainless steel cabinet 2, the stainless steel cabinet 2 and the water storage tank 8 are both made of stainless steel, the water storage tank 8 and the stainless steel cabinet 2 are integrated, the water storage tank 8 is positioned on the right side of, the working principle of the float liquid level switch 9 is that one or more reed switches are arranged in a closed non-magnetic conductive pipe inside the float liquid level switch 9, then the tube passes through one or more hollow floating balls with annular magnets inside, the rising or falling of the liquid drives the floating balls to move up and down together, so that the reed pipe in the non-magnetic conductive pipe generates the action of attracting or breaking, thereby outputting a switching signal, the electric control device 12 receives the switching signal to control the operation of the submersible pump 10, when water in the water storage tank 8 reaches the position of the floating ball liquid level switch 9, the electric control device 12 controls the submersible pump 10 to stop working, the safety of the integrated water purifier is improved, the submersible pump 10 is arranged in the water cellar body 1, the submersible pump 10 can be suspended at a proper height in the water cellar body 1, water in the water cellar body 1 is conveyed to the water storage tank 8, and the output end of the submersible pump 10 is fixedly connected with the water inlet pipe 15.
One end of the water inlet pipe 15, which is far away from the submersible pump 10, sequentially penetrates through the cistern body 1 and the stainless steel cabinet 2 and is communicated with the water storage tank 8, the bottom of the inner wall of the stainless steel cabinet 2 is fixedly connected with a self-sucking pump 11, the self-sucking pump 11 supplies water for the purifier 4 in a pressurized manner, so as to ensure the water yield of the purifier 4, the self-sucking pump 11 is positioned below the water purifier 4, the second water faucet 7 and the water storage tank 8 are both communicated with the self-sucking pump 11, the second water faucet 7 is communicated with the self-sucking pump 11 through a water pipe, the water storage tank 8 is communicated with the self-sucking pump 11 through a water pipe, the self-sucking pump 11 is communicated with the water purifier 4 through a water pipe, the first water faucet 5 is communicated with the water purifier 4 through a water pipe, the, electric control device 12 is located the left side of purifier 4, and floater level switch 9 and immersible pump 10 all are connected with electric control device 12 electricity, and stainless steel cabinet 2's left side is from last to lower fixedly connected with pond drain 13 and blowdown tap 14 in proper order, and pond drain 13 is linked together with pond 6, and pond drain 13 leads to pipe and is linked together with pond 6, and blowdown tap 14 is linked together with storage water tank 8, and blowdown tap 14 leads to pipe and is linked together with storage water tank 8.
As a technical optimization scheme of the utility model, the bottom of 8 inner walls of storage water tank is the inclined plane of downward sloping, and storage water tank 8 is the stainless steel water tank, and the inclined plane of 8 inner walls of storage water tank bottoms plays the collection and gathers together the effect to the precipitate in the storage water tank 8.
As a technical optimization scheme of the utility model, purifier 4 includes purifier body 401, filter core fixing base 402, first filter core 403 and second filter core 404, purifier body 401 fixed connection is in the front of support 3, the quantity of filter core fixing base 402 is two, the bottom of two filter core fixing bases 402 respectively with the top fixed connection of first filter core 403 and second filter core 404, first filter core 403 is located the left side of second filter core 404, second filter core 404 and first filter core 403 filter water, first filter core 403 and second filter core 404 can be threaded connection with the connected mode of filter core fixing base 402, make first filter core 403 and second filter core 404 detachable.
As a technical optimization scheme of the utility model, first filter core 403 is the ceramic filter core, and second filter core 404 is the cotton filter core of PP, and first filter core 403 is the essence and strains, and second filter core 404 is the colating.
As a technical optimization scheme of the utility model, the bottom of 6 inner walls in pond is the inclined plane of downward sloping, and first tap 5 and second tap 7 are gooseneck tap, and the inclined plane of 6 inner wall bottoms in pond plays the effect of gathering together to the rivers.
When the water purifying device is used, firstly, a flocculating agent is dissolved by clear water and then is added into the water storage tank 8 through a water tank cover of the water storage tank 8, the submersible pump 10 operates, water in the water cellar body 1 is conveyed into the water storage tank 8 through the water inlet pipe 15, the water can be stirred after entering the water storage tank 8, the flocculating agent purifies the water in the water storage tank 8, the water in the water storage tank 8 can be used only after four hours, when the water surface in the water storage tank 8 reaches the position of the floating ball liquid level switch 9, the electric control device 12 controls the submersible pump 10 to stop operating, the second faucet 7 is opened, the self-sucking pump 11 works, the water in the water purification tank 8 flows out from the position of the second faucet 7 through the self-sucking pump 11 and can be used for washing vegetables and the like, the vegetables can be washed after being put into the water tank 6, the water tank sewage discharge port 13 is used for sewage discharge of the water tank 6, the first faucet 5 is opened, the self-sucking, the water flowing out from the first tap 5 can be used for drinking, after the water is used for a period of time, the sediment at the bottom of the inner wall of the water storage tank 8 is more, the sewage discharge tap 14 is opened, the sediment is discharged from the sewage discharge tap 14, after the sediment is discharged, the electric control device 12 controls the submersible pump 10 to work, the water in the cistern body 1 is conveyed into the water storage tank 8, the water in the water storage tank 8 can be continuously used after the flocculating agent is added into the water in the water storage tank 8 and placed for four hours, the first filter element 403 on the water purifier 4 is a ceramic filter element, the second filter element 404 is a PP cotton filter element, the second filter element 404 needs to be replaced when the water is used for three to six months, after the first filter element 403 is used for a period of time, the shell of the first filter element needs to be detached, the dirt on the surface of the first filter element 403 is brushed by a brush, the surface of the first filter element 403 can be whitened, and then the shell of the, the first filter element 403 can be repeatedly cleaned and used, the service life of the first filter element 403 is two to three years, the first filter element 403 is fine filtration, the second filter element 404 is coarse filtration, when the water in the cistern body 1 is used, by the integrated design of the water purifier 4, the water storage tank 8, the stainless steel cabinet 2 and the like, an integrated water purifier is formed, carry out filtration disinfection to the water in the cistern body 1, need not all to carry out disinfection treatment when using the water in the cistern body 1 at every turn, reached the more convenient effect of water in using the cistern body 1, the water purification effect of using the integration water purifier compares with the water purification effect that adds alum and bleaching agent needs good, only need open first tap 5 or second tap 7 can use the water in the storage water tank 8, and convenient for operation, the integration water purifier is one kind and is applicable to and uses rural cistern, draw the dispersed water supply such as spring, little electric well as raw water, the life water purifier drinking water that supplies rural family to use.
To sum up can, the utility model discloses a set up purifier 4, pond 6, storage water tank 8, floater liquid level switch 9 and self priming pump 11, solved the comparatively inconvenient problem of use cistern normal water.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a cellar for storing things is with integration water purifier, includes cellar for storing things body (1) and stainless steel cabinet (2), cellar for storing things body (1) is located the right side of stainless steel cabinet (2), its characterized in that: the water storage tank is characterized in that a support (3) is fixedly connected to the back of the inner wall of the stainless steel cabinet (2), the front of the support (3) is fixedly connected with the back of the water purifier (4), a first water tap (5), a water tank (6) and a second water tap (7) are sequentially inlaid in the upper surface of the stainless steel cabinet (2) from left to right, the first water tap (5), the water tank (6) and the second water tap (7) are all located above the water purifier (4), a water storage tank (8) is fixedly connected to the right side of the inner wall of the stainless steel cabinet (2), the water storage tank (8) is located on the right side of the water purifier (4), a floating ball liquid level switch (9) is fixedly connected to the side of the inner wall of the water storage tank (8), a submersible pump (10) is arranged inside the cistern body (1), and a water inlet pipe;
the water inlet pipe (15) is far away from one end of the submersible pump (10) and sequentially penetrates through the water cellar body (1) and the stainless steel cabinet (2) and is communicated with the water storage tank (8), the bottom of the inner wall of the stainless steel cabinet (2) is fixedly connected with a self-sucking pump (11), the self-sucking pump (11) is positioned below the water purifier (4), the second faucet (7) and the water storage tank (8) are both communicated with the self-sucking pump (11), the self-sucking pump (11) is communicated with the water purifier (4), the first faucet (5) is communicated with the water purifier (4), the left side of the inner wall of the stainless steel cabinet (2) is fixedly connected with an electric control device (12), the electric control device (12) is positioned on the left side of the water purifier (4), the floating ball liquid level switch (9) and the submersible pump (10) are both electrically connected with the electric control device (12), the left side of the stainless steel cabinet (2) is sequentially and fixedly connected with a water drain outlet, the sewage draining outlet (13) of the water tank is communicated with the water tank (6), and the sewage draining faucet (14) is communicated with the water storage tank (8).
2. The integrated water purifier for the water cellar according to claim 1, wherein: the bottom of the inner wall of the water storage tank (8) is an inclined plane which inclines downwards, and the water storage tank (8) is a stainless steel water tank.
3. The integrated water purifier for the water cellar according to claim 1, wherein: purifier (4) include purifier body (401), filter core fixing base (402), first filter core (403) and second filter core (404), purifier body (401) fixed connection is in the front of support (3), the quantity of filter core fixing base (402) is two, two the bottom of filter core fixing base (402) respectively with the top fixed connection of first filter core (403) and second filter core (404), first filter core (403) are located the left side of second filter core (404).
4. The integrated water purifier for the water cellar according to claim 3, wherein: the first filter element (403) is a ceramic filter element, and the second filter element (404) is a PP cotton filter element.
5. The integrated water purifier for the water cellar according to claim 1, wherein: the bottom of pond (6) inner wall is the inclined plane of downward sloping, first tap (5) and second tap (7) are gooseneck tap.
