Abstract
一种电力二次设备带电清洗机，包括抽风机装置、连接软管和抽风枪；本实用新型的电力二次设备带电清洗机的主体为吸尘装置主要通过其工作原理主要为通过负压对灰尘进行吸取，由于负压吸尘没有吹风机的风力大，因此在抽风管的内部设置有可转动的毛刷，通过毛刷的清扫同时进行负压吸取可有效地对设备仪器仪表等进行清洗，同时由于二次设备一般配置于机柜内，角落部分不容易观察到位，因此在抽风进口出设置摄像头便于对角落部位进行观测清洗。
An electrified cleaning machine for electric secondary equipment, including an exhaust fan device, a connecting hose and an exhaust gun; the main body of the electrified electric cleaning machine for electric secondary equipment of the present utility model is a dust suction device, and its working principle is mainly through negative pressure. The dust is sucked. Since the negative pressure cleaning is not as strong as the blower, there is a rotatable brush inside the exhaust duct. The negative pressure suction can effectively clean the equipment, instruments, etc. through the cleaning of the brush. , At the same time, since the secondary equipment is generally arranged in the cabinet, the corners are not easy to observe in place. Therefore, cameras are installed at the exhaust inlet and outlet to facilitate the observation and cleaning of the corners.
Description
Technical Field
The utility model relates to an electrified cleaning machine of power secondary equipment.
Background
The power secondary equipment mainly refers to auxiliary equipment such as low-voltage monitoring equipment, instruments and meters, controller relays and the like related to high-voltage electric equipment, and is generally installed in a cabinet. Due to the complex field environment of a factory, the control precision is affected by inaccurate equipment data caused by the easy dust deposition of the equipment or accidents are caused by the problem of the control precision, so the equipment needs to be cleaned regularly. Although the secondary equipment is generally low-voltage electricity and can be cleaned in an electrified way, the secondary equipment is cleaned by the electric hair drier mainly manually, and the secondary equipment is poor in effect and serious in pollution.
SUMMERY OF THE UTILITY MODEL
For solving the prior art problem, the utility model provides an electrified cleaning machine of electric power secondary equipment.
The utility model provides a technical scheme does:
an electrified cleaning machine for electric power secondary equipment comprises an air extractor device, a connecting hose and an air extracting gun;
the air extractor device is used for providing air extraction negative pressure and providing the negative pressure to the air extraction gun through the connecting hose;
the air draft gun comprises an air draft tube, an electric motor, a rotary ring and a brush; one end of the exhaust pipe is communicated with the connecting hose, and the other end of the exhaust pipe is an exhaust inlet; the electric motor is fixed on the inner wall of the exhaust pipe, a rotor shaft of the electric motor is provided with a gear, the back of the rotating ring is provided with a rack meshed with the gear, and the rack is arranged along the circumferential direction of the rotating ring; a rotating ring groove used for configuring the rotating ring is arranged in the circumferential direction of the inner wall of one side of the air exhaust inlet of the air exhaust pipe, the rotating ring is of a hollow annular structure, and the rack drives the rotating ring to be positioned in the rotating ring groove and rotate along the circumferential direction of the inner wall of the air exhaust pipe; the brush is fixed on the rotating ring, and the head of the brush extends out of the exhaust pipe.
Preferably, the air intake department of exhaust column disposes the camera, dispose the display on the updraft ventilator device body, the camera with the display electricity is connected.
Preferably, the brushes are fixed to the swivel at regular intervals.
Preferably, a guide gear engaged with the rack is disposed in the ring groove.
Preferably, a button for controlling the electric motor is provided on an outer wall of the exhaust pipe.
Preferably, the exhaust pipe, the rotary ring, the gear and the rack are all made of insulating materials.
The utility model has the advantages that:
the utility model discloses an electrified cleaning machine of electric power secondary equipment's main part is dust extraction mainly for absorbing the dust through the negative pressure mainly through its theory of operation, because the negative pressure dust absorption does not have the wind-force of hair-dryer big, consequently be provided with rotatable brush in the inside of exhaust column, it can wash equipment instrument class effectively to carry out the negative pressure absorption simultaneously to clean through the brush, simultaneously because secondary equipment generally disposes in the rack, the corner part is difficult to observe targets in place, consequently go out at the convulsions import and set up the camera and be convenient for observe the washing to the corner position.
Drawings

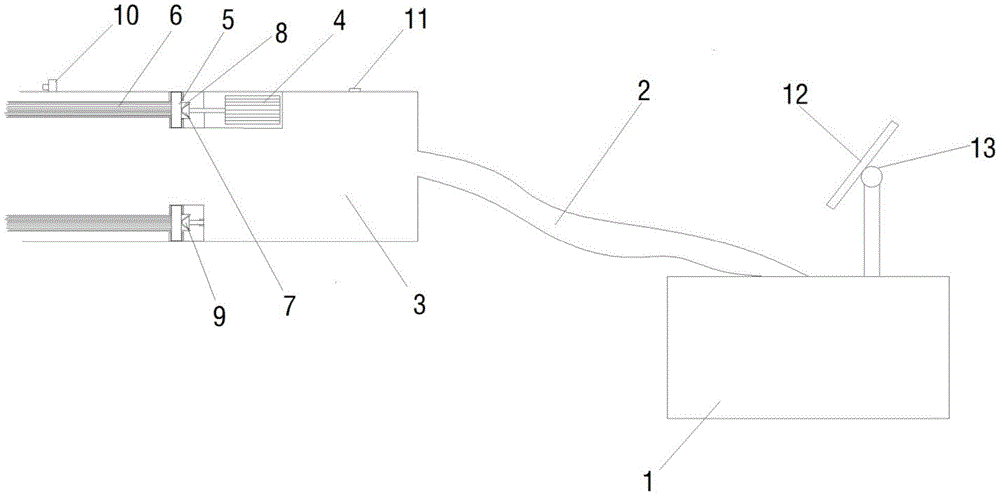

Fig. 1 is a schematic structural view of an electrified cleaning machine for electric power secondary equipment of the present invention;
fig. 2 is the utility model discloses a structure schematic diagram of the air suction rifle of the electrified cleaning machine of electric power secondary equipment.
Detailed Description
The utility model is further explained with reference to the accompanying drawings, as shown in fig. 1 and fig. 2, an electrified cleaning machine for electric power secondary equipment comprises an air extractor device 1, a connecting hose 2 and an air extracting gun;
the air exhauster device 1 is used for providing negative air exhausting pressure and providing the negative pressure to the air exhausting gun through the connecting hose 2; here exhaust fan device 1 adopts current industrial updraft ventilator can, and its main function is the negative pressure that provides the dust absorption, collects the dust bag in, the utility model discloses not mainly improve the updraft ventilator device and consequently not rested on.
The air draft gun comprises an air draft tube 3, an electric motor 4, a rotary ring 5 and a brush 6; one end of the exhaust pipe 3 is communicated with the connecting hose 2, and the other end of the exhaust pipe is an exhaust inlet; the electric motor 4 is fixed on the inner wall of the exhaust pipe 3, a button 11 for controlling the electric motor 4 is arranged on the outer wall of the exhaust pipe 3, a gear 7 is arranged on a rotor shaft of the electric motor 4, the gear 7 is a bevel gear, a rack 8 meshed with the gear 7 is arranged on the back of the rotating ring 5, the rack 8 is arranged along the circumferential direction of the rotating ring 5, and the rotating ring 5 is driven to rotate on the inner wall of the exhaust pipe 3 through the cooperation of the gear 7 and the rack 8; a rotating ring groove used for configuring the rotating ring 5 is arranged in the circumferential direction of the inner wall of one side of the air exhaust inlet of the air exhaust pipe 3, the rotating ring groove mainly fixes the relative position of the rotating ring 5 and is matched with the rotation of the rotating ring 5, the rotating ring 5 is of a hollow annular structure, and the rack 8 drives the rotating ring 5 to be positioned in the rotating ring groove and rotate along the circumferential direction of the inner wall of the air exhaust pipe 3; meanwhile, in order to facilitate the smooth rotation of the whole swivel 5, a guide gear 9 meshed with the rack is arranged in the swivel groove, the specification of the guide gear 9 is consistent with that of the gear 7, but the rotating shaft of the guide gear 9 is only arranged in a freely rotatable manner, no active power is provided, only one guide is provided, and the gear 7 is arranged between two racks 8; the brush 6 is fixed in on the change 5 and 6 heads of brush stretch out in exhaust column 3, simultaneously brush 6 is fixed in evenly spaced on the change 5, and brush 6 is equipped with the interval promptly, so guarantees that brush 6 when rotating, and the outside dust that falls can be inhaled into in the updraft ventilator device 1 by exhaust column 3 equally.
A camera 10 is arranged at an air inlet of the exhaust pipe 10, a display 12 is arranged on the exhaust fan device body, the camera 10 is electrically connected with the display 12, and the display 12 adjusts the visual angle through a hinge 13; the power supply lines for the camera head 10 and the electric motor 4 can be connected to the suction fan device 1 internally by internal wiring through the hose internally or externally, where the power supply for the electric motor 4 is accessible from the suction fan device 1.
The exhaust pipe 3, the rotary ring 5, the gear 7 and the rack 8 are made of insulating materials, namely engineering plastics, the rotating speed of the motor 4 does not need to be too fast, and the reliability of cleaned electric equipment is guaranteed due to the fact that live-line operation is needed, and damage is prevented.
The present invention has been described in detail with reference to the preferred embodiments. However, variations and additions to the embodiments will become apparent to those of ordinary skill in the art upon a reading of the foregoing description. It is the intention of the applicant that all such variations and additions fall within the scope of the invention as claimed.
Claims (6)
1. The utility model provides an electrified cleaning machine of electric power secondary equipment which characterized in that:
comprises an air extractor device, a connecting hose and an air extracting gun;
the air extractor device is used for providing air extraction negative pressure and providing the negative pressure to the air extraction gun through the connecting hose;
the air draft gun comprises an air draft tube, an electric motor, a rotary ring and a brush; one end of the exhaust pipe is communicated with the connecting hose, and the other end of the exhaust pipe is an exhaust inlet; the electric motor is fixed on the inner wall of the exhaust pipe, a rotor shaft of the electric motor is provided with a gear, the back of the rotating ring is provided with a rack meshed with the gear, and the rack is arranged along the circumferential direction of the rotating ring; a rotating ring groove used for configuring the rotating ring is arranged in the circumferential direction of the inner wall of one side of the air exhaust inlet of the air exhaust pipe, the rotating ring is of a hollow annular structure, and the rack drives the rotating ring to be positioned in the rotating ring groove and rotate along the circumferential direction of the inner wall of the air exhaust pipe; the brush is fixed on the rotating ring, and the head of the brush extends out of the exhaust pipe.
2. The electric power secondary equipment live cleaning machine according to claim 1, characterized in that:
the air intake department of exhaust column disposes the camera, dispose the display on the updraft ventilator device body, the camera with the display electricity is connected.
3. The electric power secondary equipment live cleaning machine according to claim 1, characterized in that:
the hairbrushes are fixed on the rotating ring at uniform intervals.
4. The electric power secondary equipment live cleaning machine according to claim 1, characterized in that:
and a guide gear meshed with the rack is arranged in the rotary ring groove.
5. The electric power secondary equipment live cleaning machine according to claim 1, characterized in that:
and a button for controlling the electric motor is arranged on the outer wall of the exhaust pipe.
6. The electric power secondary equipment live cleaning machine according to claim 1, characterized in that:
the exhaust pipe, the rotary ring, the gear and the rack are all made of insulating materials.
