Abstract
本实用新型属于建筑施工设备的设计技术领域，具体公开一种高女儿墙悬挑吊篮装置，包括高女儿墙和设置在高女儿墙外侧的吊篮，在所述的高女儿墙的内侧固结设有后置预埋件，斜拉杆下端与后置预埋件相连接，其上端则与吊篮的横向连接的支撑架相连接。本装置解决了电动吊篮后支腿高度受限的问题，操作简便，施工效率高，可广泛应用在高层建筑、城市靓化及外墙后期维护等方面。
The utility model belongs to the technical field of construction equipment design, and specifically discloses a high parapet hanging hanging basket device, which comprises a high parapet and a hanging basket arranged on the outer side of the high parapet, and is fixed on the inner side of the high parapet The knot is provided with a rear embedded part, the lower end of the oblique stay rod is connected with the rear embedded part, and the upper end is connected with the horizontally connected support frame of the hanging basket. The device solves the problem that the height of the back legs of the electric hanging basket is limited. It is easy to operate and has high construction efficiency. It can be widely used in high-rise buildings, urban beautification and post-maintenance of external walls.
Description
Technical Field
The utility model belongs to the technical field of the design of construction equipment, specifically disclose a hanging flower basket device that encorbelments of high parapet.
Background
In the construction of high-rise buildings, the construction of external wall heat preservation, decoration, curtain wall and the like adopts a fastener type steel pipe scaffold, which is labor-consuming, cost-increasing and unsafe, and the construction of the electric hanging basket scaffold is basically adopted in the current industry. Because the cast-in-place reinforced concrete parapet is too high, the height of the rear supporting leg of the electric hanging basket is limited, according to the actual field structure, a standard counter weight is cancelled, a rear embedded part is changed, and a diagonal draw bar (square steel □ 100 multiplied by 4) is fixed on the finished parapet structure, so that the problem that the height of the rear supporting leg of the electric hanging basket is limited is solved, and the operation of workers is simple and convenient.
Disclosure of Invention
The utility model aims at: because the cast-in-place reinforced concrete parapet of building structure is too high, in the construction of outer wall face, the landing leg height is restricted behind the electronic hanging flower basket, needs to improve current equipment, solves the limited problem of current electronic hanging flower basket landing leg height.
The technical scheme of the utility model: the utility model provides a hanging flower basket device that encorbelments of high parapet, includes high parapet and sets up the hanging flower basket in the high parapet outside the inboard consolidation of high parapet be equipped with rearmounted built-in fitting, the diagonal draw bar lower extreme is connected with rearmounted built-in fitting, its upper end then is connected with the support frame of the transverse connection of hanging flower basket.
Further designed, the transverse included angle a of the diagonal draw bar is 45 degrees.
Has the advantages that: the device solves the problem that the height of the rear support leg of the electric hanging basket is limited, and is convenient to operate. On-site installation personnel only need stand on the floor to fix the rear embedded part on the parapet wall by adopting 4M 16 expansion bolts. The two persons can operate independently and are not limited by the environment; the method has the advantages of simple and convenient operation, high construction efficiency, convenient construction, accordance with the modern rapid construction requirement and wide application prospect. The method can be widely applied to high-rise buildings, city beautification, later maintenance of outer walls and the like.
Drawings

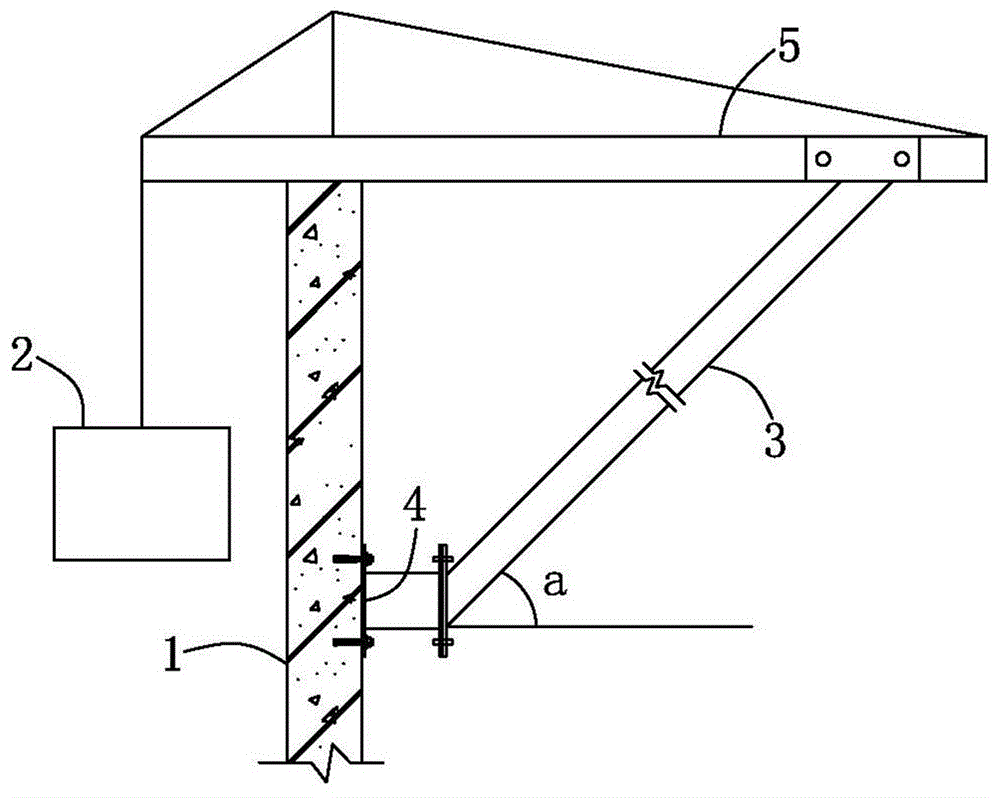

Fig. 1 is a schematic view of the structure of the present invention.
Detailed Description
The method is implemented in practice: the rear embedded parts are two-300 multiplied by 10 steel plates and one phi 150 steel pipe (L =200 long), Q235B, and are fixed on the concrete high parapet wall by adopting 4M 16 expansion bolts. The diagonal draw bars are □ 100 multiplied by 4 and are connected with the rear embedded parts by 4M 16 bolts. The steel ladle card is made of a-8 mm steel plate and Q235 steel, and the field welding line is 6 mm. The angle of the diagonal draw bar is 45 degrees.
Claims (2)
1. The utility model provides a hanging flower basket device of encorbelmenting of high parapet, includes high parapet (1) and sets up hanging flower basket (2) in high parapet (1) outside, its characterized in that: the inner side of the high parapet wall (1) is fixedly connected with a rear embedded part (4), the lower end of the diagonal draw bar (3) is connected with the rear embedded part (4), and the upper end of the diagonal draw bar is connected with a supporting frame (5) which is transversely connected with the hanging basket.
2. A high parapet overhanging basket apparatus as claimed in claim 1, wherein: the transverse included angle a of the diagonal draw bar (3) is 45 degrees.
