Abstract
本实用新型涉及一种碎石机下料储存箱体分料装置，包括下料斗本体，下料斗本体内设缓冲组件和喷水管，缓冲组件包括第一缓冲槽、第二缓冲槽和第三缓冲槽，第一缓冲槽和下料斗本体的入口相对应，第一缓冲槽的出口和第二缓冲槽的上端相对应，第二缓冲槽的出口和第三缓冲槽的上端相对应，第三缓冲槽的出口和下料斗本体的出口相对应，缓冲组件的下端设减震弹簧，减震弹簧的一端连接下料斗本体的侧壁，减震弹簧的另一端连接缓冲组件的下表面，喷水管设于下料斗本体的侧壁上。本实用新型提供的分料装置，可减缓石子冲击力，降低石子下落的噪音，延长设备的使用寿命。
The utility model relates to a material distributing device for a stone crusher blanking storage box, comprising a lowering hopper body, a buffer assembly and a water spray pipe are arranged in the lowering hopper body, and the buffering assembly comprises a first buffer tank, a second buffer tank and a third buffer tank. The buffer tank, the first buffer tank corresponds to the inlet of the lower hopper body, the outlet of the first buffer tank corresponds to the upper end of the second buffer tank, the outlet of the second buffer tank corresponds to the upper end of the third buffer tank, and the third buffer tank corresponds to the upper end of the third buffer tank. The outlet of the buffer tank corresponds to the outlet of the lower hopper body. The lower end of the buffer assembly is provided with a shock-absorbing spring, one end of the shock-absorbing spring is connected to the side wall of the lower hopper body, and the other end of the shock-absorbing spring is connected to the lower surface of the buffer assembly. The pipe is arranged on the side wall of the lower hopper body. The material distribution device provided by the utility model can slow down the impact force of stones, reduce the noise of falling stones, and prolong the service life of the equipment.
Description
Technical Field
The utility model belongs to the technical field of the stone crusher equipment, concretely relates to box feed divider is stored to stone crusher unloading.
Background
In highway construction, stones are indispensable, and stones with different sizes are obtained by crushing stones by a stone crusher. After the broken stone of stone crusher, on the direct back that separates of bin below stone directly falls into belt transmission device through a slope, there is very big impact force to belt and slope, it is very big to its injury, and long-term the use can often damage, increases cost and influences work efficiency to can produce a large amount of noises.
Disclosure of Invention
The utility model aims at providing a stone crusher unloading storage box feed divider who slows down stone impact force, noise reduction in order to solve the problem that proposes among the background art.
The purpose of the utility model is realized like this:
the feed divider of the discharging storage box body of the stone crusher comprises a feeding hopper body, wherein a buffer assembly and a water spray pipe are arranged in the feeding hopper body, the buffer assembly comprises a first buffer groove, a second buffer groove and a third buffer groove, the inlet of the first buffer groove corresponds to the inlet of the feeding hopper body, the outlet of the first buffer groove corresponds to the upper end of the second buffer groove, the outlet of the second buffer groove corresponds to the upper end of the third buffer groove, the outlet of the third buffer groove corresponds to the outlet of the feeding hopper body, the lower end of the first buffer groove is provided with a damping spring, one end of the damping spring is connected with the side wall of the feeding hopper body, the other end of the damping spring is connected with the lower surface of the first buffer groove, the lower end of the second buffer groove is provided with a damping spring, one end of the damping spring is connected with the side wall of the feeding hopper body, and the other end of the damping spring is connected with the lower surface of the second buffer, and a damping spring is arranged at the lower end of the third buffer groove, one end of the damping spring is connected with the side wall of the lower hopper body, the other end of the damping spring is connected with the lower surface of the third buffer groove, and the spray pipe is arranged on the side wall of the lower hopper body.
Further, the first buffer groove is inclined at an angle of 30 ° to 45 ° downward to the right.
Further, the second buffer tank is inclined at an angle of 30 ° to 45 ° downward to the left.
Further, the third buffer tank is inclined at 30 ° to 45 ° downward to the right.
Further, first dashpot, second dashpot and third dashpot all connect the lateral wall of hopper body down through the rotation axis.
Furthermore, 2 ~ 4 are established to the spray pipe, the spray pipe is straggly located on the both sides wall of hopper body down.
Furthermore, rubber rollers are arranged on the upper surfaces of the first buffer groove, the second buffer groove and the third buffer groove, and the rubber rollers are arranged on the upper surfaces of the first buffer groove, the second buffer groove and the third buffer groove in a matrix mode.
Furthermore, a protecting sleeve is arranged at the outlet of the lower end of the discharging hopper body in an enclosing mode.
Further, the outlet end of the third buffer tank is higher than the bottom end of the discharging hopper body by 2-8 cm.
Furthermore, the outlet end of the first buffer groove is 5-10 cm higher than the upper surface of the second buffer groove.
Furthermore, the outlet end of the second buffer groove is 5-10 cm higher than the upper surface of the third buffer groove.
Compared with the prior art, the beneficial effects of the utility model reside in that:
1. the utility model provides a box feed divider is stored in stone crusher unloading sets up the buffering subassembly, and the stone gets into first dashpot through the entry, continues to get into second dashpot and third dashpot after the whereabouts, has increased the route of stone whereabouts, has reduced the gravitational potential energy of stone, and the impact force of avoiding the stone directly to produce after falling into the belt causes the injury to the belt.
2. The utility model provides a box feed divider is stored in stone crusher unloading sets up a plurality of spray pipes, realizes the dust fall many times at the in-process of stone whereabouts, effectively suppresses the dust spray, avoids a large amount of dusts to get into in the human body.
3. The utility model provides a box feed divider is stored in stone crusher unloading, the upper surface of buffering subassembly is equipped with the rubber gyro wheel, avoids the stone to the wearing and tearing of dashpot, has reduced the noise that the stone produced in the dashpot simultaneously.
4. The utility model provides a box feed divider is stored in stone crusher unloading, the buffer slot passes through rotation axis and damping spring and connects down the hopper body, has further slowed down the stone to the impact force of buffer slot, and damping spring helps reseing of buffer slot, does not influence the descending of follow-up stone.
Drawings

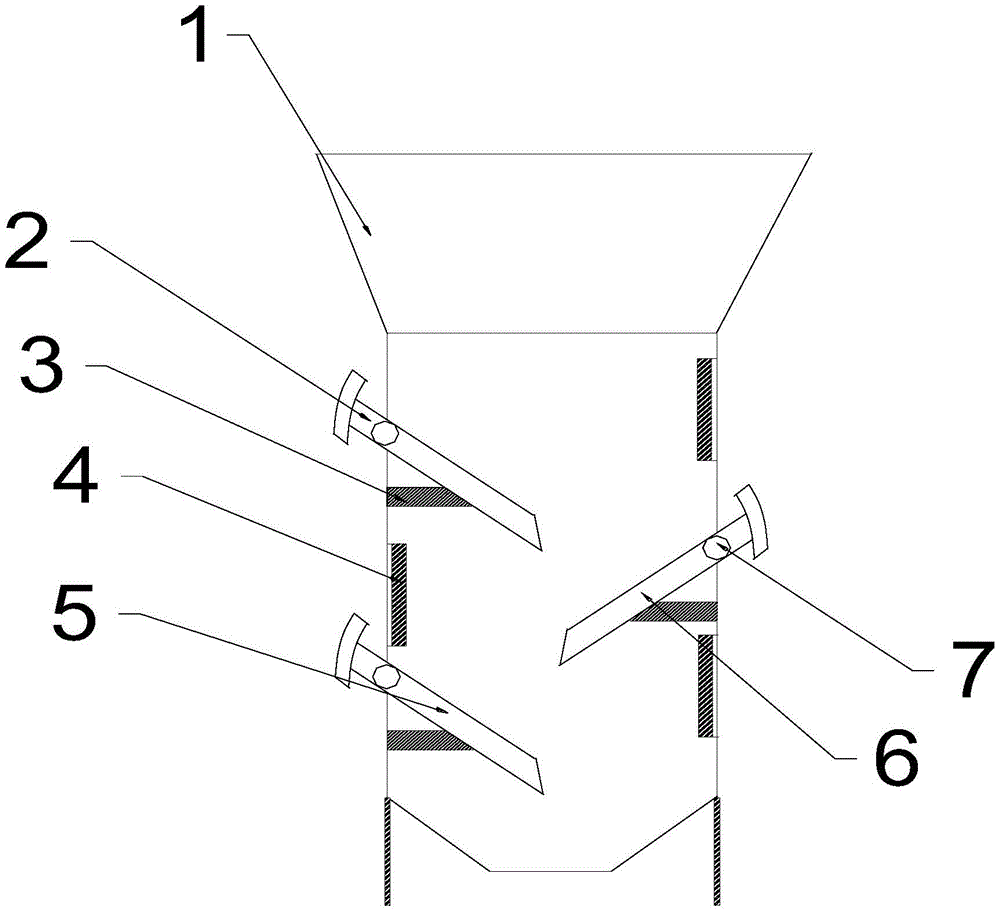

Fig. 1 is the structure schematic diagram of the material distributing device of the blanking storage box body of the stone crusher.
Fig. 2 is the first buffer slot schematic diagram of the material distributing device of the stone crusher blanking storage box body.
In the figure: 1. a discharge hopper body; 2. a first buffer tank; 3. a damping spring; 4. a water spray pipe; 5. a second buffer tank; 6. a third buffer tank; 7. a rotating shaft; 8. rubber roller.
Detailed Description
The technical solution in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings, and obviously, the described embodiments are only some embodiments of the present invention, but not all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the scope of the present invention.
Example 1
As shown in fig. 1, stone crusher unloading storage box feed divider, including hopper body 1 down, establish buffer unit and spray pipe 4 in the hopper body 1 down, buffer unit includes first dashpot 2, second dashpot 5 and third dashpot 6, first dashpot 2 is corresponding with the entry of hopper body 1 down, the export of first dashpot 2 is corresponding with the upper end of second dashpot 5, the export of second dashpot 5 is corresponding with the upper end of third dashpot 6, the export of third dashpot 6 is corresponding with the export of hopper body 1 down, first dashpot 2 below slope in the right side 30, second dashpot 5 below slope in the left side 30, third dashpot 6 below slope in the right side 30.
The stones enter the first buffer groove 3 through the inlet, and continue to enter the second buffer groove 6 and the third buffer groove + after falling, so that the falling path of the stones is increased, the gravitational potential energy of the stones is reduced, and the belt is prevented from being damaged by impact force generated after the stones directly fall into the belt.
Example 2
On the basis of embodiment 1, damping spring 3 is established to the lower extreme of first dashpot 2, the lateral wall of hopper body 1 is down connected to damping spring 3's one end, the lower surface of first dashpot 2 is connected to damping spring 3's the other end, damping spring 3 is established to the lower extreme of second dashpot 5, the lateral wall of hopper body 1 is down connected to damping spring 3's one end, the lower surface of second dashpot 5 is connected to damping spring 3's the other end, damping spring 3 is established to the lower extreme of third dashpot 6, the lateral wall of hopper body 1 is down connected to damping spring 3's one end, the lower surface of third dashpot 6 is connected to damping spring 3's the other end, spray pipe 4 is located down on the lateral wall of hopper body 1.
Example 3
On embodiment 1's basis, 2 ~ 4 are established to spray pipe 4, on 4 straggly falls and locates down the both sides wall of hopper body 1 of spray pipe, set up a plurality of spray pipes 4, realize many times the dust fall at the in-process of stone whereabouts, effectively restrain and spout the dirt, avoid a large amount of dust to get into in the human body, the environmental protection.
Example 4
Combine fig. 1 and fig. 2, stone crusher unloading storage box feed divider, including hopper body 1 down, establish buffer unit and spray pipe 4 in the hopper body 1 down, buffer unit includes first dashpot 2, second dashpot 5 and third dashpot 6, first dashpot 2 is corresponding with the entry of hopper body 1 down, the export of first dashpot 2 is corresponding with the upper end of second dashpot 5, the export of second dashpot 5 is corresponding with the upper end of third dashpot 6, the export of third dashpot 6 is corresponding with the export of hopper body 1 down.
Example 5
On the basis of embodiment 4, the lag is enclosed to the lower extreme exit of lower hopper body 1, can avoid the stone to splash after getting into the belt and accidentally injure the staff.
Above only be the preferred embodiment of the present invention, not be used for limiting the utility model discloses, the all be in the utility model discloses an any modification of doing in the protection scope, equal replacement etc. all should be contained within the protection scope of the utility model.
