CN210189003U - Automatic assembling equipment for latch bolt assembly

Info

Publication number: CN210189003U
Application number: CN201920788895.8U
Authority: CN
Inventors: Hongxia Li; 李红霞; Pengyu Liu; 刘朋雨; Zudong Li; 李祖栋
Original assignee: Guangdong Rong Hong Technology Co Ltd
Current assignee: Guangdong Rong Hong Technology Co Ltd
Priority date: 2019-05-28
Filing date: 2019-05-28
Publication date: 2020-03-27
Anticipated expiration: 2029-05-28

Abstract

The utility model provides an automatic assembling equipment for the oblique tongue assembly, which comprises a feeding device, a transferring device, a riveting device, a drilling device, a punching device and a frame, a feeding device, a transferring device, a riveting device, a drilling device and a plugging device. The punching device is installed on the frame, the riveting device, the drilling device and the punching device are distributed along the second limit material channel, and the transfer mechanism moves the oblique tongue assembly to the riveting device in turn along the extension direction of the second limit material channel. Round bar riveting, round bar drilling at the drilling device, and pin installation at the punching device. The automatic assembly equipment of the oblique tongue assembly has the advantages of high productivity and good quality of the finished product, and can realize the automatic assembly of the oblique tongue assembly.

Description

Automatic assembling equipment for latch bolt assembly

Technical Field

The utility model belongs to the technical field of tool to lock processing equipment technique and specifically relates to a latch bolt subassembly automatic assembly equipment is related to.

Background

The existing assembling of the oblique tongue component mainly comprises three procedures of riveting a round bar, drilling a pin hole and inserting and punching a pin, wherein the round bar riveting procedure comprises the steps of respectively putting the oblique tongue and the round bar into a first jig by manual operation, and then treading a pedal of a punching machine, so that a punch of the punching machine rivets the round bar into a mounting hole of the oblique tongue; the pin hole drilling process is that the riveted latch bolt and the round bar are placed into a second jig, and then a drilling machine is manually operated to drill the round bar; the pin inserting and striking process is to manually insert pins into pin holes on the latch bolt and pin holes drilled on the round rod in sequence, and then manually control the punch press to enable a punch of the punch press to punch the pins so as to enable the pins to fix the latch bolt and the round rod. However, as can be seen from the assembly and processing of the latch bolt assembly, each process of the existing latch bolt assembly is operated manually, which results in high labor intensity of workers, and a large number of workers are needed, so that the labor cost is high. In addition, after one procedure is completed, products processed by the procedure need to be transferred, and each procedure needs to clamp the assembly once, so that the defects of long turnover time, low productivity and difficulty in ensuring processing quality exist. Moreover, a punch press and a drilling machine are required to be operated in the assembling process of the latch bolt assembly, so that production accidents are easy to happen when workers are in a fatigue working state.

Disclosure of Invention

In order to solve the problem, the utility model aims to provide a latch bolt subassembly automatic assembly equipment that productivity is high, the finished product is of high quality and can realize the automatic assembly of latch bolt subassembly.

In order to realize the main purpose of the utility model, the utility model provides an automatic assembling device for a latch bolt component, which comprises a feeding device, a transferring device, a riveting device, a drilling device, an inserting and punching device and a frame, wherein the feeding device comprises a first feeding mechanism, a first spacing material channel and a first material pushing mechanism, the first feeding mechanism feeds materials to the first spacing material channel, the first material pushing mechanism is arranged at the discharge port of the first spacing material channel, the transferring device comprises a transferring mechanism and a second spacing material channel, the first material pushing mechanism feeds materials to the second spacing material channel, the riveting device comprises a second feeding mechanism, a positioning jig and a first punching mechanism, the positioning jig is provided with a positioning groove, the positioning groove extends towards the second spacing material channel, the second feeding mechanism feeds materials to the positioning groove, a first punch of the first punching mechanism is arranged towards the positioning groove, and the first punch can move along the extending direction of the positioning groove, drilling equipment's drill bit is towards the spacing material of second and is said the setting, it includes third feed mechanism to insert the device of beating, the spacing material of third says and second punching press mechanism, the spacing material of third says the material to the spacing material of third, the export that the spacing material of third was said and the second drift of second punching press mechanism all say the setting towards the spacing material of second, feed arrangement, transfer device, riveting device, drilling equipment all installs in the frame with inserting the device of beating, riveting device, drilling equipment and insert the device of beating and say the distribution along the spacing material of second, transfer mechanism is along the extending direction that the spacing material of second was said at riveting device, drilling equipment and insert and beat the device and remove between.

Therefore, the feeding device is used for moving the latch bolt to the transferring device and ensuring that the latch bolt enters the transferring device according to the designed position, so that the transferring device can correctly and reliably move the latch bolt. The second feeding mechanism is used for moving the round bar to the positioning jig, and when the oblique tongue is moved to the riveting device, the round bar is pressed into the mounting hole of the oblique tongue by the first punching mechanism. When the latch bolt and the round rod are moved to the drilling device, a drill bit of the drilling device drills holes in the pin holes penetrating through the latch bolt and the round rod, then the latch bolt and the round rod are moved to the inserting and striking device, the pins are sent into the pin holes drilled in the latch bolt and the round rod through the third limiting material channel by the second feeding mechanism, and then the pins are punched by the second punching device, so that the pins are reliably pressed into the pin holes drilled in the latch bolt and the pins drilled in the round rod, and the latch bolt and the round rod are fixedly connected. The utility model discloses a structural design to oblique tongue subassembly automatic assembly equipment and the overall arrangement between each device for oblique tongue subassembly automatic assembly equipment can realize riveting the round bar, boring the pin hole and inserting the automated processing of beating the pin to the oblique tongue subassembly.

One preferred scheme is that a feed mechanism includes first vibration dish, and the discharge gate of first vibration dish is connected with the pan feeding mouth of first spacing material way.

It is thus clear that first vibration dish is used for carrying out the material loading to the latch bolt, adopts first vibration dish as first feed mechanism for the latch bolt can get into in first spacing material way according to the design position.

Another preferred scheme is that, second feed mechanism includes feed bin and liftout unit, the opening part of feed bin is provided with the ramp, the ramp slope extends towards positioning jig, the liftout unit is located the feed bin below, the liftout unit includes the fixing base, first cylinder and kicking plate, the fixing base is installed in the frame, be provided with first guide rail on the fixing base, the kicking plate is connected with first guide rail slidable, the kicking plate stretches into in the feed bin and is located the feed bin and is close to one side of ramp, first cylinder drive kicking plate slides along first guide rail.

It is thus obvious that the feed bin is used for saving a large amount of pole, and sets up the liftout unit and set up the ramp at the opening of feed bin for the liftout unit can be with the pole jacking to ramp department in the feed bin, makes the pole roll through the ramp and falls to positioning jig on, realizes the automatic feeding of pole.

The second feeding mechanism further comprises a material blocking unit and a material pressing unit, the material blocking unit is installed on the frame and located below the ramp, the material blocking unit comprises a material blocking plate and a second cylinder, the material blocking plate is located between the positioning jig and the ejector plate, the second cylinder can drive the material blocking plate to move towards the ramp, the material pressing unit is installed on the frame and located above the ramp, the material pressing unit comprises a material pressing plate and a third cylinder, the material pressing plate is located between the ejector plates of the positioning jig, and the third cylinder can drive the material pressing plate to move towards the ramp.

It is from top to bottom, keep off the material unit and press the material unit through setting up for can save many pole temporarily on the ramp of feed bin opening part, thereby reduce the material loading time of second feed mechanism by a wide margin, just keep off the material unit and press the material unit and can make only a pole fall into positioning jig on the ramp at every turn.

Another preferred scheme is that the inserting and beating device further comprises a fork piece, the fork piece comprises a main channel and a fork channel communicated with the main channel, the main channel is perpendicular to the second limiting material channel and is fixedly connected with the second limiting material channel, the second punch extends into the main channel, and the third limiting material channel is communicated with the fork channel.

It can be seen from above that fork spare can enough lead to second drift pin, can separate second drift and pin in certain area again, avoids the second drift to cause the interference falling into of pin to guarantee that the pin can correctly fall into the pin hole of latch tongue and the pin hole of round bar.

The third feed mechanism includes the second vibration dish, the device of beating still includes closing mechanism, closing mechanism includes fourth cylinder and connecting seat, the drive end fixed connection of connecting seat and fourth cylinder, the spacing material of third says including first body and second body, the first end of first body is connected with the discharge gate of second vibration dish, the second end setting of first body is on the connecting seat, the first end and the fork intercommunication of second body, the second end that the fourth cylinder can drive first body and the second end intercommunication of second body.

It is from top to bottom visible, the second vibration dish can make the pin get into the spacing material of third way according to the design position, and the switching mechanism can control the pin in the spacing material of third way and get into the pin hole of latch bolt and the pin of round bar is downthehole through the fork spare one by one, avoids the pin to cause the interference to the punching press of second drift.

Another preferred scheme is that the automatic assembly equipment for the latch bolt assembly further comprises a cooling device, wherein the cooling device comprises an electromagnetic valve and a spray pipe, the output end of the electromagnetic valve is connected with the spray pipe, and the spray pipe is arranged towards the drill bit.

Therefore, when the drilling device drills the round rod, the drill bit and the round rod can generate high temperature, the cooling device can spray cooling liquid to the drill bit and the oblique tongue component in the drilling process of the drilling device, the temperature of the drill bit and the oblique tongue component is reduced, the drill bit and the oblique tongue component are protected, and the machining precision of the drilling device is guaranteed.

Another preferred scheme is that a feed opening is formed in the second limiting material channel and located at the second punch, the automatic oblique tongue assembly assembling device further comprises a feeding device, the feeding device comprises a second pushing mechanism and a discharging material channel, the second pushing mechanism and the discharging material channel are located on two opposite sides of the second limiting material channel, the discharging material channel is located at the feed opening, and the output end of the second pushing mechanism is arranged towards the feed opening.

Therefore, after the inserting and beating device completes inserting and beating of the pin of the latch bolt assembly, the assembled latch bolt assembly can be discharged from the second limiting material channel through the discharging device.

The further scheme is that the transfer mechanism comprises a transfer clamp, three clamping jaws arranged at equal intervals are arranged on the transfer clamp, the three clamping jaws extend towards the second limiting material channel, the three clamping jaws are distributed along the extending direction of the second limiting material channel, and the first material pushing mechanism, the positioning jig, the drill bit and the second punch are distributed at equal intervals along the extending direction of the second limiting material channel.

It can be seen from above that, three clamping jaw makes transfer mechanism can remove a plurality of latch bolt subassemblies simultaneously, and cooperates the equidistant setting of three clamping jaw for loading attachment, riveting set, drilling equipment and inserting and beating the work that the device can be just mutually independent simultaneously, thereby make latch bolt subassembly automatic assembly equipment to process a plurality of latch bolt subassemblies simultaneously.

The transfer mechanism further comprises a second guide rail, a first driving unit, a support and a second driving unit, the second guide rail is mounted on the rack, the second guide rail extends along the extending direction of the second limiting material channel, the support is slidably mounted on the second guide rail, a third guide rail is arranged on the transfer clamp, the third guide rail is arranged along the extending direction of the clamping jaw and is slidably connected with the support, the first driving unit can drive the support to slide along the second guide rail, the second driving unit is connected between the support and the transfer clamp, and the second driving unit can drive the transfer clamp to move towards the second limiting material channel along the third guide rail.

From the above, the structural design of the transfer mechanism enables the transfer clamp to simultaneously clamp, move and position a plurality of latch bolt assemblies, and simultaneously release the positioning and clamping of the plurality of latch bolt assemblies, and ensures that each latch bolt assembly can be accurately moved to the next station.

According to a further scheme, the first stamping mechanism and the second stamping mechanism are both oil cylinders.

Therefore, the oil cylinder has the advantages of small volume, large pressure and capability of pushing at a constant speed, and the output pressure is convenient to adjust, so that the control and the movement of the stamping mechanism can be simpler and more reliable by adopting the oil cylinder as the stamping mechanism.

Drawings

FIG. 1 is an exploded view of a latch assembly.

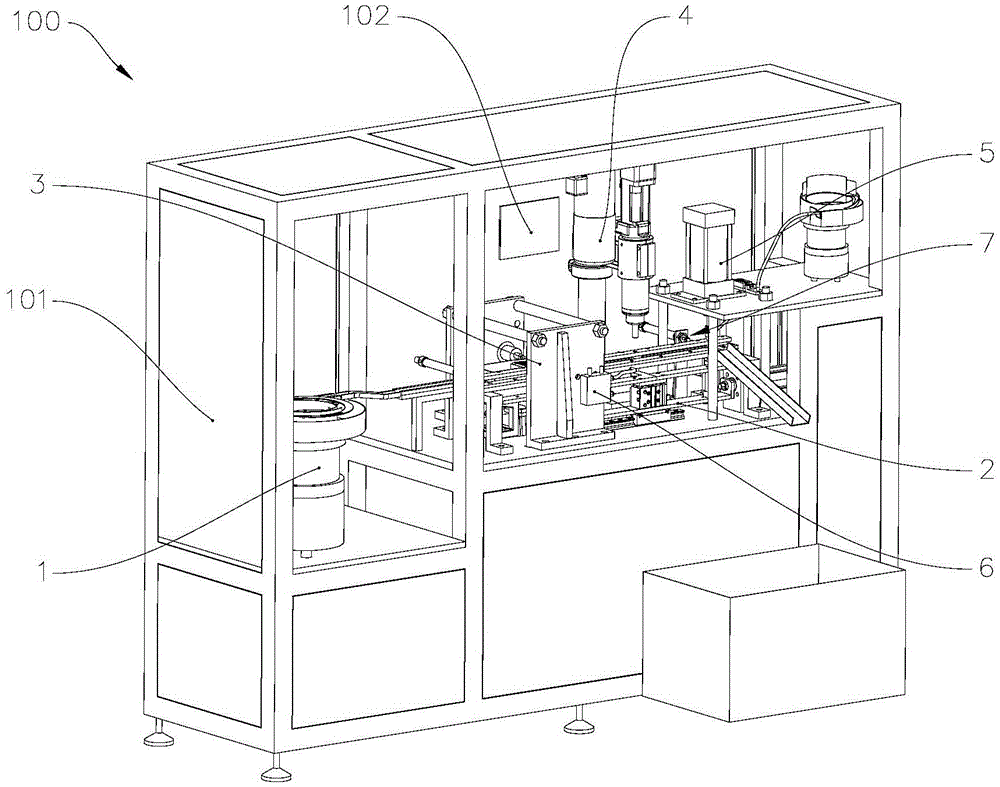

Fig. 2 is a structural diagram of the automatic assembly equipment for latch bolt assembly according to the present invention, with some components omitted.

Fig. 3 is a structural diagram of a feeding device of the automatic assembly equipment for latch bolt assemblies according to the present invention.

Fig. 4 is a structural view of a transfer device according to an embodiment of the automatic assembly apparatus for a latch bolt assembly according to the present invention.

Fig. 5 is a sectional view of a second limiting material channel of the automatic assembling device for latch bolt assemblies of the present invention.

Fig. 6 is a structural view of a transfer mechanism of the automatic assembly apparatus for latch bolt assemblies according to the present invention.

Fig. 7 is a structural diagram of a riveting device of an automatic assembly device for latch bolt assemblies according to the present invention.

Fig. 8 is a structural diagram of a inserting and beating device of the automatic assembling equipment for the latch bolt assembly of the present invention.

Fig. 9 is a sectional view of the opening and closing device of the automatic assembling apparatus for latch bolt assembly according to the present invention.

The present invention will be further explained with reference to the drawings and examples.

Detailed Description

Referring to fig. 1, the utility model provides an oblique tongue subassembly automatic assembly equipment is used for assembling the oblique tongue subassembly.

The latch bolt assembly 8 comprises a latch bolt 81, a round rod 82 and a pin, wherein during the assembly process of the latch bolt assembly 8, the round rod 82 needs to be inserted into a mounting hole of the latch bolt 81, and then a hole is drilled in the round rod 82, so that the drilled pin hole and the pin hole of the latch bolt 81 are coaxially arranged. After the drilling of the round bar 82 is completed, a pin is sequentially inserted into the pin hole of the latch tongue 81 and the pin hole of the round bar 82 to fix the latch tongue 81 and the round bar 82.

Referring to fig. 2, the latch bolt assembly automatic assembly equipment 100 comprises a control system, a frame 101, a touch display screen 102, a feeding device 1, a transfer device 2, a riveting device 3, a drilling device 4, a punching device 5, a cooling device 6 and a discharging device 7. The touch display screen 102, the feeding device 1, the transferring device 2, the riveting device 3, the drilling device 4, the inserting and beating device 5, the cooling device 6 and the blanking device 7 are all mounted on the rack 101. The control system is respectively and electrically connected with the touch display screen 102, the feeding device 1, the transferring device 2, the riveting device 3, the drilling device 4, the inserting and beating device 5, the cooling device 6 and the discharging device 7, and is used for coordinating and controlling the movement among the devices. The touch screen 102 may be used for a user to control the latch tongue assembly automatic assembly apparatus 100, such as debugging the apparatus, controlling the start and stop of the apparatus, and controlling the actions of a single device.

Referring to fig. 3, the feeding device 1 includes a first feeding mechanism 11, a first limiting material channel 12 and a first pushing mechanism 13, where the first feeding mechanism 11 is configured to send the latch tongue 81 into the first limiting material channel 12 according to a designed position, so as to feed the first limiting material channel 12. The first pushing mechanism 13 is located at the discharge port of the first material limiting channel 12 and is used for pushing the latch tongue 81 in the first material limiting channel 12 to move and displace. Specifically, first feed mechanism 11 includes first vibration dish, and first vibration dish is installed in frame 101, and the discharge gate of first vibration dish is connected with the pan feeding mouth of first spacing material way 12. The first vibrating disk is used for screening the latch bolt 81, so that the latch bolt 81 can enter the first limiting material channel 12 according to the designed position. The first limiting groove 121 is formed in the first limiting channel 12, and the first limiting groove 121 is used for limiting the latch bolt 81, so that the latch bolt 81 can move to the first pushing mechanism 13 according to the current design position. The first pushing mechanism 13 is preferably an air cylinder, and a pushing block 131 is disposed at a front end of the first pushing mechanism 13, and the pushing block 131 is used for pushing the latch tongue 81 into the transferring device 2 according to the current position. The pushing block 131 can not only ensure that the latch bolt 81 does not deviate greatly in the pushing process, but also protect the latch bolt 81 and avoid the deformation of the latch bolt 81.

Referring to fig. 4 to 6, the transfer device 2 includes a transfer mechanism 21 and a second material limiting channel 22, and the second material limiting channel 22 is configured to receive the latch tongue 81 pushed by the first material pushing cylinder. Specifically, the transfer mechanism 21 includes a transfer clamp 211, a second guide rail 212, a bracket 213, a first drive unit 214, and a second drive unit 215.

The transfer mechanism 21 is located below the second material limiting channel 22, three clamping jaws 2111 are arranged on the transfer clamp 211, and the three clamping jaws 2111 are distributed at equal intervals along the extending direction of the second material limiting channel 22. Each jaw 2111 extends toward the second dam path 22 and may extend into the second dam path 22. The second guide rail 212 is mounted on the frame 101, and the second guide rail 212 extends in the extending direction of the second material path. The bracket 213 is slidably mounted on the second guide rail 212 along the extending direction of the second guide rail 212, the first driving unit 214 is mounted on the frame 101, and the driving end of the first driving unit 214 is connected with the bracket 213, so that the first driving unit 214 can drive the bracket 213 to slide along the second guide rail 212, so that the three clamping jaws 2111 can move relative to the second material limiting channel 22. Preferably, the first driving unit 214 is a cylinder.

The transfer clamp 211 is provided with a third guide rail 2112, the third guide rail 2112 extends in the vertical direction toward the rack 213, that is, the third guide rail 2112 is provided in a direction parallel to the extending direction of the clamping jaws 2111, and the transfer clamp 211 is slidably connected to the rack 213 via the third guide rail 2112, so that the transfer clamp 211 can move relative to the rack 213 in the extending direction of the third guide rail 2112. The second driving unit 215 is connected between the support 213 and the transfer clamp 211, and preferably, a cylinder of the second driving unit 215 is fixed on the support 213, a push rod of the cylinder is fixedly connected with the transfer clamp 211 and can drive the transfer clamp 211 to move along the third guide rail 2112 relative to the second material limiting channel 22, so that the clamping jaw 2111 of the transfer clamp 211 extends into or withdraws from the second material limiting channel 22.

The second limiting material channel 22 comprises a first limiting component 221 and a second limiting component 222, the first limiting component 221 and the second limiting component 222 form a second limiting groove 223 in a surrounding mode, and the second limiting groove 223 is used for limiting the latch bolt 81, so that the latch bolt 81 can move in the second limiting material channel 22 according to the design position. In addition, a sliding groove 220 is formed between the first limiting component 221 and the second limiting component 222, the sliding groove 220 is communicated with the second limiting groove 223, and the sliding groove 220 can allow the clamping jaw 2111 to extend into the second limiting channel 22 and provide a moving space for the clamping jaw 2111.

In addition, the first pushing mechanism 13, the positioning jig 32 of the riveting device 3, the drill of the drilling device 4, and the second punch of the inserting and striking device 5 are distributed at equal intervals along the extending direction of the second limiting material channel 22 in sequence. The plurality of clamping jaws 2111 are arranged on the transfer clamp 211, so that the transfer clamp 211 can simultaneously move the plurality of latch bolt assemblies 8, and the three clamping jaws 2111 are arranged at equal intervals, so that the feeding device 1, the riveting device 3, the drilling device 4 and the inserting and striking device 5 can simultaneously and independently work, and the latch bolt assembly automatic assembly equipment 100 can simultaneously process the plurality of latch bolt assemblies 8.

With reference to fig. 2 to 4, a feeding port 224 is disposed at a position of the second limiting material channel 22 close to the first material pushing mechanism 13, and a cross section of the feeding port 224 is disposed in a wedge shape. Specifically, the feeding port 224 is disposed on the second limiting component 222, and the feeding port 224 is disposed such that when the first pushing mechanism 13 pushes the latch tongue 81 into the second limiting channel 22, the latch tongue 81 can smoothly slide into the second limiting groove 223 without being clamped by the second limiting component 222. Preferably, in order to avoid a large deviation of the position when the latch tongue 81 is pushed into the second material limiting channel 22, the first limiting component 221 and the second limiting component 222 are substantially flush with each other, and an opening is provided on the first limiting component 221, so that the latch tongue 81 can enter the second limiting groove 223 through the opening. In addition, a drill bushing 226 is further disposed on the first limiting assembly 221, the drill bushing 226 is located at the drilling device 4, and the drill bushing 226 is used for assisting a drill bit of the drilling device 4 to extend into the second limiting material channel 22.

Referring to fig. 7, the riveting apparatus 3 includes a second feeding mechanism 31, a positioning jig 32, and a first punching mechanism 33. The second feeding mechanism 31 includes a bin 311, an ejecting unit 312, a material blocking unit 313 and a material pressing unit 314. Wherein, feed bin 311 installs in frame 101, and feed bin 311 middle part forms the chamber that holds of depositing pole 82, holds the opening part in chamber and is provided with ramp 3111, and ramp 3111 inclines to extend towards positioning jig 32, and positioning jig 32 is located the low point department of ramp 3111 promptly.

Liftout unit 312 is located the below of feed bin 311, and liftout unit 312 includes positioning seat, first cylinder 3122 and kicking plate 3123, and fixing base 3121 installs on frame 101, and is provided with on the fixing base 3121 and leads first guide rail, and first guide rail extends towards feed bin 311. The ejector plate 3123 is slidably mounted on the first guide rail in a sliding direction of the first guide rail, and the ejector plate 3123 extends into the accommodation cavity of the magazine 311 and is located on a side of the magazine 311 close to the ramp 3111. The first cylinder 3122 is installed on the machine frame 101, and the first cylinder 3122 is used for driving the ejector plate 3123 to move along the first guide rail toward the silo 311, so that the front end of the ejector plate 3123 extends to the ramp 3111, and the round rod 82 in the silo 311 is lifted up to the ramp 3111 through the front end of the ejector plate 3123. And for carrying on spacingly and making the pole 82 can slide into ramp 3111 to the pole 82 in the jacking pole 82 in-process, set up the inclined plane at the front end of ejector plate 3123, the inclined plane sets up towards ramp 3111. In addition, in order to make it possible for the ejector unit 312 to lift all the round rods 82 in the magazine 311 up to the value ramp 3111, the bottom of the magazine 311 is provided with an inclined surface, the lower point of which is located at the entrance into which the ejector plate 3123 protrudes. The setting of liftout unit 312 and feed bin 311 for liftout unit 312 can be with the pole 82 jacking to ramp 3111 department in the feed bin 311, makes pole 82 roll through ramp 3111 and falls to positioning jig 32 on, realizes the automatic feeding of pole 82.

The material blocking unit 313 is installed on the frame 101, and the material blocking unit 313 is located below the ramp 3111. The material blocking unit 313 includes a second cylinder 3131 and a material blocking plate 3132, wherein the material blocking plate 3132 is located between the positioning jig 32 and the ejector plate 3123, the material blocking plate 3132 is disposed on one side of the ramp 3111 close to the positioning jig 32, and the material blocking plate 3132 penetrates through the ramp 3111 in a vertical direction. Of course, the striker plate 3132 may also be disposed at the discharge port of the ramp 3111. The second cylinder 3131 is used to drive the striker plate 3132 to move towards the ramp 3111 and extend into the ramp 3111. The striker plate 3132 may be used to block the round bar 82 in the ramp 3111 so that a small number of round bars 82 may be temporarily stored in the ramp 3111.

The pressing unit 314 is mounted on the frame 101, and the pressing unit 314 is located above the ramp 3111. The pressing unit 314 includes a third cylinder 3141 and a pressing plate 3142, the pressing plate 3142 is located between the positioning jig 32 and the ejector plate 3123, and the pressing plate 3142 is located between the ejector plate 3123 and the striker plate 3132. The third cylinder 3141 is used for driving the pressure plate 3142 to move towards the ramp 3111, so as to compress the round rod 82 in the ramp 3111, so as to cooperate with the material blocking unit 313, so that when the material blocking plate 3132 releases the blocking of the round rod 82 in the ramp 3111, the pressure plate 3142 can compress the round rod 82 in the ramp 3111, so that only one round rod 82 closest to the positioning jig 32 slides into the positioning jig 32. It can be seen that the cooperation of the material blocking unit 313 and the material pressing unit 314 enables the ramp 3111 at the opening of the bin 311 to temporarily store a plurality of round bars 82, thereby greatly reducing the feeding time of the second feeding mechanism 31 and ensuring that only one round bar 82 falls into the positioning jig 32 on the ramp 3111 at each time.

The positioning fixture 32 is provided with a positioning groove 321, the positioning groove 321 extends toward the second material limiting channel 22, and the second material limiting channel 22 is provided with a corresponding notch at the positioning fixture 32 for the round rod 82 to move into the second limiting groove 223. The positioning slot 321 is used for positioning the round rod 82, so that the round rod 82 of the positioning slot 321 can be coaxial with the mounting hole of the latch tongue 81, and the round rod 82 can be accurately inserted into the mounting hole. The tap of the first punching mechanism 33 is disposed toward the positioning groove 321, and the first punch is movable in the extending direction of the positioning groove 321, so that the round bar 82 in the positioning groove 321 is pressed into the mounting hole of the latch tongue 81, and the round bar 82 is riveted with the mounting hole. The first punching mechanism 33 preferably employs an oil cylinder because the oil cylinder has advantages of small volume, large pressure, and constant speed pushing, and the output pressure is easy to adjust, and the oil cylinder is employed as the punching mechanism to enable the control and movement of the punching mechanism to be simpler and more reliable. Preferably, the bottom of the positioning fixture 32 is provided with an air cylinder 34, and the air cylinder 34 can drive the positioning fixture 32 to move relative to the first punch, so that the position of the positioning groove 321 is adjustable.

Referring to fig. 2, the drilling device 4 is mainly a drilling machine, the drill head of the drilling device 4 is disposed toward the second limiting material channel 22, and the drilling device 4 can drive the drill hole to extend into the drill sleeve 226, so as to drill the round bar 82.

Referring to fig. 8 and 9, the insertion and beating device 5 includes a third feeding mechanism 51, a third stopper lane 52, a second punching mechanism 53, a fork 54, and an opening and closing mechanism 55. The third feeding mechanism 51 feeds materials to the third limiting material channel 52, an outlet of the third limiting material channel 52 and a second punch of the second punching mechanism 53 are both arranged towards the limiting material channel, an extension line of the outlet of the third limiting material channel 52 intersects with an extension line of the second punch at a point, and the second punching mechanism 53 is preferably an oil cylinder. Specifically, the third feeding mechanism 51 is mounted on the frame 101, the third feeding mechanism 51 includes a second vibrating disk, and a discharge hole of the second vibrating disk is connected to the third limiting channel 52. The second vibratory pan is used to screen the pins so that the pins can be installed in the design position into the third material-limiting channel 52.

The opening and closing mechanism 55 includes a fourth cylinder 551 installed on the frame 101, and a connecting base 552 fixedly connected to a driving end of the fourth cylinder 551, so that the fourth cylinder 551 can drive the connecting base 552 to slide. The third position-limiting material channel 52 comprises a first pipe 521 and a second pipe 522, the first end of the first pipe 521 is connected with the discharge hole of the second vibrating disk, and the second end of the first pipe 521 is on the connecting seat 552.

The fork 54 includes a main path 541 and a branch path 542, the main path 541 is perpendicular to the second stopper path 22, and the main path 541 extends in the extending direction of the second punch. In addition, the main channel 541 is fixedly installed on the second limiting channel 22, and the second punch extends into the main channel 541. The branch 542 is connected to the main channel 541, the first end of the second pipe 522 is connected to the branch 542, the second end of the second pipe 522 is fixedly connected to the frame 101, and the fourth cylinder 551 of the opening and closing mechanism 55 can slide by driving the connecting base 552, so that the second end of the first pipe 521 is connected to or staggered with the second end of the second pipe 522. It can be seen that the opening and closing mechanism 55 can control the pins in the third limiting material channel 52 to enter the pin holes of the latch 81 and the pin holes of the round bar 82 through the fork 54 one by one, so as to avoid the interference of the pins on the punching of the second punch. The fork 54 can guide the second punch pin and can separate the second punch pin from the pin in a certain area, so that the second punch pin is prevented from interfering falling of the pin, and the pin can be ensured to correctly fall into the pin hole of the latch tongue 81 and the pin hole of the round rod 82.

Referring to fig. 4 and 8, the second stopper channel 22 is provided with a feed opening 225 at the second punch. The blanking device 7 is arranged at the inserting and beating device 5, the blanking device 7 comprises a second pushing mechanism 71 and a discharging channel 72, and the second pushing mechanism 71 and the discharging channel 72 are respectively positioned at two opposite sides of the second limiting channel 22. An outlet channel 72 is located at the feed opening 225 for receiving the latch assembly 8 removed from the feed opening 225. The output end of the second pushing mechanism 71 is arranged toward the discharging opening 225, and the second pushing mechanism 71 pushes the latch bolt assembly 8 out of the discharging opening 225 by pushing the round rod 82 of the latch bolt assembly 8, so that the latch bolt assembly 8 is discharged from the discharging channel 72. Preferably, the second pushing mechanism 71 employs an air cylinder.

The cooling device 6 comprises a solenoid valve 61 and a nozzle 62, wherein the output end of the solenoid valve 61 is connected with the nozzle 62, and the nozzle 62 is arranged towards the drill bit. When the drilling device 4 drills the round rod 82, the drill bit and the round rod 82 both generate high temperature, and the cooling device 6 can spray cooling liquid to the drill bit and the oblique tongue assembly 8 in the drilling process of the drilling device 4 so as to reduce the temperature of the drill bit and the oblique tongue assembly 8, protect the drill bit and the oblique tongue assembly 8 and ensure the processing precision of the drilling device 4.

The process of the latch bolt assembly automatic assembly device 100 in assembling the latch bolt assembly 8 is as follows:

the feeding device 1 moves the latch tongue 81 into the first limiting material channel 12 through the first vibrating disc according to the designed position, and pushes the latch tongue 81 into the second limiting material channel 22 of the transfer device 2 through the first material pushing mechanism 13, and at this time, the mounting hole of the latch tongue 81 is arranged towards the first material pushing mechanism 13.

Next, the transfer mechanism 21 of the transfer device 2 moves the latch tongue 81 to the riveting device 3 through the transfer clip 211, the second feeding mechanism 31 of the riveting device 3 causes one round bar 82 on the ramp 3111 to fall into the positioning jig 32 through the linkage of the material blocking unit 313 and the material pressing unit 314, and then the first punching mechanism 33 drives the first punch to move toward the round bar 82, so as to push the round bar 82 into the mounting hole of the latch tongue 81, and rivet the round bar 82 with the latch tongue 81.

Next, the transfer mechanism 21 moves the latch 81 and the round bar 82 to the drilling device 4 to drill the round bar 82. After the round rod 82 is drilled, the transfer mechanism 21 moves the latch tongue 81 and the round rod 82 to the insertion and striking device 5, the insertion and striking device 5 moves a pin into the first pipe 521 through the first vibrating disc and controls a pin to move into the second pipe 522 in cooperation with the opening and closing mechanism 55, the pin sequentially falls into the pin hole of the latch tongue 81 and the pin hole of the round rod 82 through the fork 54, and then the second punch of the second punching mechanism 53 pushes the pin to move, so that the pin is riveted into the pin hole of the latch tongue 81 and the pin hole of the round rod 82, the latch tongue 81 and the round rod 82 are fixed, and the assembly of the latch tongue assembly 8 is completed.

To sum up, the utility model discloses a structural design to oblique tongue subassembly automatic assembly equipment and the overall arrangement between each device for oblique tongue subassembly automatic assembly equipment can realize riveting the round bar, boring pin nail hole and inserting the automated processing of beating the pin to the oblique tongue subassembly.

Finally, it should be emphasized that the above-described embodiments are merely preferred examples of the present invention, and are not intended to limit the invention, as those skilled in the art will appreciate that various changes and modifications may be made, and any and all modifications, equivalents, and improvements made, while remaining within the spirit and principles of the present invention, are intended to be included within the scope of the present invention.

Claims

1. Latch bolt subassembly automatic assembly equipment, its characterized in that includes:

the feeding device comprises a first feeding mechanism, a first limiting material channel and a first material pushing mechanism, wherein the first feeding mechanism feeds materials to the first limiting material channel, and the first material pushing mechanism is arranged at a discharge port of the first limiting material channel;

the transfer device comprises a transfer mechanism and a second limiting material channel, and the first material pushing mechanism feeds materials to the second limiting material channel;

the riveting device comprises a second feeding mechanism, a positioning jig and a first stamping mechanism, wherein the positioning jig is provided with a positioning groove, the positioning groove extends towards the second limiting material channel, the second feeding mechanism feeds materials to the positioning groove, a first punch of the first stamping mechanism is arranged towards the positioning groove, and the first punch can move along the extending direction of the positioning groove;

the drill bit of the drilling device is arranged towards the second limiting material channel;

the inserting and punching device comprises a third feeding mechanism, a third limiting material channel and a second punching mechanism, wherein the third feeding mechanism feeds materials to the third limiting material channel, and an outlet of the third limiting material channel and a second punch of the second punching mechanism are both arranged towards the second limiting material channel;

the riveting device, the drilling device and the inserting and beating device are arranged on the frame, the riveting device, the drilling device and the inserting and beating device are distributed along the second limiting material channel, and the transferring mechanism moves among the riveting device, the drilling device and the inserting and beating device along the extending direction of the second limiting material channel.

2. The automated assembly apparatus of claim 1, wherein:

the first feeding mechanism comprises a first vibrating disc, and a discharge port of the first vibrating disc is connected with a feeding port of the first limiting material channel.

3. The automated assembly apparatus of claim 1, wherein:

the second feed mechanism includes:

a ramp is arranged at the opening of the bin, and the ramp inclines towards the positioning jig and extends;

the ejection unit, the ejection unit is located the feed bin below, the ejection unit includes fixing base, first cylinder and liftout plate, the fixing base is installed in the frame, be provided with first guide rail on the fixing base, the liftout plate with first guide rail slidable ground is connected, the liftout plate stretches into in the feed bin and be located the feed bin is close to one side of ramp, first cylinder drive the liftout plate is followed first guide rail slides.

4. The automated assembly apparatus of claim 3, wherein:

the second feed mechanism further includes:

the material blocking unit is arranged on the rack and located below the ramp and comprises a material blocking plate and a second cylinder, the material blocking plate is located between the positioning jig and the ejector plate, and the second cylinder can drive the material blocking plate to move towards the ramp;

the material pressing unit is installed on the rack and located above the ramp and comprises a material pressing plate and a third cylinder, the material pressing plate is located between the ejector plates of the positioning jig, and the third cylinder can drive the material pressing plate to move towards the ramp.

5. The automated assembly apparatus of claim 1, wherein:

the inserting and beating device further comprises a fork piece, the fork piece comprises a main channel and a fork channel communicated with the main channel, the main channel is perpendicular to the second limiting material channel and is fixedly connected with the second limiting material channel, the second punch extends into the main channel, and the third limiting material channel is communicated with the fork channel.

6. The automated assembly apparatus of claim 5, wherein:

the third feeding mechanism comprises a second vibrating disc;

insert and beat the device and still include closing mechanism, closing mechanism includes fourth cylinder and connecting seat, the connecting seat with the drive end fixed connection of fourth cylinder, the spacing material of third says including first body and second body, the first end of first body with the discharge gate of second vibration dish is connected, the second end of first body sets up on the connecting seat, the first end of second body with the fork intercommunication, the fourth cylinder can drive the second end of first body with the second end intercommunication of second body.

7. The automated assembly apparatus of claim 1, wherein:

the automatic assembling equipment for the latch bolt assembly further comprises a cooling device, the cooling device comprises an electromagnetic valve and a spray pipe, the output end of the electromagnetic valve is connected with the spray pipe, and the spray pipe faces towards the drill bit.

8. The automated assembly apparatus of claim 1, wherein:

a feed opening is formed in the second limiting material channel and is located at the second punch;

oblique tongue subassembly automatic assembly equipment still includes unloader, unloader includes that second pushing equipment and ejection of compact material say, second pushing equipment with the ejection of compact material says and is located respectively the relative both sides that the spacing material of second said say, the ejection of compact material says and is located feed opening department, second pushing equipment's output court the feed opening sets up.

9. An automated assembly apparatus for a latch assembly according to any of claims 1 to 8, wherein:

the transfer mechanism comprises a transfer clamp, three clamping jaws arranged at equal intervals are arranged on the transfer clamp, the three clamping jaws extend towards the second limiting material channel, and the three clamping jaws are distributed along the extending direction of the second limiting material channel;

the first material pushing mechanism, the positioning jig, the drill bit and the second punch are distributed at equal intervals along the extending direction of the second limiting material channel.

10. The automated assembly apparatus of claim 9, wherein:

the transfer mechanism further includes:

the second guide rail is arranged on the rack and extends along the extending direction of the second limiting material channel;

the bracket is slidably arranged on the second guide rail, a third guide rail is arranged on the transfer clamp, and the third guide rail is arranged along the extension direction of the clamping jaw and is slidably connected with the bracket;

the first driving unit can drive the bracket to slide along the second guide rail;

the second driving unit is connected between the support and the transfer clamp and can drive the transfer clamp to move towards the second limiting material channel along the third guide rail.
