CN210187152U

CN210187152U - Reation kettle for chemical production

Info

Publication number: CN210187152U
Application number: CN201920816791.3U
Authority: CN
Inventors: Tianshui Liu; 刘添水
Original assignee: Quanzhou Jiachen Technology Co Ltd
Current assignee: Hubei Jinruijing Biotechnology Co ltd
Priority date: 2019-06-02
Filing date: 2019-06-02
Publication date: 2020-03-27
Anticipated expiration: 2029-06-02

Abstract

The utility model discloses a reaction kettle for chemical production, which comprises an outer protective frame, the inner cavity of the outer protective frame is fixedly connected with a reaction tank, the bottom of the outer protective frame is provided with a deceleration motor, and the top of the deceleration motor is arranged A fixing frame is fixedly connected, the top of the fixing frame is fixedly connected with the connection of the external protective frame, the output end of the reduction motor is fixedly connected with a coupling, and the top of the coupling is fixedly connected with a rotating rod. By arranging a feeding pipe, a stirring rod, a rotating rod deceleration motor, a heating frame, a pressure relief valve, a pressurizing pipe, a spray head, a water pump, a sealing ring and a heating rod, the utility model can make the device achieve the function of good reaction effect and solve the problem of The existing reaction kettles on the market do not have the function of good reaction effect, have large limitations in use, and cannot provide reaction conditions for the multiple reactions carried out by the reaction solution, so the reaction time becomes longer and the production efficiency is low, which is not conducive to the use of the user. question.

Description

Reation kettle for chemical production

Technical Field

The utility model relates to a chemical production technical field specifically is a reation kettle for chemical production.

Background

The broad understanding of the reaction vessel is that there is a physical or chemical reaction vessel, through the structural design and parameter configuration of the vessel, the heating, evaporation, cooling and low-speed mixing functions of the process requirements are realized, the reaction vessel is widely applied to petroleum, chemical engineering, rubber, pesticides, dyes, medicines, foods, and pressure vessels for completing the processes of vulcanization, nitration, hydrogenation, alkylation, polymerization, condensation, etc., such as reactors, reaction pots, decomposing pots, polymerization vessels, etc.; the material is carbon manganese steel, stainless steel, zirconium, nickel-based alloy and other composite materials.

Need use reation kettle to carry out chemical reaction when chemical production, reation kettle on the existing market does not possess the effectual function of reaction, uses the limitation great, can't provide reaction condition to the multiple reaction that reaction solution goes on, therefore reaction time lengthens, and production efficiency is lower, is unfavorable for user's use.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a reation kettle for chemical production possesses the advantage that the reaction effect is good, has solved the problem that reation kettle for chemical production does not possess the good function of reaction effect on the current market.

In order to achieve the above object, the utility model provides a following technical scheme: a reaction kettle for chemical production comprises an external protection frame, wherein a reaction tank is fixedly connected with the inner cavity of the external protection frame, a speed reducing motor is arranged at the bottom of the external protection frame, a fixing frame is fixedly connected with the top of the speed reducing motor, the top of the fixing frame is fixedly connected with the joint of the external protection frame, a coupler is fixedly connected with the output end of the speed reducing motor, a rotary rod is fixedly connected with the top of the coupler, the top of the rotary rod penetrates through the external protection frame and the reaction tank and extends to the inner cavity of the reaction tank, stirring rods are fixedly connected with the two sides of the surface of the rotary rod, a water pump is fixedly connected with the left side of the top of the external protection frame, the left side of the water pump is communicated with a water inlet pipe, the right side of the water pump is communicated with a connecting pipe, the bottom of the connecting pipe penetrates through, the inner cavity fixedly connected with of retort heats the frame, the inner cavity of heating frame is equipped with the heating rod.

Preferably, the both sides of outside protection frame bottom are the equal fixedly connected with supporting leg, the bottom fixedly connected with backup pad of supporting leg, the bottom of backup pad passes through rag bolt fixed connection with the junction on ground.

Preferably, the left bottom of outside protection frame intercommunication has the liquid outlet, the left side intercommunication of retort has the inlet pipe, the bottom intercommunication on retort right side has the discharging pipe.

Preferably, the bottom fixedly connected with of retort inner chamber is with the sealing washer that the rotary rod cooperation was used, the use material of sealing washer is wear-resisting corrosion-resistant rubber.

Preferably, the top on retort right side intercommunication has the forcing pipe, the fixed surface of forcing pipe is connected with the relief valve, one side intercommunication that the reacting pot was kept away from to the forcing pipe has supercharging device, one side intercommunication that the water pump was kept away from to the inlet tube has water storage device.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a set up inlet pipe, puddler, rotary rod gear motor, heating frame, relief valve, forcing pipe, shower nozzle, water pump, sealing washer and heating rod, can make the device reach the function that the reaction effect is good, solved reation kettle on the current market and did not possess the function that the reaction effect is good, use the limitation great, multiple reaction that can't go on to reaction solution provides reaction condition, consequently reaction time becomes long, production efficiency is lower, is unfavorable for the problem that the user used.

2. By the aid of the foundation bolts, the phenomenon that the use of the device is affected by shaking during use can be effectively avoided, and the stability of the device during use is improved;

accumulated liquid in the inner cavity of the external protective frame can be effectively removed in time through the liquid outlet, so that the use of equipment is facilitated, and the practicability of the device in use is improved;

by the aid of the sealing ring, the phenomenon that the use is affected by liquid leakage at the bottom of the reaction tank can be effectively avoided, and the sealing performance of the device in use is improved;

through forcing pipe and relief valve, can the person of facilitating the use more pressurizes the retort, effectively promoted some reaction solution's reaction rate, practicality when having promoted the device and using.

Drawings

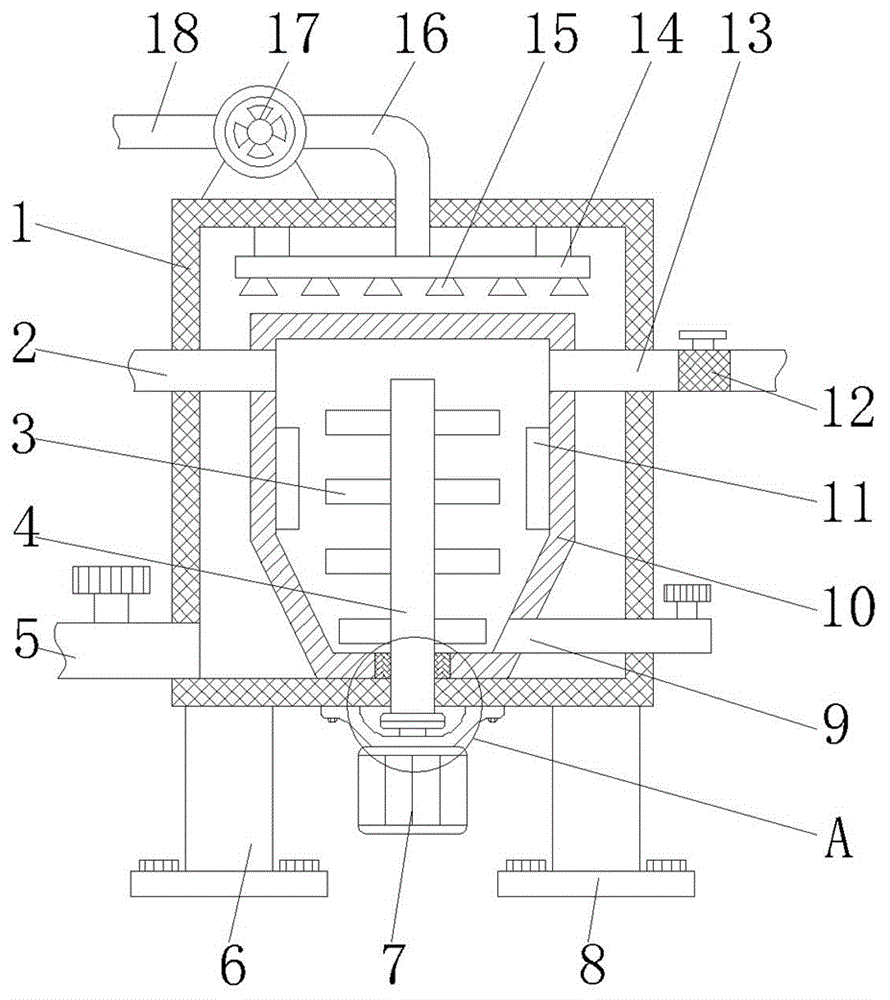

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view of a portion A of FIG. 1;

fig. 3 is a top cross-sectional view of the reaction tank of the present invention.

In the figure: 1 outside protection frame, 2 inlet pipes, 3 puddlers, 4 rotary rods, 5 liquid outlets, 6 supporting legs, 7 gear motor, 8 backup pads, 9 discharging pipes, 10 retort, 11 heating frame, 12 relief valves, 13 forcing pipe, 14 violently pipes, 15 shower nozzles, 16 connecting pipes, 17 water pump, 18 inlet tubes, 19 shaft couplings, 20 sealing washer, 21 mount, 22 heating rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to be referred must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "connected", and the like are to be construed broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-3, a reaction kettle for chemical production comprises an external protection frame 1, wherein supporting legs 6 are fixedly connected to both sides of the bottom of the external protection frame 1, a supporting plate 8 is fixedly connected to the bottom of the supporting legs 6, the joint of the bottom of the supporting plate 8 and the ground is fixedly connected through anchor bolts, the phenomenon that the device shakes to affect the use during use can be effectively avoided through the anchor bolts, the stability of the device during use is improved, a reaction tank 10 is fixedly connected to the inner cavity of the external protection frame 1, a speed reduction motor 7 is arranged at the bottom of the external protection frame 1, a fixing frame 21 is fixedly connected to the top of the speed reduction motor 7, the joint of the fixing frame 21 and the external protection frame 1 is fixedly connected, a coupler 19 is fixedly connected to the output end of the speed reduction motor 7, a rotary rod 4 is fixedly connected to the top of the coupler 19, the top of the rotary rod 4 penetrates through the external protection frame 1 and the, the bottom of the inner cavity of the reaction tank 10 is fixedly connected with a sealing ring 20 matched with the rotary rod 4 for use, the sealing ring 20 is made of wear-resistant and corrosion-resistant rubber, the phenomenon that the bottom of the reaction tank 10 is leaked to influence the use can be effectively avoided through the sealing ring 20, the sealing performance of the device in use is improved, the stirring rod 3 is fixedly connected to both sides of the surface of the rotary rod 4, the liquid outlet 5 is communicated with the bottom of the left side of the external protection frame 1, the feeding pipe 2 is communicated with the left side of the reaction tank 10, the discharging pipe 9 is communicated with the bottom of the right side of the reaction tank 10, accumulated liquid in the inner cavity of the external protection frame 1 can be timely and effectively discharged through the liquid outlet 5, the use of equipment is facilitated, the practicability of the device in use is improved, the water pump 17 is fixedly connected to the left side of the top of the, outside protection frame 1 is run through to the bottom of connecting pipe 16 and the intercommunication has violently pipe 14, the bottom intercommunication of violently pipe 14 has shower nozzle 15, the top intercommunication on retort 10 right side has forcing pipe 13, the fixed surface of forcing pipe 13 is connected with relief valve 12, one side intercommunication that retort 10 was kept away from to forcing pipe 13 has supercharging device, one side intercommunication that water pump 17 was kept away from to inlet tube 18 has water storage device, through forcing pipe 13 and relief valve 12, can user of facilitating the use more pressurizes retort 10, certain reaction solution's reaction rate has effectively been promoted, practicality when having promoted the device and using, retort 10's inner chamber fixedly connected with heating frame 11, the inner chamber of heating frame 11 is equipped with heating rod 22.

When the reaction tank is used, a user pumps reaction solution to the inner cavity of the reaction tank 10 through the feeding pipe 2, the inner cavity of the reaction tank 10 can be heated by starting the heating rod 22 to accelerate reaction of some reaction solution, the coupler 19 is driven to rotate by starting the speed reducing motor 7, the rotating rod 4 is driven to rotate by the rotation of the coupler 19, the stirring rod 3 is driven to rotate by the rotation of the rotating rod 4 to mix the reaction solution in the inner cavity of the reaction tank 10, the reaction speed is accelerated, the inner cavity of the reaction tank 10 can be pressurized by the external pressurizing equipment of the pressurizing pipe 13, cooling water of the external water storage equipment can be pumped to the inner cavity of the transverse pipe 14 along the water inlet pipe 18 and the connecting pipe 16 by starting the water pump 17 to be sprayed out along the spray nozzle 15 to cool the reaction tank 10, and the use can be adjusted according to different reaction requirements of different reaction solutions through the matching of, the suitability is strong, has promoted reation kettle's reaction rate greatly, and convenient to use person's operation is fit for using widely.

In summary, the following steps: this reation kettle for chemical production, through inlet pipe 2, puddler 3, rotary rod 4, gear motor 7, heating frame 11, relief valve 12, forcing pipe 13, shower nozzle 15, water pump 17, sealing washer 20 and heating rod 22, reation kettle on having solved the existing market does not possess the function that the reaction effect is good, the use limitation is great, multiple reaction that can't go on to reaction solution provides reaction condition, consequently, reaction time becomes long, production efficiency is lower, be unfavorable for the problem that the user used.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a reation kettle for chemical production, includes outside protective frame (1), its characterized in that: the reaction tank (10) is fixedly connected to the inner cavity of the external protection frame (1), the speed reducing motor (7) is arranged at the bottom of the external protection frame (1), a fixing frame (21) is fixedly connected to the top of the speed reducing motor (7), the top of the fixing frame (21) is fixedly connected to the joint of the external protection frame (1), a coupler (19) is fixedly connected to the output end of the speed reducing motor (7), a rotary rod (4) is fixedly connected to the top of the coupler (19), the top of the rotary rod (4) penetrates through the external protection frame (1) and the reaction tank (10) and extends to the inner cavity of the reaction tank (10), stirring rods (3) are fixedly connected to the two sides of the surface of the rotary rod (4), a water pump (17) is fixedly connected to the left side of the top of the external protection frame (1), and a water inlet pipe (18) is communicated to the left side, the right side intercommunication of water pump (17) has connecting pipe (16), the bottom of connecting pipe (16) runs through outside protective frame (1) and the intercommunication has violently pipe (14), the bottom intercommunication of violently pipe (14) has shower nozzle (15), the inner chamber fixedly connected with heating frame (11) of retort (10), the inner chamber of heating frame (11) is equipped with heating rod (22).

2. The reaction kettle for chemical production according to claim 1, wherein: the supporting legs are fixedly connected to two sides of the bottom of the external protection frame (1), supporting plates (8) are fixedly connected to the bottoms of the supporting legs (6), and the bottoms of the supporting plates (8) are fixedly connected with the joints of the ground through foundation bolts.

3. The reaction kettle for chemical production according to claim 1, wherein: the left bottom intercommunication of outside protective frame (1) has liquid outlet (5), the left side intercommunication of retort (10) has inlet pipe (2), the bottom intercommunication on retort (10) right side has discharging pipe (9).

4. The reaction kettle for chemical production according to claim 1, wherein: the bottom fixedly connected with in retort (10) inner chamber is with sealing washer (20) that rotary rod (4) cooperation was used, the use material of sealing washer (20) is wear-resisting corrosion-resistant rubber.

5. The reaction kettle for chemical production according to claim 1, wherein: the top intercommunication on retort (10) right side has forcing pipe (13), the fixed surface of forcing pipe (13) is connected with relief valve (12), one side intercommunication that retort (10) were kept away from in forcing pipe (13) has supercharging device, one side intercommunication that water pump (17) were kept away from in inlet tube (18) has water storage device.
