Abstract
本实用新型提供一种冲洗吸引连接管装置，包括储液装置、连接延长管、连接管密封装置、调压部和进液部，连接延长管与储液装置连接，连接管密封装置与连接延长管连接，进液部与储液装置连接，调压部与连接延长管连接。本实用新型的有益效果是结构简单，使用方便，制作成本低，能够避免吸痰连接管与生理盐水直接接触，避免生理盐水被污染，保证生理盐水的无菌性，便于患者的治疗。
The utility model provides a flushing suction connecting pipe device, which comprises a liquid storage device, a connecting extension pipe, a connecting pipe sealing device, a pressure regulating part and a liquid inlet part, the connecting extending pipe is connected with the liquid storage device, and the connecting pipe sealing device is connected with the connecting extension The pipe is connected, the liquid inlet part is connected with the liquid storage device, and the pressure regulating part is connected with the connecting extension pipe. The utility model has the advantages of simple structure, convenient use and low production cost, which can avoid direct contact between the suction connecting pipe and the physiological saline, avoid the contamination of the physiological saline, ensure the sterility of the physiological saline, and facilitate the treatment of patients.
Description
Technical Field
The utility model belongs to the technical field of medical instrument, especially, relate to a wash and attract connecting pipe device.
Background
Sputum aspiration is the most common and effective method for eliminating the tracheal endocrine, and is a basic nursing technical operation commonly used in clinic. The department of people adopts a wall negative pressure suction control board to be connected with a negative pressure suction device (comprising a negative pressure gauge head, a suction connecting pipe and a disposable sputum suction pipe) for operation. The disposable sputum suction tube is discarded after each sputum suction operation, the normal saline is used for cleaning the suction connecting tube in a negative pressure suction mode, the sputum and the like attached to the tube are washed into the negative pressure suction bottle, and the normal saline is changed every day.
However, the conventional sputum suction device repeatedly sucks sputum, and the suction connecting pipe is cleaned by repeatedly using normal saline, so that the normal saline is easily polluted, the interface of the suction connecting pipe is further polluted, bacteria are bred, nosocomial infection occurs, and the treatment of a patient is not facilitated; the appearance is not elegant, and the mattress is easy to be broken when being placed on a bedside table; the nurse is inconvenient to operate.
Disclosure of Invention
In view of the above problem, the to-be-solved problem of the utility model is to provide a wash and attract connecting pipe device is fit for washing inhaling the phlegm connecting pipe, has the accent splenium, inhales to wash and draws connecting pipe device internal pressure to adjust, uses normal saline to wash inhaling the phlegm connecting pipe, avoids inhaling phlegm connecting pipe and normal saline direct contact, guarantees normal saline's sterility.
In order to solve the technical problem, the utility model discloses a technical scheme is: the utility model provides a wash and attract connecting pipe device, includes stock solution device, connects extension pipe, connecting pipe sealing device, pressure regulating portion and feed liquor portion, connects extension pipe and stock solution device intercommunication, connecting pipe sealing device with connect the extension union coupling, feed liquor portion is connected with the stock solution device, pressure regulating portion with connect the extension union coupling.
Further, the pressure regulating portion includes pressure regulating pipe and pressure regulating sealing device, and pressure regulating pipe one end with be connected the extension union coupling, the other end and the pressure regulating sealing device of pressure regulating pipe are connected.
Furthermore, the pressure regulating pipe is of a reducing tubular structure.
Further, the liquid inlet part comprises a liquid inlet pipe and a liquid inlet sealing device, one end of the liquid inlet pipe is connected with the liquid storage device, and the other end of the liquid inlet pipe is connected with the liquid inlet sealing device.
Furthermore, one end of the connecting extension pipe is arranged in the liquid storage device, and the distance between the end of the connecting extension pipe and the bottom of the liquid storage device is 5mm-15 mm.
Further, still include the mount, stock solution device locates on the mount.
Furthermore, the liquid storage device is arranged on the fixing frame and is in contact with the liquid storage device.
Further, the liquid storage device is provided with scale marks.
Further, the liquid inlet pipe is arranged in parallel with the connecting extension pipe.
Further, the connecting pipe sealing device comprises a fixing piece, a connecting piece and a plugging piece, the fixing piece is connected with the connecting extension pipe, one end of the connecting piece is connected with the fixing piece, and the other end of the connecting piece is connected with the plugging piece.
The utility model has the advantages and positive effects that:
1. by adopting the technical scheme, the flushing and sucking connecting pipe device has the advantages of simple structure, convenient use and low manufacturing cost, can avoid the direct contact between the sputum suction connecting pipe and the normal saline, avoid the normal saline from being polluted, ensure the sterility of the normal saline and facilitate the treatment of patients;
2. the device is provided with a connecting pipe sealing device, a pressure regulating sealing device and a liquid inlet sealing device, so that the sealing performance of the flushing and sucking connecting pipe device is ensured, the flushing and sucking connecting pipe device is a sealed container, after sputum suction is finished each time, the sucking connecting pipe is connected with a connecting extension pipe, and the negative pressure flushing and sputum suction connecting pipe is provided by utilizing the siphon principle, so that the sputum suction connecting pipe is not directly contacted with normal saline, and the sterility of the normal saline is ensured;
3. the sputum suction connecting pipe device is provided with a pressure regulating part, the pressure of the flushing suction connecting pipe device can be regulated when the sputum suction connecting pipe is flushed, so that the physiological saline is conveniently sucked, the physiological saline enters the sputum suction connecting pipe, the sputum suction connecting pipe is flushed, and the sterility of the physiological saline is ensured;
4. the liquid inlet part is provided, so that the normal saline can be conveniently added into the liquid storage device, and the usage amount of the normal saline is ensured;
5. stock solution device has the scale sign, and the nurse of being convenient for is to the real-time supervision of normal saline service behavior.
Drawings

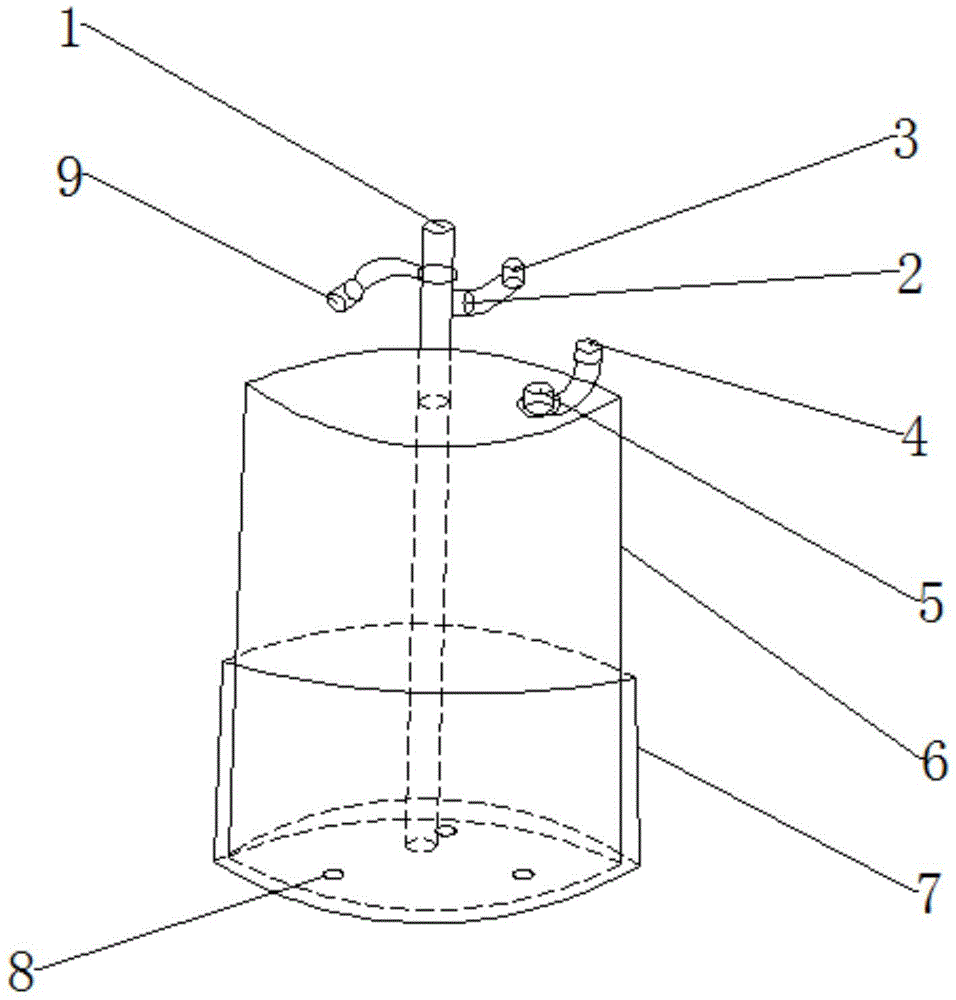

Fig. 1 is a schematic structural diagram of an embodiment of the present invention.
In the figure:
1. connecting extension pipe 2, pressure regulating pipe 3 and adjusting sealing device
4. Liquid inlet sealing device 5, liquid inlet pipe 6 and liquid storage device
7. Fixing frame 8, buffer device 9 and connecting pipe sealing device
Detailed Description
The invention will be further described with reference to the accompanying drawings and specific embodiments.
Fig. 1 shows the utility model relates to a structure of an embodiment, the structure and the relation of connection of this embodiment specifically show, this embodiment relates to one kind and washes and attracts the connecting pipe device, a suction sputum suction connecting pipe washs after being used for inhaling the phlegm, connect the extension pipe and inhale the phlegm suction connecting pipe and be connected, and have the accent splenium, through adjusting the inside pressure of stock solution device, make the saline solution entering in the stock solution device inhale the phlegm and attract in the connecting pipe, inhale the phlegm suction connecting pipe and wash, make inhale the phlegm suction connecting pipe not with the saline solution direct contact in the stock solution device, guarantee the sterility of saline solution, reduce bacterial growing, do benefit to patient treatment.
Specifically, as shown in fig. 1, the flushing suction connecting pipe device comprises a liquid storage device 6, a connection extension pipe 1, a connecting pipe sealing device 9, a pressure regulating portion and a liquid inlet portion, wherein the connection extension pipe 1 is communicated with the liquid storage device 6, one end of the connection extension pipe 1 is positioned inside the liquid storage device 6, the other end of the connection extension pipe is positioned outside the liquid storage device 6, the connection extension pipe 1 is used for being connected with a sputum suction connecting pipe, so that normal saline in the liquid storage device 6 enters the sputum suction connecting pipe through the connection extension pipe 1, the sputum suction connecting pipe is flushed, the connecting pipe sealing device 9 is connected with the connection extension pipe 1, the connecting pipe sealing device 9 is used for sealing the connection extension pipe 1, the sealing performance of the liquid storage device 6 when the liquid storage device is not in use is ensured, the liquid inlet portion is connected with the liquid storage device 6, the liquid inlet portion is used for adding normal saline, the pressure regulating pipe is used for adjusting the pressure inside the liquid storage device 6, and the normal saline is sucked into the sputum suction connecting pipe by utilizing the negative pressure and the siphon principle, and the sputum suction connecting pipe is washed, so that the sputum suction connecting pipe is not in direct contact with the normal saline. This wash and attract connecting pipe device is when using, at first through the liquid inlet portion to the inside normal saline that adds of stock solution device 6, will connect extension tube 1 and inhale the phlegm and attract the connecting pipe to be connected, adjusts the pressure regulating portion for normal saline gets into along connecting extension tube 1 and inhales the phlegm and attract the connecting pipe to wash.
Foretell stock solution device 6 is used for saving normal saline, this stock solution device 6 is inside hollow structure, and one end opening, the other end is sealed, can be the stock solution box, perhaps the stock solution bottle, perhaps other devices that are used for the stock solution, select according to the actual demand, do not do the concrete requirement here, it is preferred, here, stock solution device 6 is the stock solution bottle, this stock solution bottle is the hard material of moulding, wear-resisting resistant falling, long service life, and this stock solution bottle is preferred the transparent hard material of moulding, the person of facilitating the use observes the in service behavior of normal saline in the stock solution bottle, be convenient for in time add normal saline.
For the convenience of installation of stock solution device 6 when using, this wash and attract connecting pipe device still includes mount 7, and stock solution device 6 places on mount 7, and the shape of this mount 7 suits with stock solution device 6's shape, and the stock solution device 6 of being convenient for places on mount 7, and the size of mount 7 is greater than the size of stock solution device 6 for stock solution device 6 can place on mount 7. This mount 7 includes bottom plate and curb plate, and the curb plate is installed perpendicularly on the bottom plate, and the height that highly is less than liquid storage device 6 of curb plate, and the height of curb plate is greater than 1/3 of liquid storage device 6's height for liquid storage device 6 is difficult for droing from mount 7. In order to reduce the damage caused by the direct contact between the liquid storage device 6 and the bottom plate of the fixing frame 7, a buffer device 8 is fixedly installed on the bottom plate, the buffer device 8 is an elastic piece, preferably a rubber pad, and plays a role in buffering when the liquid storage device 6 is placed on the fixing frame 7, so that the service life of the liquid storage device 6 is prolonged. The number of the buffer devices 6 is multiple, the selection is carried out according to the actual requirement, and when the number of the buffer devices 8 is three, the three buffer devices 8 are arranged in a triangular shape; when the number of the buffer devices 8 is four, the four buffer devices 88 are arranged in a quadrilateral shape, and when the number of the buffer devices is multiple, the four buffer devices are arranged in a circular shape, or in other arrangement modes, which are selected according to actual requirements, and are not specifically required here. This mount 7 also can include bottom plate and support frame, support frame and bottom plate fixed connection, and the support frame includes annular frame and connecting rod, connecting rod one end and bottom plate fixed connection, and the connecting rod other end is connected with the annular frame, and when stock solution device 6 placed on the mount, the annular frame supported stock solution device 6. The fixing frame 7 can also be of other structures, and is selected according to actual requirements, and no specific requirements are made here.
The above-mentioned buffer device 8 can be adhered to the bottom plate, or can be connected by a connecting piece such as a bolt, or other connecting methods, and is selected according to actual requirements. Here, the buffer means 8 are preferably circular, with a diameter of 5-10mm and a height of 20-50 mm. The fixing frame 7 is preferably of a cylindrical structure, and the diameter of the fixing frame 7 is 10-15cm, and the height of the fixing frame 7 is 5-8 cm. Meanwhile, the fixing frame 7 is made of transparent hard plastic.
Foretell connection extension pipe 1 is the tubular structure, and the length of connecting extension pipe 1 is greater than stock solution device 6's height, top at stock solution device 6 is equipped with a through-hole, connect extension pipe 1 one end and insert stock solution device 6 inside through this through-hole, and this end has a certain distance from the bottom of stock solution device 6 inside, this distance is 5mm-10mm, connect extension pipe 1 and pass through this end and stock solution device 6 intercommunication, make and connect extension pipe 1 this end and be in the normal saline completely, be convenient for utilize negative pressure and siphon principle to carry out the attraction of normal saline, make normal saline get into and inhale the phlegm and attract in the connecting tube. The other end of the connection extension pipe 1 extends out of the liquid storage device 6 and is located outside the liquid storage device 6, the length of the connection extension pipe 1 located outside is 5-8cm, the diameter of the connection extension pipe 1 is matched with the diameter of a through hole in the top of the liquid storage device 6, the connection extension pipe 1 is convenient to install, a sealing piece is installed at the connection extension pipe 1 and the through hole, the connection extension pipe 1 and the through hole are sealed, and the sealing performance of the liquid storage device 6 is guaranteed.
Foretell pressure regulating portion fixed mounting is on connecting extension pipe 1 and being located stock solution device 6's outside, pressure regulating portion sets up or intersects the setting with being connected extension pipe 1 perpendicularly, and pressure regulating portion and being connected extension pipe 1 intercommunication, this pressure regulating portion includes pressure regulating pipe 2 and pressure regulating sealing device 3, 2 one end of pressure regulating pipe is connected with being connected extension pipe 1, the pressure regulating pipe 2 other end is connected with pressure regulating sealing device 3, 2 one end of pressure regulating pipe and the lateral wall fixed connection of being connected extension pipe 1, this pressure regulating pipe 2 with be connected extension pipe 1 intercommunication, and pressure regulating pipe 2 is the reducing tubular structure, 2 one end diameters of pressure regulating pipe are greater than other end diameter, the diameter of pressure regulating pipe increases gradually or reduces along the length of pressure regulating pipe 2. In this embodiment, the great one end of pressure regulating pipe 2 diameter with connect extension pipe 1 fixed connection, the less one end of pressure regulating pipe 2 diameter is connected with pressure regulating sealing device 3, pressure regulating sealing device 3 seals pressure regulating pipe 2, guarantees this leakproofness of sucking the connecting pipe device that washes. The diameter of the large-diameter end of the pressure regulating pipe 2 is 5-10mm, the diameter of the small-diameter end of the pressure regulating pipe 2 is 5-8mm, the length of the pressure regulating pipe 2 is 3-5cm, and the pressure regulating pipe is selected according to actual requirements and does not need to be specifically required. The pressure regulating pipe 2 can be connected with the connection extension pipe 1 through threads, and can be integrally formed, or other connection modes can be selected according to actual requirements, no specific requirements are made here, and preferably, the pressure regulating pipe 2 and the connection extension pipe 1 are integrally formed.
Pressure regulating sealing device 3 is including the pressure regulating mounting, pressure regulating connecting piece and pressure regulating shutoff piece, the free end fixed connection of pressure regulating mounting and pressure regulating pipe 2, pressure regulating connecting piece one end and pressure regulating mounting fixed connection, the pressure regulating connecting piece other end and pressure regulating shutoff piece fixed connection, the pressure regulating shutoff piece is used for sealing up the shutoff to pressure regulating pipe 2, the pressure regulating mounting prevents with the setting of pressure regulating connecting piece that the pressure regulating shutoff piece from losing. Here, the pressure regulating mounting is solid fixed ring, gu fixed cover dress is on pressure regulating pipe 2, the pressure regulating connecting piece is elasticity strip structure, elasticity has, preferably elasticity strip, it is tensile to be convenient for pressure regulating shutoff piece and 2 connection in-process of pressure regulating pipe, the pressure regulating connecting piece can be connected through connecting pieces such as bolts with the pressure regulating mounting, also can integrated into one piece, or other fixed connection modes, select according to the actual demand, do not specifically require here, preferably, pressure regulating mounting and pressure regulating connecting piece integrated into one piece, stable in structure, it is not fragile, long service life. The pressure regulating plugging piece and the pressure regulating connecting piece can be connected by using connecting pieces such as bolts, or integrally formed or other fixed connection modes, are selected according to actual requirements, are preferred, and are stable in structure, not easy to damage and long in service life. The pressure regulating plugging piece is preferably a sealing cover which is connected with the pressure regulating pipe through threads, is convenient to detach and install, and seals the pressure regulating pipe 2, or the sealing cover is directly buckled on the pressure regulating pipe 2.
Foretell liquid inlet part is used for adding normal saline to liquid storage device 6 is inside, and this liquid inlet part can fixed mounting at liquid storage device 6's top, also can fixed mounting on liquid storage device 6's lateral wall, selects according to the actual demand, does not do here specifically will go, and is preferred, in this embodiment, liquid inlet part fixed mounting at liquid storage device 6's top, and liquid inlet part with connect extension pipe 1 parallel arrangement, the addition of the normal saline of being convenient for. This feed liquor portion includes feed liquor pipe 5 and feed liquor sealing device 4, and 5 one ends of feed liquor pipe are connected with stock solution device 6, and 5 other ends of feed liquor pipe are connected with feed liquor sealing device 4, and feed liquor pipe 5 is used for the interpolation of normal saline, and this feed liquor pipe 5 communicates with stock solution device 6, and 5 one ends of feed liquor pipe and 6 fixed connection of stock solution device can be through threaded connection, also can integrated into one piece, select according to actual demand, do not do the concrete requirement here. A certain distance is reserved between the liquid inlet pipe 5 and the connecting extension pipe 1, the distance is 3-5cm, and selection is carried out according to actual requirements. Feed liquor pipe 5 can be connected with stock solution device 6 is perpendicular, also can be connected with 6 slopes of stock solution device, perhaps other connected modes, selects according to actual demand, in this embodiment, feed liquor pipe 5 is connected with 6 perpendiculars of stock solution device, the interpolation of the normal saline of being convenient for. The open end fixed mounting of feed liquor pipe 5 has feed liquor sealing device 4, seals feed liquor pipe 5, avoids impurity such as dust to get into stock solution device 6 inside, causes the normal saline pollution.
The liquid inlet sealing device comprises a liquid inlet fixing piece, a liquid inlet connecting piece and a liquid inlet plugging piece, the liquid inlet fixing piece is fixedly connected with the free end of the liquid inlet pipe 5, one end of the liquid inlet connecting piece is fixedly connected with the liquid inlet fixing piece, the other end of the liquid inlet connecting piece is fixedly connected with the liquid inlet plugging piece, the liquid inlet plugging piece is used for sealing and plugging the liquid inlet pipe 5, and the liquid inlet fixing piece and the liquid inlet connecting piece are arranged to prevent the liquid inlet plugging piece from being lost. Here, the feed liquor mounting is solid fixed ring, gu fixed suit is on feed liquor pipe 5, the feed liquor connecting piece is elasticity strip structure, elasticity has, preferably elasticity strip, it is tensile to be convenient for advance liquid shutoff piece and feed liquor pipe 5 in-process of being connected, the feed liquor connecting piece can be connected through connecting pieces such as bolts with the feed liquor mounting, also can integrated into one piece, perhaps other fixed connection modes, select according to the actual demand, do not do the concrete requirement here, preferably, feed liquor mounting and feed liquor connecting piece integrated into one piece, stable in structure, it is not fragile, long service life. The liquid inlet plugging piece and the liquid inlet connecting piece can be connected through connecting pieces such as bolts, or integrally formed or other fixed connection modes, are selected according to actual requirements, are preferred, and are stable in structure, not prone to damage and long in service life. The liquid inlet plugging piece is preferably a sealing cover which is connected with the liquid inlet pipe through threads, is convenient to detach and install, and seals the liquid inlet pipe 5, or the sealing cover is directly buckled on the liquid inlet pipe 5.
Connect extension pipe 1 and can be located stock solution device 6's axis, also can be located other positions parallel with the axis, select according to actual demand, and is preferred, in this embodiment, connects extension pipe 1 and is located stock solution device 6's axis, is convenient for lead normal saline. Connecting pipe sealing device 9 is fixedly installed at the free tip of connecting extension pipe 1, seals connecting extension pipe 1 when connecting extension pipe 1 and not using, avoids inside impurity such as outside dust gets into stock solution device 6, causes the normal saline pollution. This connecting pipe sealing device 9 includes mounting, connecting piece and shutoff piece, mounting and the free end fixed connection who is connected extension pipe 1, connecting piece one end and mounting fixed connection, the connecting piece other end and shutoff piece fixed connection, the shutoff piece is used for sealing up the shutoff to connecting extension pipe 1, and the setting of mounting and connecting piece prevents that the shutoff piece from losing. Here, the mounting is solid fixed ring, gu fixed suit is on connecting extension pipe 1, the connecting piece is elasticity strip structure, have elasticity, preferably elasticity strip, it is tensile with connecting extension pipe 1 in-process to be convenient for shutoff piece, the connecting piece can be connected through connecting pieces such as bolts with the mounting, also can integrated into one piece, or other fixed connection modes, select according to the actual demand, do not do the specific requirement here, preferably, mounting and connecting piece integrated into one piece, stable in structure, it is not fragile, long service life. The plugging piece and the connecting piece can be connected through connecting pieces such as bolts, or integrally formed, or other fixed connection modes, and are selected according to actual requirements. The blocking piece is preferably a sealing cover which is connected with the connecting extension pipe 1 through threads, is convenient to detach and install, and seals the connecting extension pipe 1, or the sealing cover is directly buckled on the connecting extension pipe 1.
In order to facilitate the total amount of observing the inside normal saline of stock solution device 6, be provided with the scale sign on stock solution device 6's outer wall, the horizontal sand grip that this scale sign set up for a plurality of equidistant along vertical direction formation is convenient for master the total amount of normal saline often.
The working process of the embodiment: this wash and attract connecting pipe device before using, properly place the mount 7 of fixedly mounted with buffer 8 on the head of a bed table, open the liquid inlet shutoff piece on the feed liquor pipe 5, pour into normal saline, require the dosage of the element of joining key according to the institute's sense to carry out the total amount of normal saline according to the scale mark that sets up on the outer wall of stock solution device 6, cover liquid inlet shutoff piece, make this wash and attract connecting pipe device to be in encapsulated situation. The liquid storage device 6 added with the normal saline is properly placed inside the fixing frame 7, after sputum suction is finished, the plugging piece and the pressure regulating plugging piece connected with the extension pipe 1 are respectively opened, the negative pressure suction connecting pipe after sputum suction is connected with the head end of the sputum suction pipe and is directly connected with the free end connected with the extension pipe 1, the pressure regulating pipe 2 is pressed by the thumb of the left hand to manually regulate the pressure of the negative pressure, the sputum suction connecting pipe is washed, dirt is discharged into the negative pressure suction bottle, until the sputum suction connecting pipe is washed clean, the wall negative pressure suction device is closed, the plugging piece is buckled with the connection extension pipe 1, the pressure regulating plugging piece is buckled with the pressure regulating pipe 2, the flushing suction connecting pipe device is ensured to be in a closed state, the normal saline is prevented from being polluted, and flushing of the sputum suction connecting pipe is completed.
The utility model has the advantages and positive effects that: by adopting the technical scheme, the flushing and sucking connecting pipe device has the advantages of simple structure, convenient use and low manufacturing cost, can avoid the direct contact between the sputum suction connecting pipe and the normal saline, avoid the normal saline from being polluted, ensure the sterility of the normal saline and facilitate the treatment of patients; the device is provided with a connecting pipe sealing device, a pressure regulating sealing device and a liquid inlet sealing device, so that the sealing performance of the flushing and sucking connecting pipe device is ensured, the flushing and sucking connecting pipe device is a sealed container, after sputum suction is finished each time, the sucking connecting pipe is connected with a connecting extension pipe, and the negative pressure flushing and sputum suction connecting pipe is provided by utilizing the siphon principle, so that the sputum suction connecting pipe is not directly contacted with normal saline, and the sterility of the normal saline is ensured; the sputum suction connecting pipe device is provided with a pressure regulating part, the pressure of the flushing suction connecting pipe device can be regulated when the sputum suction connecting pipe is flushed, so that the physiological saline is conveniently sucked, the physiological saline enters the sputum suction connecting pipe, the sputum suction connecting pipe is flushed, and the sterility of the physiological saline is ensured; the liquid inlet part is provided, so that the normal saline can be conveniently added into the liquid storage device, and the usage amount of the normal saline is ensured; stock solution device has the scale sign, and the nurse of being convenient for is to the real-time supervision of normal saline service behavior.
While one embodiment of the present invention has been described in detail, the description is only a preferred embodiment of the present invention, and should not be considered as limiting the scope of the present invention. All the equivalent changes and improvements made according to the application scope of the present invention should still fall within the patent coverage of the present invention.
