Abstract
本实用新型是一种便于排料的纵剪钢带用切割剪床，包括左右对应的立板和位于立板顶端的顶板，其特征在于，其中一个所述立板上设有竖直的凹腔结构，所述电机安装在所述顶板上，所述丝杠二上通过丝母固接有L形连接板，所述前后移动座的竖直柱上固接有竖直的升降电缸，所述升降电缸的驱动端横向安有吸盘架，所述吸盘架上安有电磁吸盘，所述电磁吸盘下表面的面积与所述移动工作台上表面的面积相同。本实用新型结构紧凑，设计合理，通过设置移动工作台，电磁吸盘，安有升降电缸的前后移动座，配合丝杠一，丝杠二和转轴，避免了切割后的钢带人工手动排料的情况，操作简便，解决了浪费人力、效率低的问题，提高了本装置的实用性。
The utility model relates to a cutting and shearing machine for slitting steel strips which is convenient for discharging materials, comprising vertical plates corresponding to left and right and a top plate located at the top of the vertical plates, and is characterized in that one of the vertical plates is provided with a vertical concave plate. A cavity structure, the motor is installed on the top plate, the second lead screw is fixed with an L-shaped connecting plate through a screw nut, and a vertical lifting electric cylinder is fixed on the vertical column of the front and rear moving seat, The driving end of the lifting electric cylinder is provided with a suction cup frame laterally, an electromagnetic suction cup is installed on the suction cup frame, and the area of the lower surface of the electromagnetic suction cup is the same as the area of the upper surface of the moving table. The utility model is compact in structure and reasonable in design. By arranging a moving worktable, an electromagnetic suction cup, a front and rear moving seat with a lifting electric cylinder, and cooperating with the first lead screw, the second lead screw and the rotating shaft, the manual discharge of the cut steel strip can be avoided. It is easy to operate, solves the problems of wasting manpower and low efficiency, and improves the practicability of the device.
Description
Technical Field
The utility model relates to a steel band processing equipment technical field especially relates to a indulge and cut steel band and use cutting shear bed convenient to arrange material.
Background
The shearing machine is a machine tool for cutting metal sheets, applies shearing force to metal sheets with various thicknesses, enables the sheets to be broken and separated according to required sizes, and is widely applied to the manufacturing and processing industries of metallurgy, light industry, machinery, hardware, motors, electric appliances, automobiles and hardware. Especially in auto-parts processing industry, the shearing machine carries out cutting operation to the steel band usually, and to the steel band cutting back, the steel band need arrange the material and carry out the circulation cutting, and at present, traditional shearing machine has structural design unreasonable, and the steel band after the cutting is usually for artifical manual row material in the course of the work, and artifical row material complex operation has extravagant manpower, the problem of inefficiency, and the practicality is lower.
Disclosure of Invention
The utility model aims at solving the defects of the prior art and provides a cutting shearing machine for longitudinally shearing steel belts, which is convenient for discharging materials.
The utility model discloses a realize above-mentioned purpose, adopt following technical scheme:
a cutting and shearing machine for longitudinal shearing steel strips convenient for discharging materials comprises left and right corresponding vertical plates and a top plate positioned at the top ends of the vertical plates, and is characterized in that one of the vertical plates is provided with a vertical cavity structure, a mounting seat is transversely and fixedly connected between the left and right vertical plates, the upper part of the mounting seat is provided with a groove structure with an upward opening, a first lead screw is horizontally arranged in the groove structure, one end of the first lead screw is rotatably installed on the inner wall of the groove structure, the other end of the first lead screw penetrates through the end wall of the mounting seat and is coaxially and fixedly connected with a driven bevel gear, the driven bevel gear is positioned in the cavity structure and is meshed with a driving bevel gear, a vertical rotating shaft is coaxially and fixedly connected onto the driving bevel gear, the bottom of the rotating shaft is rotatably installed at the bottom of the cavity structure, the top end of the rotating shaft is coaxially and fixedly connected, the limiting seat is fixedly connected in the cavity structure, a vertical screw rod II is rotatably arranged at the top end of the limiting seat, a motor is coaxially arranged at the top end of the screw rod II in a penetrating manner, the motor is installed on the top plate, an L-shaped connecting plate is fixedly connected to the screw rod II through a nut, a horizontal upper cutter seat is fixedly connected to a vertical plate of the connecting plate, a plurality of upper cutters are uniformly distributed on the lower surface of the upper cutter seat, a movable workbench is connected to the screw rod I through threads, a plurality of rotating rollers are rotatably arranged at the bottom of the movable workbench and are in contact with the bottom of the groove structure of the installation seat, a plurality of strip-shaped grooves are formed in the upper part of the movable workbench, vertical telescopic rods are fixedly connected in the strip-shaped grooves, a pushing block is fixedly connected to the top end of the telescopic rods, and spring assemblies are fixedly connected to the pushing block and the telescopic, the top end of the movable workbench is fixedly connected with a lower tool apron, the lower tool apron is provided with a through hole corresponding to the strip-shaped groove, a lower cutter corresponding to the upper cutter is fixedly connected to the lower cutter seat, the lower cutter and the material pushing block are alternately arranged, the lower surface of one end of the top plate, which is far away from the upper tool apron, is fixedly connected with a front guide rail and a rear guide rail, a front and rear moving seat with a T-shaped section is arranged in the front and rear guide rails, a front-back driving electric cylinder is arranged at the rear end of the front-back moving seat and is arranged on the top plate, a plurality of balls are rotatably arranged on a horizontal plate of the front and rear moving seat and are in contact with the front and rear guide rails, a vertical lifting electric cylinder is fixedly connected on a vertical column of the front and rear movable seat, a suction disc frame is transversely arranged at the driving end of the lifting electric cylinder, an electromagnetic chuck is arranged on the chuck frame, and the area of the lower surface of the electromagnetic chuck is the same as that of the upper surface of the movable workbench.
And the bottom of the vertical plate is provided with an anti-slip pad.
The lifting electric cylinder is a servo electric cylinder.
The utility model has the advantages that: the utility model discloses compact structure, reasonable in design through setting up the travelling platform, electromagnet, ann has the fore-and-aft removal seat of lift electric jar, and cooperation lead screw one, lead screw two and pivot have avoided the artifical manual condition of arranging the material of steel band after the cutting, and is easy and simple to handle, has solved extravagant manpower, the problem of inefficiency, has improved the practicality of this device.
Drawings

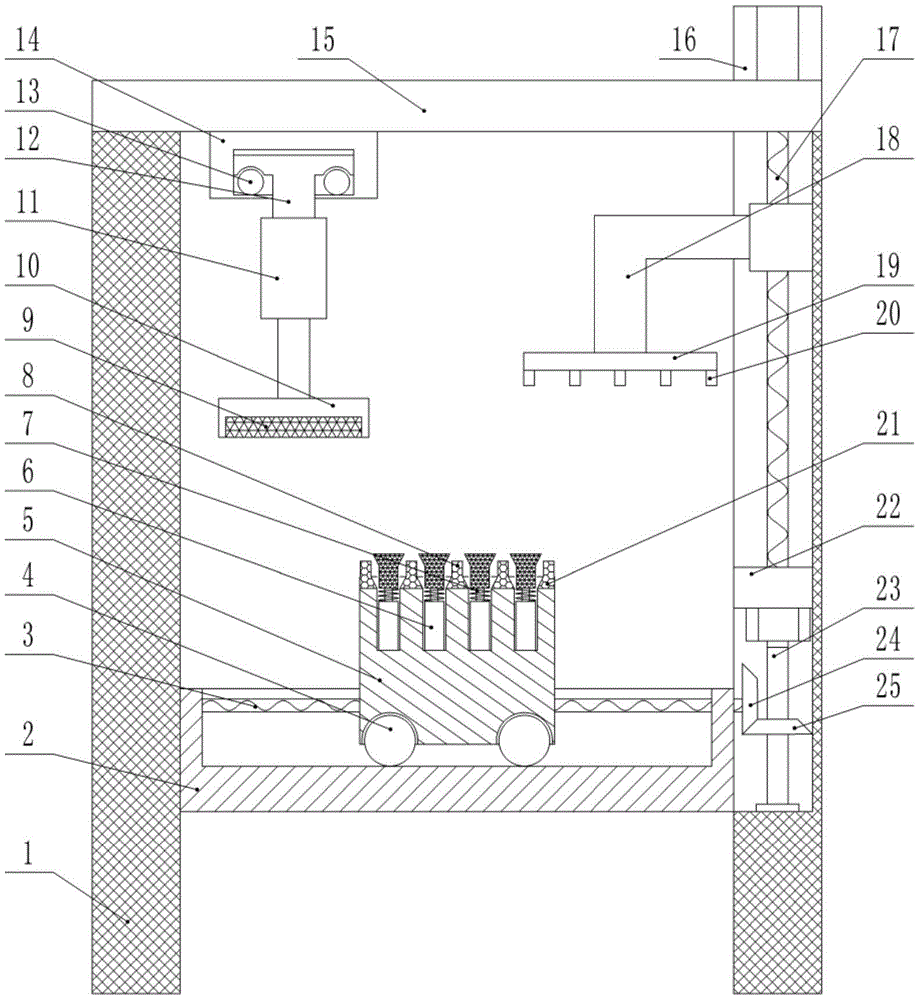

Fig. 1 is a schematic structural view of the present invention;
in the figure: 1-standing a plate; 2-mounting a base; 3, a first lead screw; 4-rotating the roller; 5-moving the working table; 6, a telescopic rod; 7-a material pushing block; 8-lower cutter; 9-an electromagnetic chuck; 10-a suction cup frame; 11-lifting electric cylinder; 12-a front and rear movable seat; 13-a ball bearing; 14-front and rear guide rails; 15-a top plate; 16-an electric machine; 17-a second lead screw; 18-a connecting plate; 19-upper tool apron; 20-feeding a cutter; 21-a lower tool apron; 22-a limiting seat; 23-a rotating shaft; 24-driven bevel gear; 25-drive bevel gear;
the following detailed description will be made in conjunction with embodiments of the present invention with reference to the accompanying drawings.
Detailed Description
The invention will be further explained with reference to the following figures and examples:
as shown in fig. 1, a cutting and shearing machine for longitudinal shearing steel strips, which is convenient for discharging materials, comprises left and right corresponding vertical plates 1 and a top plate 15 positioned at the top ends of the vertical plates 1, and is characterized in that one of the vertical plates 1 is provided with a vertical cavity structure, a mounting seat 2 is transversely and fixedly connected between the left and right vertical plates 1, the upper part of the mounting seat 2 is provided with a groove structure with an upward opening, a first lead screw 3 is horizontally arranged in the groove structure, one end of the first lead screw 3 is rotatably installed on the inner wall of the groove structure, the other end of the first lead screw 3 penetrates through the end wall of the mounting seat 2 and is coaxially and fixedly connected with a driven bevel gear 24, the driven bevel gear 24 is positioned in the cavity structure and is engaged with a driving bevel gear 25, the driving bevel gear 25 is coaxially and fixedly connected with a vertical rotating shaft 23, the bottom of the rotating, the top end of the rotating shaft 23 is coaxially and fixedly connected with a driving motor, the top end of the driving motor is connected with a limiting seat 22, the limiting seat 22 is fixedly connected in the cavity structure, the top end of the limiting seat 22 is rotatably provided with a vertical screw rod II 17, the top end of the screw rod II 17 penetrates through the top plate 15 and is coaxially provided with a motor 16, the motor 16 is installed on the top plate 15, the screw rod II 17 is fixedly connected with an L-shaped connecting plate 18 through a screw nut, a vertical plate of the connecting plate 18 is fixedly connected with a horizontal upper knife holder 19, the lower surface of the upper knife holder 19 is uniformly provided with a plurality of upper knives 20, the screw rod I3 is connected with a movable workbench 5 through threads, the bottom of the movable workbench 5 is rotated with a plurality of rotating rollers 4, the rotating rollers 4 are contacted with the bottom of the groove structure of the installation seat 2, and the upper part of the movable workbench 5 is provided, a vertical telescopic rod 6 is fixedly connected in the strip-shaped groove, a pushing block 7 is fixedly connected at the top end of the telescopic rod 6, a spring assembly is fixedly connected between the pushing block 7 and the telescopic end of the telescopic rod 6, a lower tool apron 21 is fixedly connected at the top end of the movable workbench 5, a through hole corresponding to the strip-shaped groove is formed in the lower tool apron 21, a lower tool 8 corresponding to the upper tool 20 is fixedly connected on the lower tool apron 21, the lower tool 8 and the pushing block 7 are alternately arranged, a front guide rail 14 is fixedly connected to the lower surface of one end, far away from the upper tool apron 19, of the top plate 15, a front-rear movable seat 12 with a T-shaped section is arranged in the front-rear guide rail 14, a front-rear driving electric cylinder is arranged at the rear end of the front-rear movable seat 12, the front-rear driving electric cylinder is arranged on the top plate 15, and a plurality of balls 13 are rotatably, the ball 13 is in contact with the front and rear guide rails 14, a vertical lifting electric cylinder 11 is fixedly connected to a vertical column of the front and rear moving seat 12, a suction disc frame 10 is transversely installed at the driving end of the lifting electric cylinder 11, an electromagnetic suction disc 9 is installed on the suction disc frame 10, and the area of the lower surface of the electromagnetic suction disc 9 is the same as that of the upper surface of the moving workbench 5.
And the bottom of the vertical plate 1 is provided with an anti-slip pad.
The lifting electric cylinder 11 is a servo electric cylinder.
The utility model discloses during operation, the steel band that waits to cut is placed on the ejector pad 7 of travelling platform 5, the front and back drive electricity jar drive front and back travelling seat 12 moves to suitable position, driving motor corotation drives pivot 23 of ann having drive bevel gear 25 and rotates, drive bevel gear 25 drives driven bevel gear 24 and rotates, and then drive lead screw 3 and rotate, cooperation live-rollers 4 makes travelling platform 5 move to under the last blade holder 19, corotation with motor 16, drive lead screw two 17 and rotate, lead screw two 17 drives through connecting plate 18 and has the last blade holder 19 of last cutter 20 and move vertically downwards, lead screw two 17 makes last cutter 20 push down ejector pad 7, compression telescopic link 6, cooperate bottom tool 8 to cut the steel band, after the cutting is accomplished, with motor 16 reversal, make the last blade holder 19 of having last cutter 20 move vertically upwards, driving motor reversal drives travelling platform 5 under the electromagnetic chuck 9, the electric jar 11 drive electromagnet 9 that goes up and down moves down, telescopic link 6 extends under the spring action simultaneously for 7 vertical upwards release steel bands after the cutting in edge strip-shaped groove of ejector pad, the steel band after the electromagnetic chuck 9 of being convenient for adsorbs the cutting, around drive the electric jar drive around move the seat 12 move to the rear collecting box in, 16 corotation of motor again, driving motor corotation, repeat above-mentioned operation, the artifical manual condition of arranging the material of steel band after having avoided the cutting, easy and simple to handle, the problem of extravagant manpower, inefficiency has been solved, the practicality of this device has been improved, the utility model discloses compact structure, reasonable in design.
The present invention has been described above with reference to the accompanying drawings, and it is obvious that the present invention is not limited by the above embodiments, and various improvements made by the method concept and technical solution of the present invention or directly applied to other occasions without improvement are all within the protection scope of the present invention.
Claims (3)
1. A cutting and shearing machine for longitudinal shearing steel strips convenient for discharging comprises vertical plates (1) corresponding to the left and right sides and a top plate (15) positioned at the top ends of the vertical plates (1), and is characterized in that one vertical plate (1) is provided with a vertical cavity structure, a mounting seat (2) is transversely and fixedly connected between the left vertical plate and the right vertical plate (1), the upper part of the mounting seat (2) is provided with a groove structure with an upward opening, a first lead screw (3) is horizontally arranged in the groove structure, one end of the first lead screw (3) is rotatably mounted on the inner wall of the groove structure, the other end of the first lead screw (3) penetrates through the end wall of the mounting seat (2) and is coaxially and fixedly connected with a driven bevel gear (24), the driven bevel gear (24) is positioned in the cavity structure and is meshed with a driving bevel gear (25), and a vertical rotating shaft (23) is coaxially and fixedly connected, the bottom of the rotating shaft (23) is rotatably installed at the bottom of the cavity structure, a driving motor is fixedly connected to the top end of the rotating shaft (23) in a coaxial mode, a limiting seat (22) is connected to the top end of the driving motor, the limiting seat (22) is fixedly connected into the cavity structure, a vertical second lead screw (17) is rotatably installed at the top end of the limiting seat (22), a motor (16) is coaxially installed on the top plate (15) and penetrates through the top end of the second lead screw (17), the motor (16) is installed on the top plate (15), an L-shaped connecting plate (18) is fixedly connected onto the second lead screw (17) through a nut, a horizontal upper tool apron (19) is fixedly connected onto a vertical plate of the connecting plate (18), a plurality of upper tools (20) are uniformly distributed on the lower surface of the upper tool apron (19), a movable workbench (5) is connected onto the first lead screw (3) through threads, a plurality of rotating rollers (4) are rotated at the bottom of, the rotating roller (4) is in contact with the bottom of the groove structure of the mounting seat (2), a plurality of strip-shaped grooves are formed in the upper portion of the movable workbench (5), vertical telescopic rods (6) are fixedly connected in the strip-shaped grooves, a pushing block (7) is fixedly connected to the top ends of the telescopic rods (6), a spring assembly is fixedly connected to the pushing block (7) and the telescopic ends of the telescopic rods (6), lower tool seats (21) are fixedly connected to the top end of the movable workbench (5), through holes corresponding to the strip-shaped grooves are formed in the lower tool seats (21), lower tools (8) corresponding to the upper tools (20) are fixedly connected to the lower tool seats (21), the lower tools (8) and the pushing block (7) are alternately arranged, a front guide rail (14) and a rear guide rail (14) are fixedly connected to the lower surface of the top plate (15) far away from one end of the upper tool seat (19), and a front and rear movable seat (12) with a T-shaped section is arranged in, the rear end of fore-and-aft movement seat (12) is ann has the front and back drive electric jar, the front and back drive electric jar is installed on roof (15), it has a plurality of balls (13) to rotate on the horizontal plate of fore-and-aft movement seat (12), ball (13) with front and back guide rail (14) contact, the rigid coupling has vertical lift electric jar (11) on the vertical post of fore-and-aft movement seat (12), the horizontal ann of drive end of lift electric jar (11) has sucking disc frame (10), ann has electromagnetic chuck (9) on sucking disc frame (10), the area of electromagnetic chuck (9) lower surface with the area of mobile workbench (5) upper surface is the same.
2. The cutting and shearing machine for the longitudinal shearing steel strips convenient for discharging is characterized in that the bottom of the vertical plate (1) is provided with a non-slip mat.
3. The cutting and shearing machine for slitting steel strips for facilitating the discharge of the materials as claimed in claim 1, wherein said electric lifting cylinder (11) is a servo cylinder.
