Abstract

The utility model discloses a rigid reinforced pipe, which comprises an inner layer and an outer layer of a base layer. A plurality of reinforcing rings are arranged on the outside of the inner layer of the base layer and along the extending direction of the inner layer of the base layer at equal intervals in sequence. The distance between the reinforcement rings is less than 2.5 times the nominal diameter of the pipe, and the outer layer wraps both the inner layer of the base and the outside of each reinforcement ring. The utility model enhances the rigidity of the pipeline, reduces the probability of damage to the pipeline during use, and improves the service life of the pipeline through a plurality of reinforcing rings arranged outside or inside the inner layer of the base, and is mainly used in high-density polyethylene pipelines and Improvements in flexible composite pipes.

Description

Rigid Reinforced Pipe

technical field

The utility model relates to the technical field of pipeline structures, in particular to a rigid reinforced pipeline.

Background technique

Common pipes in life are mainly used to transmit fluid substances. At present, due to various factors, most pipes are made of metal, plastic or composite materials.

It is clear to those skilled in the art that pipelines used in different occasions often have different requirements for pipelines. For example, pipelines used in drainage occasions mainly require anti-corrosion, and at the same time have enough rigidity to withstand the load of vehicles on the ground. For pipes used in water supply occasions, the pipes are required to have sufficient resistance to external pressure. Since they are pressure pipes, the rigidity of the pipes is usually not considered due to the existence of internal pressure. However, there are often occasions in engineering practice, such as the application of trenchless pipes, in addition to a certain flexibility of the pipe, it also needs to have a certain rigidity, and plastic pipes and plastic composite pipes often perform unsatisfactorily in terms of rigidity. It needs to have some rigidity while retaining flexibility.

Utility model content

The technical problem to be solved by the utility model is to provide a rigid-enhanced pipeline structure.

The solution that the utility model solves its technical problem is:

Rigid reinforced pipeline, including a base inner layer and an outer layer, a plurality of reinforcement rings are arranged at equal intervals on the outside of the base inner layer and along the extension direction of the base inner layer, and two adjacent reinforcement rings are separated from each other. The distance is less than 2.5 times the nominal diameter of the pipe, and the outer layer wraps both the inner layer of the base and the outside of each reinforcing ring.

As a further improvement of the above technical solution, the outer surface of the reinforcing ring is provided with a reinforcing rib along the circumferential direction of the reinforcing ring, and the reinforcing rib is embedded inside the outer layer.

As a further improvement of the above technical solution, the reinforcing ring and the reinforcing rib are made of one of metal, glass fiber, nylon and carbon fiber.

The present application also discloses another rigid reinforced pipeline, which includes a base inner layer, and a plurality of reinforcement rings are arranged in the interior of the base inner layer and along the extending direction of the base inner layer in sequence at equal intervals. The distance between the reinforcement rings is less than 2.5 times the nominal diameter of the pipe.

As a further improvement of the above technical solution, the outer surface of the reinforcing ring is provided with a reinforcing rib along the circumferential direction of the reinforcing ring, and the reinforcing rib is embedded inside the inner layer of the base.

As a further improvement of the above technical solution, the reinforcing ring and the reinforcing rib are made of one of metal, glass fiber, nylon and carbon fiber.

The beneficial effects of the utility model are: the utility model enhances the rigidity of the pipeline, reduces the damage probability of the pipeline during use, and increases the service life of the pipeline through a plurality of reinforcing rings arranged outside or inside the inner layer of the base. The utility model is mainly applied to the improvement of high-density polyethylene pipes and flexible composite pipes.

Description of drawings

In order to illustrate the technical solutions in the embodiments of the present invention more clearly, the following briefly describes the accompanying drawings that are used in the description of the embodiments. Obviously, the described drawings are only a part of the embodiments of the present invention, but not all of the embodiments, and those skilled in the art can also obtain other design solutions and drawings according to these drawings without creative work.

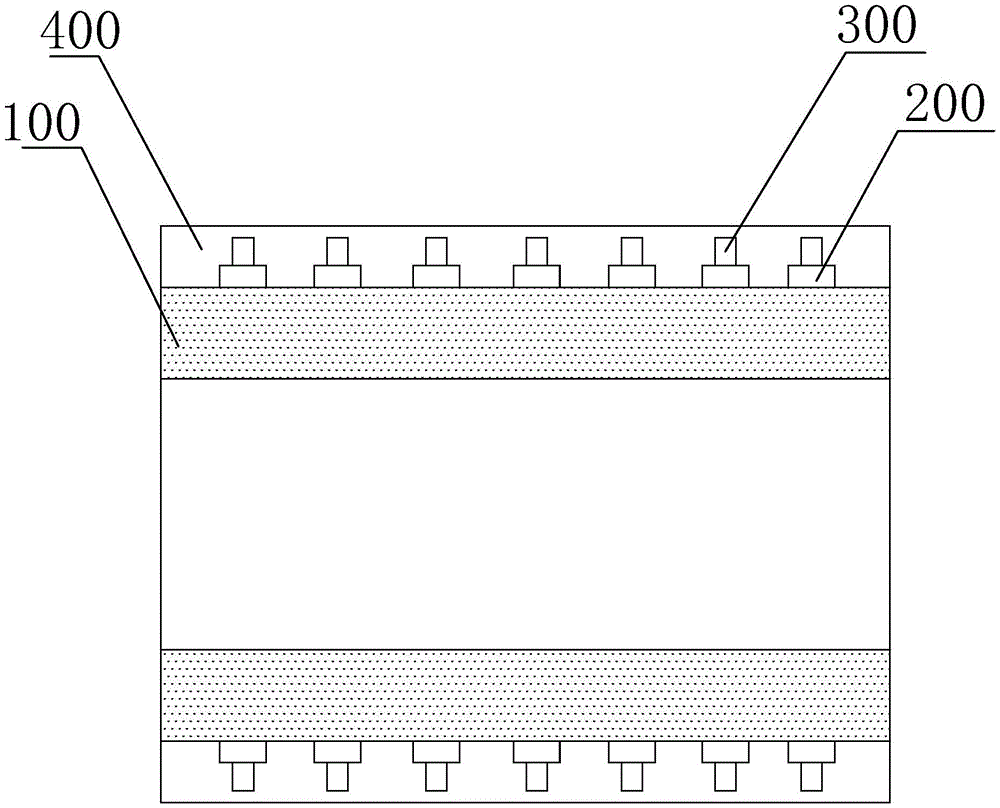

Fig. 1 is the sectional view of the first embodiment of the present utility model;

FIG. 2 is a cross-sectional view of the second embodiment of the present invention.

Detailed ways

The concept, specific structure and technical effects of the present application will be clearly and completely described below with reference to the embodiments and accompanying drawings, so as to fully understand the purpose, features and effects of the present application. Obviously, the described embodiments are only a part of the embodiments of the present application, rather than all the embodiments. Based on the embodiments of the present application, other embodiments obtained by those skilled in the art without creative work belong to The scope of protection of this application. In addition, all connection relationships mentioned in the text do not mean that the components are directly connected, but refer to a better connection structure that can be formed by adding or reducing connection accessories according to specific implementation conditions. Various technical features in the present invention can be combined interactively on the premise of not contradicting each other. Finally, it should be noted that the orientation or positional relationship indicated by the terms “center, upper, lower, left, right, vertical, horizontal, inner, outer” in the text is based on the orientation or positional relationship shown in the accompanying drawings, only It is for the convenience of describing the technical solution and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation on the present application.

Referring to FIG. 1 , the present application discloses a rigid reinforced pipe, the first embodiment of which includes a base inner layer 100 and an outer layer 400 . A plurality of reinforcement rings 200 are arranged at intervals, and the distance between two adjacent reinforcement rings 200 is less than 2.5 times the nominal diameter of the pipeline. . Since it is usually used in high-density polyethylene pipes, the inner layer 100 of the base is often made of PE material. In this embodiment, a plurality of reinforcing rings 200 are provided outside the inner layer 100 of the base to enhance the resistance of the pipe. The external pressure capability reduces the probability of damage to the pipeline during use and increases the service life of the pipeline. In addition, in this embodiment, the distance between two adjacent reinforcing rings 200 is required. If the distance is too large, it is difficult to enhance the rigidity of the pipeline. The distance between the two reinforcing rings 200 needs to be less than 2.5 times the nominal diameter of the pipe.

As a further preferred embodiment, in this embodiment, the outer surface of the reinforcing ring 200 is provided with a reinforcing rib 300 along the circumferential direction of the reinforcing ring 200 , and the reinforcing rib 300 is embedded inside the outer layer 400 . Specifically, in this embodiment, the strength of the reinforcing ring 200 is effectively improved by the arrangement of the reinforcing ribs 300 , thereby further enhancing the rigidity of the pipeline and reducing the probability of damage to the pipeline during use. In addition, the reinforcing ring 200 and the reinforcing rib 300 are integrally formed, which is convenient for processing and manufacturing.

Further as a preferred embodiment, in this embodiment, the reinforcing ring 200 and the reinforcing rib 300 are made of one of metal, glass fiber, nylon and carbon fiber, and are selected in combination with different materials of the inner layer 100 of the matrix. The reinforcing ring 200 and the reinforcing rib 300 of different materials are used to ensure good bonding ability with the pipeline and sufficient compression resistance.

Referring to FIG. 2 , the second embodiment of the rigidity-enhanced pipeline described in the present application includes a base inner layer 100 . Inside the base inner layer 100 and along the extending direction of the base inner layer 100 , a plurality of For the reinforcement rings 200, the distance between two adjacent reinforcement rings 200 is less than 2.5 times the nominal diameter of the pipeline. Compared with the first embodiment, the reinforcing ring 200 in this embodiment is specifically arranged inside the inner layer 100 of the base, which can also have the technical effect of enhancing the external pressure resistance of the pipeline.

As a further preferred embodiment, in this embodiment, the outer surface of the reinforcing ring 200 is provided with a reinforcing rib 300 along the circumferential direction of the reinforcing ring 200, and the reinforcing rib 300 is embedded in the interior of the base inner layer 100, so The reinforcing ring 200 and the reinforcing rib 300 are integrally formed, which is convenient for processing and manufacturing.

As a further preferred embodiment, in this embodiment, the reinforcing ring 200 and the reinforcing rib 300 are made of one of metal, glass fiber, nylon and carbon fiber.

The preferred embodiments of the present application have been specifically described above, but the present invention is not limited to the embodiments, and those skilled in the art can make various equivalent modifications or substitutions without departing from the spirit of the present application, These equivalent modifications or substitutions are all included within the scope defined by the claims of the present application.

Claims (6)

1. Rigid reinforced pipe, characterized by: the pipeline reinforcing structure comprises a base body inner layer (100) and an outer layer (400), wherein a plurality of reinforcing rings (200) are sequentially arranged on the outer portion of the base body inner layer (100) at equal intervals along the extending direction of the base body inner layer (100), the distance between every two adjacent reinforcing rings (200) is smaller than 2.5 times of the nominal diameter of the pipeline, and the outer layer (400) wraps the outer portions of the base body inner layer (100) and the reinforcing rings (200) at the same time.

2. The rigid reinforced pipe of claim 1, wherein: and reinforcing ribs (300) are arranged on the outer surface of the reinforcing ring (200) along the circumferential direction of the reinforcing ring (200), and the reinforcing ribs (300) are embedded into the outer layer (400).

3. The rigid reinforced pipe of claim 2, wherein: the reinforcing ring (200) and the reinforcing ribs (300) are all made of one of metal, glass fiber, nylon and carbon fiber.

4. Rigid reinforced pipe, characterized by: the pipeline structure comprises a base body inner layer (100), wherein a plurality of reinforcing rings (200) are sequentially arranged in the base body inner layer (100) at equal intervals along the extending direction of the base body inner layer (100), and the distance between every two adjacent reinforcing rings (200) is smaller than 2.5 times of the nominal diameter of the pipeline.

5. The rigid reinforced pipe of claim 4, wherein: and reinforcing ribs (300) are arranged on the outer surface of the reinforcing ring (200) along the circumferential direction of the reinforcing ring (200), and the reinforcing ribs (300) are embedded into the inner layer (100) of the matrix.

6. The rigid reinforced pipe of claim 5, wherein: the reinforcing ring (200) and the reinforcing ribs (300) are all made of one of metal, glass fiber, nylon and carbon fiber.
