The utility model provides a wood-plastic plate convenient for installation, wherein two ends of the main body of the wood-plastic plate are provided with clamping structures; after the designed structure is spliced, the wood-plastic plate and the wood-plastic plate are tightly spliced; the upper right corner of the wood-plastic plate main body is designed to be a 90-degree unfilled corner, two grooves are formed in the bottom of the unfilled corner, the first groove is sunken towards the left, and the second groove is sunken towards the lower; the first groove is a limiting fixing groove, and the second groove is a bearing groove. The problem of current board is moulded to wood high to installer's requirement, and installation and dismouting are numerous and lock, and later maintenance cost is high is solved.
Description
Technical Field
The utility model relates to a board is moulded to wood, and specific board is moulded to wood that relates to an easy to assemble.
Background
The wood-plastic composite board is a high-tech green environment-friendly material which is mainly prepared by uniformly mixing wood (wood cellulose and plant cellulose) serving as a base material, a thermoplastic high polymer material (plastic), a processing aid and the like, and then heating and extruding the mixture by using die equipment, has the performance and characteristics of the wood and the plastic, and can replace the novel environment-friendly high-tech material of the wood and the plastic. The wood-plastic board is a floor made of wood-plastic composite materials, has the same processing characteristics as wood, can be sawed, drilled and nailed by using a common tool, is very convenient, and can be used like common wood. Meanwhile, the wood-like waterproof and anticorrosive plastic building material has the wood texture of wood and the water-resistant and anticorrosive characteristics of plastic, so that the wood-like waterproof and anticorrosive plastic building material becomes an outdoor waterproof and anticorrosive building material with excellent performance and high durability.
The prior art wood-plastic boards are generally installed only on the ground, and the installation method is also a conventional floor tile installation method, which is generally adhered to the ground by an adhesive or locked by a big keel. The existing wood-plastic plate has high requirements on installation personnel, and is complex in installation and disassembly, and high in later maintenance cost.
SUMMERY OF THE UTILITY MODEL
The utility model provides a board is moulded to wood easy to assemble, this board is moulded to wood simple structure, and the production and processing is easy, can be in the mill through the splice groove that fluting equipment and shaping cutter processing formed, and the installation effectiveness is high, is favorable to marketing and development.
Specifically, the utility model provides a board is moulded to wood easy to assemble, this board mountable ground and wall body are moulded to wood on, use the scene extensive. This board is moulded to wood easy to assemble includes board main part and buckle are moulded to wood.
The two ends of the wood-plastic plate main body are provided with clamping structures; after the designed structure is spliced, the wood-plastic plate and the wood-plastic plate are tightly spliced;
the clamping structure comprises a bearing groove and a limiting fixing groove.
The upper right corner of the wood-plastic plate main body is designed to be a 90-degree unfilled corner, two grooves are formed in the bottom of the unfilled corner, the first groove is sunken towards the left direction, and the second groove is sunken towards the lower direction; the first groove is a limiting fixing groove, and the second groove is a bearing groove.
A chamfer is arranged at the lower right corner of the wood-plastic plate;
the left end of the wood-plastic plate main body is provided with a convex part, a small groove is formed in the bottom of the upper part of the convex part, a notch angle is formed in the lower left corner of the wood-plastic plate main body, and a third groove is formed in the bottom of the notch angle.
The wood-plastic plate convenient to mount is fixedly connected with the bearing groove through the buckle, and the limiting fixing groove is matched with the bearing groove and fixed on the floor and the wall.
The buckle is made of a metal material.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings required to be used in the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor.
Fig. 1 is a main body diagram of the wood-plastic plate of the present invention.

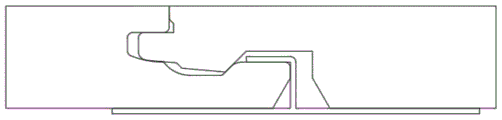

Fig. 2 is an installation structure diagram of the wood-plastic plate of the present invention.
Figure 3 is the structure diagram of the buckle of the utility model.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Fig. 1-3 are the structure diagram of the board is moulded to easy-to-install wood of the utility model, fig. 1 is the board main part drawing is moulded to wood of the utility model, fig. 2 is the installation structure diagram of the utility model, fig. 3 is the structure diagram of the buckle of the utility model. As shown in fig. 1-3, the utility model provides a board is moulded to wood easy to assemble, this board is moulded to wood realizes easy to assemble and dismantlement through the mosaic structure who processes in advance. This board is moulded to wood easy to assemble includes board main part and buckle are moulded to wood.
The two ends of the wood-plastic plate main body are provided with clamping structures; the designed structure is formed by tightly splicing the wood-plastic plate and the wood-plastic plate after the left end and the right end are spliced. The buckle 6 can be made of metal, and of course, other materials can be adopted. The buckle 6 fixes the wood-plastic plate main body through the bearing plane 5 below the left end.
The clamping structure comprises a bearing groove and a limiting fixing groove. Carry out directional spacing fixedly through left end convex part 3 and the first recess 1 of right-hand member behind the joint, first recess 1 below is convex design during the design, and convex part 3 below also is the circular arc design simultaneously, and its cooperation makes the joint structure inseparabler.
The board main part upper right corner is 90 degrees unfilled corner designs for wood, and the unfilled corner bottom has two recesses, first recess 1 and second recess 2, and 2 recess groove limits of this second recess are the design has the inclination, and this inclination is the mirror image with the inclination on 4 groove limits of third recess, and its two inclinations form pressure fit when board and the concatenation are moulded to wood, make board and wood plastic plate between more fastening.
The lower right corner of the wood-plastic plate is provided with a chamfer, and the chamfer device plays a role in clearance avoidance. Does not push against the catch 6. The wood-plastic plate is fixed through the buckles 6, and the buckles at the left end and the right end of the wood-plastic plate can be fixed on a floor or a wall through splicing.
To sum up, the utility model provides a board is moulded to wood easy to assemble, this board is moulded to easy to assemble wood reduces the mounting process requirement of numerous locks through the mosaic structure between board and the wood plastic board. This scheme has solved when the board is moulded to installation wood high to installer's requirement, and installation and dismouting are numerous and diverse, the later maintenance problem with high costs.
Claims (3)
1. The utility model provides a board is moulded to wood easy to assemble, board main part and buckle are moulded including wood to wood easy to assemble, its characterized in that:
the two ends of the wood-plastic plate main body are provided with clamping structures; after the wood-plastic plates are spliced, the wood-plastic plates can be tightly spliced;
the clamping structure comprises a bearing groove and a limiting fixing groove;
the upper right corner of the wood-plastic plate main body is designed to be a 90-degree unfilled corner, and the bottom of the unfilled corner is provided with two grooves, namely a first groove and a second groove; the first groove is sunken towards the left direction, and the second groove is sunken towards the lower direction;
the first groove is a limiting fixing groove, and the second groove is a bearing groove;
a chamfer is arranged at the lower right corner of the wood-plastic plate main body;
the left end of the wood-plastic plate main body is provided with a convex part, a small groove is formed in the bottom of the upper part of the convex part, a notch angle is formed in the lower left corner of the wood-plastic plate main body, and a third groove is formed in the bottom of the notch angle.
2. An easy-to-install wood-plastic panel as claimed in claim 1, wherein: the wood-plastic plate convenient to mount is fixedly connected with the bearing groove through the buckle, and the limiting fixing groove is matched with the bearing groove and fixed on the floor and the wall.
3. A readily installable wood-plastic panel according to any one of claims 1-2 wherein: the buckle is made of a metal material.
