Abstract

The utility model discloses an ultrasonic probe cleaning device, comprising a bottom plate, a cleaning bucket, a cleaning device and a lifting device; the cleaning bucket is arranged in the middle of the upper surface of the bottom plate, and the interior of the cleaning bucket is hollow, and medical alcohol is placed inside; The cleaning device includes a motor, a rotating seat, a mounting plate, a connecting rod, a spring and a cleaning sponge, the motor is arranged in the middle of the lower surface of the base plate, and the output shaft of the motor passes through the lower surface of the base plate and the lower surface of the cleaning bucket Connected with the lower surface of the rotating seat, the mounting plate is provided with four, the lower ends of the four mounting plates are connected with the upper surface of the inner side of the rotating seat through the rotating shaft, and the side surfaces of the four mounting plates are connected with one end of four connecting rods, The other ends of the four connecting rods pass through the openings on the side of the rotating base and are connected with a fixed block, and springs are sleeved on all four connecting rods; the ultrasonic probe cleaning device is easy to operate, can be quickly and thoroughly cleaned, and can effectively sterilize , to prevent the probe from breeding bacteria.

Description

An ultrasonic probe cleaning device

technical field

The utility model relates to the technical field of medical instruments, in particular to an ultrasonic probe cleaning device.

Background technique

Medical ultrasonic diagnostic instrument is an indispensable inspection method in modern clinical medicine, and it is more and more widely used in various medical units at all levels. contact, there is a potential threat of microbial transmission. At present, the general cleaning method of the ultrasonic probe is as follows: the probe is placed under the faucet (the probe is facing down, and the cable is connected to avoid water ingress) with soft wool and soapy water to wipe and rinse several times, and finally the surface of the probe is dried with a paper towel. This process It is cumbersome, and it is necessary to prevent water from entering the cable. Uneven wiping during the flushing process may cause the probe to be unclean, causing bacteria to grow on the probe, resulting in cross-infection.

SUMMARY OF THE INVENTION

The technical problem to be solved by the utility model is to overcome the existing defects, and to provide an ultrasonic probe cleaning device, which is simple to operate, can be cleaned quickly and thoroughly, and can be effectively sterilized to prevent the probe from breeding bacteria, which can effectively solve the problems in the background technology. .

In order to achieve the above purpose, the utility model provides the following technical solutions: an ultrasonic probe cleaning device, including a bottom plate, a cleaning bucket, a cleaning device and a lifting device;

Cleaning bucket: the cleaning bucket is arranged in the middle of the upper surface of the bottom plate, and the interior of the cleaning bucket is hollow and contains medical alcohol;

Cleaning device: the cleaning device includes a motor, a rotating seat, a mounting plate, a connecting rod, a spring and a cleaning sponge, the motor is located in the middle of the lower surface of the bottom plate, and the output shaft of the motor passes through the lower surface of the bottom plate and the cleaning bucket The lower surface of the swivel base is connected with the lower surface of the swivel base. There are four installation plates. The lower ends of the four installation plates are connected to the upper surface of the inner side of the swivel base through the rotating shaft. The sides of the four installation plates are connected with four connecting rods. one end of the four connecting rods, the other ends of the four connecting rods are all connected with fixing blocks through the openings on the side of the rotating seat, all the four connecting rods are sleeved with springs, and the upper ends of the other sides of the four mounting plates are all provided with cleaning sponges;

Lifting device: the lifting device includes a fixing hole, a fixing rod and an electric telescopic rod. The lower end of the electric telescopic rod is connected to the upper surface of the bottom plate, and one end of the fixed rod is connected to the upper end of the electric telescopic rod. The fixing hole Set at the other end of the fixed rod;

Wherein: it also includes a switch group, the switch group is arranged on the rear side of the upper surface of the base plate, and the input end of the switch group is electrically connected with the output end of the external power supply, and the input end of the switch group is electrically connected to the input end of the motor and the electric telescopic rod respectively. Connected, the probe can be quickly cleaned and disinfected, effectively preventing the growth of bacteria.

Further, it also includes a fan and a mounting seat, the mounting seat is arranged on the left side of the upper surface of the bottom plate, the upper surface of the mounting seat is provided with a fan, and the input end of the fan is electrically connected with the output end of the switch group, and the fan can Blow dry the cleaned probe.

Further, it also includes a water-absorbing plate and a sponge pad, the water-absorbing plate is arranged on the right side of the upper surface of the bottom plate, the side of the water-absorbing plate is provided with a sponge pad, and the water-absorbing plate corresponds to the fan, and the sponge pad on the water-absorbing plate can be removed from the fan. The cleaning fluid blown off the probe is absorbed.

Further, it also includes a cover plate, through holes and support legs, the lower surface of the cover plate is threadedly connected to the top of the cleaning bucket, the middle part of the upper surface of the cover plate is provided with a through hole, and the through hole corresponds to the fixing hole, the There are four supporting legs, and the four supporting legs are evenly arranged along the lower surface of the bottom plate. The through holes allow the probe to be put into the cleaning bucket, and the cover plate can prevent the probe from splashing out during cleaning.

Further, it also includes a drain pipe and a drain valve, one end of the drain pipe is connected to the water outlet on the side of the cleaning bucket, and the other end of the drain pipe extends to the outside of the bottom plate, the drain valve is arranged in the middle of the drain pipe, and the drain pipe The cleaning liquid in the cleaning bucket can be easily discharged, which is convenient for cleaning and replacement.

Compared with the prior art, the beneficial effects of the present utility model are: the ultrasonic probe cleaning device has the following advantages:

1. The cleaning device can easily clean the probe, and the probe can be cleaned more thoroughly through the rotating cleaning sponge, and the alcohol in the cleaning bucket can effectively sterilize to prevent the probe from breeding bacteria, and the movable connection mounting plate can pass the spring. The elasticity allows the cleaning sponge to rotate against the probe.

2. It is convenient to dry the cleaned probe through the fan, so that the probe is dry and not easy to breed bacteria, and the sponge pad on the water absorption board can absorb the cleaning liquid blown out of the probe.

3. The cover plate is connected with the cleaning bucket by screw thread, which can be easily disassembled. The cover plate can prevent the cleaning liquid from splashing out when rotating and cleaning, and effectively avoid the water entering the cable.

Description of drawings

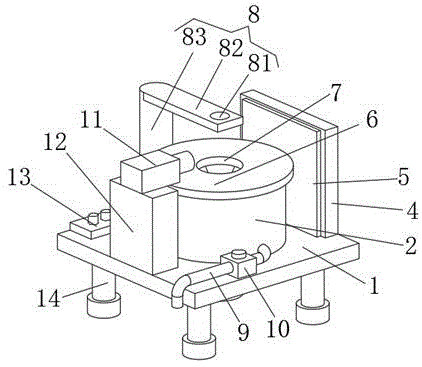

Fig. 1 is the front structure schematic diagram of the utility model;

Figure 2 is a schematic diagram of the cross-sectional structure of the utility model.

In the picture: 1 bottom plate, 2 cleaning bucket, 3 cleaning device, 31 motor, 32 rotating seat, 33 mounting plate, 34 connecting rod, 35 spring, 36 cleaning sponge, 4 water absorption plate, 5 sponge pad, 6 cover plate, 7 pass Holes, 8 lifting devices, 81 fixing holes, 82, fixing rods, 83 electric telescopic rods, 9 drain pipes, 10 drain valves, 11 fans, 12 mounts, 13 switch groups, 14 support legs.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-2, the present utility model provides a technical solution: an ultrasonic probe cleaning device, comprising a bottom plate 1, a cleaning bucket 2, a cleaning device 3 and a lifting device 8;

Cleaning bucket 2: the cleaning bucket 2 is arranged in the middle of the upper surface of the bottom plate 1, and the interior of the cleaning bucket 2 is hollow, and medical alcohol is placed inside;

Cleaning device 3: The cleaning device 3 includes a motor 31, a rotating seat 32, a mounting plate 33, a connecting rod 34, a spring 35 and a cleaning sponge 36. The motor 31 is arranged in the middle of the lower surface of the bottom plate 1. The output shaft passes through the lower surface of the bottom plate 1 and the lower surface of the cleaning bucket 2 and is connected to the lower surface of the rotating seat 32. There are four mounting plates 33, and the lower ends of the four mounting plates 33 are connected to the inner side of the rotating seat 32 through the rotating shaft. The upper surfaces of the four mounting plates 33 are connected with one end of the four connecting rods 34, and the other ends of the four connecting rods 34 are connected with a fixed block through the opening on the side of the rotating seat 32, and the four connecting rods 34 Springs 35 are sleeved on the tops, and cleaning sponges 36 are provided on the upper ends of the other side surfaces of the four mounting plates 33;

Lifting device 8: The lifting device 8 includes a fixing hole 81, a fixing rod 82 and an electric telescopic rod 83. The lower end of the electric telescopic rod 83 is connected to the upper surface of the bottom plate 1, and one end of the fixed rod 82 is connected to the electric telescopic rod. The upper end of 83 is connected, and the fixing hole 81 is provided at the other end of the fixing rod 82;

Wherein: it also includes a switch group 13, the switch group 13 is arranged on the rear side of the upper surface of the base plate 1, and the input end of the switch group 13 is electrically connected with the output end of the external power supply, and the input end of the switch group 13 is respectively connected with the motor 31 and the electric motor 31. The input end of the telescopic rod 83 is electrically connected, which can facilitate cleaning and disinfection of the probe, effectively sterilize, and prevent the growth of bacteria.

It also includes a fan 11 and a mounting seat 12, the mounting seat 12 is arranged on the left side of the upper surface of the bottom plate 1, the upper surface of the mounting seat 12 is provided with a fan 11, and the input end of the fan 11 is electrically connected to the output end of the switch group 13. connected, the fan 11 can dry the cleaned probe to keep the probe dry.

Also includes a water-absorbing plate 4 and a sponge pad 5, the water-absorbing plate 4 is arranged on the right side of the upper surface of the bottom plate 1, the side of the water-absorbing plate 4 is provided with a sponge pad 5, and the water-absorbing plate 4 corresponds to the fan 11, and the water-absorbing plate 4 The sponge pad 5 absorbs the cleaning fluid blown away from the probe.

It also includes a cover plate 6, a through hole 7 and a support leg 14. The lower surface of the cover plate 6 is threadedly connected to the top of the cleaning bucket 2. The upper surface of the cover plate 6 is provided with a through hole 7 in the middle, and the through hole 7 is connected with the fixed The holes 81 correspond to the four supporting legs 14, and the four supporting legs 14 are evenly arranged along the lower surface of the bottom plate 1. The through hole 7 allows the probe to be put into the cleaning bucket 2, and the cover plate 6 prevents the probe from cleaning. When cleaning fluid spills out.

It also includes a drain pipe 9 and a drain valve 10. One end of the drain pipe 9 is connected to the water outlet on the side of the cleaning bucket 2, and the other end of the drain pipe 9 extends to the outside of the bottom plate 1. The drain valve 10 is arranged on the drain pipe 9. In the middle of the cleaning bucket 2, the drain pipe 9 can conveniently discharge the cleaning liquid in the cleaning bucket 2, so as to facilitate the cleaning of the cleaning bucket 2 and the replacement of the cleaning fluid.

When in use: turn on the external power supply, fix the probe in the fixing hole 81, control the electric telescopic rod 83 to move down through the switch group 13, drive the probe to move down, and make the probe enter the cleaning bucket 2 through the through hole 7, The motor 31 is controlled to work by the switch group 13, so that the output shaft of the motor 31 drives the rotating seat 32 to rotate, and the rotating seat 32 drives the cleaning sponge 36 on the upper end of the mounting plate 33 to rotate. After completion, control the motor 31 to stop working through the switch group 13 to stop the rotation of the rotary base 32, control the electric telescopic rod 83 through the switch group 13 to make the height of the probe rise to the height of the air outlet of the fan 11, and control the fan through the switch group 13. 11 Work, blow air to the probe, control the electric telescopic rod 83 to move to the initial position through the switch group 13, remove the ultrasonic probe, and complete the cleaning of the ultrasonic probe.

It is worth noting that the motor 31 used in this embodiment is recommended to be a stepping motor from Shenzhen Leisai Control Technology Co., Ltd., and the specific model is 57CME13. The electric telescopic rod 83 is recommended to use the electric telescopic rod of Hangzhou Longxiang Technology Co., Ltd., the specific model is PXTL, the fan 11 can be selected from the pipeline fan of Guangzhou Mifeng Electric Equipment Co., Ltd., preferably the power of the fan 22 is 120W, and the switch group 13 controls the lead The operation of the motor 31 , the electric telescopic rod 83 and the fan 11 adopts the methods commonly used in the prior art.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. An ultrasonic probe cleaning device is characterized in that: comprises a bottom plate (1), a cleaning barrel (2), a cleaning device (3) and a lifting device (8);

cleaning barrel (2): the cleaning barrel (2) is arranged in the middle of the upper surface of the bottom plate (1), the interior of the cleaning barrel (2) is hollow, and medical alcohol is arranged in the interior of the cleaning barrel;

cleaning apparatus (3): the cleaning device (3) comprises a motor (31), a rotating seat (32), a mounting plate (33), a connecting rod (34), a spring (35) and a cleaning sponge (36), the motor (31) is arranged in the middle of the lower surface of the bottom plate (1), an output shaft of the motor (31) penetrates through the lower surface of the bottom plate (1) and the lower surface of the cleaning barrel (2) to be connected with the lower surface of the rotary seat (32), the four mounting plates (33) are arranged, the lower ends of the four mounting plates (33) are connected with the inner upper surface of the rotating base (32) through rotating shafts, the side surfaces of the four mounting plates (33) are connected with one ends of four connecting rods (34), the other ends of the four connecting rods (34) penetrate through holes in the side surfaces of the rotating base (32) to be connected with fixing blocks, the four connecting rods (34) are sleeved with springs (35), and cleaning sponges (36) are arranged at the upper ends of the other side surfaces of the four mounting plates (33);

lifting device (8): the lifting device (8) comprises a fixing hole (81), a fixing rod (82) and an electric telescopic rod (83), the lower end of the electric telescopic rod (83) is connected with the upper surface of the bottom plate (1), one end of the fixing rod (82) is connected with the upper end of the electric telescopic rod (83), and the fixing hole (81) is formed in the other end of the fixing rod (82);

wherein: the electric telescopic rod is characterized by further comprising a switch group (13), wherein the switch group (13) is arranged on the rear side of the upper surface of the bottom plate (1), the input end of the switch group (13) is electrically connected with the output end of an external power supply, and the input end of the switch group (13) is electrically connected with the input ends of the motor (31) and the electric telescopic rod (83) respectively.

2. The ultrasonic probe cleaning apparatus according to claim 1, wherein: still include fan (11) and mount pad (12), establish the left side at bottom plate (1) upper surface mount pad (12), the upper surface of mount pad (12) is equipped with fan (11) to the input of this fan (11) is connected with the output electricity of switch block (13).

3. The ultrasonic probe cleaning apparatus according to claim 1, wherein: the fan is characterized by further comprising a water absorption plate (4) and a spongy cushion (5), wherein the water absorption plate (4) is arranged on the right side of the upper surface of the bottom plate (1), the spongy cushion (5) is arranged on the side surface of the water absorption plate (4), and the water absorption plate (4) corresponds to the fan (11).

4. The ultrasonic probe cleaning apparatus according to claim 1, wherein: still include apron (6), through-hole (7) and supporting leg (14), the lower surface of apron (6) and the top threaded connection who washs bucket (2), the upper surface middle part of apron (6) is equipped with through-hole (7), and through-hole (7) correspond with fixed orifices (81), supporting leg (14) are equipped with four, and four supporting legs (14) evenly set up along the lower surface of bottom plate (1).

5. The ultrasonic probe cleaning apparatus according to claim 1, wherein: still include drain pipe (9) and drain valve (10), the one end of drain pipe (9) is connected with the delivery port of washtub (2) side, and the other end of drain pipe (9) extends to the outside of bottom plate (1), the middle part at drain pipe (9) is established in drain valve (10).
