Abstract

The utility model discloses a sleeping aid device for purifying indoor air, which comprises a casing. An equipment compartment, a humidifying compartment, a dust removing compartment and a water storage compartment are arranged in the interior of the casing in sequence from top to bottom, and the dust removing compartment and the humidifying compartment are communicated inside. The surface of the shell corresponding to the dust removal bin and the humidification bin is provided with an air outlet net, a gas purification device with an electrostatic dust removal function is set inside the dust removal bin, and a gas humidifier with an atomization function and communicated with the water storage bin is set inside the humidification bin. device, the inside of the equipment compartment is provided with an odor sleep aid device that communicates with the humidification compartment, and an audio sleep aid device and a control unit are also arranged inside the equipment compartment. The sleep devices are respectively electrically connected with the control unit, and the control unit is electrically connected with the external power supply, which can improve the indoor air environment and has the function of improving sleep quality.

Description

A device for purifying indoor air to help sleep

technical field

The utility model relates to the technical field of household equipment, in particular to a sleep aid device for purifying indoor air.

Background technique

With the progress of industrialization, the air quality in cities has been declining. At the same time, with greater work pressure, many residents have difficulty falling asleep, resulting in poor spirits the next day and affecting work. In the long run, it has a great impact on physical health. Studies have shown that air quality is also directly related to human sleep, but most of the existing technologies use physical or chemical therapy for hypnosis, such as playing soothing music or taking sleeping pills, etc., which cannot improve the indoor air environment. Ensure sleep quality.

Utility model content

Aiming at the defects in the prior art, the utility model provides a sleep aid device for purifying indoor air to improve the air quality of the living space, and at the same time provides a variety of sleep aid methods, which helps to improve sleep quality and improve insomnia.

A device for purifying indoor air for sleeping, comprising a casing, wherein an equipment warehouse, a humidification warehouse, a dust removal warehouse and a water storage warehouse are arranged in sequence from top to bottom inside the casing, the dust removal warehouse and the humidification warehouse are communicated internally, and the dust removal warehouse and the humidification warehouse are connected with each other. An air outlet net is arranged on the surface of the shell corresponding to the humidification bin, a gas purification device with electrostatic dust removal function is set inside the dust bin, and a gas humidification device with atomization function and communicated with the water storage bin is set inside the humidification bin. The interior of the warehouse is provided with a scent sleep aid device that communicates with the humidification chamber, and an audio sleep aid device and a control unit are also arranged inside the equipment chamber. The scent sleep aid device, gas humidification device, gas purification device and audio sleep aid device are respectively controlled with The unit is electrically connected, and the control unit is electrically connected with an external power supply.

Preferably, the humidification silo is an annular silo, the annular middle area of the humidification silo is communicated with the dust removal silo below, the water storage silo is an annular silo, and the central positions of the humidification silo, the dust removal silo and the water storage silo are provided with cylindrical structures and A filter body with an open upper end, through holes are respectively set on the circumferential surface of the filter body and the corresponding positions of the humidification bin and the dust removal bin, and a filter element and a fan are set between the two-stage through holes, and the fan is electrically connected to the control unit. In this way, the internal airflow speed is accelerated, the air output is increased, and the filter element is installed at the same time to increase the filtering effect. At the same time, the special structure design of the filter body is adopted to facilitate the replacement of the internal filter element.

Preferably, the gas purification device includes an electrostatic generator and two electrode plates, and the two electrode plates are respectively fixedly installed on the upper and lower inner walls of the dust removal bin, and the two electrode plates are respectively electrically connected to the positive and negative output ends of the electrostatic generator. The electrostatic generator is electrically connected with the control unit, and an electric field is generated between the two electrode plates to adsorb dust particles in the air, thereby achieving the purpose of dust removal.

Preferably, the gas humidification device includes a sponge and a cotton core arranged inside the humidification chamber, the sponge communicates with the water storage chamber through the cotton core, an ultrasonic atomizing sheet is arranged inside the sponge, and the ultrasonic atomizing sheet is electrically connected to the control unit. Connection, through the siphon principle, the water inside the water storage tank is drawn into the sponge, and then atomized under the action of the ultrasonic atomizing sheet, thereby humidifying the airflow.

Preferably, the scent sleep aid device comprises an aromatherapy chamber integrally formed with the casing and has an open upper end, a cover body is provided at the upper end of the aromatherapy chamber, and an outlet with a solenoid valve is provided at the bottom of the aromatherapy chamber, and the outlets respectively pass through pipes Connected with the sponge, the solenoid valve is electrically connected with the control unit, and by controlling the opening and closing of the solenoid valve, the connection and closing of the aromatherapy chamber and the sponge are realized, thereby controlling the liquid inside the aromatherapy chamber to flow to the sponge, and atomized together with the moisture in the sponge .

Preferably, the audio sleep aid device includes a speaker and a data memory, the speaker and the data memory are respectively electrically connected to the control unit, and the audio sleep aid device plays soothing music for sleep aid.

Preferably, a signal receiver is also provided inside the equipment compartment, and the signal receiver is electrically connected to the control unit for connecting to an intelligent terminal for data setting, and at the same time, it can be connected to an intelligent terminal such as a sleep monitoring device to perform different The working mode control of the sleep stage, the working mode includes but is not limited to the air volume, the air humidification volume, etc.

Preferably, the cotton core extends to the inside of the water storage bin, and the cotton core runs through the dust removal bin, and the cotton core inside the dust removal bin is wrapped with a rubber sleeve to effectively prevent dust from contacting the cotton core.

The beneficial effects of the present utility model are embodied in:

The utility model adopts the method of electrostatic dust removal to remove the suspended particles in the air once, and then performs secondary dust removal under the action of the filter element, and then humidifies the air when passing through the humidification chamber, thereby purifying the air and humidifying the air. The purpose is to help improve the air quality, and at the same time integrate the odor sleep aid device. By adding a soothing aromatherapy liquid to the gas, it helps to improve the sleep quality. At the same time, the audio sleep aid device is connected to play soothing music. Helps to speed up sleep.

Description of drawings

In order to illustrate the specific embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings required for the description of the specific embodiments or the prior art. Similar elements or parts are generally identified by similar reference numerals throughout the drawings. In the drawings, each element or section is not necessarily drawn to actual scale.

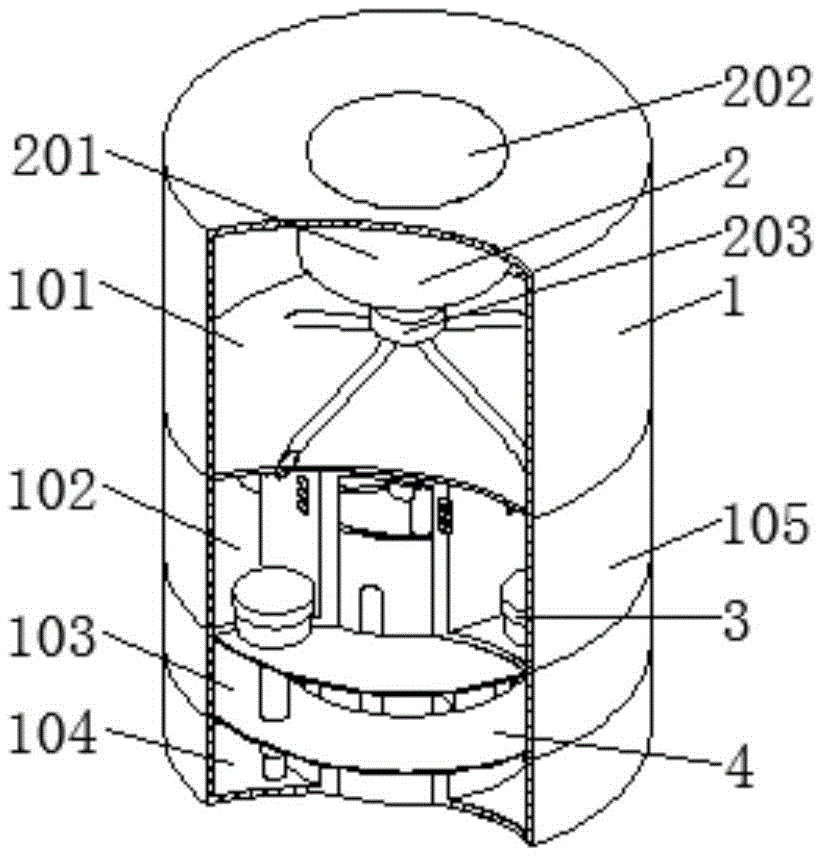

Fig. 1 is the schematic diagram of the indoor air purifying sleep aid device according to the embodiment of the present utility model;

FIG. 2 is a cross-sectional view of a sleep aid device for purifying indoor air according to an embodiment of the present invention.

In the drawings: 1-shell, 101-equipment warehouse, 102-humidification warehouse, 103-dust removal warehouse, 104-water storage warehouse, 105-air outlet net, 2-scent sleep aid device, 201-aromatherapy warehouse, 202-cover body , 203-solenoid valve, 3-gas humidification device, 301-sponge, 30-2 cotton wick, 303-ultrasonic atomizing sheet, 4-gas purification device, 401-electrode plate, 402-electrostatic generator, 403-filter , 404-filter element, 405-fan, 5-audio sleep aid device, 6-control unit, 7-signal transceiver.

Detailed ways

The embodiments of the technical solutions of the present utility model will be described in detail below with reference to the accompanying drawings. The following embodiments are only used to illustrate the technical solutions of the present invention more clearly, and are therefore only used as examples, and cannot be used to limit the protection scope of the present invention.

It should be noted that, unless otherwise specified, the technical or scientific terms used in the present application shall have the usual meanings understood by those skilled in the art to which the present invention belongs.

This embodiment discloses a device for purifying indoor air for sleeping, including a housing 1. Inside the housing 1, an equipment bin 101, a humidification bin 102, a dust bin 103, a water storage bin 104, and a dust bin 103 and a humidification bin are arranged in sequence from top to bottom. The interior of 102 is connected, the surface of the shell 1 corresponding to the dust removal chamber 103 and the humidification chamber 102 is provided with an air outlet 105, the dust removal chamber 103 is provided with a gas purification device 4 with electrostatic dust removal function, and the humidification chamber 102 is provided with an atomization function and is connected with The gas humidification device 3 communicated with the water storage bin 104, the odor sleep aid device 2 communicated with the humidification chamber 102 is arranged inside the equipment chamber 101, the audio sleep aid device 5 and the control unit 6 are also arranged inside the equipment chamber 101, the smell sleep aid device 2, and the gas humidification The device 3, the gas purification device 4 and the audio sleep aid device 5 are respectively electrically connected to the control unit, and the control unit 6 is electrically connected to the external power supply.

The humidification bin 102 is an annular bin, the annular middle area of the humidification bin 102 is communicated with the lower dust bin 103, the water storage bin 104 is an annular bin, the humidification bin 102, the dust bin 103 and the water storage bin 104 are provided with a cylindrical structure at the central position of the filter with an upper end opening. Body 403, the circumferential surface of the filter body 403 and the corresponding positions of the humidification chamber 102 and the dust removal chamber 103 are respectively provided with through holes, and a filter element 404 and a fan 405 are arranged between the two-stage through holes, and the fan 405 is electrically connected to the control unit 6. By setting the fan 405 way to speed up the internal air flow, increase the air volume, and install the filter element 404 at the same time to increase the filtering effect. At the same time, the special structure design of the filter body 403 is adopted to facilitate the replacement of the internal filter element 404. At the same time, the fan 405 is built in, which helps reduce noise transmission.

The gas purification device 4 includes an electrostatic generator 402 and two electrode plates 401, and the two electrode plates 401 are respectively fixed to the upper and lower inner walls of the dust removal chamber 103, and the two electrode plates 401 are respectively connected with the positive and negative output ends of the electrostatic generator 402. Electrically connected, the electrostatic generator 402 is electrically connected to the control unit 6, and an electric field is generated between the two electrode plates 401 to adsorb dust particles in the air, thereby achieving the purpose of dust removal. model.

The gas humidification device 3 includes a sponge 301 and a cotton core 302 arranged inside the humidification chamber 102. The sponge 301 communicates with the water storage chamber 104 through the cotton core 302. An ultrasonic atomizing sheet 303 is arranged inside the sponge 301, and the ultrasonic atomizing sheet 303 is electrically connected to the control unit 6. Connection, through the siphon principle, the water inside the water storage tank 104 is drawn into the inside of the sponge 301, and then atomized under the action of the ultrasonic atomizing sheet 303, thereby humidifying the airflow.

The scent sleep aid device 2 includes an aromatherapy warehouse 201 integrally formed with the housing 1 and having an open upper end. A cover body 202 is provided at the upper end of the aromatherapy warehouse 201, and an outlet with a solenoid valve 203 is provided at the bottom of the aromatherapy warehouse 201. The outlets are respectively communicated with the sponge 301 through pipes. , the solenoid valve 203 is electrically connected with the control unit 6, and by controlling the opening and closing of the solenoid valve 203, the connection and closing of the aromatherapy warehouse 201 and the sponge 301 are realized, thereby controlling the liquid inside the aromatherapy warehouse 201 to flow to the sponge 301, and the moisture inside the sponge 301 is controlled Atomize together.

The audio sleep aid device 5 includes a speaker and a data storage, and the speaker and the data storage are electrically connected to the control unit 6 respectively, and the audio sleep aid device 5 plays the soothing music stored in the data storage for sleep aid.

The equipment compartment 101 is also provided with a signal receiver 7. The signal receiver 7 is electrically connected to the control unit 6 and is used to connect to an intelligent terminal for data setting. At the same time, it can be connected to intelligent terminals such as sleep monitoring equipment to perform different sleep stages. Working mode control, working modes include but are not limited to air output, air humidification, etc.

The cotton wick 302 extends to the inside of the water storage bin 104 , and the cotton wick 302 penetrates the dust removal bin 103 , and the cotton wick 302 inside the dust removal bin 103 is wrapped with a rubber sleeve.

The control unit 6 preferably adopts the MS80F0801AP-DIP8 type single-chip microcomputer, and the control unit 6 controls the related electronic components in a common way in the prior art. common way.

When in use, the water storage bin 104 is filled with clean water, and the aromatherapy bin 201 is filled with aromatherapy liquid. When it is started, the fan 405 works, which drives the gas to enter the dust bin 103 from the air outlet 105, and the electrostatic dust is removed inside the dust bin 103. The filter element 404 is used for filtration to complete the gas purification, and then the gas enters the humidification chamber 102, and the ultrasonic atomizing sheet 303 atomizes the moisture in the sponge 301, thereby humidifying the air flow, while the solenoid valve 203 is opened, and the aromatherapy inside the aromatherapy chamber 201 flows into the pipe The sponge 301 is atomized together with the moisture inside the sponge 301, so that the aroma molecules overflow from the air outlet net 105 together with the gas to improve the air quality. 7. Connect with the smart terminal, so as to control the different air volume according to different sleep stages, and the control is realized by adjusting the speed of the fan 405.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that : it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some or all of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the various embodiments of the present utility model The scope of the technical solution should be covered by the scope of the claims and description of the present invention.

Claims (8)

1. The utility model provides a purify indoor air and help dormancy device, includes casing (1), its characterized in that: the utility model discloses a portable air conditioner, including casing (1), dust removal bin (103), humidification bin (102), dust removal bin (103) and water storage bin (104), dust removal bin (103) and humidification bin (102) inside intercommunication from the top down set gradually, casing (1) surface that dust removal bin (103) and humidification bin (102) correspond sets up out fan-net (105), the inside gas purification device (4) that has the electrostatic precipitator function that sets up of dust removal bin (103), the inside gas humidification device (3) that have the atomizing function and communicate with water storage bin (104) that set up of humidification bin (102), the inside smell sleep-assisting device (2) that communicates with humidification bin (102) that sets up of equipment bin (101), inside audio sleep-assisting device (5) and the control unit (6) that still set up of equipment bin (101), smell sleep-assisting device (2), gas humidification device (3), gas purification device (4) and audio sleep-assisting device (5) are connected with the control unit electricity respectively, the control unit (6) is electrically connected with an external power supply.

2. The device for purifying indoor air and assisting sleep as claimed in claim 1, wherein: humidification storehouse (102) are annular storehouse, the annular middle zone in humidification storehouse (102) communicates with dust removal storehouse (103) of below, water storage storehouse (104) are annular storehouse, humidification storehouse (102), the central point of dust removal storehouse (103) and water storage storehouse (104) puts and sets up tubular structure and upper end open-ended filter body (403), filter body (403) periphery and humidification storehouse (102) and dust removal storehouse (103) correspond the position and set up the through-hole respectively, and set up filter core (404) and fan (405) between the two-stage through-hole, fan (405) are connected with the control unit (6) electricity.

3. The device for purifying indoor air and assisting sleep as claimed in claim 1, wherein: the gas purification device (4) comprises an electrostatic generator (402) and two electrode plates (401), wherein the two electrode plates (401) are fixedly mounted on the upper inner wall and the lower inner wall of the dust removal bin (103) respectively, the two electrode plates (401) are electrically connected with the positive output end and the negative output end of the electrostatic generator (402) respectively, and the electrostatic generator (402) is electrically connected with the control unit (6).

4. The device for purifying indoor air and assisting sleep as claimed in claim 1, wherein: gas humidification device (3) are including arranging sponge (301) and cotton core (302) inside humidification storehouse (102), sponge (301) are through cotton core (302) and water storage storehouse (104) intercommunication, sponge (301) inside sets up ultrasonic atomization piece (303), ultrasonic atomization piece (303) are connected with the control unit (6) electricity.

5. The device for purifying indoor air and assisting sleep as claimed in claim 4, wherein: smell helps dormancy device (2) include with casing (1) integrated into one piece and upper end open-ended champignon storehouse (201), champignon storehouse (201) upper end sets up lid (202), champignon storehouse (201) bottom sets up the export that has solenoid valve (203), the export communicates with sponge (301) through the pipeline respectively, solenoid valve (203) are connected with the control unit (6) electricity.

6. The device for purifying indoor air and assisting sleep as claimed in claim 1, wherein: the audio sleep-assisting device (5) comprises a loudspeaker and a data memory, wherein the loudspeaker and the data memory are respectively and electrically connected with the control unit (6).

7. The device for purifying indoor air and assisting sleep as claimed in claim 1, wherein: the equipment bin (101) is also internally provided with a signal receiver (7), and the signal receiver (7) is electrically connected with the control unit (6).

8. The device for purifying indoor air and assisting sleep as claimed in claim 4, wherein: the cotton core (302) extends to the interior of the water storage bin (104), the cotton core (302) penetrates through the dust removal bin (103), and the cotton core (302) in the dust removal bin (103) is wrapped by the rubber sleeve.
