Abstract

The utility model discloses a concrete thermal insulation, sound insulation and vibration reduction floor, which belongs to the technical field of building interior decoration. Lay a vibration damping pad on the floor slab; lay a phenolic foam board on the vibration damping pad; lay a waterproof layer on the phenolic foam board, and set a building waterproof glue between the periphery of the waterproof layer and the wall; the intersection of the upper side of the waterproof layer and the wall There is an "L"-shaped sound insulation board; a plastic film is laid on the upper side of the "L"-shaped sound insulation board and the waterproof layer; a fine stone concrete layer is laid on the upper side of the plastic film; A cement mortar layer is laid on the upper side of the flame-retardant sound insulation felt layer, and the upper side of the cement mortar layer is bonded to the floor. In the utility model, the phenolic foam board is arranged between the damping pad and the waterproof layer (glass fiber board), so as to prevent the phenolic foam board from being damaged by moisture and improve the thermal insulation effect of the floor. Effect: The sound insulation effect of the whole floor is improved through the cooperation of the flame retardant sound insulation felt layer and the "L" type sound insulation board.

Description

Concrete thermal insulation sound insulation and vibration reduction floor

technical field

The utility model relates to the technical field of building interior decoration, in particular to a concrete-concrete heat-insulating sound-insulating and vibration-damping floor.

Background technique

At present, modern commercial and residential buildings require light weight, so the structure is getting thinner and thinner. Generally, the thickness of the floor slab is 100-150mm; the floor structure layer is mostly composed of reinforced concrete, and then a layer of cement mortar is laid during decoration and then ceramic tiles are installed. The sound insulation effect of this kind of floor structure is much less than the requirements of "7.1 Noise and Sound Insulation" in "Code for Residential Buildings" GB503682005. Therefore, the problem often encountered is: due to the poor sound insulation effect of the floor, day or night , especially in the dead of night at night, the movement of people upstairs or the play of children will disturb the neighbors downstairs. In order to solve the problem of sound insulation, there is also a method of installing a sound insulation ceiling in the house, but this sound insulation method has a complex structure and is inconvenient to construct. , takes up more floor space.

SUMMARY OF THE INVENTION

In order to solve the technical problem of floor sound insulation, the utility model provides a concrete concrete heat preservation sound insulation and vibration damping floor, which realizes high heat preservation and sound insulation effects between floors.

The utility model is realized by the following technical solutions: a concrete concrete heat preservation, sound insulation and vibration damping floor, a vibration damping pad is laid on the floor slab; a phenolic foam board is laid on the upper side of the damping pad, A building sealant is arranged between the vibrating pad, the periphery of the phenolic foam board and the wall; a waterproof layer is laid on the upper side of the phenolic foam board, and a building waterproof glue is arranged between the periphery of the waterproof layer and the wall; An "L"-shaped sound insulation board is arranged at the intersection of the side and the wall; a plastic film is laid on the upper side of the "L"-shaped sound insulation board and the waterproof layer; a fine stone concrete layer is laid on the upper side of the plastic film; the fine stone A flame retardant sound insulation felt layer is laid on the upper side of the concrete layer; a cement mortar layer is laid on the upper side of the flame retardant sound insulation felt layer, and a floor is bonded on the upper side of the cement mortar layer.

Further, the thickness of the phenolic foam board is 10-15mm, and the joints between the adjacent phenolic foam boards are connected with waterproof tapes.

The waterproof layer is made of glass fiber board, the thickness of the glass fiber board is 5-8mm, and the joints between the adjacent glass fiber boards are connected with waterproof tapes.

Skirts are adhered around the wall, and a building sealant is arranged between the lower end of the skirting and the floor.

The thickness of the flame-retardant sound insulation felt layer is 4-6 mm.

Compared with the prior art, the beneficial effects of the present utility model are:

Phenolic foam board has dense cells and has high thermal insulation and sound insulation performance. It has been widely used in wall panels for thermal insulation and sound insulation of home decoration, but its water and moisture resistance is insufficient, so it cannot be used in floor floors. In this scheme, the The phenolic foam board is arranged between the damping pad and the waterproof layer (glass fiber board) to prevent the phenolic foam board from being damaged by moisture and improve the thermal insulation effect of the floor, and the floor has a damping effect by setting the damping pad;

The "L"-shaped sound insulation board improves the sound insulation performance around the floor and reduces the formation of surrounding sound bridges. With the plastic film on the upper side, it aims to improve the waterproof and moisture-proof effect of this layer, and reduce the thermal insulation of the lower layer during the construction of the fine stone concrete layer. In addition, through the cooperation of the flame retardant sound insulation felt layer and the "L" type sound insulation board, the sound insulation effect of the entire floor is improved.

Description of drawings

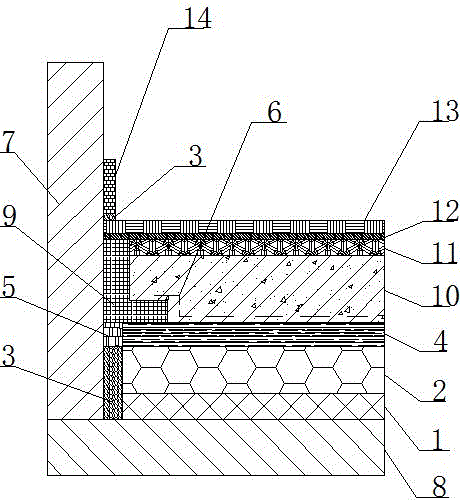

Fig. 1 is the structural representation of the present utility model;

In the figure: 1. Vibration damping pad; 2. Phenolic foam board; 3. Building sealant; 4. Waterproof layer; 5. Building waterproof glue; 6. Plastic film; 7. Wall body; 8. Floor board; 9. "L" type sound insulation board; 10, fine stone concrete layer; 11, flame retardant sound insulation felt layer; 12, cement mortar layer; 13, floor; 14, skirting.

Detailed ways

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required for the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

As shown in FIG. 1 , for a concrete concrete thermal insulation, sound insulation and vibration reduction floor, a vibration damping pad 1 is laid on the floor slab 8, and a phenolic foam board 2 is laid on the upper side of the vibration damping pad 1. A building sealant 3 is arranged between the periphery of the phenolic foam board 2 and the wall 7 . The thickness of the phenolic foam board 2 is 10-15mm, and the joints between the adjacent phenolic foam boards 2 are connected with waterproof tapes. A waterproof layer 4 is laid on the upper side of the phenolic foam board 2 , and a building waterproof glue 5 is arranged between the periphery of the waterproof layer 4 and the wall 7 . The waterproof layer 4 is made of glass fiber board, the thickness of the glass fiber board is 5-8mm, and the joints between the adjacent glass fiber boards are connected with waterproof tape. Phenolic foam board has dense cells and has high thermal insulation and sound insulation performance. It has been widely used in wall panels for thermal insulation and sound insulation of home decoration, but its water and moisture resistance is insufficient, so it cannot be used in floor floors. In this scheme, the The phenolic foam board is arranged between the vibration damping pad and the glass fiber board of the waterproof layer to prevent the phenolic foam board from being damaged by moisture and improve the thermal insulation effect of the floor.

The upper side of the waterproof layer 4 and the wall 7 are provided with an "L"-shaped sound insulation board 9; a plastic film 6 is laid on the "L" type sound insulation board 9 and the upper side of the waterproof layer 4; the upper side of the plastic film 6 is laid with fine stone concrete Layer 10. The "L"-shaped sound insulation board improves the sound insulation performance around the floor and reduces the formation of surrounding sound bridges. With the plastic film on the upper side, it aims to improve the waterproof and moisture-proof effect of this layer, and reduce the thermal insulation of the lower layer during the construction of the fine stone concrete layer. adverse effects of layers.

The upper side of the fine stone concrete layer 10 is laid with a flame retardant sound insulation felt layer 11, and the thickness of the flame retardant sound insulation felt layer 11 is 4-6 mm; The stone concrete layer 10 is directly set. The sound insulation effect of the whole floor is improved by the cooperation of the flame retardant sound insulation felt layer and the "L" type sound insulation board. A cement mortar layer 12 is laid on the upper side of the flame-retardant sound insulation felt layer 11 , and a floor 13 is bonded to the upper side of the cement mortar layer 12 . A skirting foot 14 is bonded around the wall 7 , and a building sealant 3 is arranged between the lower end of the skirting foot 14 and the floor 13 .

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not describe all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. This specification selects and specifically describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (3)

1. A concrete heat preservation sound insulation damping floor which characterized in that: a damping base plate (1) is laid on the floor plate (8); a phenolic foam plate (2) is laid on the upper side of the vibration-damping base plate (1), and building sealant (3) is arranged between the vibration-damping base plate (1), the periphery of the phenolic foam plate (2) and a wall body (7); a waterproof layer (4) is laid on the upper side of the phenolic foam board (2), and building waterproof glue (5) is arranged between the periphery of the waterproof layer (4) and the wall body (7); an L-shaped sound insulation board (9) is arranged at the intersection of the upper side of the waterproof layer (4) and the wall body (7); plastic films (6) are laid on the upper side surfaces of the L-shaped sound insulation board (9) and the waterproof layer (4); a fine stone concrete layer (10) is laid on the upper side of the plastic film (6); a flame-retardant sound-insulating felt layer (11) is laid on the upper side of the fine stone concrete layer (10); a cement mortar layer (12) is laid on the upper side of the flame-retardant sound-insulating felt layer (11), and a floor (13) is bonded on the upper side of the cement mortar layer (12);

the thickness of the phenolic foam boards (2) is 10-15mm, and waterproof adhesive tapes are connected at seams between the adjacent phenolic foam boards (2);

the waterproof layer (4) is made of glass fiber plates, the thickness of each glass fiber plate is 5-8mm, and waterproof adhesive tapes are connected at seams between every two adjacent glass fiber plates.

2. The concrete heat-preservation sound-insulation vibration-reduction floor according to claim 1, which is characterized in that: skirting (14) are bonded on the periphery of the wall body (7), and building sealant (3) is arranged between the lower end of the skirting (14) and the floor (13).

3. The concrete heat-preservation sound-insulation vibration-reduction floor according to claim 1, which is characterized in that: the thickness of the flame-retardant sound-insulating felt layer (11) is 4-6 mm.
