Abstract

This specification provides an interactive smart tablet, including a touch unit, a main chip carrying a first operating system, a processing unit carrying a second operating system, and a switching unit; the touch unit is connected to the processing unit, and the touch unit generates touch data and sends it to Processing unit, the processing unit is connected with the main chip through a serial interface, the processing unit forwards the touch data to the main chip, the main chip receives and processes the touch data and then sends it to the processing unit, so that the second operating system responds to the touch; the main chip also communicates with the main chip. The switching unit is connected, the switching unit is connected with at least one external device, and the main chip sends a control signal to control the switching unit to switch on and off the channel of the external device, so that the connected external device can receive touch data and perform touch response. The processing unit and the main chip The connection maintains communication, no need to reconnect, and the processing unit can quickly respond to the touch, effectively reducing the touch delay and avoiding the phenomenon of no response to the touch in a short time.

Description

Interactive smart tablet

technical field

This specification relates to the technical field of electronic devices, and in particular, to an interactive smart tablet.

Background technique

Interactive smart tablet, also known as all-in-one computer, is an integrated device that controls the content displayed on the display panel and realizes human-computer interaction through touch technology. The interactive smart tablet can usually support multi-channel access to multiple operating signal sources (such as built-in computers, external devices, etc.), so that in addition to using the built-in computer, the interactive smart tablet can also be interconnected with external devices, and the main chip can send out The touch data is transmitted to the built-in computer or external device, and the built-in computer or external device can perform touch operations according to the touch data.

In the existing interactive smart tablet, a USB switch is set between the main chip and each channel to switch the physical link between the main chip and each operation signal source on and off, and one of the operation signal sources is selected by switching. The channel of the operation signal remains connected, the channels of other operation signal sources are disconnected, and the main chip transmits the touch data to the operation signal source through the corresponding channel. In practical applications, frequent switching between the built-in computer and external devices is often involved. However, whenever switching to the built-in computer, it takes time to wait for the physical link between the main chip and the built-in computer to be reconnected, and touch Delay or no response to touch in a short period of time.

Utility model content

In order to overcome the problems existing in the related art, this specification provides an interactive smart tablet.

According to an embodiment of the present specification, an interactive smart tablet is provided, including: a touch unit, a main chip carrying a first operating system, a processing unit carrying a second operating system, and a switching unit; the touch unit is connected to the processing unit , the touch unit is used to generate touch data and send it to the processing unit; the processing unit is connected to the main chip through a serial interface, the processing unit is used to receive the touch data of the touch unit, and Forwarded to the main chip, the main chip is used to receive the touch data forwarded by the processing unit, and send the processed touch data to the processing unit; the main chip is also connected to the switching unit, so The switching unit is connected to at least one external device, and the main chip is also used to send a control signal to control the switching unit to switch the channel with the external device on and off, and send the processed touch data to the external device, and the switching The unit is used to switch the channel between the main chip and the external device on and off according to the control signal.

The technical solutions provided by the embodiments of this specification may include the following beneficial effects:

The interactive smart tablet of this technical solution includes a touch unit, a main chip, a processing unit and a switching unit, wherein the touch unit is connected to the processing unit, the processing unit is connected to the main chip through a serial interface, and the switching unit is connected to the main chip. The switching unit is connected to at least one An external device is connected. The touch unit is used to generate touch data, and can send the touch data to the processing unit; the processing unit forwards the touch data sent by the touch unit to the main chip, the main chip is equipped with the first operating system, and the main chip receives the information forwarded by the processing unit. After touching the data, the touch data is processed by running the touch algorithm, and it is judged whether to send the touch data to the processing unit equipped with the second operating system or to an external device. If it is judged to be sent to the processing unit, the main chip will process the data. The resulting touch data is encapsulated into serial port data and sent to the processing unit through the serial interface. The processing unit first parses the serial port data, and then converts it into identifiable processed touch data, so that the second operating system carried by the processing unit can The touch response is made according to the touch data; if it is determined to be sent to an external device, the main chip will send a control signal to the switching unit, and the switching unit will switch the channel between the main chip and the external device from the original disconnection to the conduction according to the control signal. , the main chip sends the processed touch data to the external device whose channel is turned on, so that the external device can respond to the touch according to the touch data. Since the processing unit equipped with the second system in the interactive smart panel of the technical solution is connected to the main chip to maintain communication, the main chip determines whether the touch data is sent to the processing unit, and if yes, the processed touch data is encapsulated into serial port data directly through the serial port. The serial interface is sent to the processing unit, and the processing unit converts the serial port data into identifiable data after receiving it, and the second operating system can respond to the touch according to the touch data. In this process, there is no need for the physical link between the main chip and the processing unit. In this way, the second operating system mounted on the processing unit can quickly respond to the touch after receiving the touch data, which can effectively reduce the touch delay and avoid the phenomenon of no touch response in a short time.

It is to be understood that the foregoing general description and the following detailed description are exemplary and explanatory only and are not restrictive of the specification.

Description of drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with this specification and together with the description serve to explain the principles of this specification.

FIG. 1 is a schematic diagram of a hardware structure of an interactive smart tablet according to an exemplary embodiment of the present specification.

FIG. 2 is a schematic diagram of the hardware structure of an interactive smart tablet according to another exemplary embodiment of the present specification.

FIG. 3 is a schematic diagram of the hardware structure of an interactive smart tablet according to another exemplary embodiment of the present specification.

FIG. 4 is a schematic diagram of a hardware structure of an interactive smart tablet according to another exemplary embodiment of the present specification.

FIG. 5 is a schematic diagram of the hardware structure of an all-in-one television computer according to an exemplary embodiment of the present specification.

Detailed ways

Exemplary embodiments will be described in detail herein, examples of which are illustrated in the accompanying drawings. Where the following description refers to the drawings, the same numerals in different drawings refer to the same or similar elements unless otherwise indicated. The implementations described in the illustrative examples below are not intended to represent all implementations consistent with this specification. Rather, they are merely examples of apparatus and methods consistent with some aspects of this specification as recited in the appended claims.

The terms used in this specification are for the purpose of describing particular embodiments only and are not intended to limit the specification. As used in this specification and the appended claims, the singular forms "a," "the," and "the" are intended to include the plural forms as well, unless the context clearly dictates otherwise. It will also be understood that the term "and/or" as used herein refers to and includes any and all possible combinations of one or more of the associated listed items.

It should be understood that although the terms first, second, third, etc. may be used in this specification to describe various information, such information should not be limited to these terms. These terms are only used to distinguish the same type of information from each other. For example, the first information may also be referred to as the second information, and similarly, the second information may also be referred to as the first information, without departing from the scope of the present specification. Depending on the context, the word "if" as used herein can be interpreted as "at the time of" or "when" or "in response to determining."

Please refer to FIG. 1. FIG. 1 is a schematic diagram of the hardware structure of an interactive smart tablet 10 shown in an exemplary embodiment of the specification. The interactive smart tablet 10 includes: a touch unit 110, a main chip 120 carrying a first operating system, a There is a processing unit 130 and a switching unit 140 of the second operating system. The touch unit 110 is connected to the processing unit 130, and the touch unit 110 is used to generate touch data and send it to the processing unit 130; the processing unit 130 and the main chip 120 are connected through a serial interface connection, the processing unit 130 is configured to receive the touch data from the touch unit 110 and forward it to the main chip 120, and the main chip 120 is configured to receive the touch data forwarded by the processing unit 130 and process the data The touch data sent to the processing unit 130; the main chip 120 is also connected to the switching unit 140, the switching unit 140 is connected to at least one external device 150, and the main chip 120 is also used to send a control signal to control The switching unit 140 switches the channel with the external device 150 on and off, and sends the processed touch data to the external device 150. The switching unit 140 is used for switching the main chip 120 and the external device according to the control signal. The channels between 150 are turned on and off, so that the main chip 120 sends the processed touch data to the external device 150 whose channels are turned on.

In this embodiment, the interactive smart tablet includes a touch unit, a main chip, a processing unit, and a switching unit, wherein the touch unit is connected to the processing unit, the processing unit is connected to the main chip through a serial interface, the switching unit is connected to the main chip, and the switching unit is connected to the main chip. The unit is connected to at least one external device. The touch unit is used to generate touch data, and can send the touch data to the processing unit; the processing unit forwards the touch data sent by the touch unit to the main chip, the main chip is equipped with the first operating system, and the main chip receives the information forwarded by the processing unit. After touching the data, the touch data is processed by running the touch algorithm, and it is judged whether to send the touch data to the processing unit equipped with the second operating system or to an external device. If it is judged to be sent to the processing unit, the main chip will process the data. The resulting touch data is encapsulated into serial port data and sent to the processing unit through the serial interface. The processing unit first parses the serial port data, and then converts it into identifiable processed touch data, so that the second operating system carried by the processing unit can The touch response is made according to the touch data; if it is determined to be sent to an external device, the main chip will send a control signal to the switching unit, and the switching unit will switch the channel between the main chip and the external device from the original disconnection to the conduction according to the control signal. , the main chip sends the processed touch data to the external device whose channel is turned on, so that the external device can respond to the touch according to the touch data.

Since the processing unit equipped with the second system in the interactive smart tablet is connected to the main chip to maintain communication, the main chip determines whether the touch data is sent to the processing unit, and if so, encapsulates the processed touch data as serial data and sends it directly through the serial interface To the processing unit, the processing unit converts the serial port data into identifiable data after receiving it, and the second operating system can respond to the touch according to the touch data. In this process, there is no need to re-create the physical link between the main chip and the processing unit. It is not necessary to control the disconnection and connection between the main chip and the processing unit through the switching unit, so that the second operating system carried by the processing unit can quickly respond to the touch after receiving the touch data, which can effectively reduce the touch delay and Avoid the phenomenon of no response to touch in a short time, thereby improving user experience.

It should be understood that the touch unit generates touch data through the detected touch signal. This touch data is non-standard touch data. The processing unit receives these non-standard touch data and forwards it to the main chip, and the main chip sends the non-standard touch data to the main chip. The data is converted into standard touch data. Specifically, the main chip runs the touch algorithm to convert the touch data without coordinates into touch data with coordinates, so that the main chip, processing unit or external device can be based on the touch data with coordinates. Make a touch response. The touch unit can be a touch frame or a capacitive screen.

It should be noted that the interactive smart panel also includes a display unit, the display unit is connected to the main chip, and the main chip determines which signal source the current display content of the display unit comes from, which is the first signal source carried by the main chip. An operating system is derived from the second operating system carried by the processing unit, or derived from an external device, so as to determine which signal source to send the touch data to. When the signal source is the first operating system, there is no need to forward the touch data, and the first operating system carried by the main chip itself responds to the touch; when the signal source is the second operating system, the processed touch data is sent to the processing unit, The second operating system carried by the processing unit responds to the touch; when the signal source is the operating system carried by one of the external devices, the main chip controls the switching unit to switch to the external device, so that the channel between the main chip and the external device is When it is turned on, the processed touch data is sent to the external device, and the operating system carried by the external device responds to the touch. The external device may be a computer or other device equipped with an operating system, which is not specifically limited in this specification.

The serial interface in this embodiment may be an SPI (Serial Peripheral Interface, serial peripheral interface) interface, or a UART (Universal Asynchronous Receiver/Transmitter, Universal Asynchronous Receiver/Transmitter) interface or an I2C (Inter-Integrated Circuit, Two-wire synchronous serial bus) interface. The SPI interface, UART interface and I2C interface can be substituted for each other. Compared with the UART interface and the I2C interface, the SPI interface has a faster transmission speed and can quickly transmit touch data from the microprocessor to the main chip, and from the main chip to the microprocessor. The serial interfaces in other embodiments of the present specification may all be the above-mentioned serial interfaces, but are not limited to the above-mentioned serial interfaces.

In addition to the connection between the processing unit and the main chip through a serial interface, other hardware such as the connection between the touch unit and the processing unit, between the main chip and the switching unit, and between the main chip and external devices, in one example, the touch unit It is connected with the processing unit, between the main chip and the switching unit, and between the main chip and the external device through the USB interface, and communicates and transmits through the USB protocol. That is to say, the touch data generated by the touch unit is sent to the processing unit through the USB interface, and the processing unit sends it to the main chip through the serial interface. If the main chip judges that it is sent to an external device, it sends a control signal to the switching unit, and the switching unit switches to The external device currently displaying the signal source makes the channel between the main chip and the external device conductive, and the main chip sends the processed touch data to the external device through the USB interface. The USB interface has the advantages of fast transmission speed and good compatibility, and can effectively improve the transmission speed and reliability of touch data.

Regarding the processing unit, it may be an independent hardware module, or may include multiple hardware modules. In the example where the processing unit is an independent hardware module, the functions of the processing unit for parsing and converting serial port data, and performing touch response according to the touch data are all implemented by the hardware module; in the example where the processing unit is an independent hardware module The functions of the processing unit for parsing and converting serial port data, and performing touch response according to touch data can be realized by the division of labor among multiple hardware modules.

In one embodiment, the processing unit includes a microprocessor and a computer unit equipped with the second operating system, the microprocessor is connected to the main chip through a serial interface, and the microprocessor is connected to the main chip. A computer unit is connected, and the microprocessor is configured to convert the received processed touch data into data identifiable by the computer unit, and send it to the computer unit. Based on this, FIG. 2 shows the hardware structure of the interactive smart tablet of this embodiment.

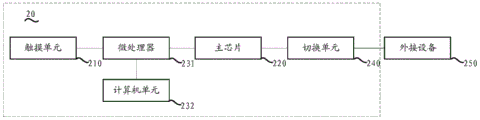

Please refer to FIG. 2. FIG. 2 is a schematic diagram of the hardware structure of an interactive smart tablet 20 according to an exemplary embodiment of the specification. The interactive smart tablet 20 includes: a touch unit 210, a main chip 220 carrying a first operating system, a microcomputer The processor 231 , the computer unit 232 carrying the second operating system, and the switching unit 240 . The touch unit 210 is connected to the microprocessor 231, and the touch unit 210 is used to generate touch data and send it to the microprocessor 231; the microprocessor 231 is also connected to the main chip 220. Connected through a serial interface (for example, serial interfaces include but not limited to SPI interface, UART interface, I2C interface, etc.), the microprocessor 231 is used to receive touch data and forward it to the main chip 220, the main The chip 220 is configured to receive the touch data forwarded by the microprocessor 231, and send the processed touch data to the microprocessor 231, so that the microprocessor 231 sends the processed touch data to the microprocessor 231. The computer unit 232, the computer unit 232 responds to the touch; the main chip 220 is also connected to the switching unit 240, that is, one end of the main chip 220 is connected to the microprocessor 231, and the other end is connected to the switch The switch unit 240 is connected to at least one external device 250, and the main chip 220 is also used to send a control signal to control the switch unit 240 to switch the channel with the external device on and off, and to switch the processed touch The data is sent to the external device 250, and the switching unit 240 is used to switch the channel between the main chip 220 and the external device 250 on and off according to the control signal, so that the main chip 220 can store the processed touch data It is sent to the external device 250 whose channel is turned on.

In this embodiment, the microprocessor is used as one of the hardware modules of the processing unit to implement data forwarding and serial port data encapsulation, parsing and conversion functions. Specifically, after the microprocessor receives the touch data sent by the touch unit , encapsulate the touch data into serial port data, and forward it to the main chip through the serial interface. After the main chip receives the serial port data, it will parse and process it, and also determine which operating signal source the processed touch data should be forwarded to. If it is judged that it should be sent to the second operating system carried by the computer unit, then the processed touch data will be packaged into serial port data and sent to the microprocessor. After the microprocessor receives it, it will be parsed and the serial port data will be converted into the computer unit. The identifiable data is then sent to the computer unit, and the second operating system carried by the computer unit performs a touch response according to the touch data. Among them, the touch unit, the main chip and the switching unit can be connected through the USB interface, and the communication transmission is carried out through the USB protocol; the microprocessor and the computer unit can also be connected through the USB interface, and the microprocessor converts the serial port data into USB data. , the USB data is data identifiable by the computer unit, and the computer unit receives the USB data and performs touch response according to the touch data in the USB format.

It should be understood that the main chip has higher computing power than the microprocessor and can run touch algorithms to process touch data. Therefore, the microprocessor does not process the touch data, but forwards it to the main chip for processing.

In one embodiment, the microprocessor includes an OTG USB interface for transmitting touch data. OTG (On-The-Go) technology realizes data transfer between devices without a Host host. In this embodiment, the microprocessor is connected to the computer unit (for example, the OPS module) through the OTG USB interface. When the microprocessor receives the processed touch data transmitted by the main chip, the microprocessor uses the OTG USB interface to simulate itself. into a standard touch device, and send the standard touch data to the computer unit, and the computer unit responds to the touch. The features of this embodiment can be arbitrarily combined with the features of other embodiments, as long as there is no conflict or contradiction between the combinations of the features, but due to space limitations, they are not described one by one. Several combined embodiments are used for illustration below. For example, in one combined embodiment, the touch unit and the microprocessor, between the main chip and the switching unit, and between the switching unit and the external device are connected through a USB interface, and The microprocessor and the computer unit are connected through the OTG USB interface. For another example, the main chip and the microprocessor are connected through an SPI interface, and the microprocessor and the computer unit are connected through an OTG USB interface. For another example, the touch unit and the microprocessor, the main chip and the switching unit, and the switching unit and the external device are connected through the USB interface, the main chip and the microprocessor are connected through the I2C interface, and the microprocessor and the The computer units are connected through the OTG USB interface. In one embodiment, the touch device is a USB device. For example, the microprocessor uses the OTG USB interface to simulate itself as a USB device recognizable by the computer unit, so that the computer unit can perform touch response according to the touch data of the USB device.

Regarding the computer unit, it can be a computer unit built into the interactive smart panel, embedded with the Android chip on a main circuit board, or it can be a pluggable computer module. In one embodiment, the computer unit is an OPS (Open Pluggable Specification, open pluggable specification) module, specifically, an OPS module equipped with a second operating system, and the OPS module is connected to the microprocessor. Using the OPS module as the computer unit of the second operating system of the interactive smart panel can reduce power consumption and improve the heat dissipation effect. The features of this embodiment can be arbitrarily combined with the features of other embodiments, as long as there is no conflict or contradiction between the combinations of the features, but due to space limitations, they are not described one by one. Several combined embodiments are used as examples for illustration below. For example, in one combined embodiment, the main chip and the microprocessor are connected through an SPI interface, and the OPS module and the microprocessor are connected through an OTG USB interface. For another example, the touch frame is connected to the main chip, the main chip and the microprocessor are connected through an SPI interface, and the OPS module and the microprocessor are connected through an OTG USB interface.

In one embodiment, the main chip includes an OTG USB interface, and the main chip is connected to the switching unit through the OTG USB interface, so that the main chip can use the OTG USB interface and simulate itself as a standard touch device, and Standard touch data is sent to the external device, so that the external device can respond to the touch according to the standard touch data. The features of this embodiment can be arbitrarily combined with the features of other embodiments, as long as there is no conflict or contradiction between the combinations of the features, but due to space limitations, they are not described one by one. Several combined embodiments are used for illustration below. For example, in a combined embodiment, the touch unit and the processing unit, the switching unit and the external device are connected through a USB interface, and the main chip and the switching unit are connected through an OTG interface. USB interface connection. In another example, the capacitive screen is connected to the processing unit, the main chip and the processing unit are connected through a serial interface, and the main chip and the switching unit are connected through an OTG USB interface. For another example, the touch unit and the microprocessor, the switching unit and the external device are connected through the USB interface, the main chip and the microprocessor are connected through the UART interface, and the microprocessor and the computer unit, the main chip and the The switching units are connected through the OTG USB interface.

In one embodiment, the main chip includes a control interface, and the main chip is further connected to the switching unit through the control interface, and is used to transmit a signal for controlling the switching unit to switch on and off a channel of an external device. . In this embodiment, the main chip is connected to the switching unit through a control interface, so that there are two communication channels between the main chip and the switching unit, one communication channel is used to transmit touch data, and the other communication channel is used to transmit control signals. After the switching unit receives the control signal, it can switch to select which channel is turned on, and the main chip sends the touch data to the external device whose channel is turned on. In this way, the switching unit can effectively control the switching of the channel between the main chip and the external device, so as to ensure that the corresponding external device can be switched. The features of this embodiment can be arbitrarily combined with the features of other embodiments, as long as there is no conflict or contradiction between the combinations of the features, but due to space limitations, they are not described one by one. Several combined embodiments are used for illustration below. For example, in one combined embodiment, the touch unit and the processing unit, between the main chip and the switching unit, and between the switching unit and the external device are all connected through a USB interface. It is used for transmitting touch data, and the control interface of the main chip is also connected with the switching unit, and is used for transmitting the signal for controlling the switching unit to switch the channel on and off with the external device. In another example, the main chip and the processing unit are connected through the SPI interface, and the main chip and the switching unit are connected through the OTG USB interface for transmitting touch data, and the control interface of the main chip is also connected with the switching unit for transmitting the control The switching unit switches the on-off signal of the channel with the external device. In one embodiment, the control interface is a GPIO (General Purpose Input Output, general input/output) interface. Using the GPIO interface to send control signals can effectively reduce power consumption. The control interface in any other embodiment of this specification may be a GPIO interface.

In one embodiment, the switching unit is a USB switching switch, one end of the USB switching switch is connected to the main chip, and the other end is connected to at least one external device. Specifically, one end of the USB switch may be connected to the main chip through a USB interface, and the other end may be connected to at least one external device through a USB interface; or one end of the USB switch may be connected to the main chip respectively It is connected through a USB interface and a GPIO interface, and the other end is connected with at least one external device through a USB interface; it is also possible that one end of the USB switch is connected to the OTGUSB interface and the GPIO interface of the main chip respectively, and the other end is connected to at least one external device. The device is connected via the USB interface. The main chip sends a control signal through the GPIO interface, the USB switch receives the control signal, and switches to select a channel between an external device and the main chip to conduct, and the main chip can send the processed touch data to the external device. Able to be touch responsive.

In addition to transmitting touch data, the main chip of the interactive smart tablet can also transmit audio data to the corresponding operation signal source, for example, transmit the audio data collected in real time to the corresponding operation signal source. The main chip can transmit the collected audio data to the current operating signal source by using the link of any of the above-mentioned embodiments. If the current operating signal source is the first operating system, it does not need to be forwarded; if the current operating signal source is the second operating system system, the audio data is transmitted to the processing unit through the serial interface, or to the microprocessor, which is then forwarded to the computer unit; if the current operating signal source is the operating system of the external device, it is sent to the channel guide connected external devices. Due to the limited transmission bandwidth of the serial interface, when the touch data and audio data need to be transmitted at the same time, the amount of data to be transmitted is large, which easily leads to data transmission errors and affects the transmission speed.

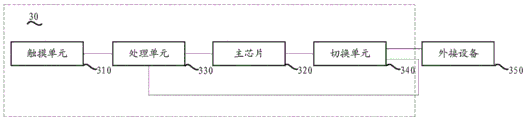

Based on this, please refer to FIG. 3 . FIG. 3 is a schematic diagram of the hardware structure of another interactive smart tablet 30 according to an exemplary embodiment of the specification. The interactive smart tablet 30 includes: a touch unit 310 , a host computer carrying a first operating system The chip 320 , the processing unit 330 carrying the second operating system, and the switching unit 340 . The touch unit 310 is connected to the processing unit 330 (for example, connected through a USB interface), and the touch unit 310 is used to generate touch data and send it to the processing unit 330; the processing unit 330 is connected to the The main chip 320 is connected through a serial interface (for example, serial interfaces include but are not limited to SPI interface, UART interface, I2C interface, etc.), and the processing unit 330 is configured to receive the touch data of the touch unit 310 and forward it to The main chip 320, the main chip 320 is used to receive the touch data forwarded by the processing unit 330, and send the processed touch data to the processing unit 330; the main chip 320 also communicates with the switching unit 340 is connected (for example, connected through a USB interface or an OTG USB interface), the switching unit 340 is connected with at least one external device 350 (for example, connected through a USB interface), and the main chip 320 is also used to send a control signal to control the The switching unit 340 switches the channel with the external device 350 on and off, and sends the processed touch data to the external device 350. The switching unit 340 is used for switching between the main chip 320 and the external device 350 according to the control signal. The switching unit 340 is also connected to the processing unit 330 (for example, connected through a USB interface) ), the main chip 320 is further configured to control the switching unit 340 to switch the channel communication with the processing unit 330 , and send the audio data to the processing unit 330 .

In this embodiment, the switching unit is also connected to the processing unit. Specifically, the switching unit is connected to the processing unit through a USB interface. The main chip is also used to control the switching unit to switch the channel between the main chip and the processing unit. A second channel is also established between, and the main chip sends the audio data to the processing unit through this channel. It can be seen that the channel connecting the main chip with the processing unit through the serial interface is used to transmit touch data, while the audio data is transmitted through the main chip controlling the switching unit to conduct the channel between the main chip and the processing unit. Data is transmitted through different channels, which can avoid data transmission errors and problems that affect transmission speed.

It should be understood that in the application scenario where the processing unit includes a microprocessor and a computer unit, in the original hardware structure, the switching unit is also connected to the computer unit (for example, connected through a USB interface), and the main chip controls the switching unit to switch. The channel connected to the computer unit is turned on to transmit audio data.

Regarding the operating system of the interactive smart tablet, in one embodiment, the first operating system is an Android (Andriod) system, and the main chip is an Android main chip. In one embodiment, the second operating system is a Windows system, that is, a processing unit or a computer unit (such as an OPS module) is equipped with a Windows system, so that the interactive smart tablet is equipped with two different operating systems, and can also When connected to an external device, users can switch to use it according to their needs. The Android main chip will transmit the touch data to the corresponding signal source according to which signal source the current display content of the display unit comes from to realize touch control. For example, if the current display unit displays the display interface of the Android system, the Android system responds to the touch according to the processed touch data; if the current display unit displays the Windows system, the Android main chip sends the processed touch data to the processing system. The unit, or the microprocessor, is sent by the microprocessor to the computer unit (for example, the OPS module), and the Windows system responds to the touch; if the current display unit displays the display interface of the system carried by the external device, the Android main chip The processed touch data is sent to the external device, and the external device responds to the touch. The second operating system may also be any other operating system such as Linux and Mac.

Please refer to FIG. 4 . FIG. 4 is a schematic diagram of the hardware structure of an interactive smart tablet 40 based on the above embodiment. The interactive smart tablet 40 includes: a touch frame 410 , an Android main chip 420 carrying an Android system, The microprocessor 431 , the OPS module 432 carrying the second operating system, and the USB switch 440 . The touch frame 410 is connected to the Android main chip 420 through a USB interface, and the touch frame 410 is used to generate touch data and send it to the microprocessor 431; the microprocessor 431 is connected to the OPS module 432 through the OTG USB interface, and is connected to the SPI interface through the SPI interface The Android main chip 420 is connected; the Android main chip 420 is also connected to the USB switch 440 through the OTG USB interface and the GPIO interface respectively; the USB switch 440 is respectively connected to the external device 450, the external device 460 and the external device 470 through the USB interface. The switch 440 is also connected to the OPS module 432 through a USB interface.

In this embodiment, the interactive smart tablet 40 can transmit touch data and audio data. In the process of touch data transmission, the touch frame 410 detects the touch signal and generates non-standard touch data without coordinates, and sends it to the microprocessor 431 through the USB interface. The data is encapsulated into serial data and forwarded to the Android main chip 420 through the SPI interface. After receiving the data, the Android main chip 420 will run the touch algorithm to process and obtain the standard touch data with coordinates, and according to the detected content source of the current display screen, the The processed touch data is sent to the Android system carried by itself for touch response, or sent to the microprocessor 431 through the SPI interface, and transmitted to the OPS module 432 by the microprocessor 431 for touch response, or output to an external device through the OTG USB interface Touch response: when the display content comes from the Android system, the Android main chip 420 performs a touch response according to the processed touch data; when the display content comes from the OPS module 432, the Android main chip 420 encapsulates the processed touch data into serial port data , and send it to the microprocessor 431 through the SPI interface. The microprocessor 431 parses the serial port data, converts the serial port data into USB data, and uses the OTG USB interface to simulate itself as a standard touch device, and sends the touch data. To the OPS module 432, the OPS module 432 responds to the touch according to the touch data to realize the touch control of the OPS module 432; when the display content comes from the external device 450, the Android main chip 420 sends a control signal through the GPIO interface to control the USB switch 440 Switch to the external device 450, so that the channel between the Android main chip 420 and the external device 450 is turned on, and other channels are disconnected. The Android main chip 420 uses the OTG USB interface to simulate itself as a standard touch device and send touch data. For the external device 450 , the external device 450 performs touch response according to the touch data to realize touch control of the external device 450 ; when the display content comes from the external device 460 or the external device 470 , it is the same as the external device 450 and will not be repeated here.

On the other hand, during the audio data transmission process, the Android main chip 420 collects audio data, and also transmits the audio data to the corresponding operation signal source by judging which is the current operation signal source. If the current operating signal source is the first operating system, no forwarding is required; if the current operating signal source is the second operating system, the Android main chip 420 sends a control signal through the GPIO interface to control the USB switch 440 to switch to the OPS module 432 , so that the channel between the Android main chip 420 and the OPS module 432 is turned on, and other channels are disconnected, and the Android main chip 420 transmits the audio data to the OPS module 432; if the current operating signal source is the operating system carried by the external device 450, The Android main chip 420 sends a control signal through the GPIO interface to control the USB switch 440 to switch to the external device 450, so that the channel between the Android main chip 420 and the external device 450 is turned on, and other channels are disconnected, and the Android main chip 420 switches the audio The data is transmitted to the external device 450 ; when the displayed content comes from the external device 460 or the external device 470 , the same is true for the external device 260 , and details are not repeated here.

It can be understood that in the case of transmitting touch data and audio data at the same time, if the current operation signal source is the second operating system, the touch data and audio data are respectively transmitted to the OPS module equipped with the second operating system through two channels. ; If the current operating signal source is an external device, both touch data and audio data are transmitted through the channel of Android main chip-USB switch-external device.

It should be noted that the number of external devices connected to the switching unit may be less than three, equal to three or more than three.

It is worth mentioning that the TV and computer all-in-one machine is a device that integrates a computer host, a display screen, a TV, and a speaker. Similar to an interactive smart tablet, it can use its TV function and computer function by switching, and can also connect other external devices. , and also has a touch unit, which can operate TV, computer or external equipment through touch control. The existing TV and computer all-in-one machine also realizes the switching between the TV function and the computer function by arranging a switching unit. Then, in order to solve the problem of touch delay or no response to touch in a short time, the all-in-one TV and computer can also adopt the hardware architecture of the interactive smart tablet in the above exemplary embodiment.

Please refer to FIG. 5 , which is a schematic diagram of the hardware structure of an all-in-one television computer 50 according to an exemplary embodiment of the specification. The TV-computer integrated machine 50 includes a touch unit 510 , a TV mainboard 520 equipped with a first operating system, a processing unit 530 equipped with a second operating system, and a switching unit 540 . The touch unit 510 is connected to the TV mainboard 520, and the touch unit 510 is used to generate touch data and send it to the processing unit 530; the processing unit 530 and the TV mainboard 520 are connected through a serial interface connection, the processing unit 5300 is used to receive the touch data from the touch unit 510 and forward it to the TV mainboard 520, and the TV mainboard 520 is used to receive the touch data forwarded by the processing unit 530 and process the data The touch data is packaged into serial port data and sent to the processing unit 530, and the processing unit 530 parses the serial port data and converts it into identifiable processed touch data, so that the second operating system carried by the processing unit 530 responds to the touch; The TV main board 520 is also connected to the switching unit 540, the switching unit 540 is connected to at least one external device 550, and the TV main board 520 is also used to send a control signal to control the switching unit 540 to switch the channel with the external device 550. On and off, and send the processed touch data to the external device 550 whose channel is turned on, the switching unit 540 is used to switch the channel between the TV main board 520 and the external device 550 according to the control signal. So that the TV mainboard 520 sends the processed touch data to the external device 550 whose channel is turned on.

In this embodiment, the TV-computer integrated machine includes a touch unit, a TV mainboard, a processing unit and a switching unit, wherein the touch unit is connected to the processing unit, the processing unit is connected to the TV mainboard through a serial interface, and the switching unit is connected to the TV mainboard, The switching unit is connected to at least one external device. The touch unit is used to generate touch data and can send the touch data to the processing unit; the processing unit forwards the touch data sent by the touch unit to the TV mainboard, the TV mainboard is equipped with the first operating system, and the TV mainboard receives the information forwarded by the processing unit. After touching the data, the touch data is processed by running the touch algorithm, and it is judged whether to send the touch data to the processing unit equipped with the second operating system or to an external device. If it is judged to be sent to the processing unit, the TV motherboard will process the data. The resulting touch data is encapsulated into serial port data and sent to the processing unit through the serial interface. The processing unit first parses the serial port data, and then converts it into identifiable processed touch data, so that the second operating system carried by the processing unit can The touch response is made according to the touch data; if it is determined to be sent to an external device, the TV mainboard will send a control signal to the switching unit, and the switching unit will switch the channel between the TV mainboard and the external device from the original disconnection to the conduction according to the control signal. , the TV mainboard sends the processed touch data to the external device whose channel is turned on, so that the external device can respond to the touch according to the touch data. Since the processing unit equipped with the second operating system in the TV-computer all-in-one machine is connected to the TV main board to maintain communication, it is judged whether the touch data is sent to the processing unit through the TV main board. The serial interface is sent to the processing unit, and the processing unit converts the serial port data into identifiable data after receiving, and the second operating system can respond to the touch according to the touch data. In this process, there is no need for the physical link between the TV motherboard and the processing unit. It is not necessary to control the disconnection and connection between the TV main board and the processing unit through the switching unit, so that the second operating system carried by the processing unit can quickly respond to the touch after receiving the touch data, which can effectively reduce the touch Delay and avoid the phenomenon of no response to touch in a short time, thereby improving user experience.

It should be understood that the function of the TV mainboard in the TV-computer integrated machine of this embodiment is equivalent to the function of the main chip in the interactive smart tablet of the above-mentioned embodiment. The further description of the hardware in the above embodiment can also be applied to the hardware of the integrated television computer in this embodiment. For the specific working principle of the TV-computer all-in-one machine of this embodiment, reference may be made to the description of the working principle of the interactive smart tablet in the above-mentioned embodiment, which will not be repeated here.

Other embodiments of this specification will readily occur to those skilled in the art upon consideration of the specification and practice of the utility model claimed herein. This specification is intended to cover any variations, uses or adaptations of this specification that follow the general principles of this specification and include common general knowledge or conventional techniques in the technical field to which this specification does not apply . The specification and examples are to be regarded as exemplary only, with the true scope and spirit of the specification being indicated by the following claims.

It should be understood that this specification is not limited to the precise structures described above and illustrated in the accompanying drawings and that various modifications and changes may be made without departing from the scope thereof. The scope of this specification is limited only by the appended claims.

The technical features of the above-described embodiments can be combined arbitrarily. For the sake of brevity, all possible combinations of the technical features in the above-described embodiments are not described. However, as long as there is no contradiction between the combinations of these technical features, All should be regarded as the scope described in this specification.

The above descriptions are only preferred embodiments of this specification, and are not intended to limit this specification. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of this specification shall be included in this specification. within the scope of protection.

Claims (10)

1. An interactive smart tablet, comprising: a touch unit, a main chip carrying a first operating system, a processing unit carrying a second operating system, and a switching unit; The touch unit is connected to the processing unit, and the touch unit is used to generate touch data and send it to the processing unit; The processing unit is connected with the main chip through a serial interface, and the processing unit is used for receiving the touch data of the touch unit and forwarding it to the main chip, and the main chip is used for receiving the forwarding from the processing unit touch data, and send the processed touch data to the processing unit; The main chip is also connected to the switching unit, the switching unit is connected to at least one external device, and the main chip is also used to send a control signal to control the switching unit to switch on and off the channel of the external device, and to connect the external device. The processed touch data is sent to an external device, and the switching unit is configured to switch the channel between the main chip and the external device on and off according to the control signal. 2 . The interactive smart tablet according to claim 1 , wherein the switching unit is further connected to the processing unit, and the main chip is used to control the switching unit to switch the channel communication with the processing unit, 2 . Send audio data to the processing unit. 3 . The interactive smart tablet according to claim 1 , wherein the processing unit comprises a microprocessor and a computer unit equipped with the second operating system, and the microprocessor and the main chip are serially connected. 4 . The interface is connected, and the microprocessor is connected with the computer unit, and the microprocessor is used for converting the received processed touch data into data identifiable by the computer unit, and sending the data to the computer unit. 4. The interactive smart tablet according to claim 3, wherein the computer unit is an OPS module. 5. The interactive smart tablet according to claim 3, wherein the microprocessor comprises an OTG USB interface for transmitting touch data. 6 . The interactive smart tablet according to claim 1 , wherein the main chip comprises a control interface for connecting with the switching unit. 7 . 7. The interactive smart tablet according to claim 6, wherein the control interface is a GPIO interface. 8. The interactive smart panel according to claim 1, wherein the serial interface is an SPI interface. 9 . The interactive smart tablet according to claim 1 , wherein the switching unit is a USB switching switch. 10 . 10 . The interactive smart tablet according to claim 1 , wherein the first operating system is an Android system. 11 .
