CN210099100U - Automatic corner cutting device

Info

Publication number: CN210099100U
Application number: CN201920106804.8U
Authority: CN
Inventors: 谢胜江; 黄程
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-01-23
Filing date: 2019-01-23
Publication date: 2020-02-21
Anticipated expiration: 2029-01-23

Abstract

The utility model discloses an automatic corner cut device relates to processing machinery technical field. The dust cover is arranged at the top of the left end of the host fixing table board, a first operation table board is connected to one side of the top of the host fixing table board in a sliding mode, and a second operation table board is fixedly connected to the other side of the top of the host fixing table board. This automatic corner cut device, the advantage of adjustable lift has been realized, put the product on the corner cut position, high-speed motor drive saw bit operation in first corner cut device and the second corner cut device, come to carry out the corner cut operation to panel, drive the carriage through step motor simultaneously and be oscilaltion motion with linear guide, make the high-speed motor that is connected with linear guide lift together, make the saw bit descend and separate with the product after the corner cut is accomplished, and can not lead to the fact the influence to the operation of saw bit, make things convenient for getting of product to put, reduce the number of times of operation shut down because of the product of taking, reduce the operation repeatability simultaneously.

Description

Automatic corner cutting device

Technical Field

The utility model relates to a processing machinery technical field specifically is an automatic corner cut device.

Background

In the processing manufacturing process of plate products such as aluminum alloy, plastics and wooden products, the corner cut work needs to be carried out on the plate, generally, in the processing of general objects, the plate needs to be subjected to corner cut at the end part of the plate before splicing, then splicing is carried out, generally, one corner of a rectangular plate is cut, and then two corner cuts of two plates are placed together and fixed.

At present, in order to accomplish foretell operation, all accomplish through artifical manual, carry out the corner cut through the electric saw, artifical location precision can't be ensured, and waste time and energy, efficiency is very low, and traditional cardboard corner cut machine is the hand equipment of hand press formula mostly, automatic corner cut equipment in the market has only increased power unit on original hand equipment's basis, after carrying out the corner cut operation to an angle of panel, the centre needs continuous shut down to adjust the corner cut angle or gets and put panel, the operation is very inconvenient, not only add loaded down with trivial details operating procedure, still because of continuous start, shut down and the consumption rate of accelerating equipment.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides an automatic corner cut device possesses the centre gripping of being convenient for and fixes, conveniently takes off advantages such as material and adjustable lift, has solved the unable guarantee of current artifical location precision, needs continuous shut down to adjust the corner cut angle or get and put panel among the operation process, operates very inconvenient problem.

(II) technical scheme

For the fixed, convenient mesh of taking off material and adjustable lift of centre gripping of realizing the aforesaid, the utility model provides a following technical scheme: an automatic corner cutting device comprises a main machine fixing table board, wherein a dust cover is arranged at the top of the left end of the main machine fixing table board, a first operation table board is connected to one side of the top of the main machine fixing table board in a sliding mode, a second operation table board is fixedly connected to the other side of the top of the main machine fixing table board, die attachment blocks are fixedly connected to the left ends of the first operation table board and the second operation table board respectively, material measuring and pressing cylinders are fixedly connected to the tops of the rear ends of the first operation table board and the second operation table board respectively, material feeding cylinders are fixedly connected to the tops of the first operation table board and the second operation table board respectively, a material discharging cylinder is fixedly connected to the tops of the first operation table board and the second operation table board respectively, a material discharging block is fixedly connected to the output end of the material discharging cylinder, a section die is fixedly connected to the tops of the first operation table board and the second operation table board respectively, a first corner, and the bottom of the second operation table surface is fixedly connected with a second corner cutting device.

Further optimize this technical scheme, the middle part of section bar mould is equipped with the blown down tank, the position of blown down material piece and blown down tank is corresponding, and the bottom of blown down material piece is the parallel and level with the bottom of blown down tank.

Further optimize this technical scheme, first corner cut device and second corner cut device all include the motor cabinet, the top fixedly connected with step motor of motor cabinet, step motor's output shaft end fixedly connected with lead screw, and be connected with the carriage through the lead screw transmission, the right side fixedly connected with linear guide of motor cabinet, linear guide's right side fixedly connected with guide rail slide, guide rail slide and carriage fixed connection, the right side fixedly connected with high-speed motor of guide rail slide, high-speed motor's output shaft end fixedly connected with saw bit.

Further optimize this technical scheme, first corner cut device is the splayed distribution with the position of second corner cut device, the motor cabinet is located to the carriage inside, one of them one end of motor cabinet is equipped with the opening, step motor's output shaft extends to the motor cabinet inside through the opening, the other end of motor cabinet is equipped with the mounting hole, and just passes through mounting hole fixed connection in the bottom of first operation mesa and second operation mesa.

Further optimize this technical scheme, linear guide's length equals with the length of motor cabinet, the right-hand member of motor cabinet is equipped with keeps away the groove, keep away the positive left side with linear guide sliding end in groove and keep a determining deviation, and the scope of interval is between 5mm-8 mm.

Further optimize this technical scheme, the top fixedly connected with sliding stand of host computer fixed table face, and through sliding stand and first operation mesa sliding connection, the dust cover sets up in the top of sliding stand, first operation mesa all is equipped with the corner cut logical groove with the top of second operation mesa, the corner cut leads to the groove and corresponds with the position of saw bit.

Further optimize this technical scheme, the inside of host computer fixed table surface is equipped with the bits of broken glass frame, and quantity is equipped with 3 at least, the bottom of bits of broken glass frame is equipped with the mesh, host computer fixed table surface's front articulates there is the side cap, the side cap is corresponding with the position of bits of broken glass frame, host computer fixed table surface's bottom is equipped with the dust and collects the box, the bits of broken glass frame sets up in the top that the box was collected to the dust, the top that the groove was led to the corner cut is equipped with the protection casing.

(III) advantageous effects

Compared with the prior art, the utility model provides an automatic corner cut device possesses following beneficial effect:

1. this automatic corner cut device attaches the piece through setting up the mould, survey the material cylinder, go up the material cylinder, ejection of compact cylinder, play material piece and section bar mould, it is fixed to have realized the centre gripping of being convenient for, conveniently take off the advantage of material, attach piece and section bar mould through the mould and fix a position the centre gripping to panel, then can finely tune panel to the optimum position through surveying the material cylinder, be used for improving positioning accuracy, it presses to hold fixedly to panel to go up the material cylinder, and make through ejection of compact cylinder and ejection of compact piece and take off the material convenient, swiftly, reduce the energy of artifical clearance.

2. This automatic corner cut device, through setting up first corner cut device and second corner cut device, the advantage of adjustable lift has been realized, put the corner cut position with the product on, by the high-speed motor drive saw bit operation in first corner cut device and the second corner cut device, carry out the corner cut operation to panel, drive the carriage through step motor simultaneously and be oscilaltion motion along with linear guide, make the high-speed motor that is connected with linear guide lift together, make the saw bit descend and separate with the product after the corner cut is accomplished, and can not lead to the fact the influence to the operation of saw bit, make things convenient for getting of product to put, reduce the number of times because of taking the product and operating the shut down, reduce the operation repeatability simultaneously.

Drawings

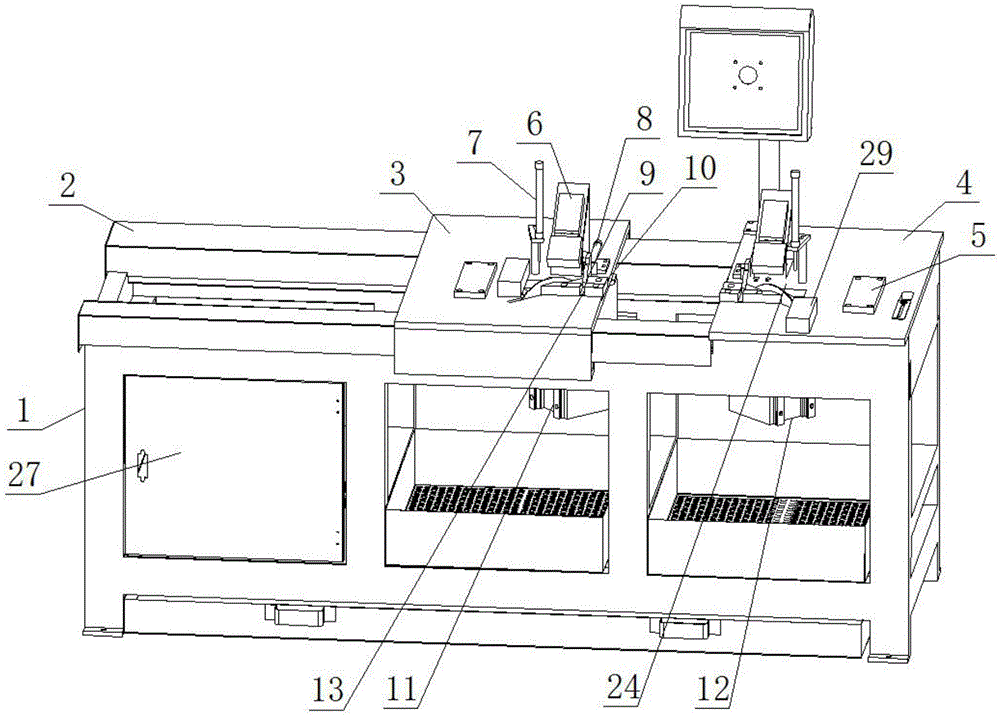

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a partial view of the present invention;

fig. 3 is a perspective view of the first corner cutting device of the present invention.

In the figure: 1. the host machine is fixed on the table top; 2. a dust cover; 3. a first work table; 4. a second work table; 5. a die attachment block; 6. a material measuring cylinder; 7. a material feeding cylinder; 8. a discharging cylinder; 9. discharging a material block; 10. a section mould; 11. a first corner cutting device; 12. a second corner cutting device; 13. a discharge chute; 14. a motor base; 15. a stepping motor; 16. a carriage; 17. a linear guide rail; 18. a guide rail slider; 19. a high-speed motor; 20. a saw blade; 21. mounting holes; 22. a position avoiding groove; 23. a sliding table; 24. a corner cutting through groove; 25. a material crushing frame; 26. mesh openings; 27. a side cover; 28. a dust collection box; 29. a shield.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the utility model discloses an automatic corner cutting device, which comprises a main machine fixing table-board 1, a dust cover 2 is arranged at the top of the left end of the main machine fixing table-board 1, a first operation table-board 3 is connected with one side of the top of the main machine fixing table-board 1 in a sliding way, a second operation table-board 4 is connected with the other side of the top of the main machine fixing table-board 1 in a fixed way, a mould attachment block 5 is fixedly connected with the left ends of the first operation table-board 3 and the second operation table-board 4, a material measuring and pressing cylinder 6 is fixedly connected with the top of the rear ends of the first operation table-board 3 and the second operation table-board 4, an upper material pressing cylinder 7 is fixedly connected with the top of the first operation table-board 3 and the second operation table-board 4, a material discharging cylinder 8 is fixedly connected with the top of the first operation table-board 3 and the second operation table-board 4, a material discharging block 9 is fixedly, the advantages of convenient clamping and fixing and convenient stripping are realized by arranging the die attachment block 5, the pressure measuring cylinder 6, the upper material pressing cylinder 7, the discharging cylinder 8, the discharging block 9 and the section die 10, the plate is positioned and clamped by the die attachment block 5 and the section die 10, then the plate can be finely adjusted to the optimal position by the pressure measuring cylinder 6 so as to improve the positioning precision, the upper material pressing cylinder 7 is used for pressing and fixing the plate, the stripping is convenient and quick by the discharging cylinder 8 and the discharging block 9, the manual cleaning energy is reduced, the bottom of the first operation table-board 3 is fixedly connected with a first corner cutting device 11, the bottom of the second operation table-board 4 is fixedly connected with a second corner cutting device 12, the advantages of adjustable lifting are realized by arranging the first corner cutting device 11 and the second corner cutting device 12, the product is placed at the corner cutting position, the saw blade 20 is driven by a high-speed motor 19 in the first corner cutting device 11 and the second corner cutting device 12 to operate, the angle cutting operation is carried out on the plate, the sliding frame 16 and the linear guide rail 17 are driven to move up and down through the driving of the stepping motor 15, the high-speed motor 19 connected with the linear guide rail 17 is enabled to lift together, the saw blade 20 descends and is separated from a product after the angle cutting is completed, the operation of the saw blade 20 cannot be affected, the product is convenient to take and place, the number of times of operation shutdown caused by taking the product is reduced, and meanwhile, the operation repeatability is reduced.

Specifically, the middle part of the section bar die 10 is provided with a discharge chute 13, the discharge block 9 corresponds to the discharge chute 13, and the bottom of the discharge block 9 is flush with the bottom of the discharge chute 13.

Specifically, each of the first corner cutting device 11 and the second corner cutting device 12 includes a motor base 14, a stepping motor 15 is fixedly connected to the top of the motor base 14, a lead screw is fixedly connected to an output shaft end of the stepping motor 15, and a carriage 16 is connected to the output shaft end of the lead screw in a transmission manner, a linear guide rail 17 is fixedly connected to the right side of the motor base 14, a guide rail slide plate 18 is fixedly connected to the right side of the linear guide rail 17, the guide rail slide plate 18 is fixedly connected to the carriage 16, a high-speed motor 19 is fixedly connected to the right side of the guide rail slide plate 18, and a saw blade 20 is fixedly connected to an output shaft end of the high-speed motor 19. also, a cylinder is mounted at the bottom of the high-speed motor 19, and the high-speed motor 19 mounted on the linear guide rail 17 and the saw blade 20 are driven by the cylinder to perform lifting movement, so, in the technical scheme, the stepping motor 15 is selected for driving, and actually, the air cylinder can be used for driving, and the stepping motor and the air cylinder are both used for driving.

Specifically, the first corner cutting device 11 and the second corner cutting device 12 are distributed in a splayed manner, the sliding frame 16 is arranged inside the motor base 14, and one end of the motor base 14 is provided with a mounting hole 21 and is fixedly connected to the bottoms of the first operation table top 3 and the second operation table top 4 through the mounting hole 21.

Specifically, the length of the linear guide rail 17 is equal to that of the motor base 14, the right end of the motor base 14 is provided with a spacing groove 22, a certain distance is kept between the front face of the spacing groove 22 and the left side of the sliding end of the linear guide rail 17, the range of the distance is 5mm-8mm, and the spacing groove 22 is used for spacing and preventing interference with the sliding end of the linear guide rail 17.

Specifically, the top fixedly connected with sliding table 23 of host computer fixed table face 1, and through sliding table 23 and first table face 3 sliding connection, dust cover 2 sets up in the top of sliding table 23, and first table face 3 all is equipped with corner cut through groove 24 with the top of second table face 4, and the corner cut leads to groove 24 and the position of saw bit 20 is corresponding, and saw bit 20 passes corner cut through groove 24 and carries out the corner cut to the material.

Specifically, the inside of host computer fixed table surface 1 is equipped with bits of broken glass frame 25, and quantity is equipped with 3 at least, the bottom of bits of broken glass frame 25 is equipped with mesh 26, the front of host computer fixed table surface 1 articulates there is the side cap 27, the side cap 27 is corresponding with the position of bits of broken glass frame 25, the bottom of host computer fixed table surface 1 is equipped with dust and collects box 28, bits of broken glass frame 25 sets up in the top that box 28 was collected to the dust, the top that the groove 24 was led to the corner cut is equipped with protection casing 29, protection casing 29 is used for preventing that the produced piece from splashing when cutting, avoid the operating personnel that dabbles, see through the mesh 26 that the bottom of bits of broken glass frame 25 was equipped with, make the dust fall in the dust collects box 28, can conveniently distinguish leftover bits and dust simultaneously.

When in use, the product is placed on the corner cutting position, the plate is positioned and clamped through the die attachment block 5 and the section die 10, then the plate can be finely adjusted to the optimal position through the material measuring cylinder 6, the upper material pressing cylinder 7 presses and fixes the plate, the high-speed motor 19 in the first corner cutting device 11 and the second corner cutting device 12 drives the saw blade 20 to operate so as to perform corner cutting operation on the plate, meanwhile, the sliding frame 16 is driven by the stepping motor 15 to move up and down together with the linear guide rail 17, so that the high-speed motor 19 connected with the linear guide rail 17 can move up and down together, the saw blade 20 descends and is separated from the product after the corner cutting is finished, the operation of the saw blade 20 is not affected, the product is convenient to take and place, the operation stop times caused by taking the product are reduced, and the discharging cylinder 8 and the discharging block 9 are used for conveniently and quickly discharging materials, so that the manual cleaning energy is reduced.

To sum up, the automatic corner cutting device has the advantages of being convenient to clamp and fix and convenient to remove materials by arranging the die attachment block 5, the pressure measuring cylinder 6, the upper pressing cylinder 7, the discharging cylinder 8, the discharging block 9 and the section mould 10, positioning and clamping the plates by the die attachment block 5 and the section mould 10, finely adjusting the plates to the optimal position by the pressure measuring cylinder 6 to improve the positioning precision, pressing and fixing the plates by the upper pressing cylinder 7, conveniently and quickly removing the materials by the discharging cylinder 8 and the discharging block 9, reducing the manual cleaning energy, realizing the advantages of adjustable lifting by arranging the first corner cutting device 11 and the second corner cutting device 12, placing the products at the corner cutting position, and driving the saw blade 20 to operate by the high-speed motor 19 in the first corner cutting device 11 and the second corner cutting device 12 to cut the corners of the plates, meanwhile, the sliding frame 16 and the linear guide rail 17 are driven by the stepping motor 15 to move up and down, so that the high-speed motor 19 connected with the linear guide rail 17 can lift up and down together, the saw blade 20 descends and is separated from a product after the corner cutting is finished, the operation of the saw blade 20 cannot be influenced, the product is convenient to take and place, the operation shutdown frequency caused by the product taking is reduced, and meanwhile, the operation repeatability is reduced.

It should be noted that, in this document, terms such as "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an automatic corner cut device, includes host computer fixed table face (1), its characterized in that: the dust cover (2) is arranged at the top of the left end of the main machine fixing table board (1), a first operation table board (3) is connected to one side of the top of the main machine fixing table board (1) in a sliding mode, a second operation table board (4) is connected to the other side of the top of the main machine fixing table board (1) in a fixed mode, a die attachment block (5) is fixedly connected to the left ends of the first operation table board (3) and the second operation table board (4), a material measuring and pressing cylinder (6) is fixedly connected to the top of the rear ends of the first operation table board (3) and the second operation table board (4), an upper material pressing cylinder (7) is fixedly connected to the top of the first operation table board (3) and the top of the second operation table board (4), a material discharging cylinder (8) is fixedly connected to the top of the first operation table board (3) and the top of the second operation table board (4), and a material discharging block (9, the top of the first operation table top (3) and the top of the second operation table top (4) are both fixedly connected with a section bar die (10), the bottom of the first operation table top (3) is fixedly connected with a first corner cutting device (11), and the bottom of the second operation table top (4) is fixedly connected with a second corner cutting device (12).

2. An automatic corner cutting device according to claim 1, wherein: the middle part of the section mould (10) is provided with a discharge chute (13), the discharge block (9) corresponds to the discharge chute (13), and the bottom of the discharge block (9) is flush with the bottom of the discharge chute (13).

3. An automatic corner cutting device according to claim 1, wherein: first corner cut device (11) and second corner cut device (12) all include motor cabinet (14), the top fixedly connected with step motor (15) of motor cabinet (14), the output shaft end fixedly connected with lead screw of step motor (15), and be connected with carriage (16) through the lead screw transmission, the right side fixedly connected with linear guide (17) of motor cabinet (14), the right side fixedly connected with guide rail slide (18) of linear guide (17), guide rail slide (18) and carriage (16) fixed connection, the right side fixedly connected with high-speed motor (19) of guide rail slide (18), the output shaft end fixedly connected with saw bit (20) of high-speed motor (19).

4. An automatic corner cutting device according to claim 3, wherein: the position of first corner cut device (11) and second corner cut device (12) is the splayed distribution, motor cabinet (14) inside is located in carriage (16), the one end of motor cabinet (14) is equipped with mounting hole (21), and through mounting hole (21) fixed connection in the bottom of first operation mesa (3) and second operation mesa (4).

5. An automatic corner cutting device according to claim 3, wherein: the length of linear guide (17) equals with the length of motor cabinet (14), the right-hand member of motor cabinet (14) is equipped with keeps away position groove (22), keep away the front in position groove (22) and the left side of linear guide (17) slip end and keep a determining deviation, and the scope of interval is between 5mm-8 mm.

6. An automatic corner cutting device according to claim 1, wherein: the top fixedly connected with sliding table (23) of host computer fixed table face (1), and through sliding table (23) and first operation mesa (3) sliding connection, dust cover (2) set up in the top of sliding table (23), first operation mesa (3) all are equipped with corner cut through groove (24) with the top of second operation mesa (4), the corner cut is led to the groove (24) and is corresponding with the position of saw bit (20).

7. An automatic corner cutting device according to claim 6, wherein: the inside of host computer fixed table face (1) is equipped with bits of broken glass frame (25), and quantity is equipped with 3 at least, the bottom of bits of broken glass frame (25) is equipped with mesh (26), the front of host computer fixed table face (1) articulates there is side cap (27), side cap (27) are corresponding with the position of bits of broken glass frame (25), the bottom of host computer fixed table face (1) is equipped with dust and collects box (28), bits of broken glass frame (25) set up in the top that the box (28) was collected to the dust, the top that the groove (24) was led to in the corner cut is equipped with protection casing (29).
