Abstract

The utility model discloses a novel portable inflatable awning for electric bicycles, belonging to the technical field of vehicle auxiliary devices; the utility model comprises a main inflatable frame, a ceiling cloth is covered and installed on the main inflatable frame, and a valve is also arranged on the main inflatable frame The main inflatable skeleton includes an inflatable member A; the inflatable member A is connected to the inflatable member B through a connecting assembly; the connecting assembly includes a fixed connector C and a fixed connector D respectively installed on the inflatable member A and the inflatable member B; also includes connection and fixing A combined connecting part of the connecting part C and the fixed connecting part D; a bracket connecting part is arranged on the combined connecting part. The utility model effectively solves the situation that the connection structure between the current inflatable awning and the connecting rod is unstable and easy to fall off; the utility model has the advantages of simple structure, convenient disassembly and assembly, stable installation, strong applicability and the like.

Description

A new type of portable inflatable awning for electric bicycles and connecting components

technical field

The utility model relates to the technical field of vehicle auxiliary devices, in particular to a novel portable inflatable awning for electric bicycles and a connecting assembly.

Background technique

Since electric bicycles, motorcycles and tricycles do not have rain shelters themselves, it is difficult for drivers to avoid being exposed to rain after going out. Therefore, there are many products and solutions to solve this problem on the market. The technical scheme is characterized by adding an auxiliary awning to this type of vehicle. Among them, there are some inflatable awning schemes that use inflatable media as the supporting frame. This kind of inflatable awning scheme is a kind of general design idea. A more practical and convenient solution for installation and retraction. At present, most of the connections between this type of inflatable awning and the front of the motor vehicle are connected by setting a connecting rod. One end of the connecting rod can be directly inserted into the front of the vehicle. The connection device, for the connection between the connecting rod and the inflatable awning, is currently mostly ineffective, especially for the inflatable awning suspended at the rear, which is easy to loosen and the inflatable awning cannot be supported, causing the canopy body to collapse afterward; When facing the awning frame of the split structure, there is still a lack of effective connecting components to connect and assemble it; this is the current problem.

Utility model content

The technical problem to be solved by the utility model is to provide a novel portable inflatable awning for electric bicycles, so as to solve the current situation that the connection structure between the inflatable awning and the connecting rod is unstable and easy to fall off.

In order to solve the above-mentioned problems, the utility model provides the following technical solutions:

A new type of portable inflatable canopy for electric bicycles, which includes a main inflatable frame, a roof cloth is covered and installed on the main inflatable frame, and a valve is also arranged on the main inflatable frame; the main inflatable frame includes an inflatable member A; the inflatable member A It is connected with the inflatable member B through a connection assembly; the connection assembly includes a fixed connector C and a fixed connector D respectively installed on the inflatable member A and the inflatable member B; It also includes a combined connection component for connecting the fixed connector C and the fixed connector D ; A bracket connecting part is arranged on the combined connecting part.

Preferably, the fixed connector C and the fixed connector D are respectively installed on the inflatable member A and the inflatable member B through connecting parts.

Preferably, the fixed connector C and the fixed connector D are block-shaped structures, and both ends of the bar-shaped structure are respectively installed on the inflatable member; the fixed connector C and the fixed connector D of the bar-shaped structure pass through Component connection parts are cross-mounted.

Preferably, any one of the fixed connection parts C or the fixed connection parts D is integrally formed with the combined connection part and the bracket connection part.

Further, a fixed support member is also included; the fixed support member is mounted on the combined connecting member through the strut connecting member.

Preferably, the combination connecting part and the bracket connecting part are detachably installed.

Preferably, the inflatable member A is an arc-shaped trachea, and the inflatable member B is an annular trachea; the number of connecting assemblies 2 is two, and the two connecting assemblies 2 are respectively arranged at the junctions of the arc-shaped trachea and the left and right sides of the annular trachea ; The fixed support member is mounted on the combined connecting part through the strut connecting part.

Further, a front transparent windshield fabric is also installed at the front of the main inflatable frame, and both sides of the front transparent windshield fabric are attached to the fixed support member.

Preferably, the main inflatable skeleton is a double-layer design, the inner layer is a sealed inner bladder layer, and the outer layer is a protective coat; and the protective coat can be disassembled and replaced.

Further, the fixed support member includes an upper support rod and a lower installation foot; the top of the support rod is connected with the bracket connecting part, and the bottom of the support rod is connected with the top of the installation foot through an adjusting nut; the upper part of the installation foot is a straight rod; The support rod is a telescopic rod.

Beneficial effects of the utility model:

The utility model designs a connection assembly for the installation and fixation between the connecting rod and the inflatable awning of the split structure. By arranging fasteners at the corresponding positions of the two different split inflatable members, and connecting the two A strut connecting piece is arranged on the assembly of the fastener to realize the installation of the connecting rod, thereby effectively solving the current situation that the connection structure between the inflatable awning and the connecting rod is unstable and easy to fall off; on the other hand, the utility model It also has the advantages of simple structure, easy disassembly and assembly, stable installation and strong applicability.

Description of drawings

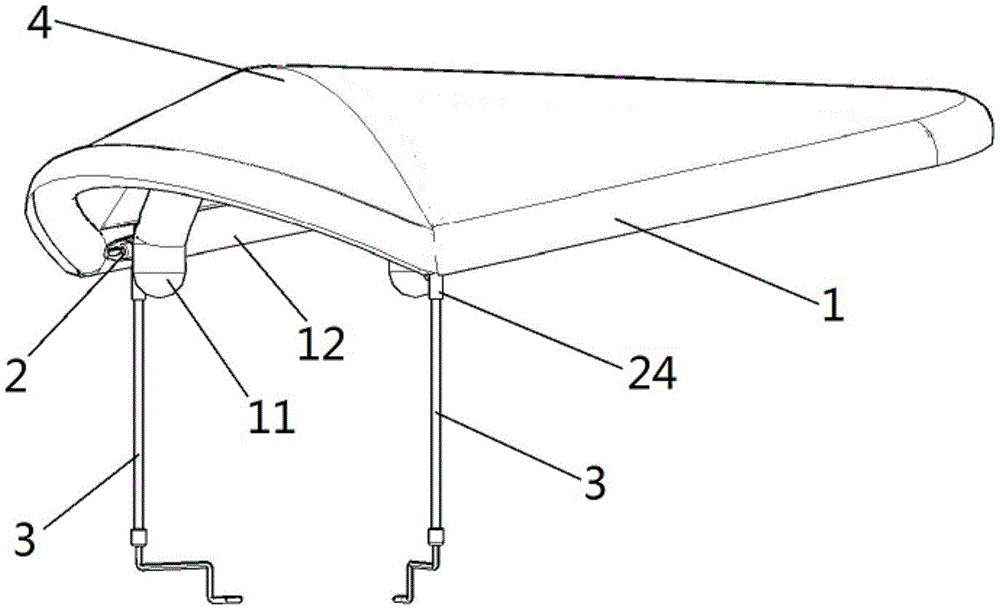

Fig. 1 is the three-dimensional structure schematic diagram of the present utility model in the embodiment;

Fig. 2 is the three-dimensional structure schematic diagram after removing the ceiling cloth in Fig. 1;

FIG. 3 is an enlarged three-dimensional view of the connection between the connecting assembly and each component in this embodiment;

Fig. 4 is the top view of Fig. 3;

Fig. 5 is the bottom view of Fig. 3;

Fig. 6 is the side view of Fig. 3;

Fig. 7 is the assembly exploded schematic diagram of Fig. 3;

Figure 8 is a schematic diagram of the separation of the inflatable member A and the inflatable member B in Figure 2 and a partial enlarged view of the connection assembly;

Figure 9 is an exploded schematic view of the fixed support member in Figure 2;

Figure 10 is a front view of the device in Figure 1 after the transparent windshield fabric is installed;

Figure 11 is a schematic diagram of a variant structure of the connection assembly relative to Figure 8;

Figure 12 is an enlarged three-dimensional view of another connection assembly connected to various components;

Fig. 13 is the assembly exploded schematic diagram in Fig. 12;

14 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 15 is the assembly exploded schematic diagram in Fig. 14;

16 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 17 is the assembly exploded schematic diagram in Fig. 16;

18 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 19 is the schematic diagram of assembly explosion in Fig. 18;

Figure 20 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 21 is the assembly exploded schematic diagram in Fig. 20;

Figure 22 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 23 is the assembly exploded schematic diagram in Fig. 22;

Figure 24 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 25 is the assembly exploded schematic diagram in Fig. 24;

Figure 26 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 27 is the assembly exploded schematic diagram in Fig. 26;

Figure 28 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 29 is the schematic diagram of assembly explosion in Fig. 28;

Figure 30 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 31 is the assembly exploded schematic diagram in Fig. 30;

Figure 32 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 33 is the assembly exploded schematic diagram in Fig. 32;

Figure 34 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Fig. 35 is the assembly exploded schematic diagram in Fig. 34;

Figure 36 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Figure 37 is a schematic diagram of assembly exploded in Figure 36;

Figure 38 is a three-dimensional schematic diagram of a variant structure of the connecting assembly in the present invention;

Figure 39 is a schematic diagram of the assembly exploded in Figure 38;

Description of reference numerals: 1. Main inflatable frame, 2. Connection assembly, 3. Fixed support member, 4. Ceiling cloth, 5. Transparent windshield fabric, 11, Inflatable member A, 12, Inflatable member B, 21, Fixed connection Strip C, 22, fixed connection strip D, 23, bracket connection part, 24, bracket connection part, 25, connection part, 31, support rod, 32, mounting foot, 33, adjusting nut.

Detailed ways

The utility model is further introduced below in conjunction with the accompanying drawings and specific embodiments:

Example:

Referring to FIG. 1 , the present embodiment provides a new type of portable inflatable awning for electric bicycles, which includes a main inflatable frame 1 , a roof cloth 4 is covered and installed on the main inflatable frame 1 , and a valve is also provided on the main inflatable frame 1 In this embodiment, the valve is not shown in the figure, and the main inflatable frame 1 includes an inflatable member A11; the inflatable member A11 is connected with the inflatable member B12 through the connecting assembly 2; The fixed connector C21 and the fixed connector D22 on the component B12; also include a combined connecting component 23 connecting the fixed connector C21 and the fixed connector D22; the combined connecting component 23 is provided with a bracket connecting component 24; the fixed support member 3 passes through The strut connecting part 24 is mounted on the combined connecting part 23 .

The fixed connector C21 and the fixed connector D22 are respectively mounted on the inflatable member A11 and the inflatable member B12 through the connecting member 25 . The connecting part 25 is detachably fixed on the inflatable member A11 and the inflatable member B12, and the smooth curved surface on one side that fits with the inflatable member; due to the different structural dimensions of the inflatable members produced by various manufacturers, by using the connecting part 25 Improve the applicability of the device.

The fixed connector C21 and the fixed connector D22 are block-shaped structures, and the two ends of the bar-shaped structure are respectively installed on the inflatable members; the fixed connector C21 and the fixed connector D22 of the bar-shaped structure are connected by components through components. 23 Cross mounts. For two relatively vertical inflatable members; the use of cross-mounted fixed connectors C21 and D22 can more effectively improve the stability of the device.

The fixed connecting piece C21, the fixed connecting piece D22 and the combined connecting part 23 are of an integrated structure. In this embodiment, in order to reduce the installation steps, the above three components are set as an integrated structure, the overall shape of which is T-shaped, and the bracket connecting component 24 on the combined connecting component 23 is vertically directed downward; the fixed connection of the integrated structure Part C21, fixed connecting part D22 and combined connecting part 23 are suitable for the main inflatable frame composed of inflatable member A11 and inflatable member B12 of the same integral structure.

It also includes a fixed support member 3 ; the fixed support member 3 is mounted on the combined connecting member 23 through the strut connecting member 24 .

The combination connecting part 23 and the bracket connecting part 24 are detachably installed. In this embodiment, the bracket connecting part 24 is a rod-shaped structure with a blind hole, and the fixed support member 3 is a long rod matched with the blind hole of the rod-shaped structure.

2, the inflatable member A11 is an arc-shaped trachea, and the inflatable member B12 is an annular trachea; the number of connecting assemblies 2 is two, and the two connecting assemblies 2 are respectively arranged on the left and right sides of the arc-shaped trachea and the annular trachea. place.

Referring to FIG. 10 , a front transparent windshield fabric 5 is also installed at the front of the main inflatable frame 1 , and the front transparent windshield fabric 5 is attached to the left and right fixed support members 3 on both sides. The front transparent windshield fabric 5 can block the wind from the front of the vehicle when traveling, and attaching it to the fixed support member 3 can improve the stability of its installation, thereby improving the wind pressure resistance of the front transparent windshield fabric 5 .

The main inflatable frame 1 is a double-layer design, the inner layer is a sealed inner bladder layer, and the outer layer is a protective coat; and the protective coat can be disassembled and replaced. In order to reduce the probability that the inflatable frame 1 of the double-layer design will not be damaged when it is punctured by a sharp object, in this embodiment, a connecting seam is opened on the protective outer garment, and the sealed inner bladder layer is detachable through the connecting seam. It is arranged inside the protective outerwear, and the protective outerwear can be replaced independently after the protective outerwear is damaged without damaging the inner liner.

The fixed support member 3 includes an upper support rod 31 and a lower installation foot bracket 32; the top of the support rod 31 is connected with the bracket connecting part 23, and the bottom of the support rod 31 is connected with the top of the installation foot bracket 32 through an adjusting nut 33; The upper part is a straight rod; the support rod 31 is a telescopic rod. The retractable support rod 31 can adjust the height of the main inflatable frame 1 by changing the length of the fixed support member 3 for different vehicle models, thereby improving the applicability of the device.

Referring to FIGS. 11 to 39 , the present embodiment also discloses a variety of schematic diagrams of variant structures for the connecting assembly 2 ; the main inflatable supporting members with different structural features are improved designs.

The above embodiments are only used to illustrate the technical solutions of the present invention and not to limit them. Although the present invention has been described in detail with reference to the preferred embodiments, those of ordinary skill in the art should understand that the technical solutions of the present invention can be modified or Equivalent replacement, without departing from the purpose and scope of the technical solution, should be included in the scope of the claims of the present invention.

Claims (11)

1. A new type of portable inflatable awning for electric bicycles and a connecting assembly, comprising a main inflatable frame (1), a canopy cloth (4) covering the main inflatable frame (1), and on the main inflatable frame (1) A valve is also provided; it is characterized in that: the main inflatable frame (1) includes an inflatable member A (11); the inflatable member A (11) is connected with the inflatable member B (12) through a connecting assembly (2); the connecting assembly (2) It includes a fixed connector C (21) and a fixed connector D (22) respectively installed on the inflatable member A (11) and the inflatable member B (12); also includes the connection of the fixed connector C (21) and the fixed connector D The combined connecting part (23) of (22); a bracket connecting part (24) is provided on the combined connecting part (23). 2. A new type of portable inflatable awning for electric bicycle and its connecting assembly according to claim 1, characterized in that: the fixed connecting piece C (21) and the fixed connecting piece D (22) are respectively installed on the connecting parts (25) on the On the inflatable member A (11) and the inflatable member B (12). 3. A new type of portable inflatable awning for electric bicycles and a connecting assembly according to claim 1, characterized in that: the fixed connecting piece C (21) and the fixed connecting piece D (22) are block-shaped structures, and the said The two ends of the bar-shaped structure are respectively installed on the inflatable members; the fixed connecting part C (21) and the fixed connecting part D (22) of the bar-shaped structure are cross-installed through the combined connecting part (23). 4. A new type of portable inflatable canopy for electric bicycle and its connecting assembly according to claim 1, characterized in that: any one between the fixed connecting piece C (21) or the fixed connecting piece D (22) and the combined connecting part ( 23) and the bracket connecting part (24) are integral structure. 5. A new type of portable inflatable canopy for electric bicycle and its connecting assembly according to claim 1, characterized in that: the fixed connecting part C (21), the fixed connecting part D (22) and the combined connecting part (23) are integrated structure. 6. A new type of portable inflatable awning and connecting assembly for electric bicycles according to claim 1 or 5, characterized in that: it further comprises a fixed support member (3); the fixed support member (3) is connected by a bracket (24) Installed on the combined connection part (23). 7. A new type of portable inflatable canopy for electric bicycle and its connecting assembly according to claim 1, characterized in that the combination connecting part (23) and the bracket connecting part (24) are detachably installed. 8. A new type of portable inflatable awning for electric bicycle and its connecting assembly according to claim 1, characterized in that: the inflatable member A (11) is an arc-shaped trachea, and the inflatable member B (12) is an annular trachea; the connecting assembly ( 2) The number is two, and the two connecting assemblies (2) are respectively arranged at the junctions of the arc-shaped trachea and the left and right sides of the annular trachea. 9. A new type of portable inflatable awning for electric bicycle and its connecting assembly according to claim 8, characterized in that: a front transparent windshield fabric (5) is also installed on the front part of the main inflatable frame (1), and the Both sides of the front transparent windshield fabric (5) are attached and installed on the fixed support member (3). 10. A new type of portable inflatable awning and connecting assembly for electric bicycles according to claim 1, characterized in that: the main inflatable frame (1) is a double-layer design, the inner layer is a sealed inner bladder layer, and the outer layer is a protective coat ; And the protective coat can be disassembled and replaced. 11. A new type of portable inflatable canopy for electric bicycle and its connecting assembly according to claim 6, characterized in that: the fixed support member (3) comprises an upper support rod (31) and a lower mounting foot (32); The top of the support rod (31) is connected with the combined connecting part (23), and the bottom of the support rod (31) is connected with the top of the mounting bracket (32) through an adjusting nut (33); the upper part of the mounting bracket (32) is a straight rod; the support rod ( 31) is a telescopic rod.
