Abstract
The utility model discloses a vacuum condensation reation kettle contains a jar body and lid, the jar wall inside of the jar body is equipped with hollow grease chamber, the bottom of the jar body is equipped with the business turn over material pipe that is linked together with jar internal portion and advances oil pipe that is linked together with grease chamber, and the upper portion of the jar body is equipped with the row oil pipe that is linked together with grease chamber, installs the agitator on the lid, and the paddle of the axostylus axostyle bottom installation of agitator is located the lid below, is equipped with vacuum tube and condenser on the lid, the hot exchange pipe and the lid of condenser are linked together. The utility model discloses with condenser, evacuation pipe, thermometer, pressure gauge, agitator all integrated to the lid on, very big increase the space in the reation kettle, adopt the ordinary pressure negative pressure to carry out feeding and ejection of compact, simple structure is compact.
Description
Technical Field
The utility model relates to a reation kettle equipment field, in particular to vacuum condensation reation kettle.
Background
The application of reation kettle in fields such as food, medicine, chemical industry is very extensive, and traditional reation kettle is a container usually, and inside is equipped with agitating unit, sets up feed inlet and discharge gate on the reation kettle body, and the conventional setting sets up the feed inlet in reation kettle's upper portion, and the discharge gate sets up in reation kettle's lower part, and condensation equipment all sets up inside reation kettle in addition, occupies very big space.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem that overcome prior art's defect, provide a vacuum condensation reation kettle, simple structure, rationally distributed, very big promotion reation kettle's inner space.
The technical scheme of the utility model:
the utility model provides a vacuum condensation reation kettle, contains a jar body and lid, the jar of the jar body is inside to be equipped with hollow grease chamber, the bottom of the jar body is equipped with the business turn over material pipe that is linked together with jar internal portion and advances oil pipe that is linked together with grease chamber, and the upper portion of the jar body is equipped with the oil extraction pipe that is linked together with grease chamber, installs the agitator on the lid, and the paddle of the axostylus axostyle bottom installation of agitator is located the lid below, is equipped with evacuation pipe and condenser on the lid, the hot exchange pipe and the lid.
Furthermore, the heat exchange tube is a straight tube and is positioned in the condenser, and the bottom of the heat exchange tube is communicated with the inside of the reaction kettle.
Further, the condenser is a water-cooled condenser, the condenser is vertically installed on the cover body, the water inlet pipe is located at the lower portion of the condenser, the water outlet pipe is located at the upper portion of the condenser, and the water circulation is formed by the water inlet pipe, the water outlet pipe and the water cooler.
Furthermore, the vacuum pumping pipe is provided with a three-way pipe, is connected with an air valve and is then connected with an air filter.
Furthermore, a hanging lug is arranged on the cover body, a crane is arranged on the cover body, and the crane is connected with the cover body through a lifting rope and the hanging lug.
Furthermore, a feeding port is arranged on the cover body, and a sealing cover is arranged on the feeding port.
Furthermore, a thermometer is arranged on the cover body.
Furthermore, a pressure gauge is arranged on the cover body.
Compared with the prior art, the utility model has the advantages that the feeding and discharging pipe arranged at the bottom of the tank body is matched with the vacuum-pumping pipe, feeding and discharging are carried out by means of negative pressure and normal pressure, the condensing pipe is arranged above the cover body, water vapor rises to enter the heat exchange pipe, and after condensation, the water vapor drips downwards and returns to the reaction kettle, and the circulating hot oil is adopted for heating, so that the temperature and the temperature stability of the reaction kettle can be effectively controlled, and the vacuum-pumping pipe is used for pumping the interior of the reaction kettle into a vacuum condition under certain special reactions; the utility model integrates the condenser, the vacuum-pumping tube, the thermometer, the pressure gauge and the stirrer on the cover body, greatly increases the space in the reaction kettle, adopts the normal pressure negative pressure to feed and discharge materials, and has simple and compact structure; the heat exchange pipe is a straight pipe which is beneficial to the rising of vapor and the design of circulating cooling water with a lower inlet and a higher outlet, and is beneficial to the condensation of condensed water, and the key point is that the condenser is far away from the reaction kettle and can not conflict with a heating device to influence the heating efficiency; the vacuumizing tube is connected with the tee joint and then connected with the air filter, when the reaction kettle recovers to normal pressure, the air valve is directly opened after the vacuumizing is closed, the normal pressure is rapidly recovered, and the filtered air does not influence and pollute substances in the reaction kettle; the cover body can be quickly lifted by the hangers and the crane, so that the maintenance and the cleaning are convenient; the pressure gauge and the thermometer can observe the pressure and the temperature in the reaction kettle in real time.
Drawings

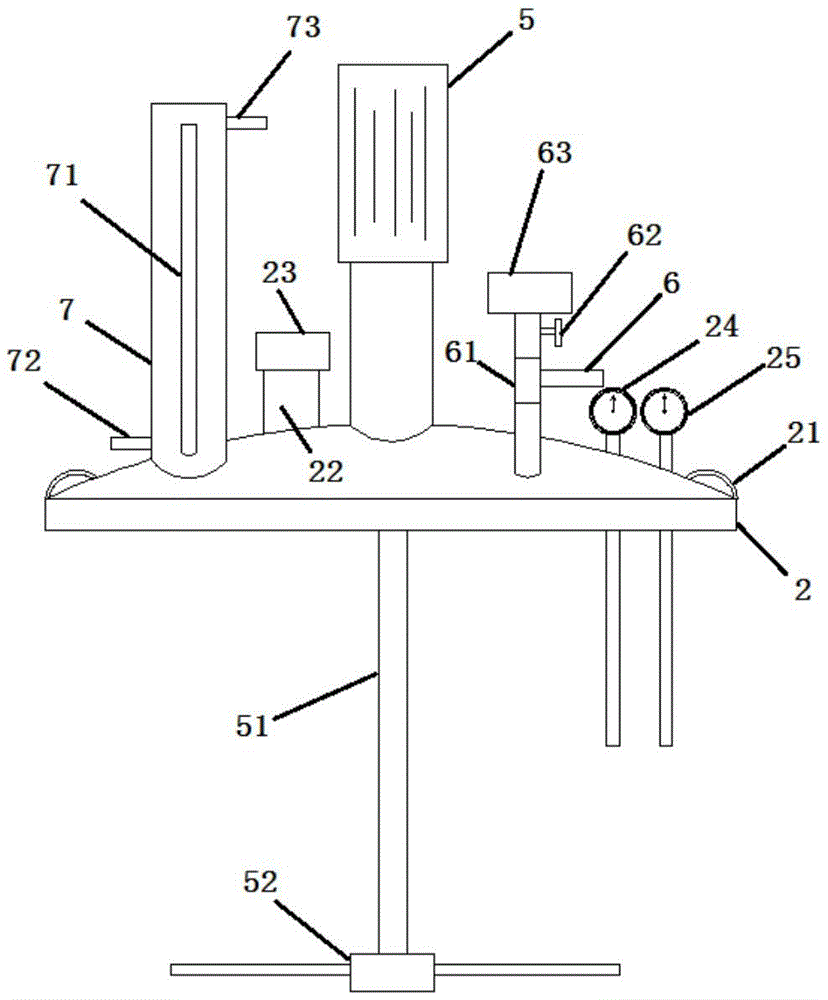

FIG. 1 is a schematic view of the cover structure of the present invention;
fig. 2 is a schematic view of the tank structure of the present invention.
Detailed Description
The following describes in detail embodiments of the present invention with reference to the accompanying drawings.
Example 1:
a vacuum condensation reaction kettle comprises a tank body 1 and a cover body 2, wherein a hollow oil chamber 11 is arranged inside the wall of the tank body 1, a feeding and discharging pipe 3 communicated with the inside of the tank body and an oil inlet pipe 41 communicated with the oil chamber 11 are arranged at the bottom of the tank body 1, an oil discharging pipe 42 communicated with the oil chamber 11 is arranged at the upper part of the tank body 1, a stirrer 5 is arranged on the cover body 2, a paddle 52 arranged at the bottom of a shaft lever 51 of the stirrer 5 is positioned below the cover body 2, a vacuumizing pipe 6 and a condenser 7 are arranged on the cover body 2, and a heat exchange pipe 71 of the condenser 7 is communicated with the cover body 2.
Further, the heat exchange tube 71 is a straight tube and is positioned in the condenser 7, and the bottom of the heat exchange tube 71 is communicated with the inside of the reaction kettle.
Further, the condenser 7 is a water-cooled condenser, the condenser 7 is vertically installed on the cover body, the water inlet pipe 72 is located at the lower portion of the condenser 7, the water outlet pipe 73 is located at the upper portion of the condenser 7, and the water inlet pipe 72, the water outlet pipe 73 and the water cooling machine form a water circulation.
Furthermore, the vacuum tube 6 is provided with a three-way pipe 61, connected with an air valve 62 and then connected with an air filter 63.
Furthermore, a hanging lug 21 is arranged on the cover body 2, and a crane is arranged on the cover body 2 and connected with the cover body 2 through a lifting rope and the hanging lug. The design that the cover body is fixed and the tank body moves up and down can also be adopted. This embodiment adopts the fixed jar of body, removes the lid.
Further, a material charging port 22 is provided on the lid body 2, and a sealing cover 23 is provided on the material charging port 22.
Further, a thermometer 24 is provided on the cover 2.
Further, a pressure gauge 25 is arranged on the cover body 2.
Compared with the prior art, the utility model has the advantages that the feeding and discharging pipe arranged at the bottom of the tank body is matched with the vacuum-pumping pipe, feeding and discharging are carried out by means of negative pressure and normal pressure, the condensing pipe is arranged above the cover body, water vapor rises to enter the heat exchange pipe, and after condensation, the water vapor drips downwards and returns to the reaction kettle, and the circulating hot oil is adopted for heating, so that the temperature and the temperature stability of the reaction kettle can be effectively controlled, and the vacuum-pumping pipe is used for pumping the interior of the reaction kettle into a vacuum condition under certain special reactions; the utility model integrates the condenser, the vacuum-pumping tube, the thermometer, the pressure gauge and the stirrer on the cover body, greatly increases the space in the reaction kettle, adopts the normal pressure negative pressure to feed and discharge materials, and has simple and compact structure; the heat exchange pipe is a straight pipe which is beneficial to the rising of vapor and the design of circulating cooling water with a lower inlet and a higher outlet, and is beneficial to the condensation of condensed water, and the key point is that the condenser is far away from the reaction kettle and can not conflict with a heating device to influence the heating efficiency; the vacuumizing tube is connected with the tee joint and then connected with the air filter, when the reaction kettle recovers to normal pressure, the air valve is directly opened after the vacuumizing is closed, the normal pressure is rapidly recovered, and the filtered air does not influence and pollute substances in the reaction kettle; the cover body can be quickly lifted by the hangers and the crane, so that the maintenance and the cleaning are convenient; the pressure gauge and the thermometer can observe the pressure and the temperature in the reaction kettle in real time.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. The present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only for illustrating the principle of the present invention, and the present invention will have various changes and improvements without departing from the spirit and scope of the present invention, and these changes and improvements all fall into the scope of the present invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (8)
1. A vacuum condensation reaction kettle is characterized in that: contain a jar body and lid, the inside hollow grease chamber that is equipped with of jar wall of the jar body, the bottom of the jar body is equipped with the business turn over material pipe that is linked together with jar internal portion and advances oil pipe that is linked together with grease chamber, and the upper portion of the jar body is equipped with the oil extraction pipe that is linked together with grease chamber, installs the agitator on the lid, and the paddle of the axostylus axostyle bottom installation of agitator is located the lid below, is equipped with evacuation pipe and condenser on the lid, the hot exchange pipe of condenser is linked together.
2. A vacuum condensation reactor as defined in claim 1, wherein: the heat exchange tube is a straight tube and is positioned in the condenser, and the bottom of the heat exchange tube is communicated with the inside of the reaction kettle.
3. A vacuum condensation reactor as claimed in claim 1 or 2, wherein: the condenser is a water-cooled condenser, the condenser is vertically installed on the cover body, the water inlet pipe is located at the lower portion of the condenser, the water outlet pipe is located at the upper portion of the condenser, and the water circulation is formed by the water inlet pipe, the water outlet pipe and the water cooler.
4. A vacuum condensation reactor as defined in claim 1, wherein: the vacuum pumping pipe is provided with a three-way pipe, is connected with an air valve and then is connected with an air filter.
5. A vacuum condensation reactor as defined in claim 1, wherein: the cover body is provided with a hanging lug, the cover body is provided with a crane, and the crane is connected with the cover body through a lifting rope and the hanging lug.
6. A vacuum condensation reactor as defined in claim 1, wherein: the cover body is provided with a feeding port which is provided with a sealing cover.
7. A vacuum condensation reactor as defined in claim 1, wherein: and a thermometer is arranged on the cover body.
8. A vacuum condensation reactor as defined in claim 1, wherein: the cover body is provided with a pressure gauge.
